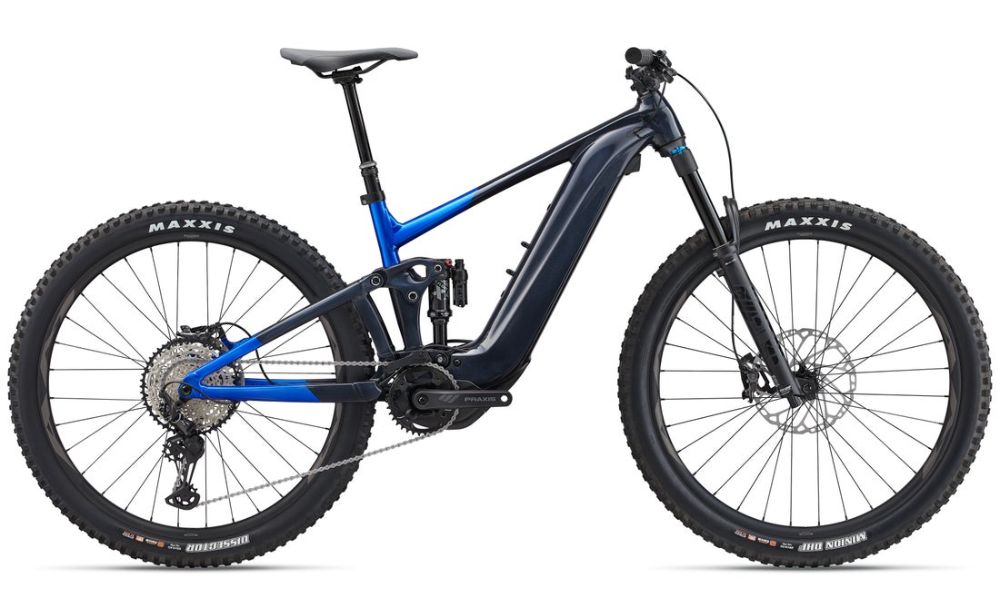

    Giant 2023 Trance X E+ 1

    Faster up the climbs, longer loops, more singletrack fun on any given day. Free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding E-bike.

    High-performance SyncDrive Pro motor delivers 85Nm of torque and 360 percent tunable support. The lightweight and durable ALUXX SL aluminium frameset features 140mm of rear suspension travel (with 150mm up front) and a flip chip that lets you adjust frame geometry. Integrated RideControl Go and RideControl Ergo 3 units offer clean, simple control buttons, and the EnergyPak Smart 800Wh battery system increases range by up to 20 percent.

    Smooth, powerful support

    SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.

    Trail-riding control

    Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.

    Adaptable to the terrain

    Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

    Giant 2023 Trance X E+ 1

    Frame

    Colour: Cold Night
    Frame: ALUXX SL-Grade Aluminium, 140mm Maestro Suspension, flip chip, UDH hanger 12x148mm thru-axle Giant EnergyPak Plus Range Extender Compatible
    Fork: Fox 36 Float Performance, 150mm travel, 44mm offset, Grip Damper, Boost 110x15QR, e-optimised
    Shock: Fox Float X Performance, EVOL Large Volume sleeve, 3-Pos Lever, custom tuned

    Drivetrain

    Crankset: Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
    Pedals:
    Chain: KMC e.12 Turbo, EcoProteq, e-bike optimised
    Bottom Bracket: NA
    Rear Derailleur: Shimano Deore XT, 12-speed, Shadow+
    Front Derailleur: MRP HD2 co-moulded chain guide
    Derailleur Shifter: Shimano Deore XT
    Freewheel/Cassette: Shimano CS-M7100-12, 10-51T, 12-speed
    Drive Unit: SyncDrive Pro, 85Nm, powered by Yamaha

    Wheels

    Tyres: [F] Maxxis Minion DHF 29x2.6"foldable, Tubeless, EXO+, 3C MaxxTerra [R] Maxxis Dissector 29x2.6"foldable, Tubeless, EXO+, 3C MaxxTerra
    Wheels/Rims:Giant AM 29", Tubeless ready
    Hubs: Shimano MT410 Boost, Center-Lock

    Braking System

    Brakes: Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc [F] 220mm, [R] 203mm
    Brake Levers: Shimano Deore XT, I-spec EV

    Other

    Handlebar: Giant Contact TR35, alloy, 35mm
    Stem: Giant Contact SL 35
    Saddle: Giant Romero Trail
    Seat Post: TranzX travel-adjustable dropper, remote
    Battery: EnergyPak Smart 800Wh EnergyPak Plus range extender compatible
    Charger: EnergyPak 6A smart charger
    Control: RideControl Ergo 3, grip integrated
    Display: RideControl GO, frame integrated LED displayANT+ Wireless display compatible

    Giant 2023 Trance X E+ 1

    bike diagram with measurements referenced in table that follows

        S M L XL
        LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
    A SEAT TUBE LENGTH (mm) 400 425 450 475
    B SEAT TUBE ANGLE 76,0° | 76,7° 76,0° | 76,7° 76,0° | 76,7° 76,0° | 76,7°
    C TOP TUBE LENGTH (mm) 577 | 575 610 | 605 637 | 635 667 | 665
    D HEAD TUBE LENGTH (mm) 95 100 110 120
    E HEAD TUBE ANGLE 65,7° | 66,5° 65,8° | 66,5° 65,8° | 66,5° 65,8° | 66,5°
    F FORK RAKE (mm) 44 44 44 44
    G TRAIL (mm) 117 | 122,4 117 | 122,4 117 | 122,4 117 | 122,4
    H WHEELBASE (mm) 1205 | 1206 1239 | 1237 1268 | 1269 1300 | 1301
    I CHAIN STAY LENGTH (mm) 473 | 473 473 | 473 473 | 473 473 | 473
    J BOTTOM BRACKET DROP (mm) 30 | 20 30 | 20 30 | 20 30 | 20
    K STACK (mm) 606 | 601 611 | 605 621 | 614 630 | 624
    L REACH (mm) 439 | 447 457 | 462 482 | 489 510 | 517
    M STAND OVER HEIGHT (mm) 783 | 789 775 | 784 763 | 770 775 | 782
    N HANDLEBAR WIDTH (mm) 780 780 780 780
    O STEM LENGTH (mm) 40 50 50 60
    P CRANK LENGTH (mm) 160 165 165 170
    Q WHEEL SIZE 29" 29" 29" 29"
    *Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

    *Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

    *Specialized Bicycles are available for home delivery nation wide.
