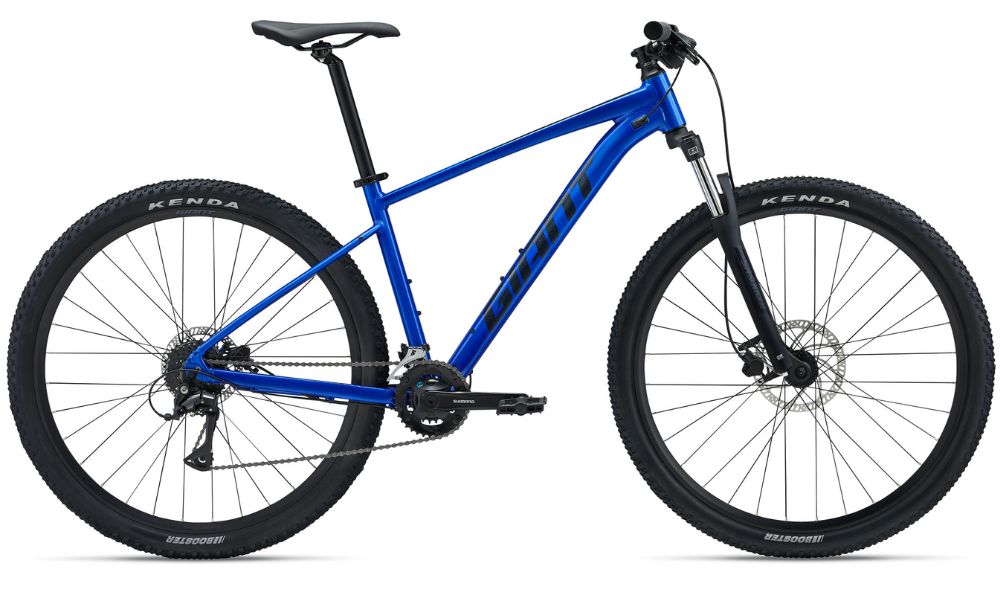

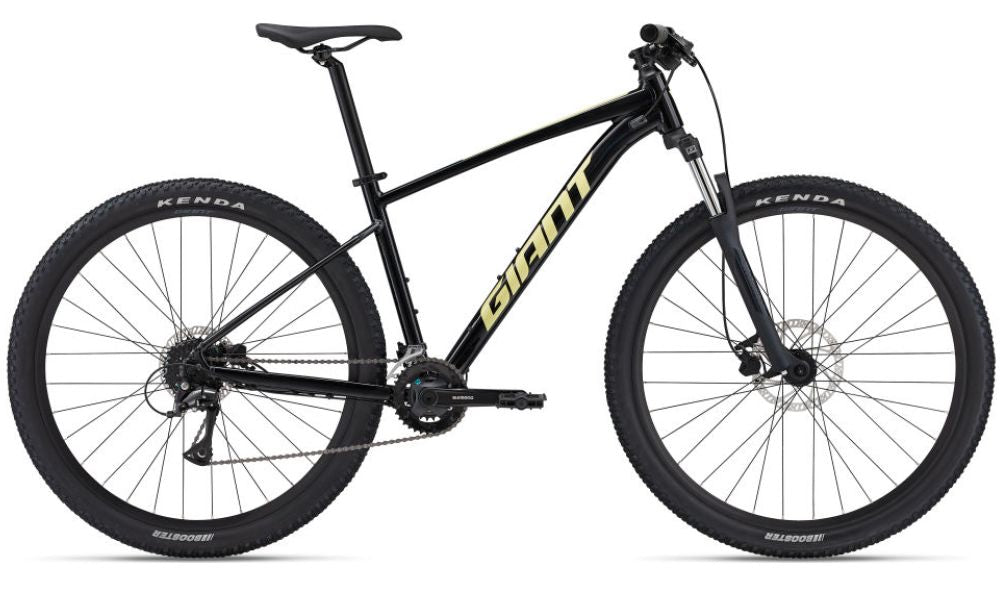

Giant 2024 Talon 3

PUSH THE PACE ON CLIMBS, LET LOOSE ON DESCENTS. THIS ALUMINUM HARDTAIL WITH A PLUSH SUSPENSION FORK DELIVERS BALANCED, CONFIDENT HANDLING ON THE TRAIL.

Proven alloy performance

ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.

Balance and stability

Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).

XC control

Suspension fork offers either 80mm or 100mm of smooth travel for added control on XC terrain.

Specifications

Giant 2024 Talon 3

Frame

Colour: Metallic Black, Cobalt
Frame: ALUXX-Grade aluminium, disc
Fork: SR Suntour XCE, QR, alloy steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)
Shock: NA

Drivetrain

Crankset: Shimano FC-M315, 22/36 XS: 170mm (27.5) S: 170mm (27.5) / 170mm (29) M: 175mm (29), L: 175mm (29) XL: 175mm (29)
Pedals:
Chain: KMC 8.3
Bottom Bracket: Cartridge
Rear Derailleur: Shimano Altus M310
Front Derailleur: microSHIFT FD-M282
Derailleur Shifter: microSHIFT TS39, 2x8
Freewheel/Cassette: Shimano Deore HG200, 12x32

Wheels

Tyres: [F] and [R] Kenda Booster 27.5 or 29x2.2", wire bead
Wheels/Rims: Giant GX03V 29 or 27.5, alloy, double wall
Hubs: Alloy, sealed

Braking System

Brakes: Tektro HDM275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro HDM275

Other

Handlebar: Giant Connect Trail, 31.8mm
Stem: Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
Saddle: Giant
Seat Post: Giant Sport, 30.9mm

Geometry

Giant 2024 Talon 3

		S (29")	M (29")	L (29")	XL (29")	XXL (29")	XS (27.5")	S (27.5")	M (27.5")	L (27.5")
A	SEAT TUBE LENGTH (mm)	390	440	490	535	565	350	385	430	490
B	SEAT TUBE ANGLE	74.0°	74.0°	74.0°	74.0°	74.0°	74.0°	74.0°	74.0°	74.0°
C	TOP TUBE LENGTH (mm)	577	599	620	639	658	544	569	597	618
D	HEAD TUBE LENGTH (mm)	95	105	125	140	155	95	115	130	155
E	HEAD TUBE ANGLE	68.5°	68.5°	68.5°	68.5°	68.5°	67.5°	67.5°	67.5°	67.5°
F	FORK RAKE (mm)	51	51	51	51	51	42	42	42	42
G	TRAIL (mm)	94.0	94.0	94.0	94.0	94.0	103.0	103.0	103.0	103.0
H	WHEELBASE (mm)	1126	1150	1172	1192	1213	1079	1106	1137	1162
I	CHAIN STAY LENGTH (mm)	455	455	455	455	455	440	440	440	440
J	BOTTOM BRACKET DROP (mm)	55	55	55	55	55	45	45	45	45
K	STACK (mm)	602	611	630	644	658	533	571	598	621
L	REACH (mm)	404	424	439	454	469	385	405	425	440
M	STAND OVER HEIGHT (mm)	732	766	805	839	856	686	711	748	794
N	HANDLEBAR WIDTH (mm)	780	780	780	780	780	780	780	780	780
O	STEM LENGTH (mm)	50	60	70	80	90	40	50	60	70
P	CRANK LENGTH (mm)	170	175	175	175	175	165	170	175	175
Q	WHEEL SIZE	29	29	29	29	29	27	27	27	27
Q	WHEEL SIZE	29	29	29	29	29	27	27	27	27
