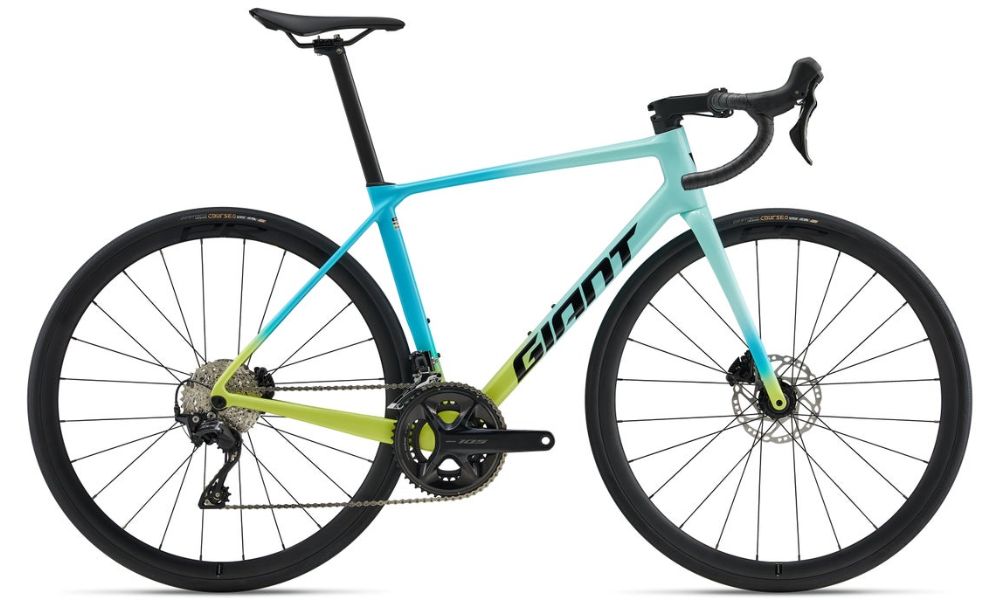

Giant 2026 TCR Advanced 2-PC
Please contact store for availability on 04 589 2822 or support@cyclescience.co.nz
Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.
Class-leading efficiency
A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tire pressures for increased grip and a reduced risk of punctures.
Giant 2026 TCR Advanced 2-PC
Frame
Size: S, M, ML, L, XL
Colour: Capri Blue
Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Shock:
Drivetrain
Crankset: Shimano 105, 36/52 S:165mm, M:170mm, M/L:170mm, L:172.5mm
Pedals:
Chain: KMC X12L-1
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano 105
Front Derailleur: Shimano 105
Derailleur Shifter: Shimano 105
Freewheel/Cassette: Shimano 105, 12-speed, 11x34
Braking System
Brakes: Shimano 105 hydraulic, Shimano SM-RT64 rotors [F]160mm, [R]140mm
Brake Levers: Shimano 105 hydraulic
Wheels
Tyres: Giant Gavia Course 0, tubeless, 700x28c (28mm), folding
Wheels/Rims: Giant P-R1, [F]30mm, [R]30mm
Hubs: 12mm thru-axle
Other
Handlebar: Giant Contact S:38cm, M:40cm, M/L:40cm, L:42cm
Stem: Giant Contact AeroLight S:90mm, M:100mm, M/L:110mm, L:110mm
Seat Post: Giant Variant, composite, -5/+15mm offset
Saddle: Giant Approach
Giant 2026 TCR Advanced 2-PC
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A Seat Tube Length (mm) | 425 | 445 | 470 | 500 | 530 | 560 |
| B Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C Top Tube Length (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| D Head Tube Length (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| E Head Tube Angle | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| G Trail (mm) | 72.1 | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
| H Wheelbase (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I Chain Stay Length (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| J Bottom Bracket Drop (mm) | 72 | 70 | 70 | 67 | 67 | 67 |
| K Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| L Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| M Stand Over Height (mm) | 719 | 734 | 752 | 768 | 786 | 803 |
| O Stem Length (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| P Crank Length (mm) | 165 | 165 | 170 | 170 | 172.5 | 172.5 |
