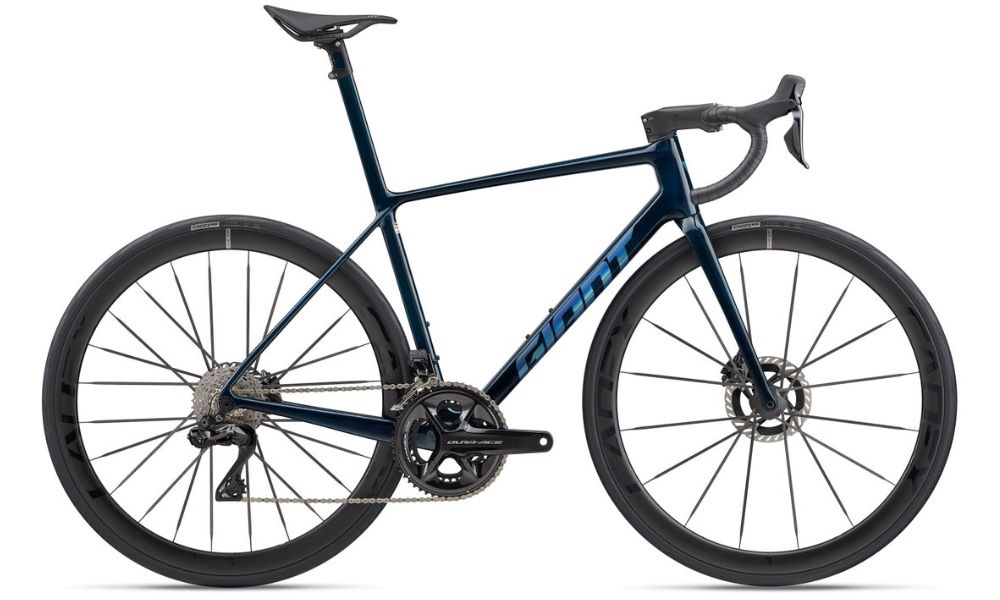

Giant 2026 TCR Advanced SL 0-DA
Please contact store for availability on 04 589 2822 or support@cyclescience.co.nz
From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.
SYSTEM OPTIMIZATION
The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup
WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.
INTEGRATED AERODYNAMICS
From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.
Giant 2026 TCR Advanced SL 0-DA
Frame
Size: M, ML, L
Colour: Mariana Blue
Frame: Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc
Fork: Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock:
Drivetrain
Crankset: Shimano Dura-Ace FC-R9200, 36/52 S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Pedals:
Chain: Shimano CN-M9100
Bottom Bracket: Cema Ceramic, press fit
Rear Derailleur: Shimano Dura-Ace Di2 RD-R9250
Front Derailleur: Shimano Dura-Ace Di2 FD-R9250
Derailleur Shifter: Shimano Dura-Ace Di2 ST-R9270
Freewheel/Cassette: Shimano Dura-Ace Di2 ST-R9270
Braking System
Brakes: Shimano Dura-Ace Di2 hydraulic, Shimano RT-CL900 rotors [F]160mm, [R]140mm
Brake Levers: Shimano Dura-Ace Di2
Wheels
Tyres: CADEX Race GC, tubeless, 700x30c (30mm), folding
Wheels/Rims: CADEX Max 40 WheelSystem, [F]40mm, [R]40mm
Hubs: [F] CADEX R3 Hub, CenterLock, 12mm thru-axle [R] CADEX R3-C48 Aero Hub, 48t ratchet driver, CenterLock, 12mm thru-axle
Other
Handlebar: Giant Contact SLR S:37/42cm, M:39/44cm, M/L:39/44cm, L:39/44cm, XL:39/44cm
Stem: Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seat Post: Advanced SL-Grade composite, integrated design, -5/+15mm offset
Saddle: CADEX AMP
Giant 2026 TCR Advanced SL 0-DA
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A Seat Tube Length (mm) | 680 | 710 | 740 | 770 | 800 | 830 |
| B Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C Top Tube Length (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| D Head Tube Length (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| E Head Tube Angle | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| G Trail (mm) | 72.1 | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
| H Wheelbase (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I Chain Stay Length (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| J Bottom Bracket Drop (mm) | 72 | 70 | 70 | 67 | 67 | 67 |
| K Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| L Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| M Stand Over Height (mm) | 719 | 734 | 752 | 768 | 786 | 803 |
| O Stem Length (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| P Crank Length (mm) | 165 | 165 | 170 | 170 | 172.5 | 172.5 |
