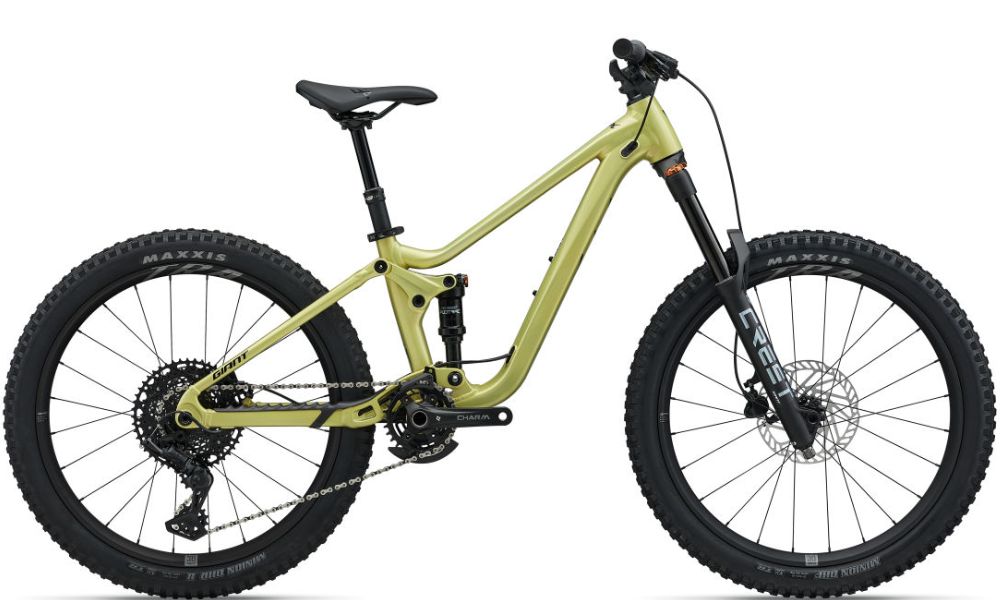

Giant 2027 Faith 24-Giant
Small but mighty, this highly capable new trail bike is made for little rippers with big ambitions. With a lightweight alloy frame, 24-inch wheels, and youth-tuned suspension, it balances efficient climbing, loads of traction, and confident handling to help young riders take it to the next level.
YOUTH-TUNED SUSPENSION
FlexPoint rear suspension with a Crest FloTrac Lite shock delivers 130mm of smooth travel tuned specifically for lighter weight riders. Up front, the 140mm Crest TR Elite fork handles rocks, roots and ruts. Front and rear suspension both have minimal activating force, giving young riders smooth control and confidence on technical trails.
AGILE AND EFFICIENT
An ALUXX SL aluminum frameset with youth-specific trail geometry is combined with quality lightweight components to minimize weight and help young riders tackle challenging terrain. A new 24-inch TRA WheelSystem borrows key technologies from the proven adult TRA WheelSystem for improved climbing capabilities and quicker acceleration.
OFF-ROAD CONTROL
Giant TRA WheelSystem features WideGuard technology, resulting in lighter, stronger rims so riders can run lower tire pressures for better traction without the risk of tire punctures or rim damage. The youth-specific 24-inch wheels help smaller riders maneuver and tackle technical trails, while a dropper seatpost makes it easy to optimize riding position while climbing or descending.
Giant 2027 Faith 24-Giant
Frame
Size: 24
Colour: Cyber Lime
Frame: ALUXX SL-grade aluminum front and rear triangles, 130mm FlexPoint suspension, 24-inch rear wheel compatible
Fork: Giant CREST TR, 140mm, FLOTUNE damper, 24-inch wheel compatible, custom "light weight" tune
Shock: Giant CREST FLOTRAC Lite, 165/45, trunnion mount, custom "light weight" tune
Drivetrain
Crankset: ProWheel CHARM, 30t, 140m
Pedals:
Chain: KMC X10
Bottom Bracket: Press Fit
Rear Derailleur: MicroSHIFT Advent X
Front Derailleur:
Derailleur Shifter: MicroSHIFT Advent X, 1x10
Freewheel/Cassette: MicroSHIFT Advent X, G-Series, 11x48
Braking System
Brakes: Tektro HD-J2820, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro HD-J2820
Wheels
Tyres: [F] Maxxis Minion DHF, 24x2.4, 60 tpi [R] Maxxis Minion DHR II, 24x2.3, 60 tpi
Wheels/Rims: Giant TRA WheelSystem, aluminum, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology, [F] 24-inch, [R] 24-inch
Hubs: [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), 6-bolt, MicroDrive driver body
Other
Handlebar: Giant Connect TR, alloy, 740mm, 20mm rise
Stem: Giant Contact, 8-degree, 40mm
Seat Post: Contact Switch AT Lite dropper, remote, 100mm travel, 30.9mm
Saddle: Selle Royal Vivo Jr.
Giant 2027 Faith 24-Giant
-
- One Size
-
130 cm
150 cm
| One Size | |
|---|---|
| A Seat Tube Length (mm) | 320 |
| A1 Seat Post Insertion Depth (mm) | 258 |
| B Seat Tube Angle | 77.0° |
| C Top Tube Length (mm) | 500 |
| D Head Tube Length (mm) | 105 |
| E Head Tube Angle | 64.5° |
| F Fork Rake (mm) | 30 |
| G Trail (mm) | 119.2 |
| H Wheelbase (mm) | 1054 |
| I Chain Stay Length (mm) | 390 |
| J Bottom Bracket Drop (mm) | |
| K Stack (mm) | 535 |
| L Reach (mm) | 377 |
| M Stand Over Height (mm) | 641 |
| O Stem Length (mm) | 40 |
| P Crank Length (mm) | 140 |
