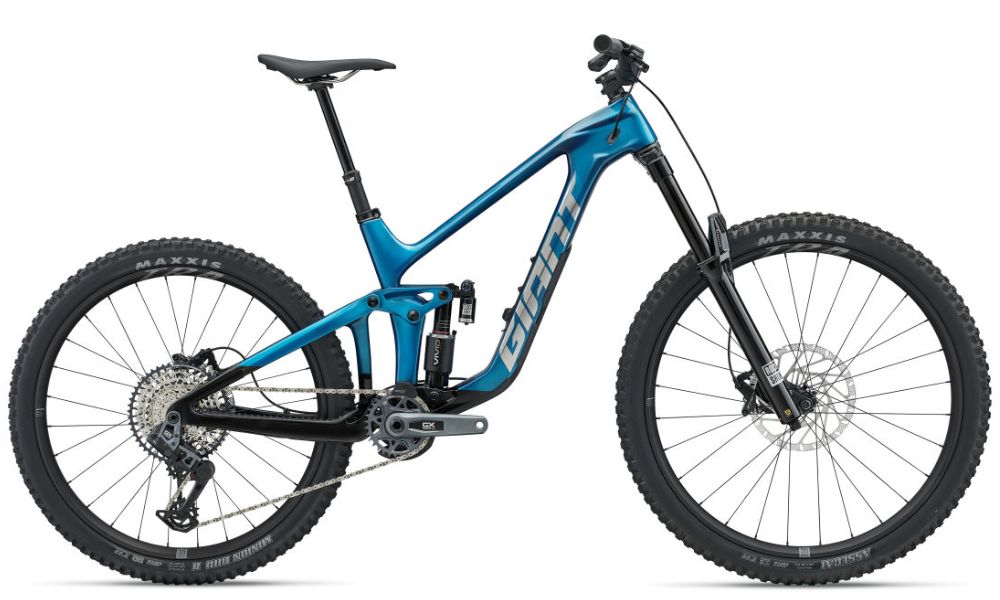

Giant 2027 Reign Advanced
Giant 2027 Reign Advanced
Frame
Size: M, L and XL
Colour: Luminous Lagoon
Frame: Advanced-grade composite front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated down tube storage
Fork: RockShox Zeb Ultimate, Charger 3.2 RC2 damper, 170mm, 15x110, Maxle Stealth, Debonair
Shock: RockShox Vivid Ultimate, RCT2, adjustable hydraulic bottom out, trunnion mount, 205/65 S:425#, M:425#, L:450#, XL: 475#
Drivetrain
Crankset: SRAM GX Eagle Transmission, DUB, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Pedals:
Chain: SRAM GX Eagle Transmission
Bottom Bracket: SRAM DUB, Press Fit
Rear Derailleur: SRAM GX AXS Transmission
Front Derailleur:
Derailleur Shifter: SRAM AXS Pod, 1x12
Freewheel/Cassette: SRAM GX Eagle Transmission, 10x52
Braking System
Brakes: TRP EVO Pro, hydraulic, TRP rotors [F]220mm, [R]203mm
Brake Levers: TRP EVO Pro
Wheels
Tyres: [F] Maxxis Assegai 29x2.5 WT, MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, MaxxTerra, DD, TR tubeless
Wheels/Rims: Giant TRA WheelSystem, 6069 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology
Hubs: [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 72 POE (Points of Engagement), 6-bolt, XD driver body
Other
Handlebar: Giant Contact TR35, 800x35mm, 35mm rise
Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Seat Post: Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle: Giant Romero SL
Giant 2027 Reign Advanced
-
- S
-
163 cm
172 cm
-
- M
-
171 cm 180 cm
-
- L
-
179 cm 188 cm
-
- XL
-
187 cm 198 cm
| S | M | L | XL | |
|---|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | |
| A Seat Tube Length (mm) | 400 | 425 | 450 | 475 |
| A1 Seat Post Insertion Depth (mm) | 262 | 287 | 312 | 337 |
| B Seat Tube Angle | 77.5° | 77.8° | 78.2° | 77.5° | 77.8° | 78.2° | 76.5° | 76.9° | 77.2° | 76.5° | 76.9° | 77.2° |
| C Top Tube Length (mm) | 558 | 557 | 556 | 589 | 588 | 587 | 622 | 621 | 621 | 654 | 653 | 653 |
| D Head Tube Length (mm) | 100 | 105 | 115 | 120 |
| E Head Tube Angle | 62.7° | 63.0° | 63.4° | 62.7° | 63.0° | 63.4° | 62.7° | 63.1° | 63.4° | 62.7° | 63.1° | 63.4° |
| F Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G Trail (mm) | 147 | 144 | 141 | 147 | 144 | 141 | 147 | 144 | 141 | 147 | 144 | 141 |
| H Wheelbase (mm) | 1214 | 1213 | 1212 | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
| I Chain Stay Length (mm) | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
| J Bottom Bracket Drop (mm) | 29 | 24 | 19 | 29 | 24 | 19 | 29 | 24 | 19 | 29 | 24 | 19 |
| K Stack (mm) | 633 | 630 | 627 | 638 | 635 | 632 | 647 | 644 | 641 | 652 | 649 | 646 |
| L Reach (mm) | 418 | 421 | 426 | 448 | 452 | 456 | 468 | 471 | 476 | 499 | 503 | 507 |
| M Stand Over Height (mm) | 714 | 718 | 723 | 733 | 738 | 742 | 746 | 750 | 755 | 762 | 766 | 771 |
| O Stem Length (mm) | 40 | 40 | 40 | 40 |
| P Crank Length (mm) | 165 | 170 | 170 | 170 |
| Q Wheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |
*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.
*Specialized Bicycles are available for home delivery nation wide.
*AMFLOW Bicycles are available for purchase online, but MUST be collected from the store.
*TREK Bicycles are available for purchase online, but MUST be collected from the store.
