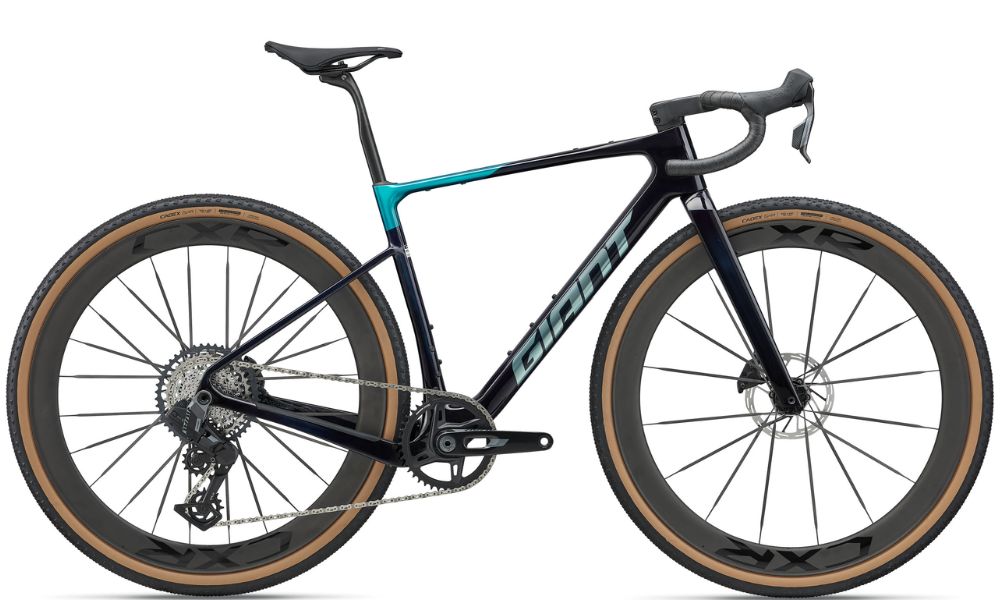

Giant 2027 Revolt Advanced SL 2
The lightest, fastest gravel race bike ever built by Giant. Engineered as a system to deliver a competitive edge over long, demanding gravel efforts, the new Revolt Advanced SL combines aero efficiency with smooth, precise handling, helping you hold speed when others fade.
ULTRALIGHT EFFICIENCY
The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro, while a new Contact SLR XR Integrated Handlebar, lighter WheelSystem, and CADEX GXR 45mm tires add up to a total system weight savings of 288g*. The lighter weight and wider tires result in more dynamic handling, faster acceleration, and greater climbing efficiency.
AERO SPEED OVER DISTANCE
Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimized for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Combined with new WheelSystems and tires designed as a single aerodynamic unit, the system delivers 18.99 watts of total resistance reduction versus the previous Revolt Advanced Pro. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.
RACE-TUNED GEOMETRY
With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimized for 45mm tires with 53mm maximum clearance, it’s purpose- built for modern gravel racing.
Giant 2027 Revolt Advanced SL 2
Frame
Size: XS, S, M, ML L, XL
Colour: Deep Lagoon
Frame: Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout
Fork: Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc
Shock:
Drivetrain

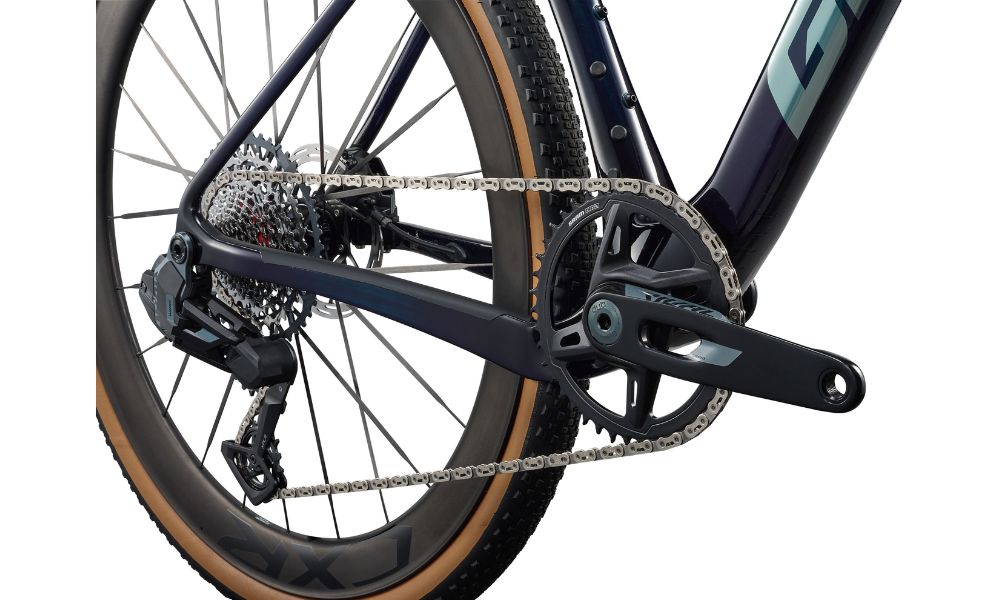

Crankset: SRAM Rival XPLR AXS with power meter, 42t XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Pedals:
Chain: SRAM Rival E1
Bottom Bracket: SRAM DUB, press fit

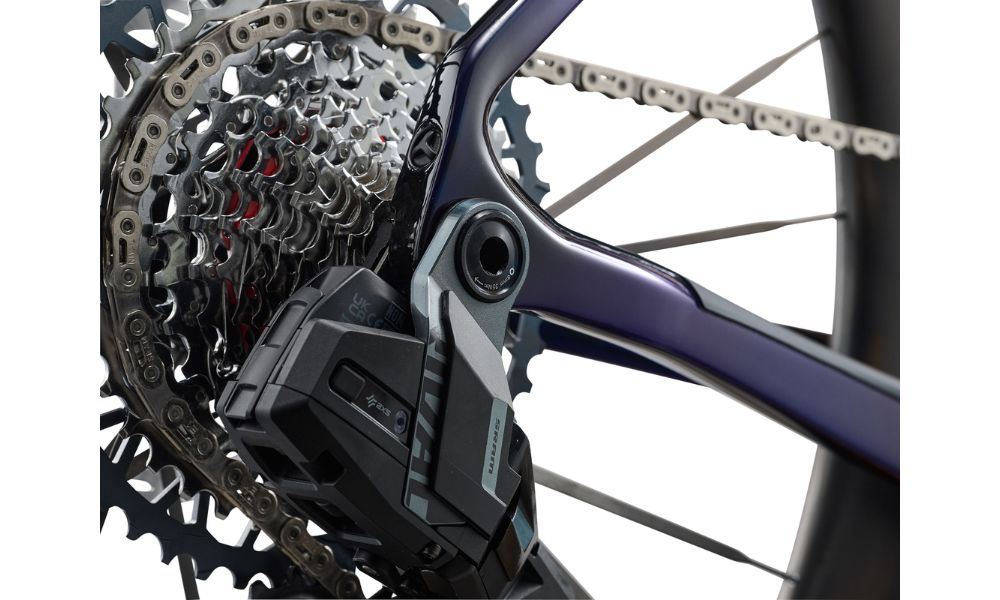

Rear Derailleur: SRAM Rival XPLR AXS E1
Front Derailleur:
Shifter: SRAM Rival AXS E1, 1x13
Freewheel/Cassette: SRAM Rival E1, 13-speed, 10x46
Braking System
Brakes: SRAM Rival AXS E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Brake Levers: SRAM Rival E1 hydraulic
Wheels
Tyres: [F] and [R] CADEX GXR, 700x45c, tubeless
Wheels/Rims: Giant CXR 0 WheelSystem, hookless, carbon [F] 50mm, [R] 50mm
Hubs: [F] Giant Low Friction Aero Hub, Center Lock [R] Giant Low Friction Aero Hub, 60-tooth ratchet driver, Center Lock
Other

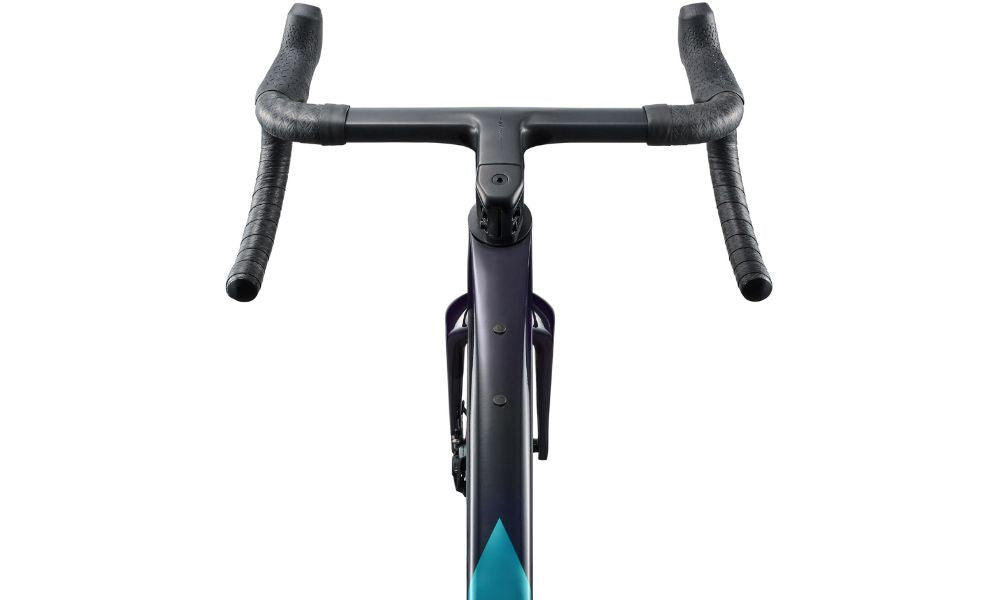

Handlebar: Giant Contact SLR XR Integrated XS:70x420mm, S:80x420mm, M:90x440mm, M/L:100x440mm, L:100x440mm, XL:110x460mm
Stem: Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110
Seat Post: Giant Contact SLR XR D-Fuse, composite, 20mm offset
Saddle: Giant Grit SL
Giant 2027 Revolt Advanced SL 2
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.-
- S
-
159 cm
171 cm
-
- M
-
169 cm 181 cm
-
- ML
-
174 cm 186 cm
-
- L
-
179 cm 191 cm
-
- XL
-
189 cm 200 cm
| S | M | ML | L | XL | |
|---|---|---|---|---|---|
| A Seat Tube Length (mm) | 450 | 470 | 490 | 510 | 530 |
| B Seat Tube Angle | 74.5° | 74.5° | 74.0° | 74.0° | 74.0° |
| C Top Tube Length (mm) | 540 | 550 | 565 | 580 | 590 |
| D Head Tube Length (mm) | 100 | 120 | 135 | 155 | 180 |
| E Head Tube Angle | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F Fork Rake (mm) | 50 | 50 | 50 | 50 | 50 |
| G Trail (mm) | 74 | 71 | 67 | 67 | 67 |
| H Wheelbase (mm) | 1027 | 1033 | 1039 | 1055 | 1066 |
| I Chain Stay Length (mm) | 433 | 433 | 433 | 433 | 433 |
| J Bottom Bracket Drop (mm) | 80 | 80 | 80 | 80 | 80 |
| K Stack (mm) | 536 | 557 | 573 | 592 | 616 |
| L Reach (mm) | 391 | 395 | 401 | 410 | 413 |
| M Stand Over Height (mm) | 743 | 762 | 779 | 798 | 818 |
| N Handlebar Width (mm) | 380 | 400 | 400 | 420 | 420 |
| O Stem Length (mm) | 80 | 90 | 100 | 100 | 110 |
| P Crank Length (mm) | 165 | 170 | 170 | 172.5 | 172.5 |
| Q Wheel Size | 700C | 700C | 700C | 700C | 700C |
