Giant 2027 Revolt Advanced SL-F*
Frames available to order from Australia. Please contact store for availability and ordering on 04 589 2822 or support@cyclescience.co.nz
ULTRALIGHT EFFICIENCY
The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro.
AERO SPEED OVER DISTANCE
Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimized for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.
RACE-TUNED GEOMETRY
With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimized for 45mm tires with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

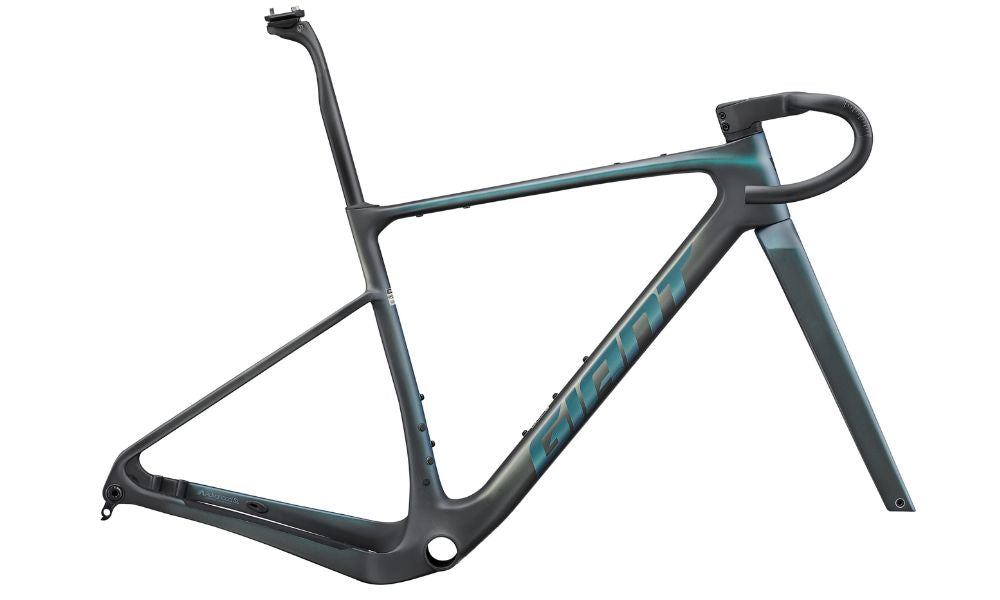

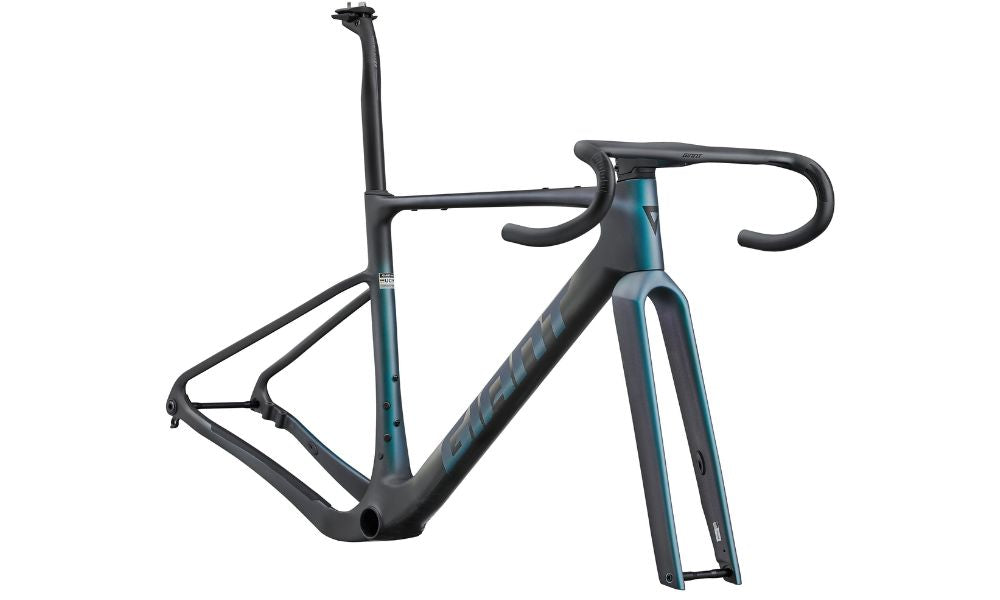

Giant 2027 Revolt Advanced SL-FF
Frame
Size: XS, S, M, M/L L, XL
Colour: Superspeed Teal
Frame: Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout
Fork: Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc
Shock:
Drivetrain
Crankset:
Pedals:
Chain:
Bottom Bracket:
Rear Derailleur:
Front Derailleur:
Shifter:
Freewheel/Cassette:
Braking System
Brakes:
Brake Levers:
Wheels
Tyres: [F] and [R]
Wheels/Rims:
Hubs: [F] [R]
Other
Handlebar: Giant Contact SLR XR Integrated XS:70x420mm, S:80x420mm, M:90x440mm, M/L:100x440mm, L:100x440mm, XL:110x460mm
Stem: Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110
Seat Post: Giant Contact SLR XR D-Fuse, composite, 20mm offset
Saddle:
Gianty 2027 Revolt Advanced SL-FF
-
- XS
-
5’1”
5’5”
-
- S
-
5’3” 5’7”
-
- M
-
5’7” 5’11”
-
- ML
-
5’9” 6’1”
-
- L
-
5’10” 6’3”
-
- XL
-
6’2” 6’7”
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A Seat Tube Length (inch) | 16.9 | 17.7 | 18.5 | 19.3 | 20.1 | 20.9 |
| B Seat Tube Angle | 75.0° | 74.5° | 74.5° | 74.0° | 74.0° | 74.0° |
| C Top Tube Length (inch) | 20.9 | 21.3 | 21.7 | 22.2 | 22.8 | 23.2 |
| D Head Tube Length (inch) | 3.5 | 3.9 | 4.7 | 5.3 | 6.1 | 7.1 |
| E Head Tube Angle | 70.5° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F Fork Rake (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| G Trail (inch) | 3.1 | 2.9 | 2.8 | 2.6 | 2.6 | 2.6 |
| H Wheelbase (inch) | 40.4 | 40.4 | 40.7 | 40.9 | 41.5 | 42 |
| I Chain Stay Length (inch) | 17 | 17 | 17 | 17 | 17 | 17 |
| J Bottom Bracket Drop (inch) | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 |
| K Stack (inch) | 20.7 | 21.1 | 21.9 | 22.6 | 23.3 | 24.3 |
| L Reach (inch) | 15.3 | 15.4 | 15.6 | 15.8 | 16.1 | 16.3 |
| M Stand Over Height (inch) | 28.6 | 29.3 | 30 | 30.7 | 31.4 | 32.2 |
| N Handlebar Width (inch) | 15 | 15 | 15.7 | 15.7 | 16.5 | 16.5 |
| O Stem Length (inch) | 2.8 | 3.1 | 3.5 | 3.9 | 3.9 | 4.3 |
| P Crank Length (inch) | 6.5 | 6.5 | 6.7 | 6.7 | 6.8 | 6.8 |
| Q Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
