Giant 2027 Stance

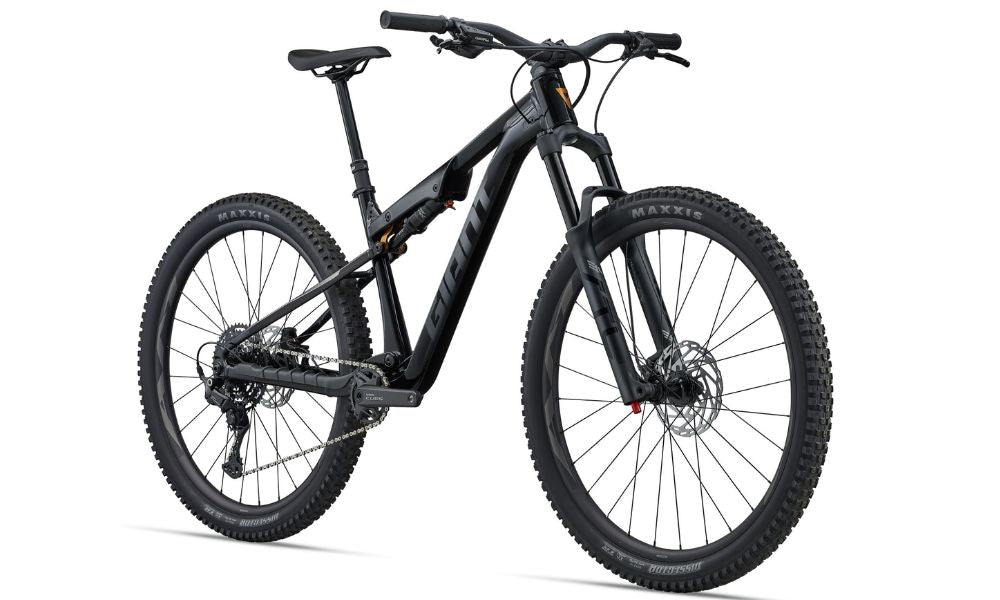

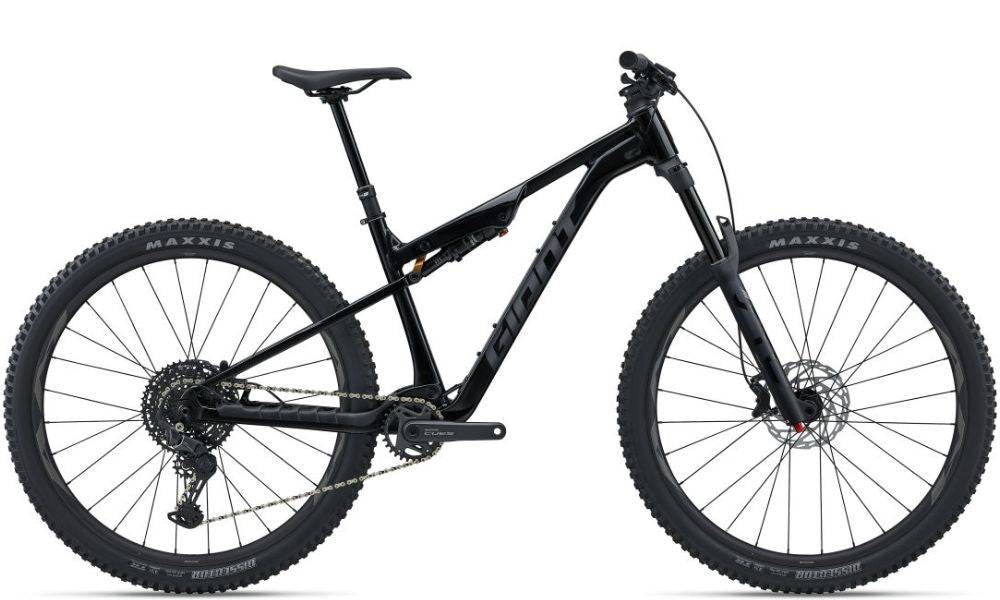

Nothing beats that feeling of being one with the trail. Stance helps you tap into it, delivering smooth control with a new aluminum frameset and 130mm of FlexPoint rear suspension featuring a new semi-integrated design. Paired with a 140mm fork and trail-ready features, including a dropper post, it’s everything you need to reach the next level.
TRAIL-FRIENDLY CONTROL
Refined trail geometry with a slacker head tube and higher stack creates a stable, confident ride position. The new Contact Switch AT dropper post and long-post compatibility (up to 200mm) gives you room to move on descents. A wide-range 1X drivetrain, powerful 4-piston brakes, and tubeless tires deliver simple shifting, precise speed control and planted traction—so you don’t just ride the trail, you master it.
TRAIL-TUNED SUSPENSION

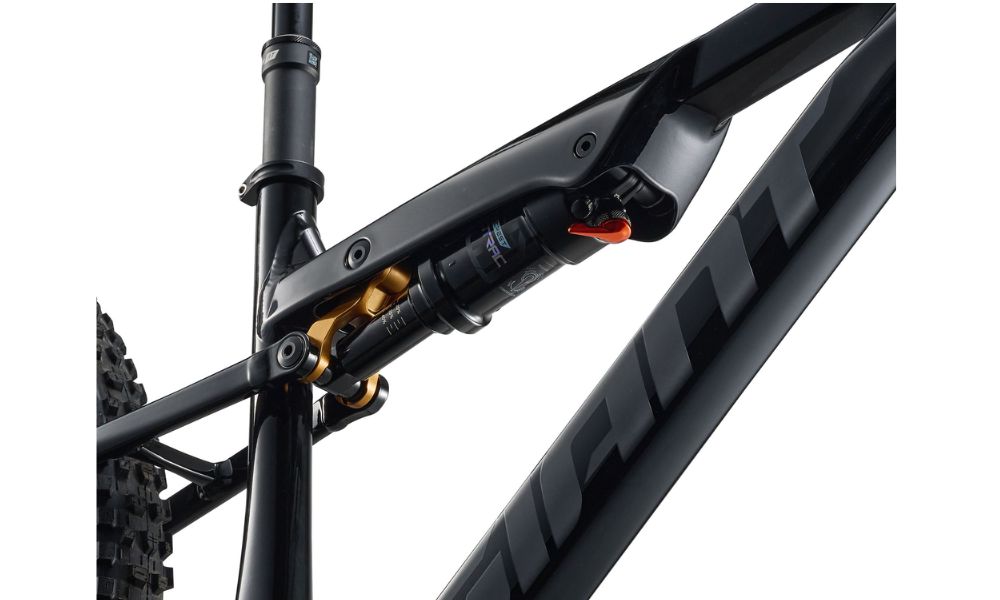

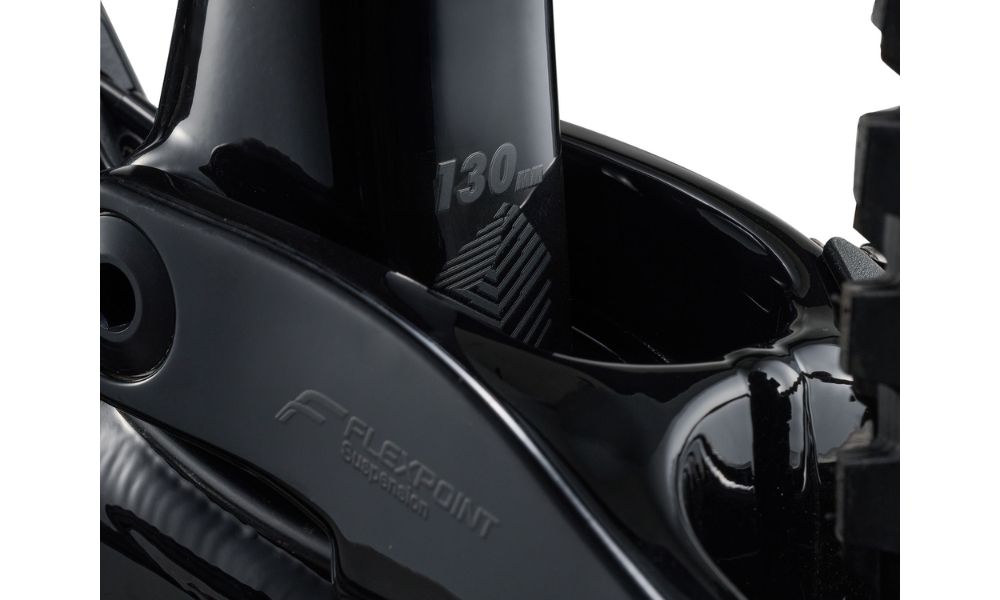

Re-engineered FlexPoint rear suspension with a Crest FloTrac TR shock delivers active, consistent performance through 130mm of travel. The single-pivot system boasts the lowest rear-triangle deformation in its class, while new kinematics with tailored shock spring curve deliver a more linear wheel path. The result is a smooth, predictable feel with unbeatable traction and mid-stroke support. Up front, the dual-air Giant STL 34 suspension fork smooths out rocks and roots. And our Unified Suspension Setup makes it easy to dial-in the settings.
INTEGRATED CHASSIS

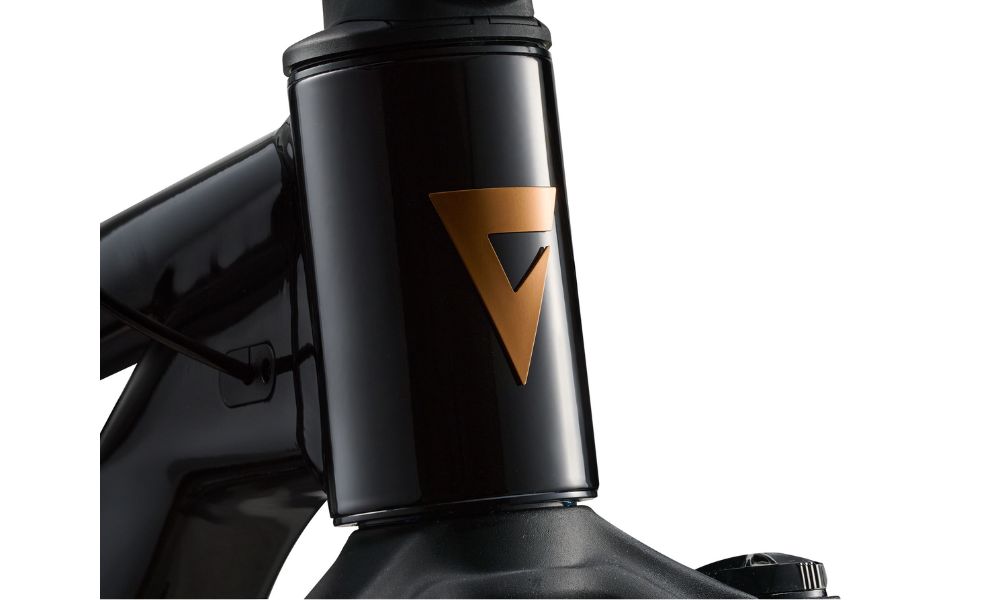

A new hydroformed ALUXX aluminum chassis is engineered for strength, stiffness, and low weight. Seamless shock integration enhances frame stiffness and delivers amore connected ride feel. A smooth cockpit-to-frame transition with integrated spacers keeps the front end clean, while flush cable guides help ensure quiet performance. Convertible internal/external routing adds adaptability. The result is a sleek, precise, trail-ready frame that rides as sharp as it looks.
Giant 2027 Stance
Frame
Size: XS, S, M, L, and XL
Colour: Black
Frame: ALUXX-grade aluminum, 130mm FlexPoint suspension, 12x148mm thru-axle, UDH interface, external storage solution

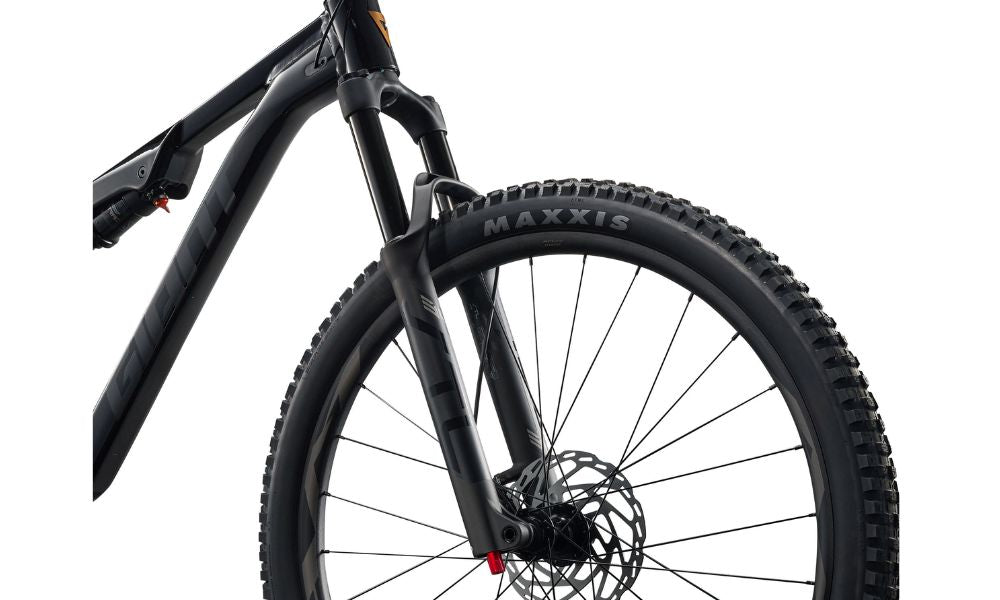

Fork: Giant STL 34 dual air, 140mm, 15x110, thru-axle
Shock: GU: Fox Rhythm, rebound, 210x52.5 Other GSCs: Crest FloTrac Elite TR, 2-position lockout, 210x52.5
Drivetrain
Crankset: Shimano CUES FC-U6000, 30t XS: 165mm, S:165mm, M:165mm, L:165mm, XL:165mm
Pedals:
Chain: KMC X-11
Bottom Bracket: Shimano, threaded

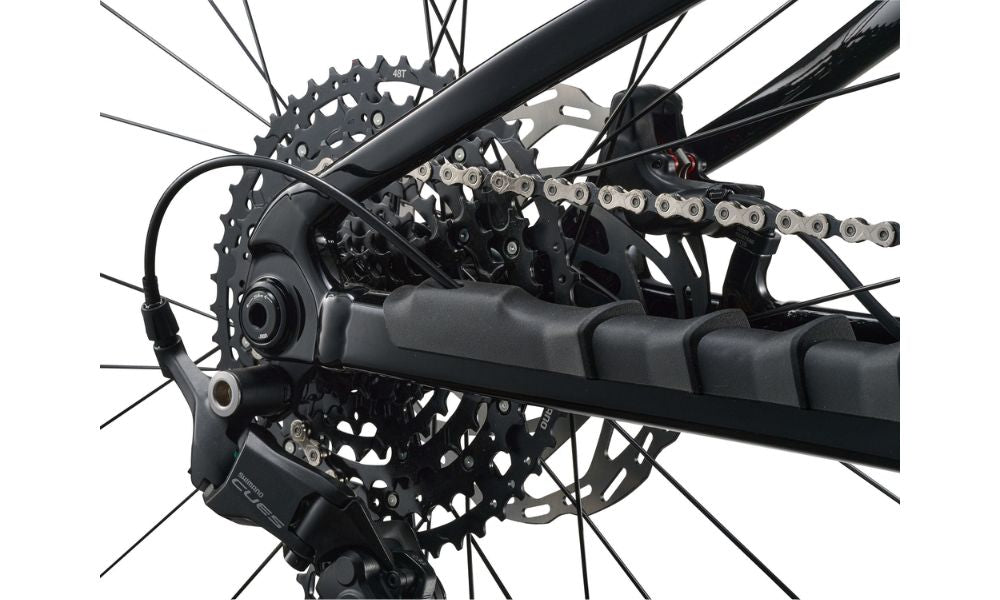

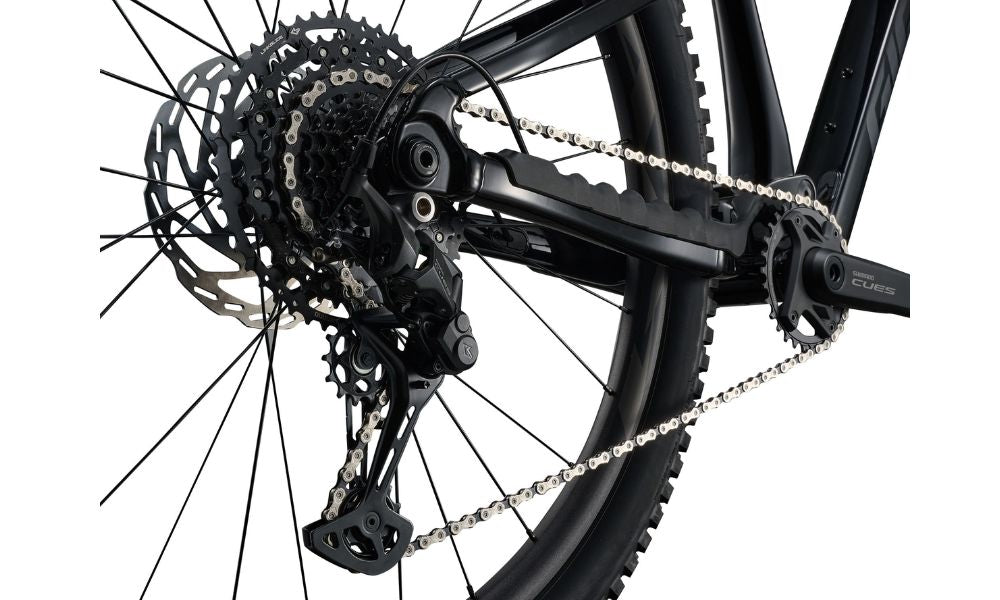

Rear Derailleur: Shimano CUES RD-U6000, Shadow +
Front Derailleur:
Derailleur Shifter: Shimano CUES SL-6000, 1x10
Freewheel/Cassette: Shimano CUES, CS-LG300, 11x48
Braking System
Brakes: Tektro HD-M5141, hydraulic, TR-54, 6-bolt rotors [F]180mm, [R]180mm
Brake Levers: Tektro HD-M5141
Wheels
Tyres: Maxxis Dissector 29x2.4, Dual, EXO, TR
Wheels/Rims: Giant AM30 alloy rim
Hubs: [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 6-bolt, HG driver body
Other
Handlebar: Giant Contact TR35, 35mm XS:20mm rise/760mm, S:20mm ride/760mm, M:35mm rise/760mm, L:35mm rise 800mm, XL:35mm rise 800mm
Stem: Giant Contact SL 35 XS: 40mm, S:40mm, M:40mm, L:40mm, XL:40mm

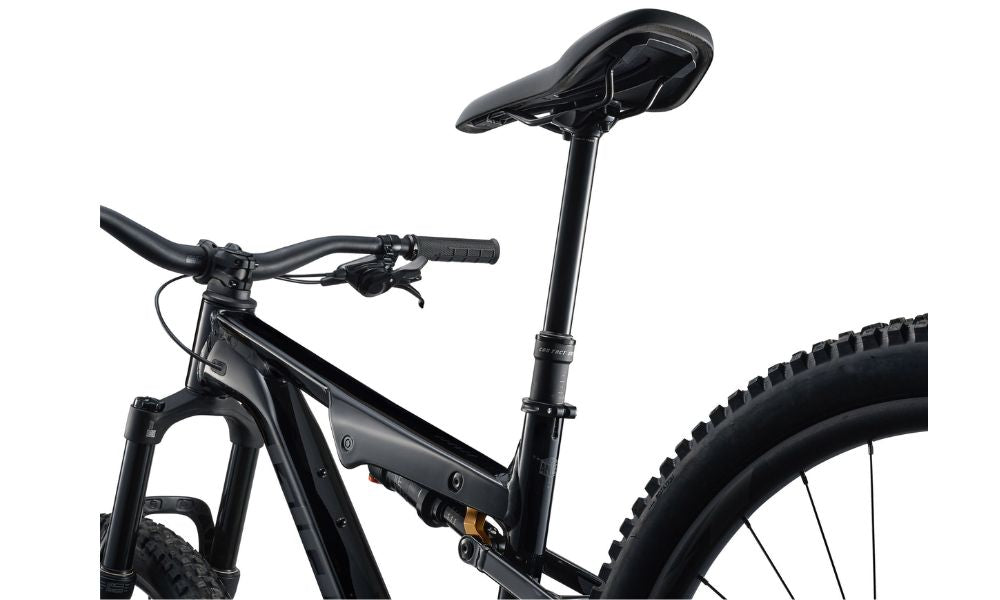

Seat Post: Giant Contact Switch AT dropper, remote XS: 110-140mm travel / 30.9 x 395mm S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle: Giant Contact Ergo Trail
Giant 2027 Stance
-
- XS
-
155 cm
166 cm
-
- S
-
163 cm 172 cm
-
- M
-
171 cm 180 cm
-
- L
-
179 cm 188 cm
-
- XL
-
187 cm 198 cm
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| A Seat Tube Length (mm) | 380 | 400 | 425 | 450 | 475 |
| A1 Seat Post Insertion Depth (mm) | 250 | 270 | 290 | 320 | 390 |
| B Seat Tube Angle | 77.0° | 76.5° | 76.5° | 76.5° | 76.5° |
| C Top Tube Length (mm) | 547 | 567 | 600 | 627 | 659 |
| D Head Tube Length (mm) | 95 | 100 | 110 | 120 | 130 |
| E Head Tube Angle | 65.0° | 65.0° | 65.0° | 65.0° | 65.0° |
| F Fork Rake (mm) | 44 | 44 | 44 | 44 | 44 |
| G Trail (mm) | 129 | 129 | 129 | 129 | 129 |
| H Wheelbase (mm) | 1158 | 1176 | 1210 | 1239 | 1274 |
| I Chain Stay Length (mm) | 440 | 442 | 442 | 442 | 442 |
| J Bottom Bracket Drop (mm) | 25 | 40 | 40 | 40 | 40 |
| K Stack (mm) | 613 | 615 | 624 | 633 | 642 |
| L Reach (mm) | 405 | 420 | 450 | 475 | 505 |
| M Stand Over Height (mm) | 758 | 754 | 748 | 744 | 738 |
| O Stem Length (mm) | 40 | 40 | 40 | 40 | 40 |
| P Crank Length (mm) | 165 | 165 | 165 | 165 | 165 |
| Q Wheel Size | 29" [F] 27.5" [R] | 29" | 29" | 29" |
29" |
