Giant 2027 Talon E+ 2 EX
Less weight. More Fun
Whether you’re riding trails, exploring dirt roads, or putting some zip in your daily commute, riding an E-bike doesn’t have to be complicated. The all-new Talon E+ range lets you do it all, combining the exhilarating sensation of pedal-assist power with light and agile off-road handling. And its integrated system makes it all so seamless, so simple to use, you can forget about the technology and just enjoy the ride.
LIGHTER WEIGHT
The new Talon E+ EX frame is crafted with ALUXX SL aluminum using hydroforming and gravity casting techniques that helps make it 13% lighter than the previous generation. The new EnergyPak 430 battery and SyncDrive Sport 2 motor are also lighter, giving it an overall weight of just 21.7kg (size medium, without rack). The result is greater agility and confident off-road handling that feels more like a regular hardtail mountain bike.
SLEEK AND SLIM
The redesigned frameset features a slimmer down tube integrated with a new EnergyPak 430 battery system that’s lightweight and easily removable for external charging. 3D forging techniques and super-smooth welds give it a clean, modern look, and two bottle cage mounts allow you to carry more hydration or add a battery range extender for longer rides.
SUPER COMMUTER
The Talon E+ EX is loaded with features and accessories that make it ideal for trekking or commuting. The RideControl Dash 2 controller is used to power on the bike and adjust support levels while you ride. Using the RideControl App, you can custom tune the motor output to optimize range. Also new is a Find My Bike feature using integrated Apple AirTag functionality. And it comes with a rear carrier, fenders, a kickstand, and integrated lights.
Giant 2027 Talon E+ 2 EX
Frame
Size: S, M, L, and XL
Colour: Frost Fern
Frame: ALUXX-Grade aluminium, UDH, 12x148mm thru-axle, integrated KSA40 kickstand mount, disc

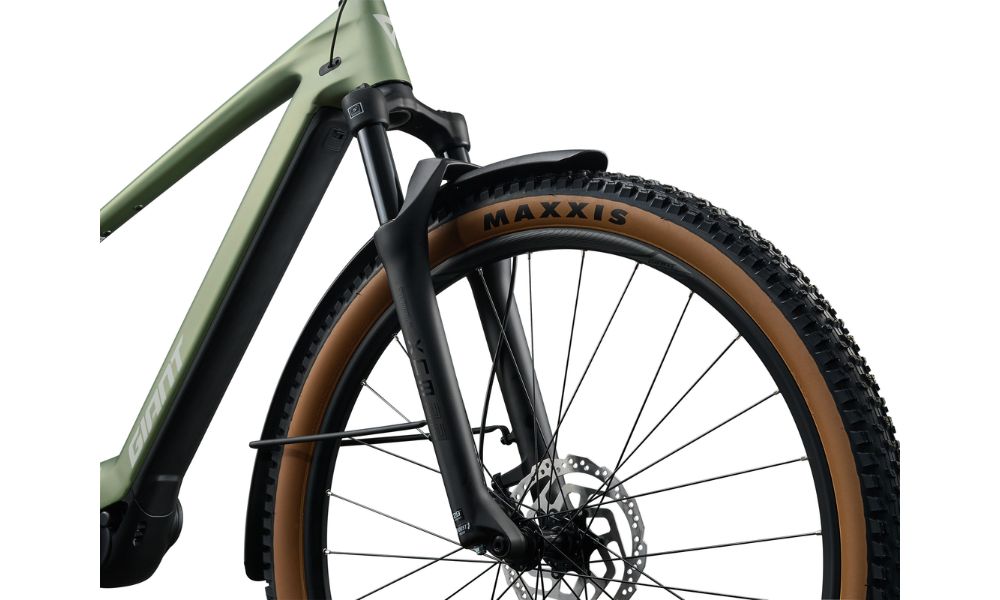

Fork: SR Suntour XCM 32 DS Coil, 100mm, 110x15mm thru-axle
Shock:
Drivetrain
Crankset: "Forged alloy crank arms, 36T steel chain ring, S:165mm, M: 165mm, L:165mm, XL:165mm"
Pedals:
Chain: Shimano Cues LinkGlide CN-LG500
Bottom Bracket:

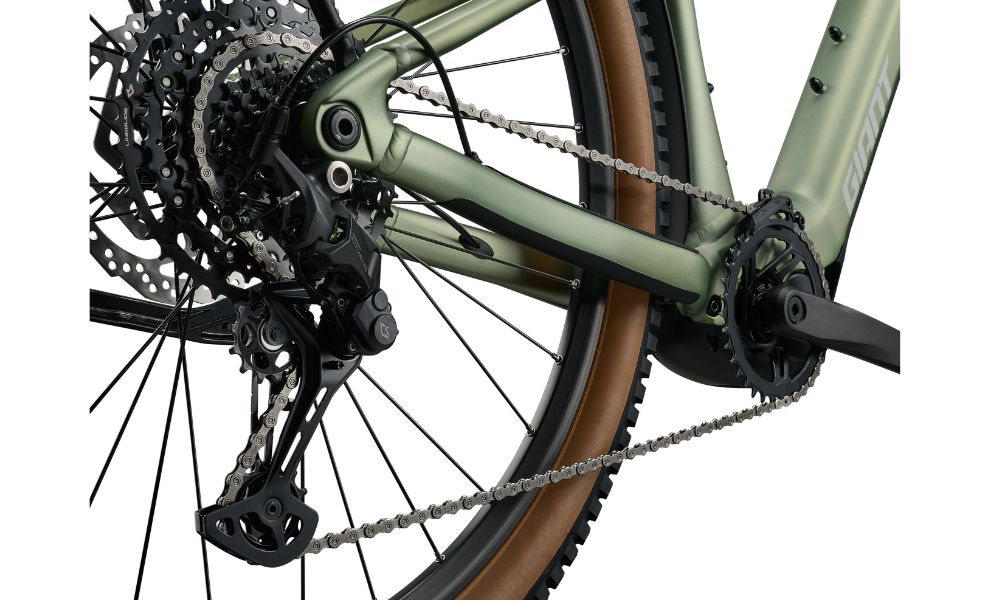

Rear Derailleur: Shimano Cues U6000, 10-speed, Shadow
Front Derailleur:
Derailleur Shifter: Shimano CUES, SL-6000, 1x10
Freewheel/Cassette: Shimano Cues LinkGlide LG-30010, 11-48
Braking System
Brakes: Shimano MT200, hydraulic, SM-RT10 rotors [F]180mm, [R]180mm
Brake Levers: Shimano MT-200
Wheels
Tyres: Maxxis Rekon 29x2.4", TLR, EXO
Wheels/Rims: Giant GX03V Alloy 29"
Hubs: "[F] Shimano TC500, Sealed, 28H [R] Shimano TC500, Sealed, HG, 32H"
Other
Handlebar: Giant Connect TR Riser, 31.8mm, 20mm rise
Stem: Giant Contact, 31.8mm, S:40mm, M:40mm, L:50mm, XL:50mm
Seat Post: Giant 30.9mm, 2-bolt Micro Adjust, alloy
Saddle: Giant ErgoContact Trail
E-Bike

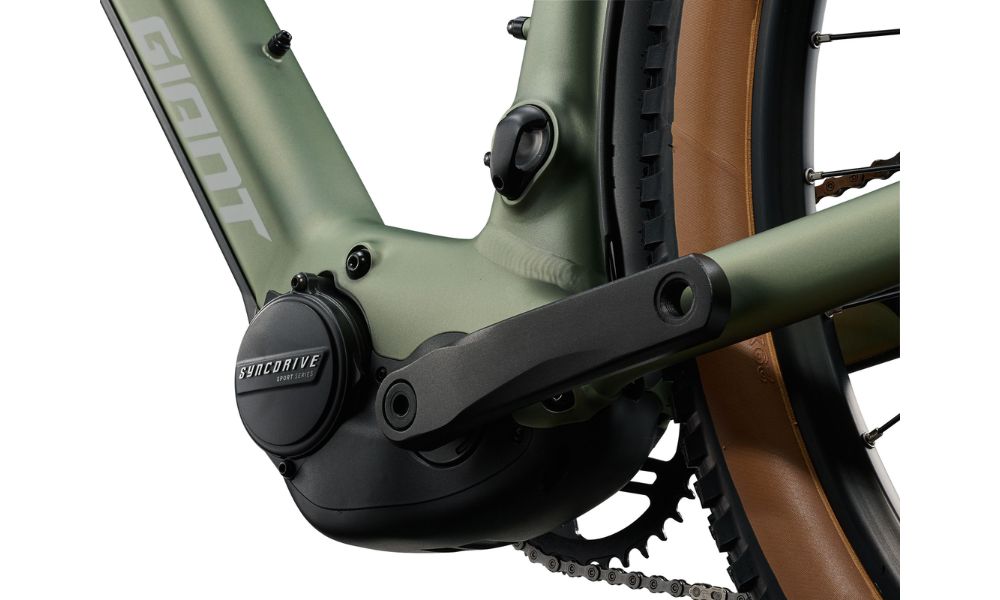

Drive Unit: SyncDrive Sport 3, 85Nm, Powered by Yamaha
Battery: EnergyPak 430Wh, Giant EnergyPak Plus 200 range extender compatible
Display: RideControl Dash 2, full colour LCD screen
UI/Remote: RideControl Dash 2, full colour LCD screen
Charger: EnergyPak 4A fast charger
Extras

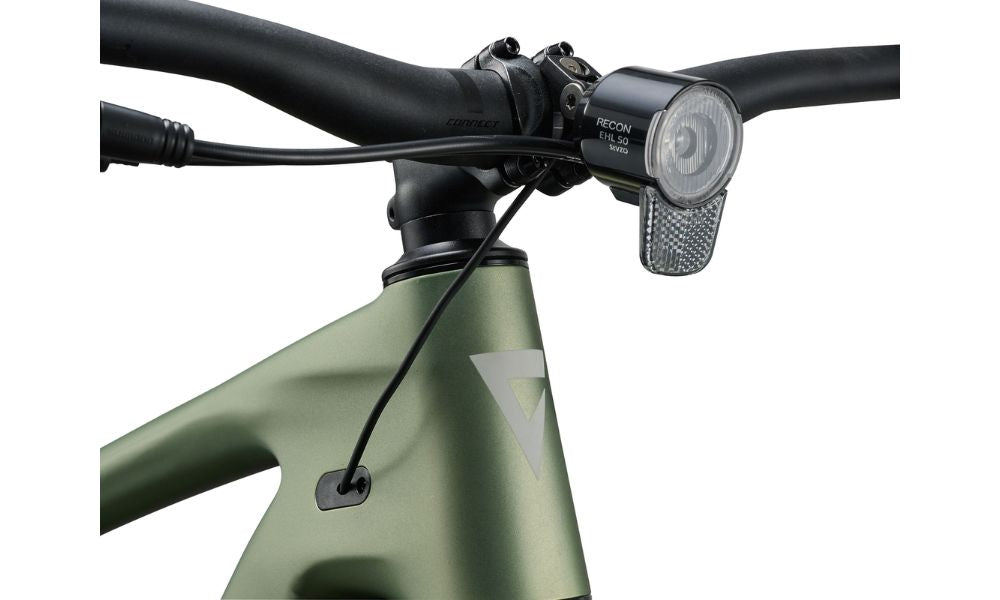

Lights: Giant Recon E HL50, Axa BlueLine Steady E6 rear

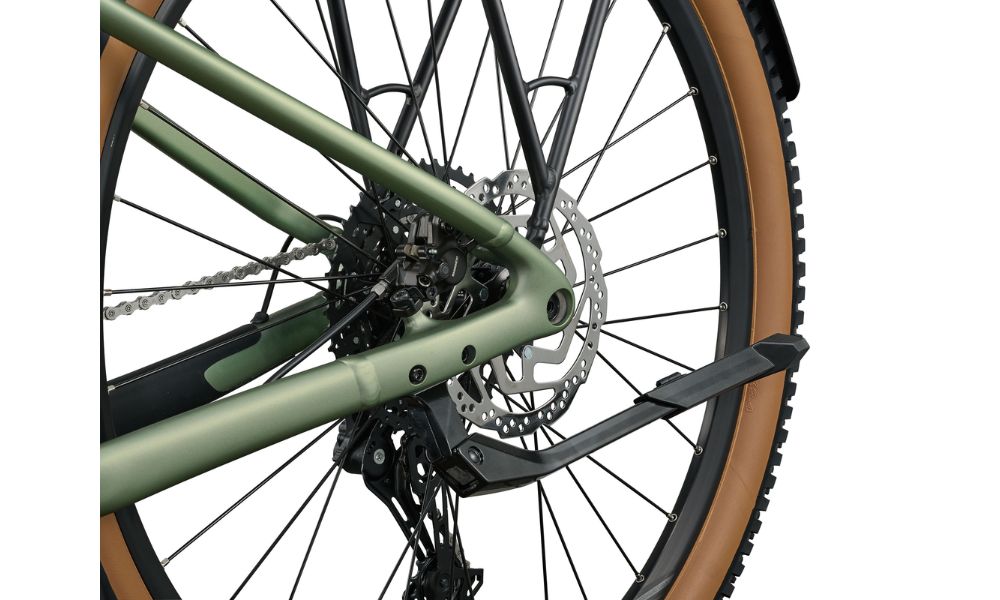

Kickstand: KSA40 direct mount kickstand
Mudguards: Aluminium fenders

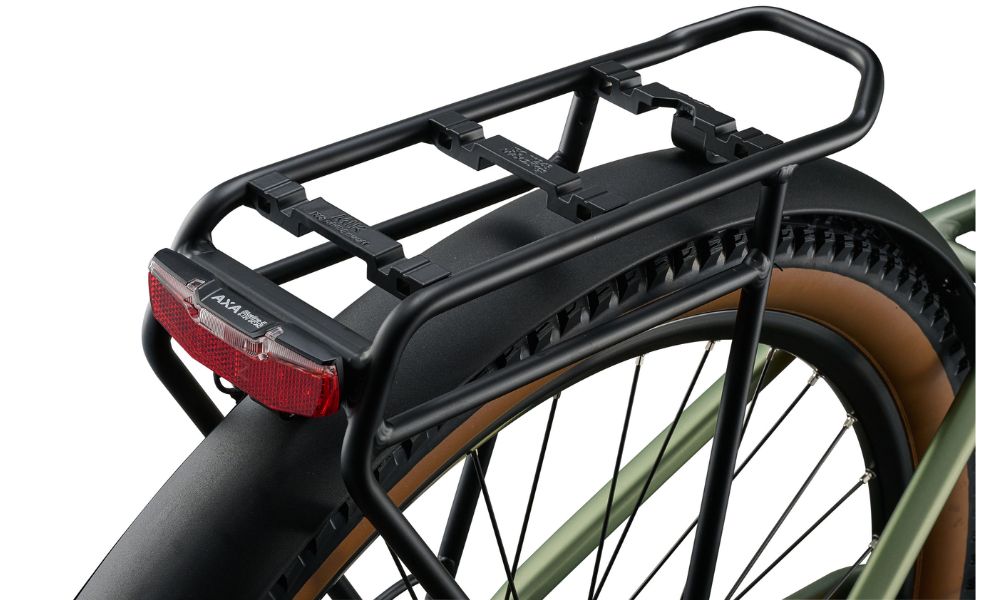

Rear Rack: Giant Rack-It MIK
Giant 2027 Talon E+ 2 EX
-
- S
-
162 cm
176 cm
-
- M
-
171 cm 184 cm
-
- L
-
176 cm 192 cm
-
- XL
-
184 cm 200 cm
| S | M | L | XL | |
|---|---|---|---|---|
| A Seat Tube Length (mm) | 385 | 435 | 485 | 535 |
| A1 Seat Post Insertion Depth (mm) | 200 | 240 | 260 | 260 |
| B Seat Tube Angle | 74.0° | 74.0° | 74.0° | 74.0° |
| C Top Tube Length (mm) | 580 | 600 | 620 | 640 |
| D Head Tube Length (mm) | 100 | 115 | 130 | 145 |
| E Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° |
| F Fork Rake (mm) | 46 | 46 | 46 | 46 |
| G Trail (mm) | 103.9 | 103.9 | 103.9 | 103.9 |
| H Wheelbase (mm) | 1143 | 1165 | 1186 | 1208 |
| I Chain Stay Length (mm) | 470 | 470 | 470 | 470 |
| J Bottom Bracket Drop (mm) | 60 | 60 | 60 | 60 |
| K Stack (mm) | 613 | 627 | 641 | 655 |
| L Reach (mm) | 404 | 420 | 436 | 452 |
| M Stand Over Height (mm) | 723 | 753 | 788 | 808 |
| O Stem Length (mm) | 40 | 40 | 50 | 50 |
| Q Wheel Size | 29" | 29" | 29" | 29" |
