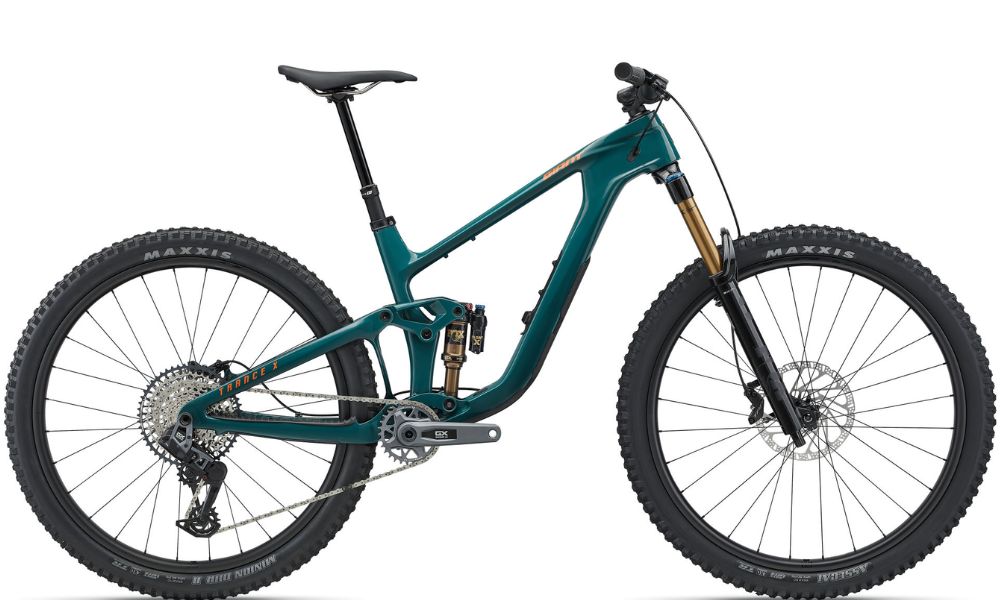

Giant 2027 Trance X Advanced 1
Float up technical climbs and sail down chunky descents. This all-new, full-composite trail bike gives you 140mm of smooth Maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.
More Travel

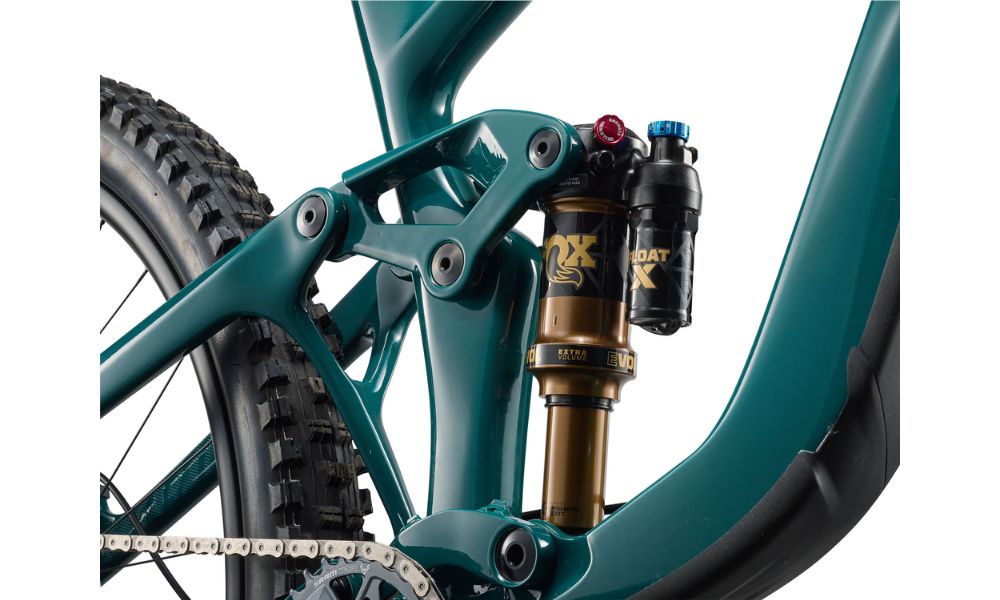

New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.
Adjustable trail geometry
A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.
Rear wheel options
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimizes stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favor this “mullet” setup for riding stee
Giant 2027 Trance X 1
Frame
Size: S, M, L and XL
Colour: Abyss Teal
Frame: ALUXX SL-grade Aluminum front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts

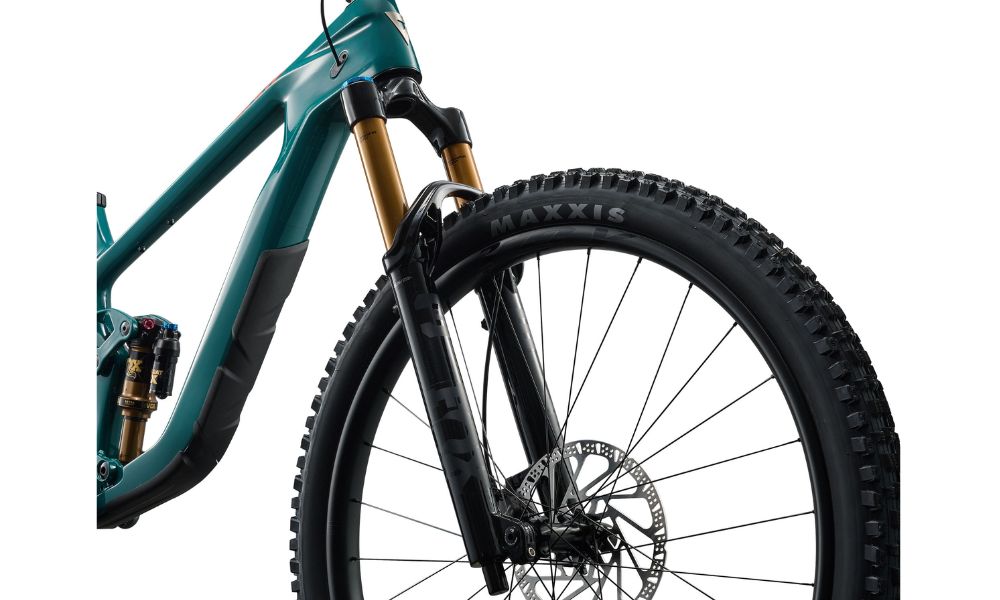

Fork: Fox 36 Float Factory, 150mm, GRIP X damper, 15x110 Kabolt X, 44mm offset
Shock: Fox Float X Factory, two-position LSC adjust, 185/52.5

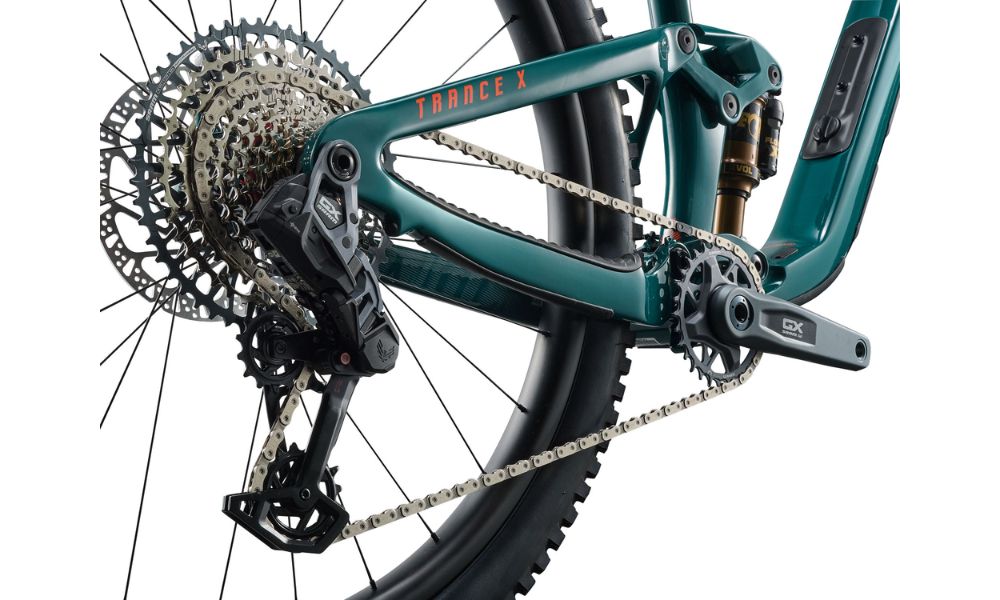

Drivetrain
Crankset: SRAM GX, T-Type, 30t, 55mm chainline S:165mm, M:165mm, L:165mm, XL:165mm
Pedals:
Chain: SRAM GX, T-Type
Bottom Bracket: SRAM DUB, Press Fit
Rear Derailleur: SRAM GX AXS Transmission
Front Derailleur:
Derailleur Shifter: SRAM AXS Pod, 1x12
Freewheel/Cassette: SRAM GX, T-Type, 10x52
Braking System
Brakes: TRP EVO Pro, hydraulic, four piston, TRP rotors [F]203mm, [R]180mm
Brake Levers: TRP EVO Pro
Wheels
Tyres: [F] Maxxis Assegai, 29x2.5 WT, 60 tpi, MaxxTerra, EXO, TR [R] Maxxis DHR II 29x2.4 WT, 60 tpi, MaxxTerra, TR, tubeless
Wheels/Rims: Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology
Hubs: [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 72 POE (Points of Engagement), 6-bolt, MicroSpline driver body
Other
Handlebar: Giant Contact SL TR35, alloy, 780x35mm, 20mm rise
Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm

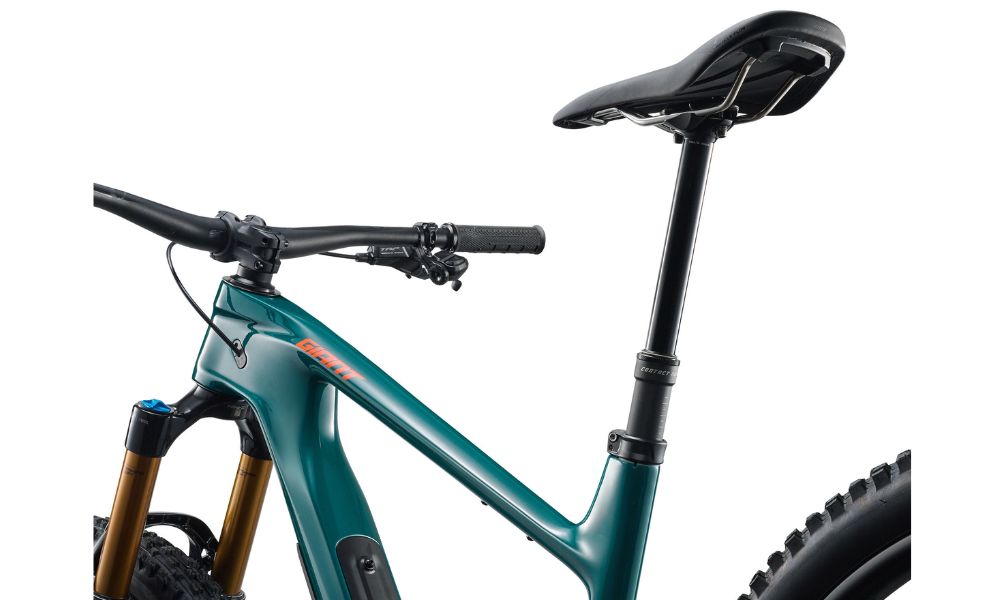

Seat Post: Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle: Giant Romero SL
Giant 2027 Trance X Advanced 1
-
- S
-
163 cm
172 cm
-
- M
-
171 cm 180 cm
-
- L
-
179 cm 188 cm
-
- XL
-
187 cm 198 cm
| S | M | L | XL | ||
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | ||
| A | Seat Tube Length (MM) | 400 | 425 | 450 | 475 |
| B | Seat Tube Angle | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° |
| C | Top Tube Length (MM) | 571 | 570 | 569 | 602 | 601 | 600 | 624 | 623 | 622 | 657 | 656 | 655 |
| D | Head Tube Length (MM) | 100 | 105 | 115 | 125 |
| E | Head Tube Angle | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° |
| F | Fork Rake (MM) | 44 | 44 | 44 | 44 |
| G | Trail (MM) | 134.1 | 131.3 | 128.4 | 134.0 | 131.3 | 128.5 | 133.9 | 131.3 | 128.5 | 133.9 | 131.3 | 128.6 |
| H | Wheelbase (MM) | 1190 | 1190 | 1189 | 1222 | 1222 | 1221 | 1246 | 1246 | 1245 | 1281 | 1280 | 1280 |
| I | Chain Stay Length (MM) | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 |
| J | Bottom Bracket Drop (MM) | 40 | 35 | 30 | 40 | 35 | 30 | 40 | 35 | 30 | 40 | 35 | 30 |
| K | Stack (MM) | 617 | 614 | 611 | 621 | 619 | 616 | 631 | 628 | 625 | 640 | 637 | 634 |
| L | Reach (MM) | 426 | 430 | 434 | 456 | 460 | 464 | 476 | 480 | 484 | 507 | 510 | 514 |
| M | Stand Over Height (MM) | 733 | 737 | 742 | 737 | 741 | 746 | 754 | 759 | 763 | 752 | 757 | 762 |
| O | Stem Length (MM) | 40 | 40 | 50 | 50 |
| P | Crank Length (MM) | 165 | 170 | 170 | 170 |
