- Description
- Specifications
- Geometry

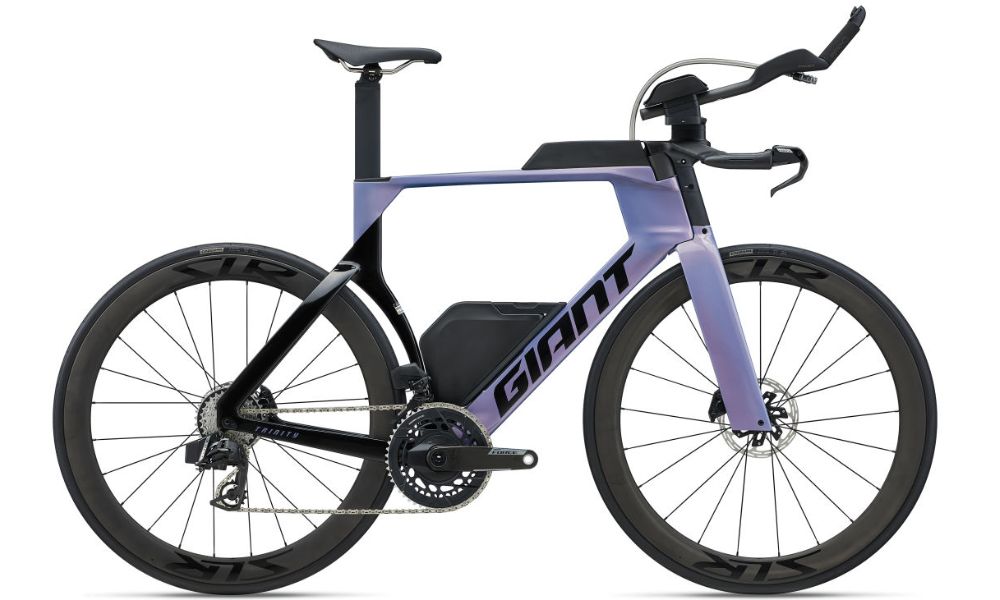

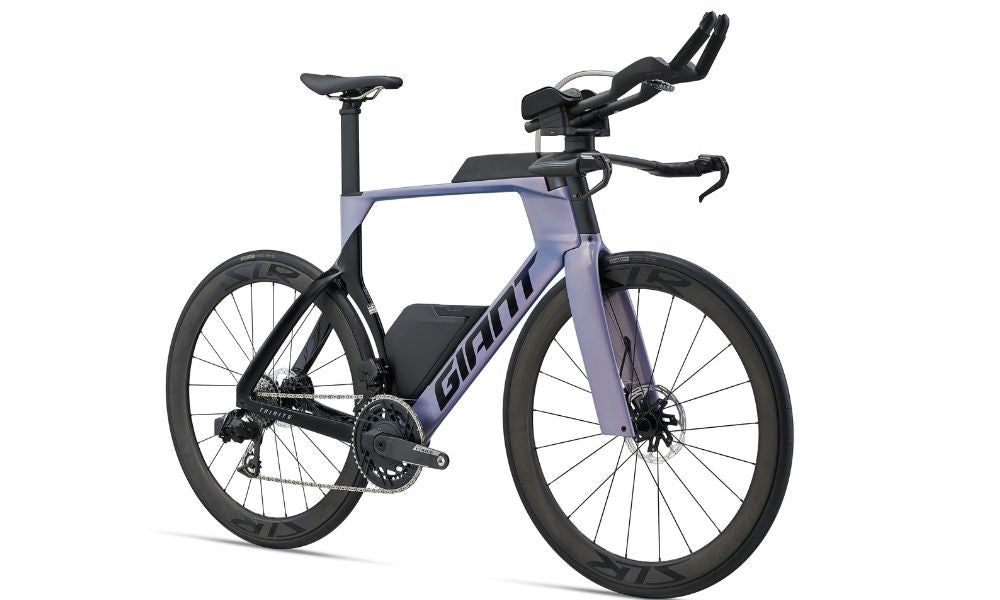

Giant 2027 Trinity Advanced SL 1
From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fueling systems, it’s lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.
FULL-SPEED DYNAMICS
All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.
ULTIMATE AERO EFFICIENCY
AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimized, integrated fueling system.
PERSONALIZED FIT
With a far greater range of adjustability compared to previous Trinity models—including four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)—it’s easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.
Giant 2027 Trinity Advanced SL 1
Frame
Size: S, M and L
Colour: Ember Violet/Black
Frame: Advanced SL-grade composite, 12x142mm thru-axle, integrated seatpost, disc
Fork: Advanced SL-grade composite, full-composite steerer, 12x100mm thru-axle, disc
Shock:
Drivetrain
Crankset: SRAM Force E1 AXS, 37/50 with SRAM power meter XS:165mm, S:170mm, M:170mm, L:172.5mm
Pedals:
Chain: SRAM Force E1
Bottom Bracket: SRAM DUB, press fit
Rear Derailleur: SRAM Force AXS E1
Front Derailleur: SRAM Force AXS
Derailleur Shifter: SRAM Clics - extension mounted, SRAM Blips - basebar mounted
Freewheel/Cassette: SRAM Force E1, 12-speed, 10x33
Braking System
Brakes: SRAM Force Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
Brake Levers: SRAM Force Aero AXS
Wheels
Tyres: CADEX Aero, tubeless, 700x28c, folding
Wheels/Rims: Giant SLR 1 50 WheelSystem, [F]50mm, [R]50mm
Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
Other
Handlebar: Giant base bar with integrated stem combination with Sync rest set, 10 and 15-degree extension wedge
Stem: Giant base bar with integrated stem combination with Sync rest set, 10 and 15-degree extension wedge
Seat Post: Trinity composite
Saddle: Giant Contact SL Tri
Giant 2027 Trinity Advanced SL 1
-
- XS
-
159 cm
169 cm
-
- S
-
166 cm 176 cm
-
- M
-
173 cm 182 cm
-
- L
-
181 cm 191 cm
| XS | S | M | L | |
|---|---|---|---|---|
| A Seat Tube Length (mm) | 477 | 508 | 538 | 565 |
| B Seat Tube Angle | 77.0° | 77.0° | 77.0° | 77.0° |
| C Top Tube Length (mm) | 510 | 530 | 554 | 579 |
| D Head Tube Length (mm) | 85 | 105 | 125 | 145 |
| E Head Tube Angle | 72.0° | 73.0° | 73.0° | 73.0° |
| F Fork Rake (mm) | 40 | 40 | 40 | 40 |
| G Trail (mm) | 69 | 63 | 63 | 63 |
| H Wheelbase (mm) | 974 | 988 | 1013 | 1039 |
| I Chain Stay Length (mm) | 405 | 405 | 405 | 405 |
| J Bottom Bracket Drop (mm) | 70 | 70 | 70 | 70 |
| K Stack (mm) | 490 | 513 | 532 | 551 |
| L Reach (mm) | 397 | 412 | 432 | 452 |
| M Stand Over Height (mm) | 758 | 786 | 814 | 838 |
| P Crank Length (mm) | 160 | 165 | 170 | 172.5 |
| Q Wheel Size | 700C | 700C | 700C | 700C |
| R Arm Pad Stack | 582-662 | 605-685 | 624-704 | 643-723 |
| S Arm Pad Reach | 339-414 | 355-430 | 375-450 | 395-470 |
