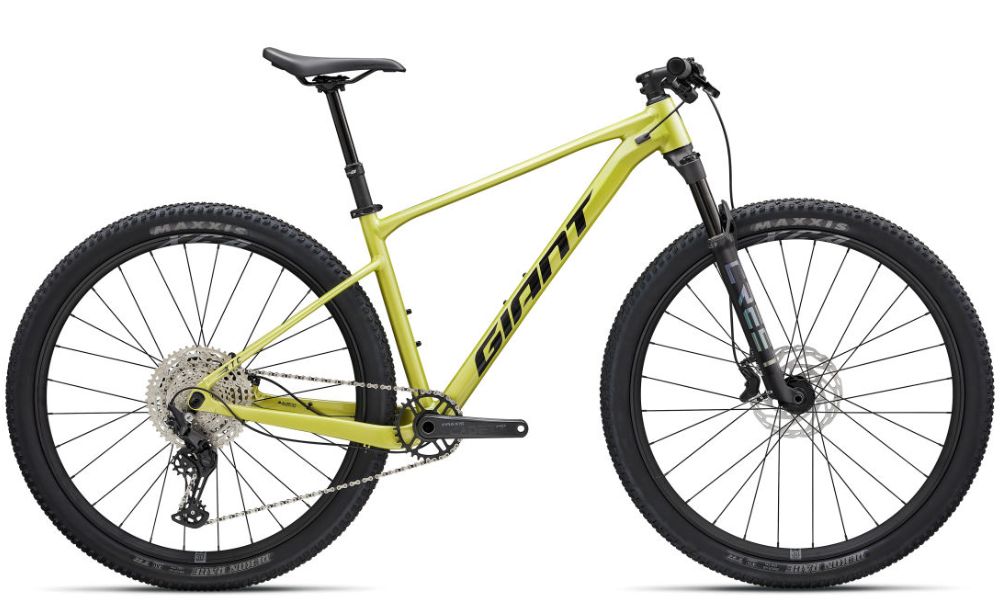

Giant 2027 XTC SLR 29 1
Hammer up climbs, accelerate on smooth singletrack, carry your speed as the trail dips and dives. This lightweight aluminum 29er delivers efficiency and balanced control.
Lightweight acceleration
The lightest aluminum hardtail frameset Giant has ever produced helps XC riders and racers climb and accelerate with speed.
Unyielding efficiency
With a best-in-class stiffness-to-weight-ratio, XtC SLR 29 sets the standard for alloy-XC efficiency.
29er confidence and control
Larger 29-inch diameter wheels roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast singletrack descents.
Giant 2027 XTC SLR 29 1
Frame
Size: S, M, L and XL
Colour: Cyber Lime
Frame: ALUXX SLR-grade Aluminum, 12x148mm thru-axle
Fork: Giant Crest XC Comp, 100mm, 15x110, remote lockout
Shock:
Drivetrain
Crankset: Praxis Cadet HD M24, 32t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm
Pedals:
Chain: KMC X-12
Bottom Bracket: Praxis, press fit
Rear Derailleur: Shimano Deore RD-M6200
Front Derailleur:
Derailleur Shifter: Shimano Deore SH-M6200, mechanical, 1x12
Freewheel/Cassette: Shimano M6200, 10x51
Braking System
Brakes: Tektro Orion HD-M6041, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro Orion HD-M6041
Wheels
Tyres: Maxxis Recon Race 29x2.4, foldable, TLR, EXO, tubeless
Wheels/Rims: Giant XCA 2 29, 25mm inner width
Hubs: Shimano C500, sealed
Other
Handlebar: Giant Connect XC, 740x31.8mm
Stem: Giant Contact S:60mm, M:70mm, L:80mm, XL:90mm
Seat Post: Giant Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm L: 140-170mm travel / 30.9 x 530mm XL: 140-170mm travel / 30.9 x 530mm
Saddle: Giant ErgoContact Trail
Giant 2027 XTC SLR 29 1
-
- S
-
163 cm
172 cm
-
- M
-
171 cm 180 cm
-
- L
-
179 cm 188 cm
-
- XL
-
187 cm 198 cm
| S | M | L | XL | |
|---|---|---|---|---|
| A Seat Tube Length (mm) | 380 | 431 | 475 | 525 |
| A1 Seat Post Insertion Depth (mm) | 335 | 205 | 250 | 300 |
| B Seat Tube Angle | 74.0° | 74.0° | 74.0° | 74.0° |
| C Top Tube Length (mm) | 595 | 614 | 635 | 665 |
| D Head Tube Length (mm) | 95 | 95 | 105 | 115 |
| E Head Tube Angle | 69.5° | 69.5° | 70.0° | 70.0° |
| F Fork Rake (mm) | 51 | 51 | 51 | 51 |
| G Trail (mm) | 95 | 95 | 95 | 95 |
| H Wheelbase (mm) | 1117 | 1136 | 1152 | 1183 |
| I Chain Stay Length (mm) | 440 | 440 | 440 | 440 |
| J Bottom Bracket Drop (mm) | 58 | 58 | 58 | 58 |
| K Stack (mm) | 607 | 607 | 618 | 628 |
| L Reach (mm) | 421 | 440 | 458 | 485 |
| M Stand Over Height (mm) | 727 | 757 | 785 | 818 |
| O Stem Length (mm) | 60 | 70 | 80 | 90 |
| P Crank Length (mm) | 170 | 175 | 175 | 175 |
