It is used for pulling different types of bearings. The bearing is gripped from the inside side and pulled out, the bearing is extracted with a 1 kg weight

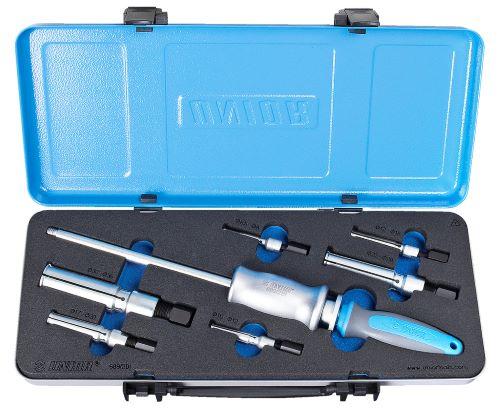

Set includes 6 pcs of arm for inner bearing dimensions 6.5-8,10-12, 12-15, 17-20, 22-28, 30-36 and a ergonomic heavy duty double component handle
Material: special tool steel
Surface finish: chrome plated according to ISO 1456:2009
1)Before starting the application, you need to screw appropriate extractor dimension on the handle.
2)First inserted extractor through the hole in the bearing which will be dismount out of the housing. Then start to screwed thorn into extractor, which has a function that opens puller body, which adapts to the bearing bores.
3)Start with steady hits dismounting bearing with help of sliding hammer.
4)After several strokes fast and easy dismount bearing from housing without damage.
