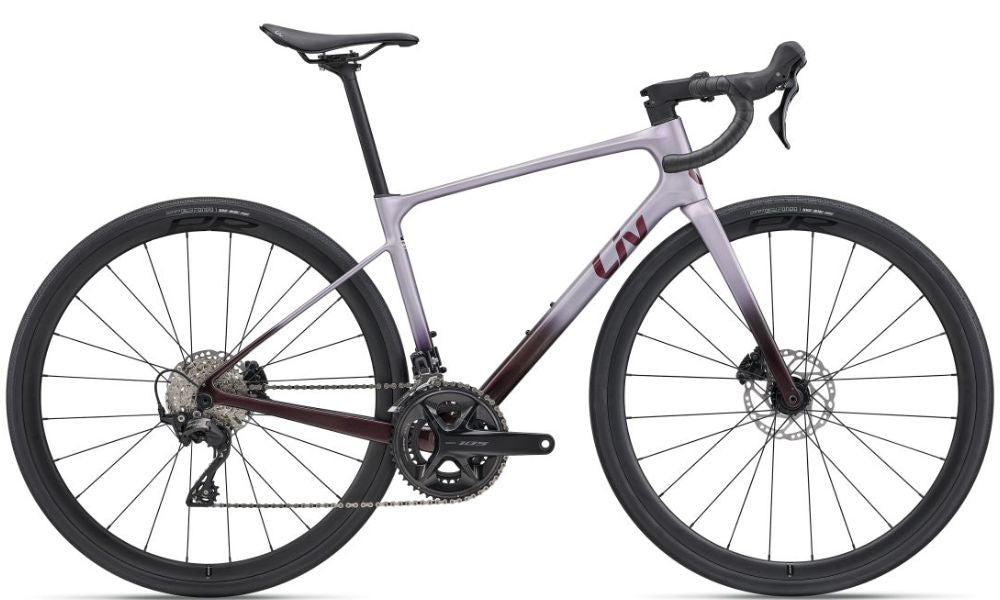

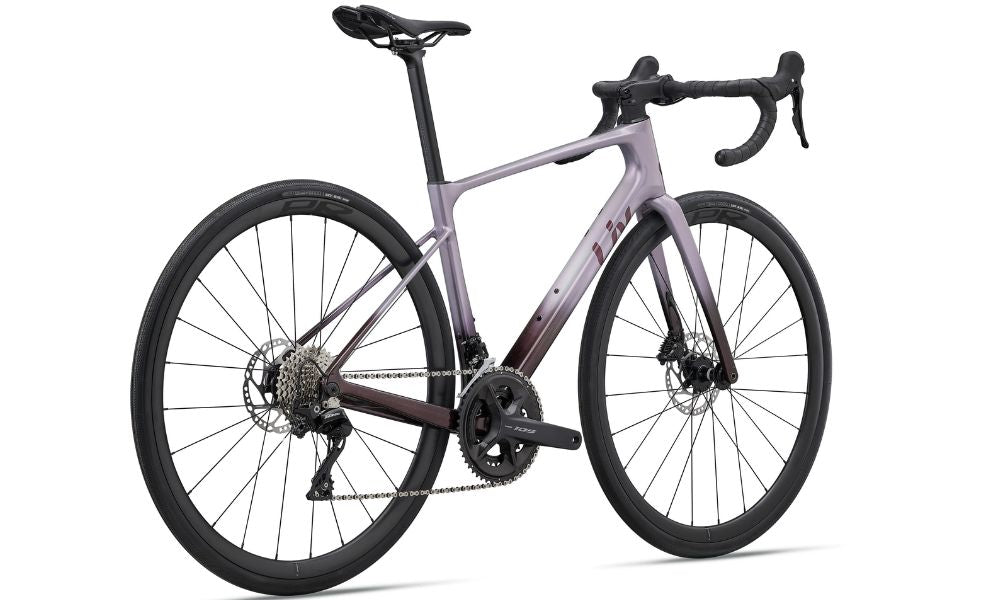

Liv 2027 Avail Advanced 2
The Avail Advanced is that riding buddy who’s up for any adventure on the road—from solo backroad explorations to after-work shop rides to all-day epic rides with friends. Designed for performance and capable on any surface, this road warrior is ready to take you as far as you can go, which is always farther than you think.
Lightweight Advantage
The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.
Superior Compliance
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.
Maximum Control
The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those sunrise-to-sunset rides. Wide, alloy rims are designed for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to pavé.
Liv 2027 Avail Advanced 2
Frame
Size: XS, S, and M
Colour: Cosmic Dust/Tiger Red
Frame: Advanced-grade composite, 12x142mm thru-axle, disc
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Shock:
Drivetrain
Crankset: Shimano 105, 34/50 XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 172.5mm
Pedals:
Chain: KMC X12L-1
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano 105
Front Derailleur: Shimano 105
Derailleur Shifter: Shimano 105
Freewheel/Cassette: Shimano 105, 12-speed, 11x36
Braking System

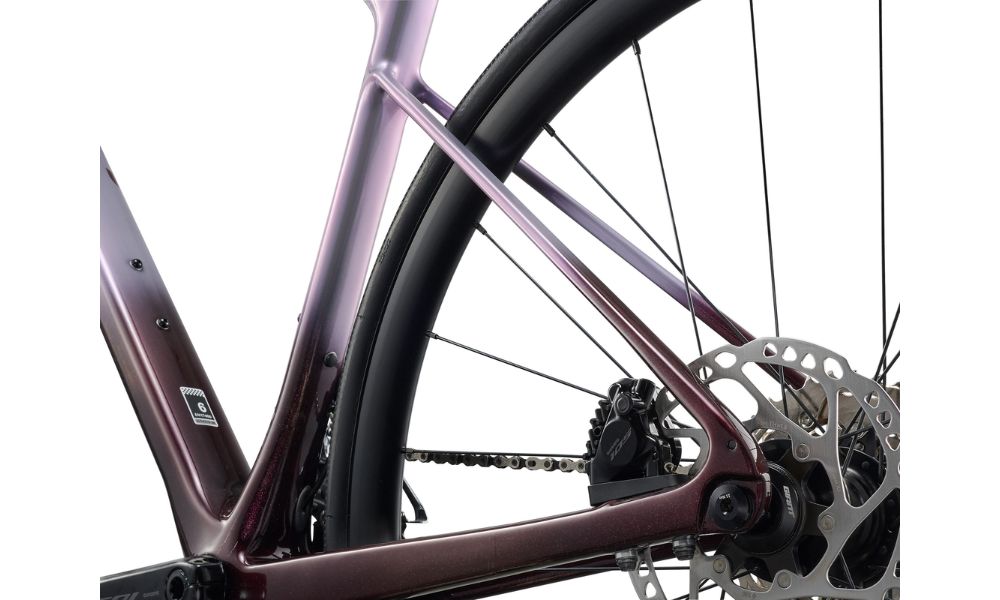

Brakes: Shimano 105 hydraulic, Shimano SM-RT64 rotors [F]160mm, [R]160mm
Brake Levers: Shimano 105
Wheels
Tyres: Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
Wheels/Rims: Giant P-R1 Disc wheelset, alloy, [F] 25mm, [R] 25mm
Hubs: Giant alloy, 12mm thru-axle
Other

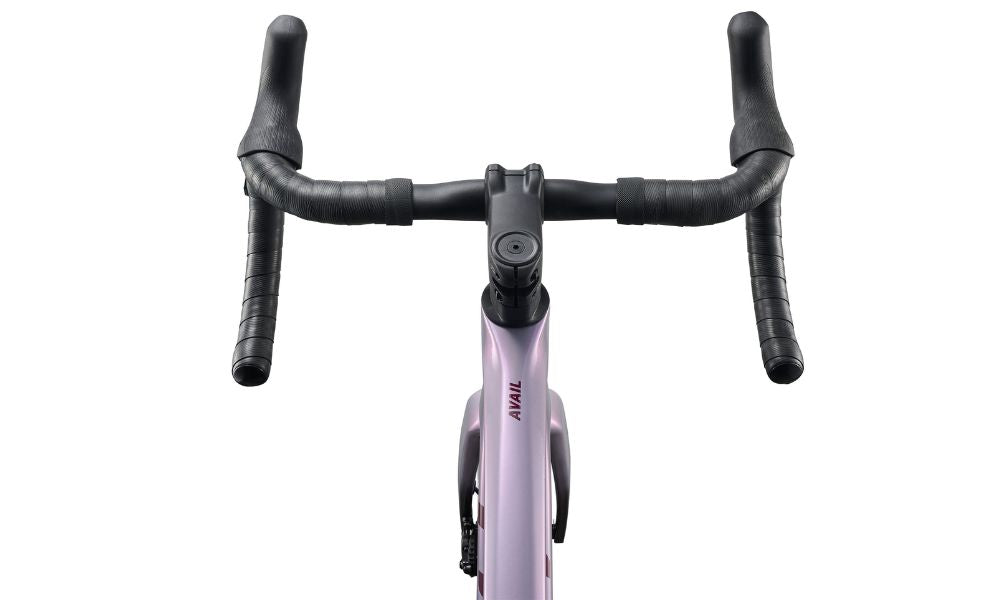

Handlebar: Liv Contact SL D-Fuse, 31.8mm XXS: 380/410mm, XS: 380/410mm, S: 400/430mm, M: 400/430mm, L: 420/450mm
Stem: Giant Contact AeroLight, -10-degree XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
Seat Post: Giant D-Fuse, composite, 14mm offset
Saddle: Liv Approach
Liv 2027 Avail Advanced 2
-
- XS
-
153 cm
162 cm
-
- S
-
158 cm 169 cm
-
- M
-
165 cm 174 cm
| XS | S | M | |
|---|---|---|---|
| A Seat Tube Length (mm) | 405 | 435 | 465 |
| B Seat Tube Angle | 74.5° | 74.5° | 74.0° |
| C Top Tube Length (mm) | 520 | 525 | 535 |
| D Head Tube Length (mm) | 125 | 145 | 165 |
| E Head Tube Angle | 71.0° | 71.0° | 71.0° |
| F Fork Rake (mm) | 50 | 50 | 50 |
| G Trail (mm) | 68.3 | 68.3 | 68.3 |
| H Wheelbase (mm) | 995 | 1002 | 1007 |
| I Chain Stay Length (mm) | 420 | 420 | 420 |
| J Bottom Bracket Drop (mm) | 75 | 75 | 75 |
| K Stack (mm) | 528 | 547 | 566 |
| K StackToHandlebar (mm) | 606 | 626 | 647 |
| L Reach (mm) | 373 | 373 | 373 |
| L ReachToHandlebar (mm) | 420 | 429 | 439 |
| M Stand Over Height (mm) | 712 | 737 | 762 |
| O Stem Length (mm) | 70 | 80 | 90 |
| P Crank Length (mm) | 165 | 165 | 170 |
