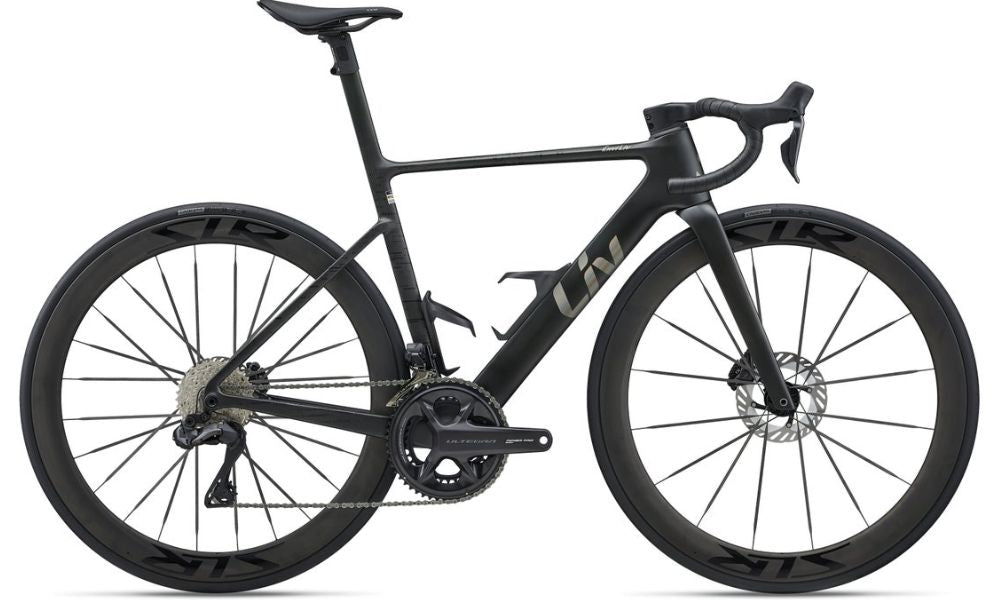

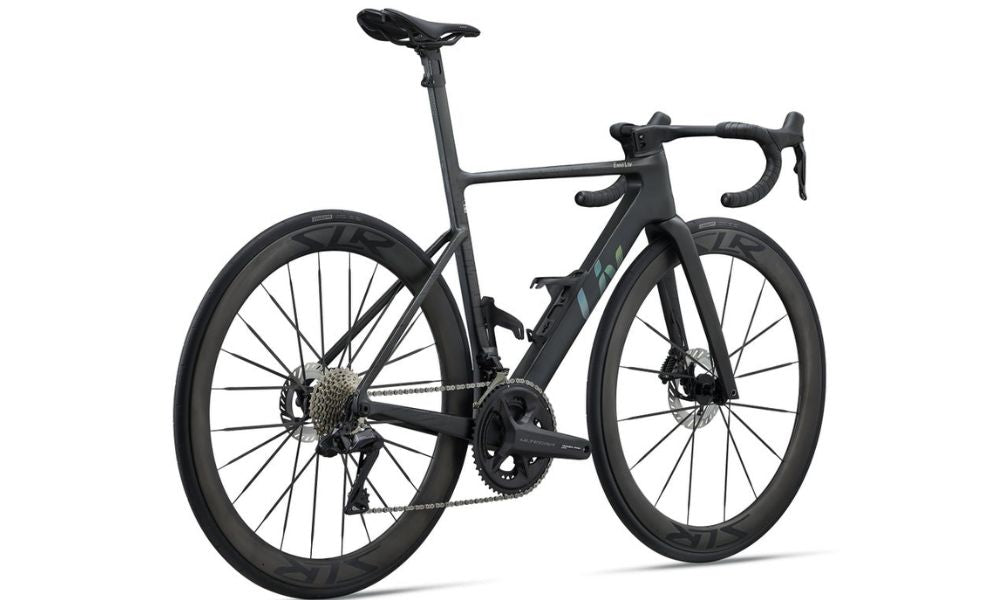

Liv 2027 EnviLiv Advanced SL 1
Bikes available to order from Australia. Please contact store for availability and ordering on 04 589 2822 or support@cyclescience.co.nz
For WorldTour sprinters and high-speed triathletes who know that every second counts, the EnviLiv Advanced SL was made to overtake competitors, surpass expectations, and transcend reality. Designed with next-level, full-system integration for refined aerodynamics and reduced weight, this is our fastest, most efficient, most ambitious EnviLiv to date.
Race-Tuned Efficiency
Reengineered for lighter weight and greater efficiency, the all-new EnviLiv Advanced SL introduces an integrated seatpost (ISP) design that eliminates traditional seatpost hardware, reducing overall mass while enhancing ride feel through increased compliance and vibration damping. This is the first time ISP technology appears on the EnviLiv platform, bringing proven WorldTour performance benefits to Liv’s most advanced aero race bike.
System-Integrated Aerodynamics
The EnviLiv Advanced SL is designed as a complete aerodynamic system, with every component working together to reduce drag at race speed. From the aero frameset to the one-piece Liv Contact SLR Aero cockpit, wheelsystems, and tires, each element is integrated to optimize airflow across the entire bike. The result is aerodynamic performance that’s realized not in isolation, but as a unified system built for real-world racing.
Composed Control

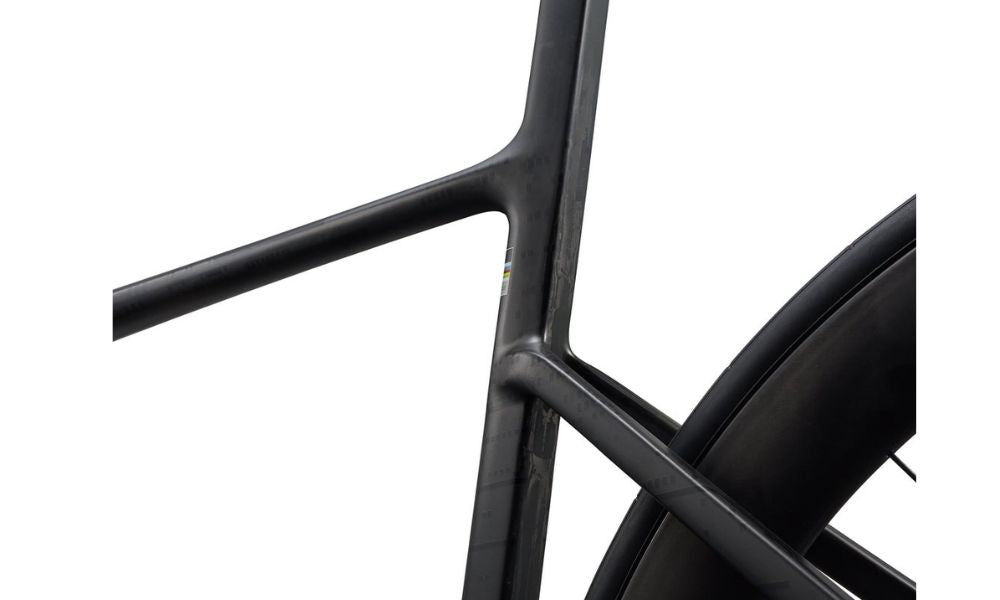

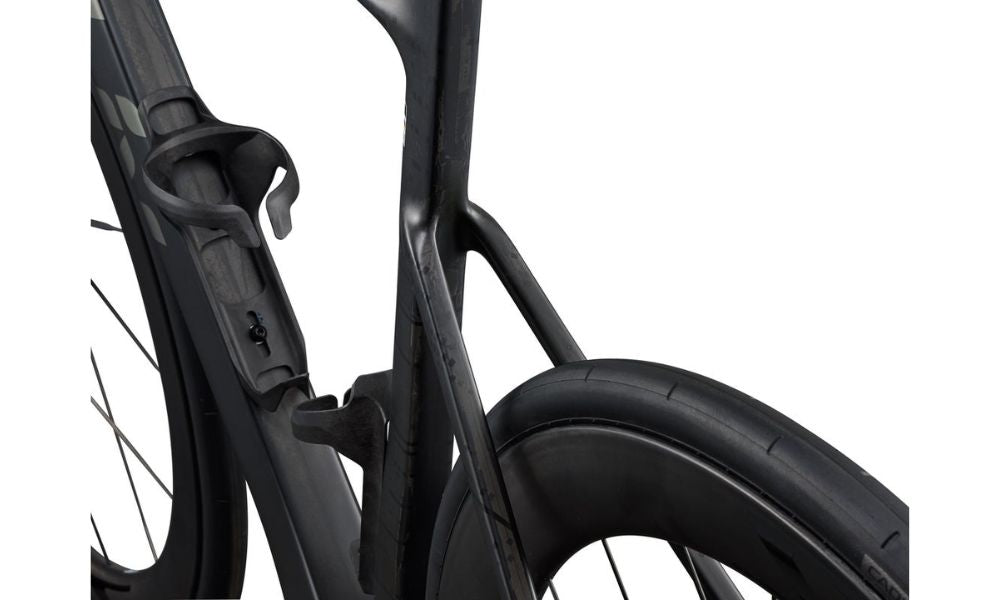

Lowered seatstays add vertical compliance that smooths road vibration and improves aerodynamic efficiency, keeping the bike composed at speed when the road gets rough. With clearance for tires up to 32mm, the EnviLiv Advanced SL delivers added confidence across variable surfaces—without compromising precision, speed, or its race-ready character.
Liv 2027 EnviLiv Advanced SL 1
Frame
Size: XS, S, M
Colour: Raw Carbon

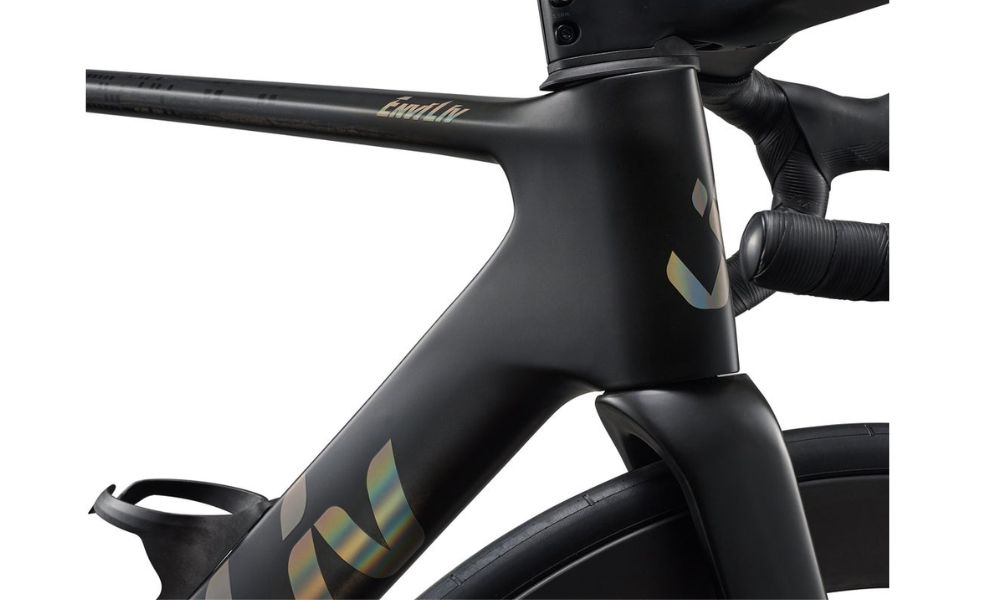

Frame: Advanced SL-grade Composite, 12x142mm thru-axle, UDH compatible, integrated seatpost, disc

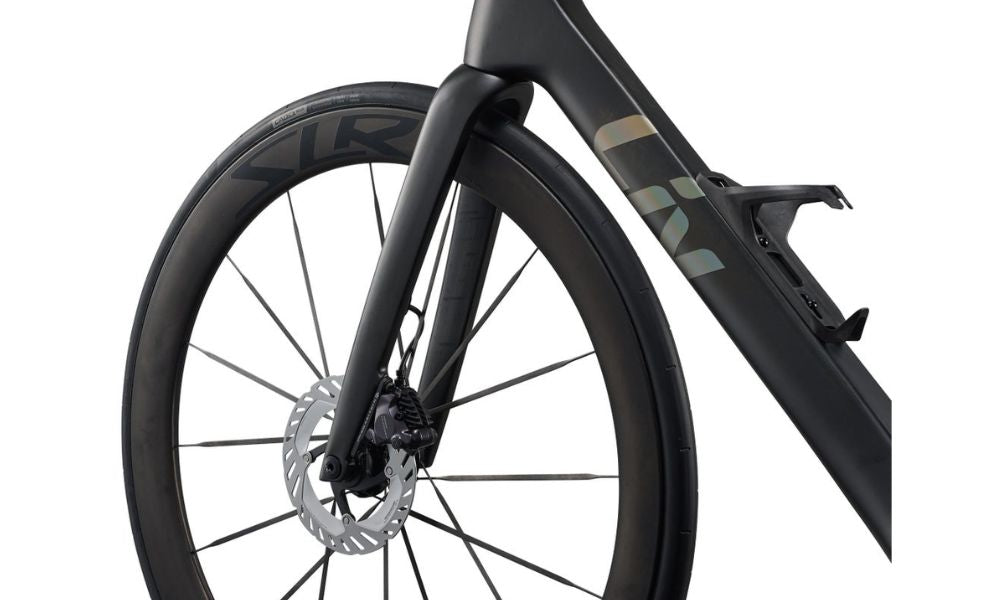

Fork: Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock:
Drivetrain

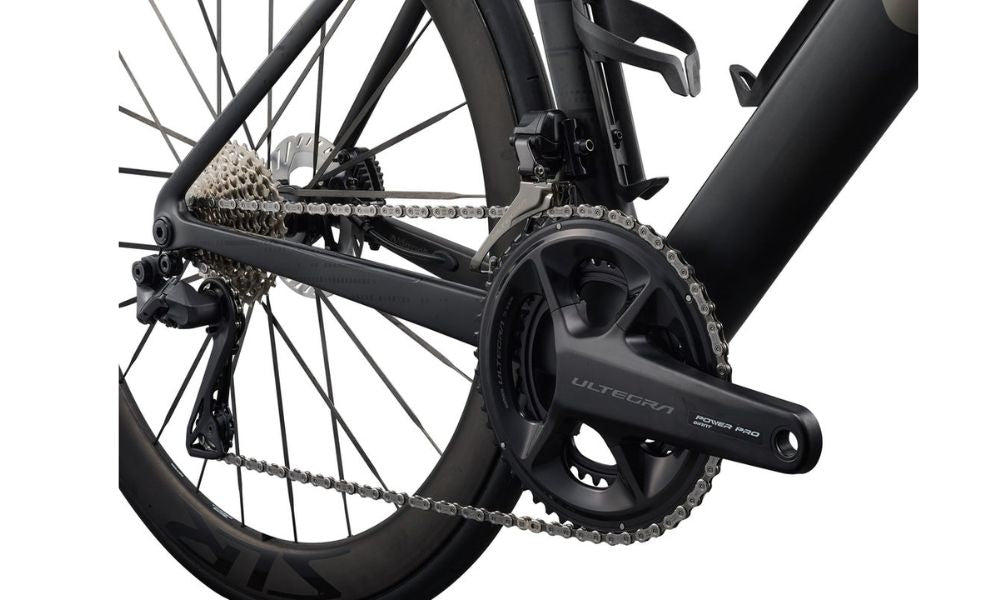

Crankset: Shimano Ultegra, 36/52 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm
Pedals:
Chain: Shimano Ultegra, CN-M8100
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano Ultegra Di2 RD-R8150
Front Derailleur: Shimano Ultegra Di2 FD-R8150
Shifter: Shimano Ultegra Di2 ST-R8170
Freewheel/Cassette: Shimano Ultegra, 12-speed, 11x34
Braking System
Brakes: Shimano Ultegra hydraulic, Shimano rotors [F]160mm, [R]140mm
Brake Levers: Shimano Ultegra hydraulic
Wheels
Tyres:
Wheels/Rims: Giant SLR 0 50 Carbon Disc WheelSystem, [F] 50mm, [R] 50mm
Hubs: [F] Giant Aero Hub, CenterLock, 12mm thru-axle [R] Giant Aero Hub, 40T ratchet driver, CenterLock, 12mm thru-axle
Other

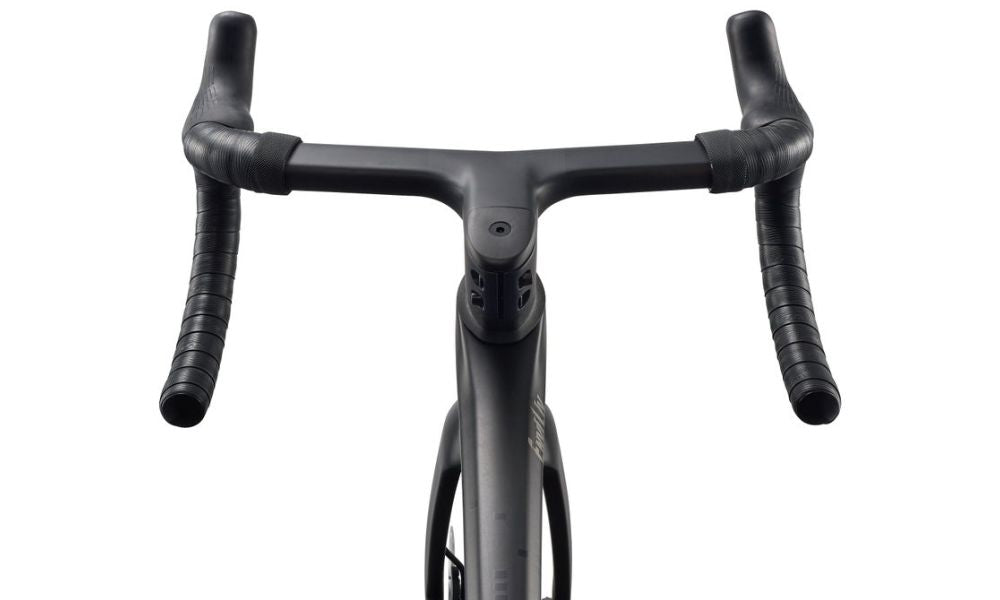

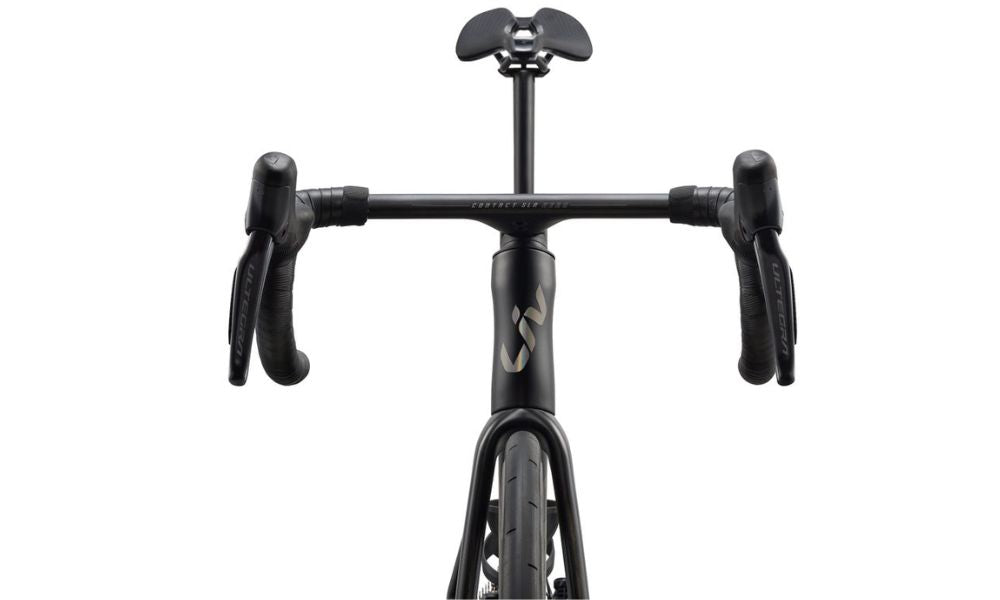

Handlebar: Liv Contact SLR Aero 0, one piece bar XS:36/38cm, S:36/38cm, M:37/40cm
Stem: Liv Contact SLR Aero 0, one piece bar XS:80mm, S:90mm, M:100mm
Seat Post: Advanced SL-grade composite, integrated design, -5/+15mm offset
Saddle: Liv Alacra SLR
Liv 2027 EnviLiv Advanced SL 1
-
- XS
-
152 cm
163 cm
-
- S
-
158 cm 169 cm
-
- M
-
164 cm 176 cm
| XS | S | M | |
|---|---|---|---|
| A Seat Tube Length (mm) | 680 | 710 | 740 |
| B Seat Tube Angle | 75.0° | 74.5° | 74.0° |
| C Top Tube Length (mm) | 514.8 | 526.2 | 541.2 |
| D Head Tube Length (mm) | 115 | 130 | 150 |
| E Head Tube Angle | 71.0° | 72.0° | 72.5° |
| F Fork Rake (mm) | 49 | 49 | 49 |
| G Trail (mm) | 66.8 | 60.4 | 57.2 |
| H Wheelbase (mm) | 974.7 | 977 | 984.1 |
| I Chain Stay Length (mm) | 405 | 405 | 405 |
| J Bottom Bracket Drop (mm) | 66.8 | 60.4 | 57.2 |
| K Stack (mm) | 511.8 | 527 | 547.8 |
| L Reach (mm) | 372.9 | 377.8 | 382.9 |
| M Stand Over Height (mm) | 732.6 | 760.8 | 786.9 |
| O Stem Length (mm) | 80 | 90 | 100 |
| P Crank Length (mm) | 160 | 165 | 170 |
