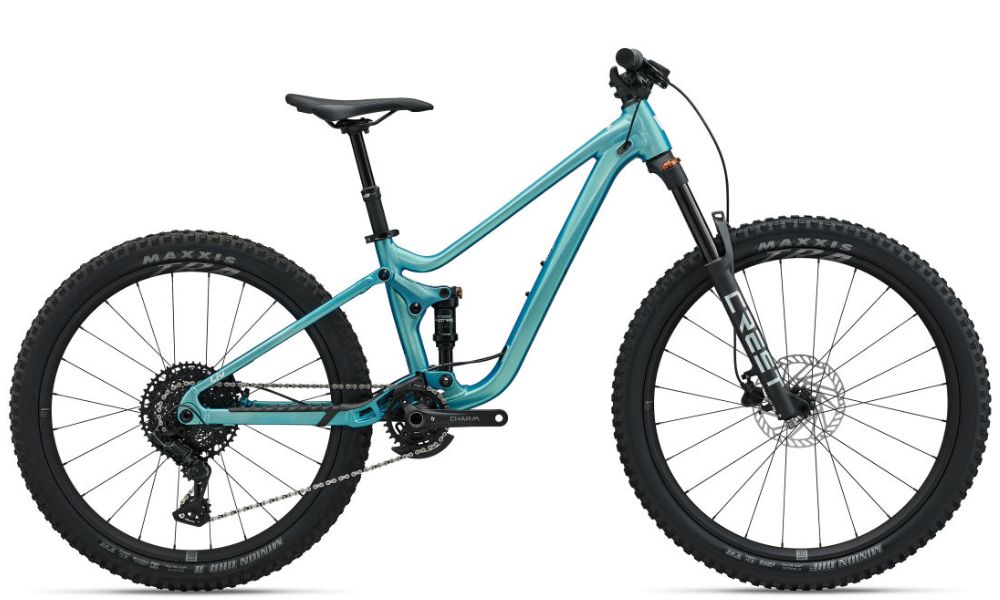

Liv 2027 Faith-Liv
DREAM BIG
Built to meet the demands of young shredders, the Liv Faith 24 provides a performance full-suspension platform to fuel limitless possibilities.
YOUTH-TUNED SUSPENSION
The Crest FloTrac Lite Shock delivers 135mm of smooth travel tuned specifically for lighter-weight riders, up front, the 140mm Crest SL FloTune Lite Fork handles rocks, roots, and ruts. The new Unified Suspension Setup tailors to the rider's body weight, optimal air pressure, and damping clicks are predefined for both the fork and shock to create smooth balance and control. Our dedication to youth optimization guarantees effortless setup and the best youth fit - continuing Liv's commitment to supporting the next generation of female riders.
AGILE AND EFFICIENT
An ALUXX SL aluminum frame with youth-specific trail geometry provides unmatched robust efficiency, combined with quality lightweight components that minimize weight to help young riders tackle challenging terrain. The FlexPoint single-pivot design maximizes pedaling efficiency and delivers capable control, to help kids stay focused even on bumpy terrain.
OFF-ROAD CONTROL
With the wide-wall technology of TRA WheelSystem, young riders can enjoy enhanced traction through lower tire pressure, increasing grip and stability. For smaller riders, 27.5-inch front and 26-inch rear wheels bring burly handling, ready for progression. A dropper seatpost makes it easy to optimize riding position while climbing or descending, giving them more control to conquer the trail.
Liv 2027 Faith-Liv
Frame
Size: 27.5/26
Colour: Glacier Teal
Frame: ALUXX SL-grade aluminum front and rear triangles, 135mm FlexPoint suspension, 26-inch rear wheel compatible
Fork: Giant CREST SL, 140mm, FLOTUNE damper, 27.5-inch wheel compatible, custom "light weight" tune
Shock: Giant CREST FLOTRAC Lite, 165/45, trunnion mount, custom "light weight" tune
Drivetrain
Crankset: ProWheel CHARM, 30t, 155m
Pedals:
Chain: KMC X10
Bottom Bracket: Press Fit
Rear Derailleur: MicroSHIFT Advent X
Front Derailleur:
Derailleur Shifter: MicroSHIFT Advent X, 1x10
Freewheel/Cassette: MicroSHIFT Advent X, G-Series, 11x48
Braking System
Brakes: Tektro HD-J2820, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro HD-J2820
Wheels
Tyres: [F] Maxxis Minion DHF, 27.5x2.5, 60 tpi [R] Maxxis Minion DHR II, 26x2.4, 60 tpi
Wheels/Rims: Giant TRA WheelSystem, aluminum, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology, [F] 27.5-inch, [R] 26-inch
Hubs: [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), 6-bolt, MicroDrive driver body
Other
Handlebar: Giant Connect TR, alloy, 740mm, 20mm rise
Stem: Giant Contact, 8-degree, 40mm
Seat Post: Contact Switch AT Lite dropper, remote, 100mm travel, 30.9mm
Saddle: Giant Romero
Liv 2027 Faith-Liv
-
- One Size
-
145 cm
165 cm
| One Size | |
|---|---|
| A Seat Tube Length (mm) | 350 |
| A1 Seat Post Insertion Depth (mm) | 285 |
| B Seat Tube Angle | 77.0° |
| C Top Tube Length (mm) | 545 |
| D Head Tube Length (mm) | 105 |
| E Head Tube Angle | 64.5° |
| F Fork Rake (mm) | 41 |
| G Trail (mm) | 123 |
| H Wheelbase (mm) | 1148 |
| I Chain Stay Length (mm) | 425 |
| J Bottom Bracket Drop (mm) | 10 |
| K Stack (mm) | 585 |
| L Reach (mm) | 410 |
| M Stand Over Height (mm) | 676 |
| O Stem Length (mm) | 40 |
| P Crank Length (mm) | 155 |
