Liv 2027 Tmept E+ 2 EX
VERSATILE
From trail adventures to daily commutes and grocery runs, the Tempt E+ EX is built to handle it all. The 100mm suspension fork provides comfort, while thoughtful touches like an integrated kickstand and a MIK rear rack add everyday convenience to its go-anywhere capability.
POWERFUL
With the SyncDrive Sport 2 motor and removable 430Wh battery, this bike provides strong, consistent support wherever you ride. Need to go even farther? An optional 200Wh range extender is available for longer range. A bright Recon front light adds visibility and confidence for extra safety day or night.
INTELLIGENT
Packed with innovative features, the E-Lock system lets you lock the bike remotely via the RideControl App or handlebar control unit. Apple Find My compatibility locates your bike with your iPhone and built-in anti-theft protection sounds an alarm and sends alerts if the bike is moved, offering added peace of mind.
Liv 2027 Tempt E+ 2 EX
Frame
Size: XS, S, and M
Colour: Tyrian Purple
Frame: ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA40 kickstand mount

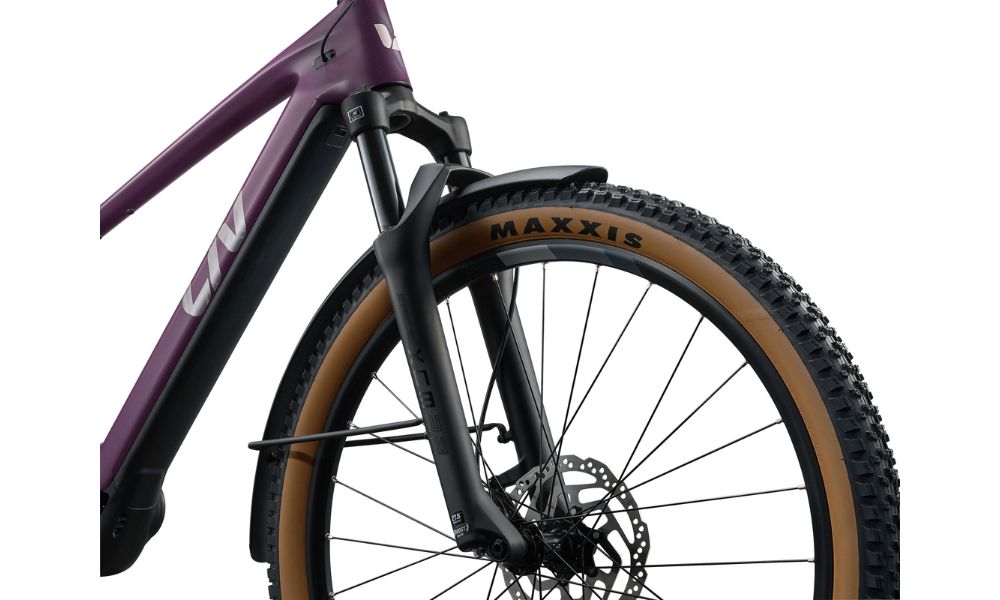

Fork: SR Suntour XCM ATB DS coil 29" 100mm travel 15x110 AH axle
Shock:
Drivetrain
Crankset: Forged allumin direct-mount chainring steel 36T, Forged alumium crank arms, (XS-S: 160mm, M-L: 165mm)
Pedals:
Chain: KMC eGlide NP/BK, e-bike optimized
Bottom Bracket:
Rear Derailleur: Shimano Cues 9-speed
Front Derailleur:
Derailleur Shifter: Shimano Cues
Freewheel/Cassette: Shimano Cues, 11-41T, 9-speed
Braking System
Brakes: Shimano MT200, hydraulic disc, 180mm [F/R]
Brake Levers: Shimano MT-200
Wheels
Tyres: Maxxis Rekon Tanwall XS-S: 27.5x2.4" / M-L: 29 x 2.4" Wire Bead 60TPI
Wheels/Rims: Liv, GX03V, 27.5 / 29, Alluminum (XS-S: 27.5, M-L: 29)
Hubs: eTracker boost alloy 6-bolt disc 15x110mm [F] 12x148mm [R]
Other
Handlebar: Giant Connect TR Riser 31.8x690~750mm
Stem: Giant Contact
Seat Post: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Saddle: Liv Ergo Trail ESG
E-Bike

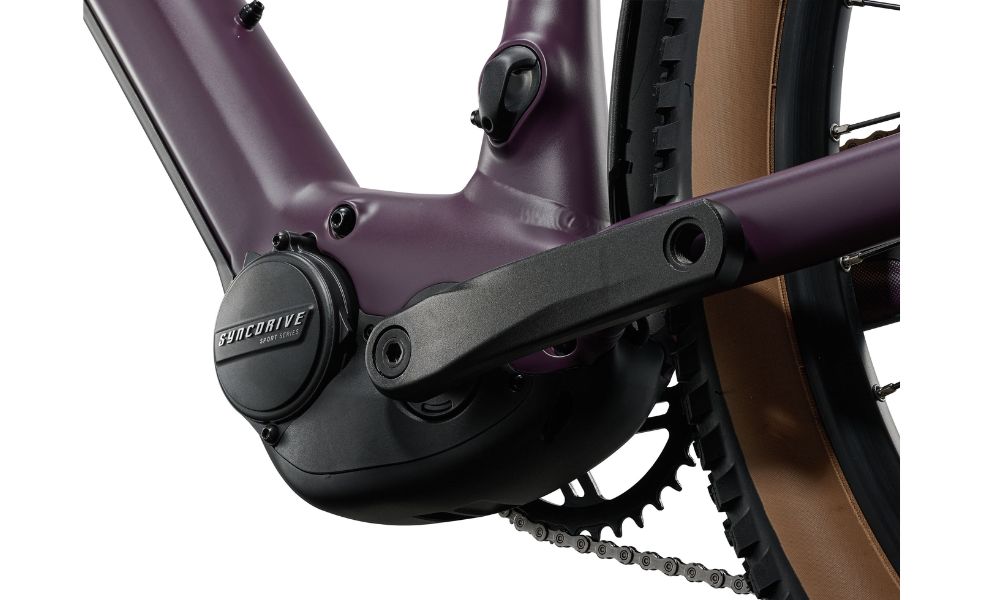

Drive Unit: Giant SyncDrive Sport 2, 75Nm, PedalPlus 6-sensor technology
Battery: Giant EnergyPak Smart 430Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Display: Giant RideControl Dash 2, high-angle visibility, full color LCD display
UI/Remote: Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels, USB-C (10W)
Charger: Giant EnergyPak 4A smart charger
Extras

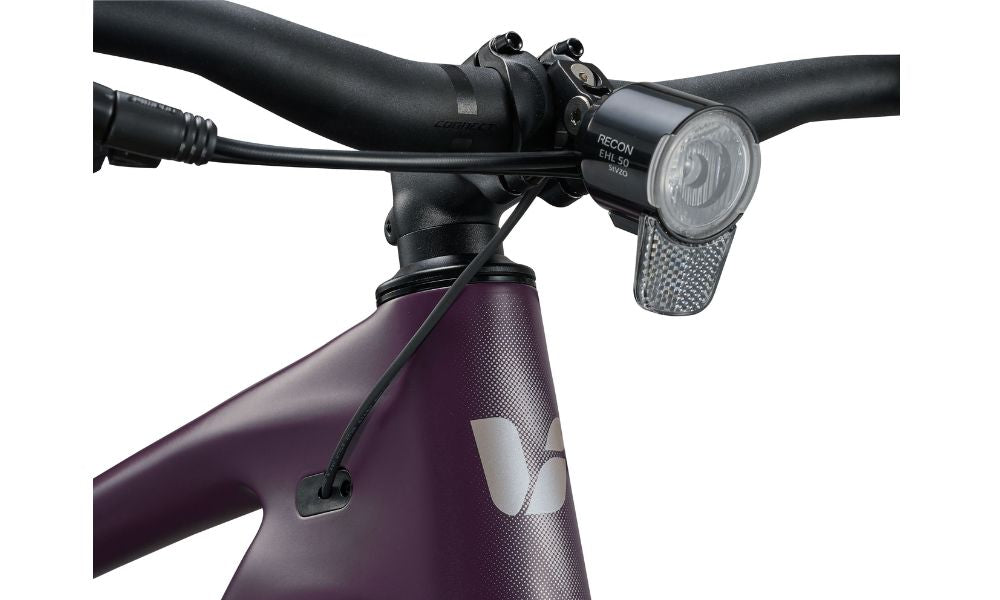

Lights: Recon EL50 Axa BlueLine Steady E6 rear
Kickstand:
Mudguards: Fenderset

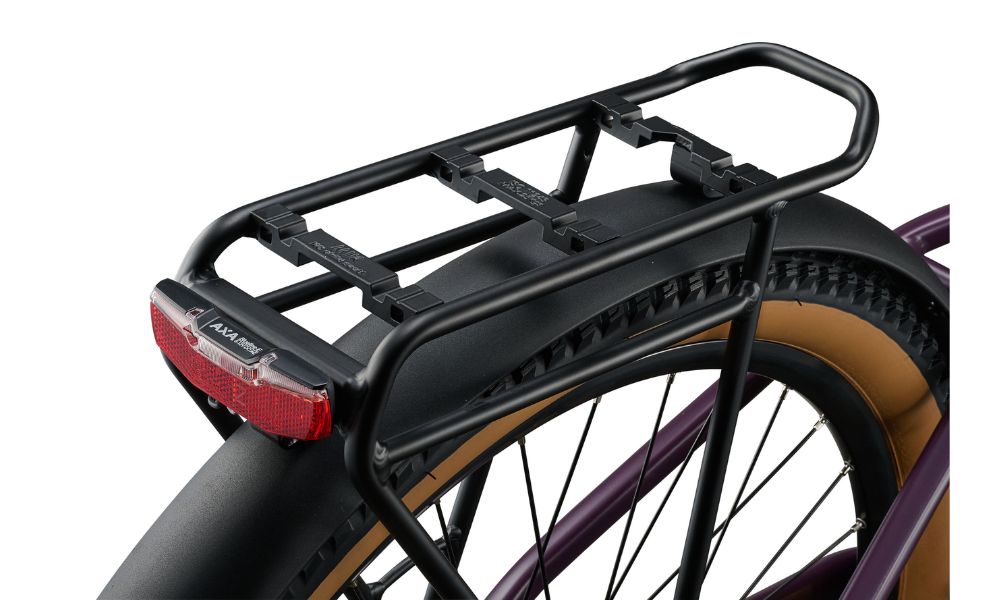

Rear Rack: Rack-It MIK
Liv 2027 Tempt E+ 2 EX
-
- XS
-
152 cm
163 cm
-
- S
-
158 cm 169 cm
-
- M
-
164 cm 175 cm
-
- L
-
170 cm 181 cm
| XS | S | M | L | |
|---|---|---|---|---|
| A Seat Tube Length (mm) | 365 | 405 | 445 | 485 |
| A1 Seat Post Insertion Depth (mm) | 170 | 200 | 240 | 260 |
| B Seat Tube Angle | 78.0° | 78.0° | 74.0° | 74.0° |
| C Top Tube Length (mm) | 560 | 570 | 595 | 615 |
| D Head Tube Length (mm) | 110 | 115 | 105 | 115 |
| E Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° |
| F Fork Rake (mm) | 44 | 44 | 46 | 46 |
| G Trail (mm) | 106 | 106 | 104.5 | 104.5 |
| H Wheelbase (mm) | 1151 | 1162 | 1139 | 1160 |
| I Chain Stay Length (mm) | 450 | 450 | 470 | 470 |
| J Bottom Bracket Drop (mm) | 45 | 45 | 60 | 60 |
| K Stack (mm) | 596 | 600 | 618 | 627 |
| L Reach (mm) | 433 | 442 | 417 | 435 |
| M Stand Over Height (mm) | 717 | 732 | 750 | 765 |
| O Stem Length (mm) | 50 | 50 | 50 | 60 |
| P Crank Length (mm) | 165 | 165 | 165 | |
| Q Wheel Size | 27.5+ | 27.5+ | 29" | 29" |
