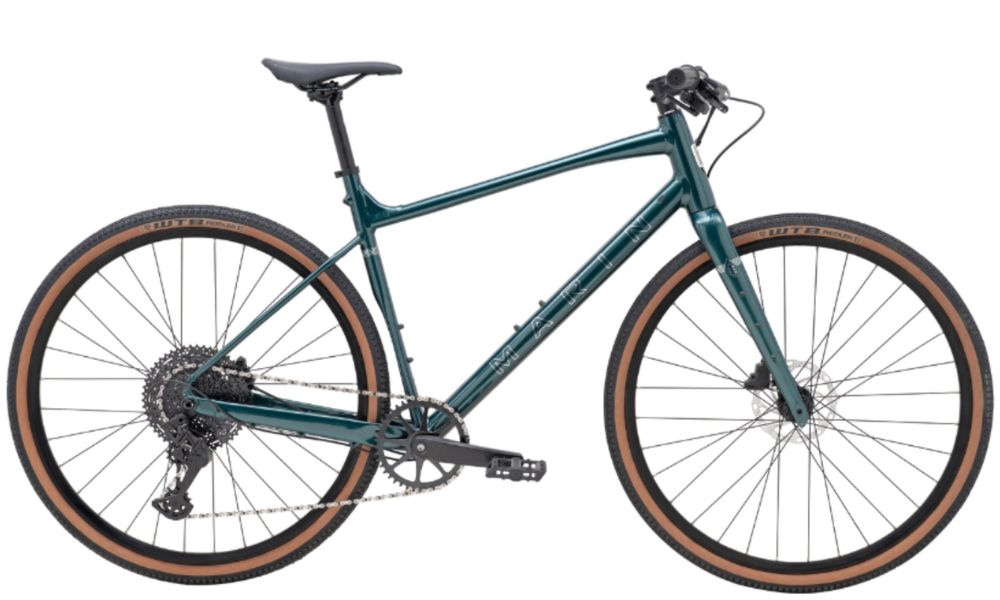

Marin 2026 DSX 1
LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING
Hopping up to a higher-spec Series 3 aluminum frame and a carbon fibre fork, the DSX 1 is lighter and slightly stiffer than the base model bike. There’s also an 11-speed 1X Tektro drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.
Marin 2026 DSX 1
Frame
Size: S, M, L, XL
Colour: Green/Silver
Frame: Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount
Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Shock:
Drivetrain
Crankset: Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 42T Chainring
Pedals:
Chain: KMC X9
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Rear Derailleur: Tektro Gemini, SL-M5100, 11-speed
Front Derailleur:
Derailleur Shifter: Tektro Gemini, SL-M5100, 11-speed
Freewheel/Cassette: Tektro Gemini,, CS-M5100, 11-Speed, 11-50T
Braking System
Brakes: [F] and [R] Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor
Brake Levers: Tektro Hydraulic
Wheels
Tyres: [F] and [R] WTB Riddler, 700Cx45mm
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, Disc Specific
Hubs: [F] and [R] Forged Aluminum Alloy, Disc, 32H
Other
Handlebar: Marin Mini Riser
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy
Saddle: Marin 3D Forged Alloy
Marin 2026 DSX 1
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 544.4 | 572.5 | 600.6 | 628.7 |
| Reach | 380 | 405 | 420 | 435 |
| Headtube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| Headtube Length | 120 | 150 | 180 | 210 |
| Seattube Angle | 74° | 74° | 74° | 74° |
| Seattube Length | 430 | 480 | 520 | 558 |
| Toptube Effective | 536.1 | 569.2 | 592.2 | 615.3 |
| BB Height | 279.5 | 279.5 | 279.5 | 279.5 |
| BB Drop | 80 | 80 | 80 | 80 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1024.42 | 1060 | 1085.4 | 1110.9 |
| Standover Height | 658.76 | 700.51 | 730.39 | 758.5 |
| Fork Offset | 50 | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 640 | 680 | 680 | 680 |
| Stem Length | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 175 | 175 | 175 |
All lengths in millimeters
