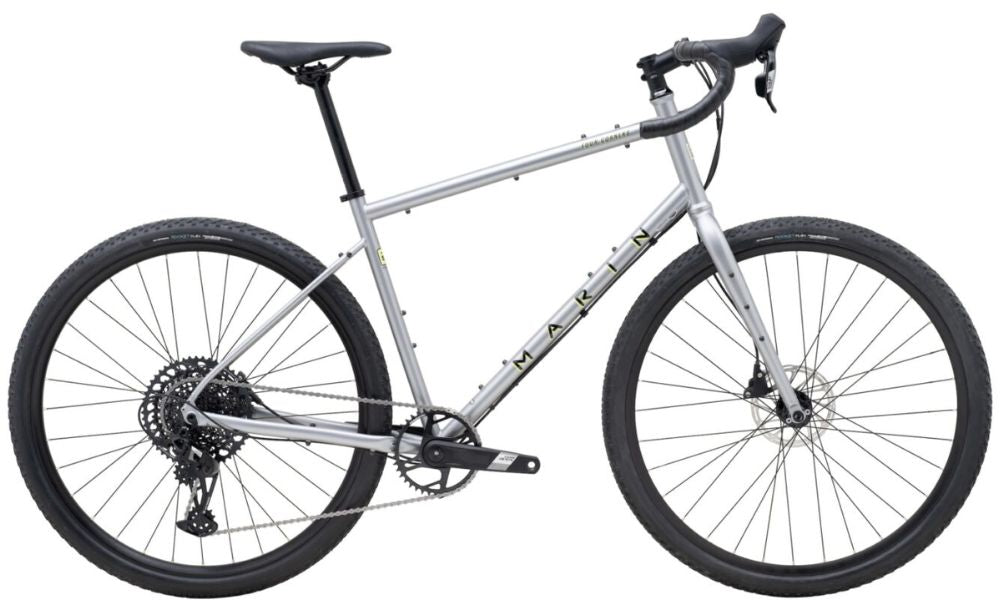

Marin 2026 Four Corners 2
Midweek commute, weekend adventures. No problem for the Marin Four Corners, our steel-framed explorer that's as comfortable on the asphalt as in the dirt.
A double-butted 4130 CrMo steel frame and fork are designed to be comfortable on rough roads and handle fully loaded-touring and bikepacking. We've included six bottle mounts, rack and fender eyelets, lowrider fork mounts, generous tire clearance, and disc brakes to set you up for all conditions and all terrain.
Don't be fooled; that classic frame material doesn't mean low-tech. We've used biometric fit data to offer five different frame sizes, with size-matched 650b or 700C wheels to suit riders between 4'11 perfectly" – 6'4". A high front end creates all-day comfort and heads-up visibility; off-road-ready geometry means you won't skip a beat when you head off the asphalt and explore Beyond Road.
The Four Corners 2 takes all the elements that make the Four Corners fantastic and adds a Series 3 double-butted CrMo frameset, a simpler, wide-range SRAM 1x12 speed Apex drivetrain, and matching, powerful Apex 1 hydraulic disc brakes. The rubber meets the road/path/trail with wider, 44mm Vee Tire Quickstyx tubeless-compatible tires, and the frame can accept tires up to 50mm wide.
Marin 2026 Four Corners 2
Frame
Size: XS, S, M, L, XL
Colour: Grey
Frame: Series 3 Double Butted CrMo, Size-Specific Wheels (XS, S = 650B, M, L, XL = 700C) , Biometric Geometry, Fender and Rack Mounts, 142x12mm Thru-Axle, Flat Mount 160 Disc Mount, Plentiful Gear Mounts
Fork: Series 3 CrMo, 100x12mm Thru-Axle, Flat Mount 160 Disc Mount, Fender, Rack, and Bottle Cage Eyelets
Shock:
Drivetrain
Crankset: SRAM Apex 1, 40T
Pedals:
Chain: SRAM NX
Bottom Bracket: SRAM DUB BSA
Rear Derailleur: SRAM Apex 1 12-Speed
Front Derailleur:
Derailleur Shifter: SRAM Apex 1 1x12-Speed
Freewheel/Cassette: SRAM CS-XG-1275, 10-52T
Braking System
Brakes: [F] and [R] SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers: SRAM Apex 1 Hydraulic Disc
Wheels
Tyres: [F] and [R] Vee Tire Co., Rocket Man, 650/700x44, Tubeless-Compatible
Wheels/Rims: [F] [R] Marin Aluminum Double Wall, 25mm Inner, Disc Specific, Tubeless-Compatible
Hubs: [F] and [R] Forged Aluminum Alloy, Disc, 32H
Other
Handlebar: Marin Butted Alloy, Compact 16ş Flared Drop
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin Beyond Road Concept
Marin 2026 Four Corners 2
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 560 | 580 | 618 | 648 | 679 |
| Reach | 376.7 | 381 | 403.3 | 412.6 | 426.6 |
| Headtube Angle | 70° | 70° | 71° | 71° | 71° |
| Headtube Length | 167 | 188 | 188 | 209 | 252 |
| Seattube Angle | 74.5° | 73.5° | 73.5° | 72.5° | 72° |
| Seattube Length | 381 | 422 | 462 | 495 | 528 |
| Toptube Effective | 532 | 553 | 586 | 617 | 647 |
| BB Height | 291 | 291 | 288.5 | 288.5 | 288.5 |
| BB Drop | 53.5 | 53.5 | 72 | 72 | 72 |
| Chainstay | 432 | 432 | 450 | 450 | 450 |
| Wheelbase | 1035 | 1047 | 1087 | 1107 | 1132 |
| Standover Height | 668 | 707 | 745 | 777 | 810 |
| Fork Offset | 43 | 43 | 49 | 49 | 49 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 440 | 440 | 460 | 460 | 460 |
| Stem Length | 70 | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 170 | 170 | 175 | 175 |
All lengths in millimeters
