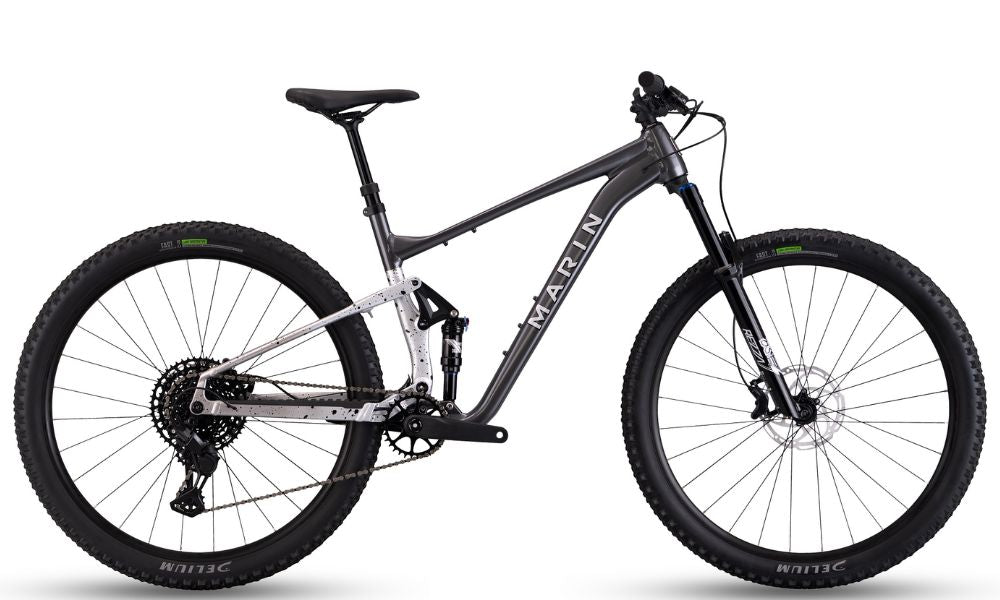

Marin 2026 Tam 1

Fun shouldn't cost a fortune.

The TAM 1's high-tech Series 4 Aluminum frame and 120mm of XC-tuned IsoTrac suspension absolutely rip rough terrain. X-Fusion's lightweight 130mm travel XC Rezza fork paired with the Rezza shock and MicroSHIFT'spremium 11-speed Advent MX drivetrain deliver top-performing kit at an almost unbelievable price.

The confidence-boosting 65-degree head angle keeps you in control and hungry for more – crush local XC laps, tackle epic rides, or just shred for the joy of it.

Specifications

Marin 2026 Tam 1

Frame

Size: S, M, L, XL
Colour: Dark Grey/White
Frame: All new Series 4 Aluminum, 29" Wheels, 120mm IsoTrac Suspension Platform, Full Internal Cable Routing, Chainstay Mounted 160MM DM, 148x12mm Boost Thru-Axle, 73mm BB Shell, ISCG 05 Tabs
Fork: X-Fusion Rezza, 130mm Travel, Fine-Cut Damper RCP 3-Pos, 110x15mm Bolt-On Axle, 44mm Axle
Shock: X-Fusion Rezza, RLX 3-Pos Compression Adjust, 190x45mm, 30x8M Hardware, B-Tune

Drivetrain

Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, 170mm Crank Length, Boost Spacing
Pedals:
Chain: KMC X-11 Silver and Black
Bottom Bracket: External Sealed Cartridge Bearing
Rear Derailleur: microSHIFT Advent MX, RD-M7005M, 11-Speed
Front Derailleur:
Shifter: microSHIFT Advent MX, SL-M7115-R, 11-Speed
Freewheel/Cassette: microSHIFT Advent CS-H114, 11-50T, 11-Speed

Braking System

Brakes: Tektro HD-M535 Hydraulic Disc, 180mm Rotor
Brake Levers: Tektro HD-M535

Wheels

Tyres: [F] [R] Delium Fast, 29x24", Light Construction, Dual Compound, Tubeless Ready
Wheels/Rims: [F] [R] Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 28H, Tubeless Compatible
Hubs: [F] Novatech, 148x12, 6-Bolt, HG Driver, 28H [R] Novatech, 110x15mm, 6-Bolt Disc, 28h

Other

Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 20mm Rise, 6ş Up, 9ş Back
Stem: Marin 3D Forged Alloy, 45mm
Seat Post: X-Fusion Manic LC Dropper Post, Adjustable Travel, 1X Remote MMX Clamp, 30.9MM Diamter, S = 150MM / M = 170MM / L-XL = 200MM
Saddle: Marin Speed Concept

Geometry

Marin 2026 Tam 1

	S	M	L	XL
AStack	593.8	603	612	621
BReach	425	455	480	510
CHeadtube angle	65°	65°	65°	65°
DHeadtube length	90	100	110	120
ESeattube length	400	410	450	500
FSeattube angle	76°	76°	76°	76°
GToptube effective	562.7	595.7	623.7	656.7
HBb height	333	333	333	333
IBb drop	38	38
