2025

Merida 2025 eONE SIXTY SL 6000

Size

Color

Quantity

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications
Geometry

Description

Merida 2025 eONE SIXTY SL 6000

Our trail and enduro-ready perfect blend of price and performance. The eONE-SIXTY 6000 combines our latest 160 mm full carbon e-enduro frame with the compact and lightweight Bosch Performance Line SX drivetrain to create one of the most agile and fun-to-ride e-enduros in our range. With almost 'human-powered' handling and a powerful 55 Nm of assistance to kick in when needed, the eONE-SIXTY 6000 is the ideal machine for trail and enduro riders looking for maximum trail fun while enjoying an active riding style.

The eONE-SIXTY SL represents a new breed of e-mountain bike, combining the poise of an unassisted bike with the power of a Bosch SX drive unit to help you ride further and faster. With a lightweight full carbon frame, 160 mm of well-balanced travel and a build that blends hard-hitting performance with low weight, it blurs the line between conventional and assisted riding. The eONE-SIXTY SL combines ‘human-powered’ bike handling and enduro tough but lightweight equipment with the latest compact Bosch Performance Line SX motor with 55 Nm, and a fully integrated 400 Wh battery plus an optional 250 Wh range extender for an experience that blurs the line between normal and e-bike. If you are the type of rider who likes to pedal hard and use the assistance for maximum fun on the trail, then the eONE-SIXTY SL should be your next trail and enduro companion.

Lightweight full carbon fibre CF4 frame with 160 mm rear wheel travel
Shimano Deore 12-speed drivetrain and 4-piston Shimano disc brakes
Marzocchi Z1 eMTB fork with 160 mm travel and Marzocchi Bomber Air rear shock
Bosch Performance Line SX drive unit with integrated 400 Wh battery with optional 250 Wh range extender
Fast-rolling 29er wheel size as standard, with the option to run a mixed-size setup
Reach-based AGILOMETER-inspired sizing system with long travel dropper post

Specifications

Merida 2025 eONE SIXTY SL 6000

Frame

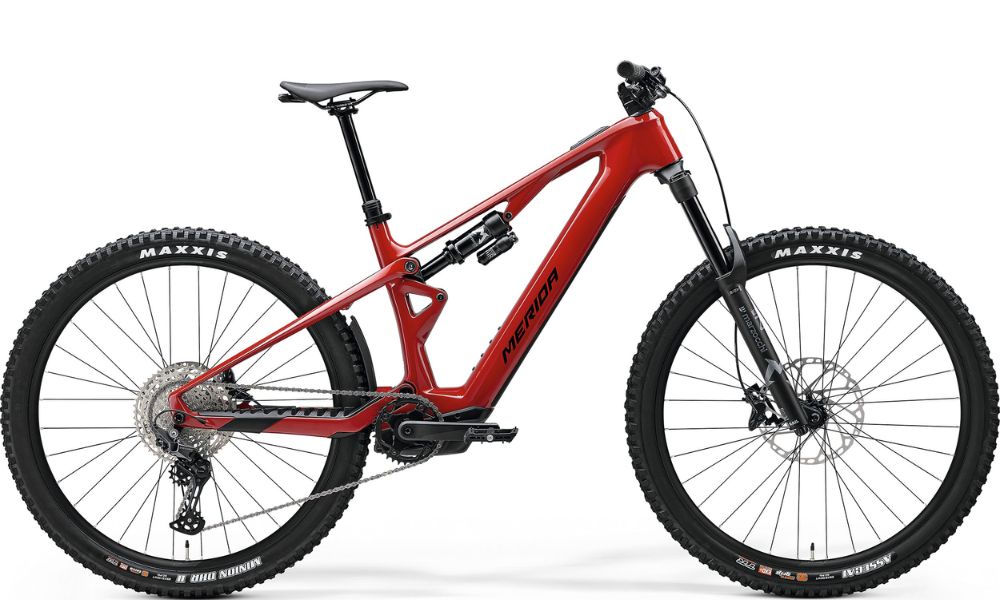

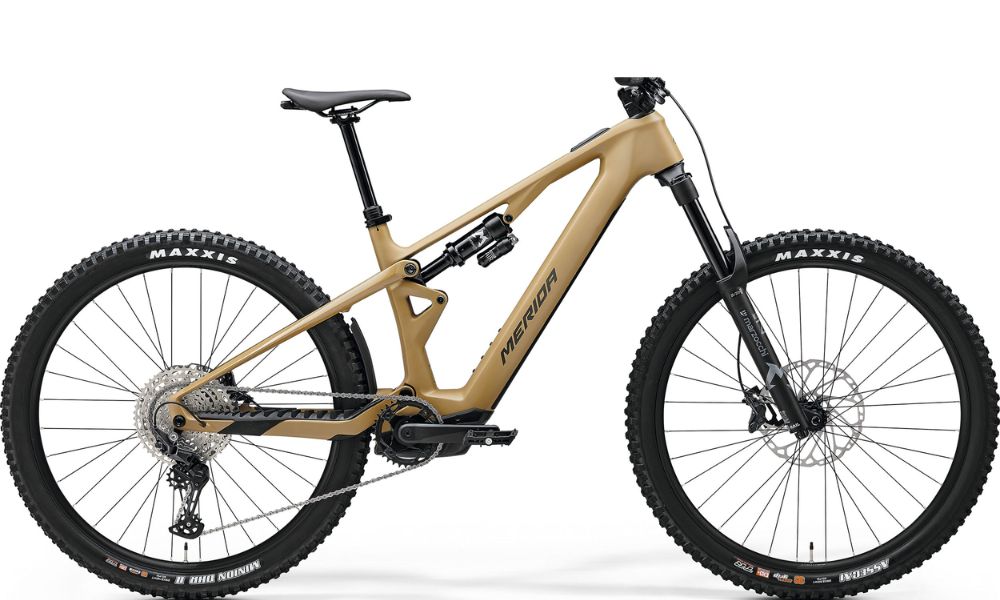

Colour: Heritage Red or River Clay Gold
Frame: eONE-SIXTY SL CF4 I ; MAT carbon; 160 STR; 29x2,4" max. WHS; 148x12 AST; fixed battery
Fork: Marzocchi Z1 eMTB; Air; 160 STR; Tapered; 44mm fork offset; 29x2.6" max WHS
Shock: Marzocchi Bomber Air

Drivetrain

Crankset: FSA 1x Alloy Spider + Mega Tooth steel chain ring; 34 ATC
Chain: Shimano Deore M6100
Bottom Bracket: NA
Rear Derailleur: Shimano Deore
Front Derailleur: NA
Derailleur Shifter: Shimano Deore
Freewheel/Cassette: Shimano Deore; 10-51 ATC; 12 GER

Braking System

Brakes: Shimano Deore; 4 piston [F] Shimano RT64, 220mm [R] Shimano RT64, 203mm
Brake Levers:

Wheels

Tyres: [F] Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip [R] Maxxis Minion DHR II; 29x2.4 "; fold; TR EXO+ 3C MaxxTerra
Wheels/Rims:
Hubs: [F] Shimano TC500; 15x100 WHF; 32 SPH; Centerlock [R] Shimano TC500; 12x148 WHR; 32 SPH; Centerlock

Other

Handlebar: MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB
Stem: MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
Saddle: MERIDA COMP SL; V-mount; incl. MERIDA minitool
Seat Post: MERIDA COMP TR III; 34.9 DSP; 0 SSB;

E-Bike

Drive Unit: Bosch Performance Line SX
Display: Bosch Purion 400
Controller: Bosch Mini Remote
Battery: Bosch CompactTube (CPT) ; 400Wh

Extras

Lights: [F] CG-119PG-BLACK [R] CG-404RG-BLK
Pannier Rack: NA
Fenders: RF-001 mini fender
Kickstand:

Geometry

Merida 2025 eONE SIXTY SL 6000

Geometry

	XShort	Short	Mid	Long	XLong
Tyre Sizes	29/27.5"	29/27.5"	29/27.5"	29/27.5"	29/27.5"
ST seat tube [mm]	400	410	425	445	465
TT top tube [mm]	546	567	589	610	632
CS chain stay length [mm]	446	446	446	446	446
HTA head tube angle [°]	64.4	64.4	64.4	64.4	64.4
STA seat tube angle [°]	78.5°	78.5°	78.4°	78.4°	78.3°
BD bottom bracket drop [mm]	9	9	9	9	9
HT head tube [mm]	100	105	110	115	120
FL fork length [mm]	581	581	581	581	581
R reach [mm]	419	439	459	479	499
S stack [mm]	624	628	633	637	642
WB wheel base [mm]	1199	1221	1244	1266	1288
SH stand over height [mm]	776	770	765	760	755
