2025

Merida 2025 ONE SIXTY 7000

Size

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications
Geometry

Description

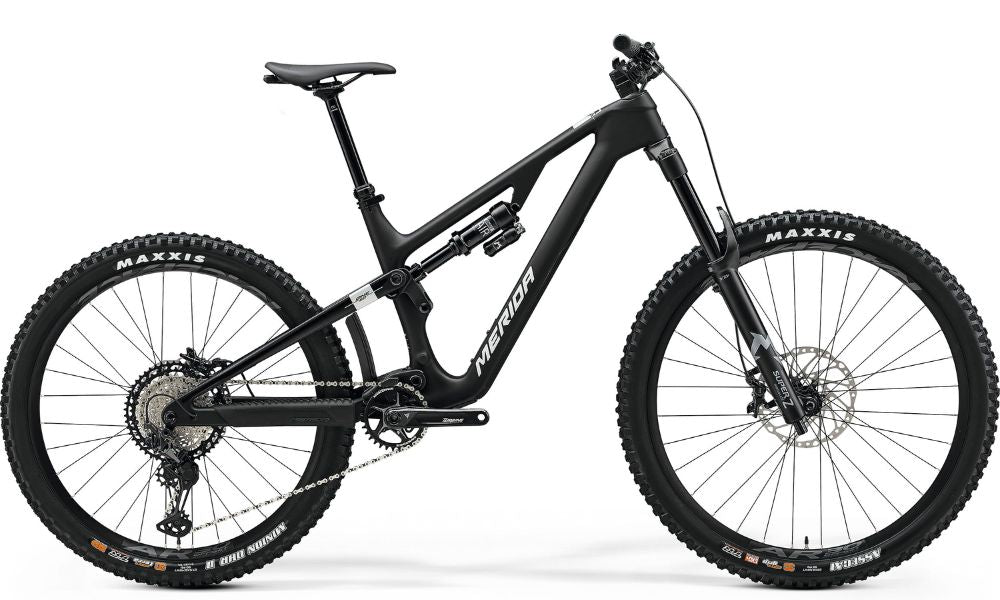

Merida 2025 ONE SIXTY 7000

Top-end carbon frame, test and award winning suspension and one of the most progressive geometries on the market. What more could you ask for in your next enduro rig?

Taking the tested and award-winning full carbon frame that won Bikeradar's Enduro Bike of the Year 2023 and pairing it with the latest high-end Marzocchi fork brings top level performance to any enduro track. Add to this the ability to run 29" or mixed 29"/27.5" wheels, our proven FAST kinematics plus the perfect mix of components from Shimano and Race Face and you have a race winning combination.

Evolution or revolution? How about both? The ONE-SIXTY is a radical, award-winning design that pushes our hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Our proven suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162 mm travel) or mixed 29/27.5” setup (171 mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170 mm fork to deal with downhill trail chaos. Our AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. WIRE PORT cable routing plus reliable threaded bottom bracket round out the package, while carbon frames offer on-board tool storage and FidLock magnetic bottle cages.

Full carbon frame with FAST kinematic suspension and radical enduro geometry
Mixed or full 29er wheels with AGILOMETER sizing
High-end Marzocchi Super Z and Bomber air suspension, proven Shimano XT drivetrain and brakes paired with Race Face cranks
Maxxis Double Down rear and EXO+ front tyres
230 mm travel-adjustable dropper postOn-board tool storage and FidLock bottle cage

Specifications

Merida 2025 ONE SIXTY 7000

Frame

Colour: Silk Black
Frame: ONE-SIXTY CF4 III; 171 STR mullet / 162 STR 29"; MAT carbon; 29x2.5" max. WHS; 148x12 AST; BSA BBR
Fork: Marzocchi SuperZ; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max. WHS
Shock: Marzocchi Bomber Air; platform

Drivetrain

Crankset: Race Face Turbine; 32 ATC
Chain: KMC X12
Bottom Bracket: BB, BSA 73mm– ?30mm, Ext. Seal
Rear Derailleur: Shimano XT M8100; SGS
Front Derailleur:
Derailleur Shifter: Shimano SL-MT500-IL/Shimano XT M8100; Multi Release
Freewheel/Cassette: Shimano XT M8100; 10-51 ATC; 12 GER

Braking System

Brakes: Shimano XT M8120; 4 piston, Shimano RT64; 203 mm
Brake Levers:

Wheels

Tyres: [F] Maxxis Assegai; 29x2.5"; fold; TR EXO+ 3C MaxxGrip [R] Maxxis DHR II; 27.5x2.4" XS/S/M 29x2.4" L/XL; fold; TR DD 3C MaxxTerra
Wheels/Rims: Race Face AR30; 30 IWR; Tubeless ready (tubeless tape and valves not included); rear 27.5" up to Size M / L & XL rear 29"
Hubs: [F] Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock [R] Shimano TC600-MS-B; 148x12 WHR; 32 SPH; Centerlock

Other

Handlebar: MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB
Stem: MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
Saddle: MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool
Seat Post: MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT

Geometry

Merida 2025 ONE SIXTY 7000

	XShort	Short	Mid	Long	XLong
Tyre Sizes	29/27.5"	29/27.5"	29/27.5"	29"	29"
ST seat tube [mm]	400	410	425	445	470
TT top tube [mm]	535	562	589	621	653
CS chain stay length [mm]	434	434	434	437.5	437.5
HTA head tube angle [°]	64	64	64	64	64
STA seat tube angle [°]	79	79	79	79	79
BD bottom bracket drop [mm]	7	7	7	7	7
HT head tube [mm]	95	95	95	105	120
FL fork length [mm]	581	581	581	581	581
R reach [mm]	415	442	470	498	525
S stack [mm]	615	615	615	625	638
WB wheel base [mm]	1188	1215	1242	1275	1308
SH stand over height [mm]	727	730	737	736	776

*Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

*Specialized Bicycles are available for home delivery nation wide.

*AMFLOW Bicycles are available for purchase online, but MUST be collected from the store.
