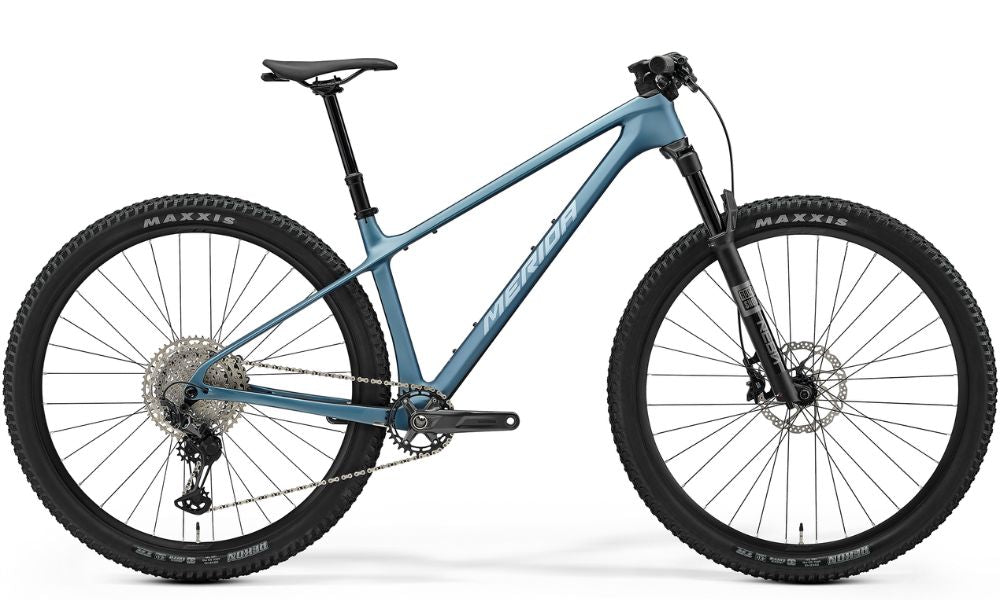

Merida 2026 Big NINE TR 5000
Relentless speed and low weight uphill, paired with trail-hardtail swagger on the descents. Add a 120 mm fork, aggressive tyres and a dropper post to our lightweight carbon frame and you've got a recipe for fun.
The BIG.NINE TR 5000 is ready to push beyond what cross-country hardtails should do. We've added a longer travel 120 mm travel RockShox fork, more aggressive high-volume tyres and our own lightweight dropper post to a CF3 carbon frame that features progressive geometry and our AGILOMETER sizing. Add in the precision and benchmark reliability of Shimano's XT 12-speed and you're good to go.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.
- Lightweight CF3 carbon fibre frame with 2.4" tyre clearance
- Progressive geometry with AGILOMETER sizing for confident handling
- RockShox Judy fork with 120 mm travel for improved descending ability
- Wide range Shimano 12-speed drivetrain
- MERIDA wheelset with trail-ready Maxxis tyres
- Lightweight MERIDA dropper seatpost with remote lever
Merida 2026 Big NINE TR 5000
Frame
Size: S, M, L, XL
Colour: Silk Steel Blue(Blue)
Frame: BIG.NINE TR CF3 III, MAT carbon, 29x2.4" max WHS, 148x12 AST, BSA BBR,
Fork: Rock Shox Reba RL, Air, 120 STR, Tapered, 44 mm fork offset,
Shock:
Drivetrain
Crankset: Shimano Deore MT512, 32t
Pedals:
Chain: KMC X12,
Bottom Bracket: Shimano BB-MT-501, 24mm
Rear Derailleur: Shimano XT, SGS
Front Derailleur:
Shifter: [F] JD-FL lever, [R] Shimano Deore M6100,
Freewheel/Cassette: Shimano Deore M6100, 10-51t, 12sp
Braking System
Brakes: Shimano SLX M7100, 2 piston
Brake Levers:
Wheels
Tyres: Maxxis Rekon, 29x2.4" WT, tubeless ready, 3C EXO,
Wheels/Rims: MERIDA EXPERT CC II, 25 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included)
Hubs: [F] Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock [R] Shimano TC500-MS-B, 148x12 WHR, 32 SPH, Centerlock
Other
Handlebar: MERIDA EXPERT CC, MAT aluminium, 760 WHB, flat
Stem: MERIDA TEAM CC III, MAT aluminium, 31.8 DSH, -6 ASD, incl. MERIDA SMART MOUNT,
Seat Post: MERIDA TEAM TR SL, 30.9 DSP, 0 SSB, S/M: 150mm travel - L/XL/XXL: 170mm travel
Saddle: MERIDA COMP SL, 25% recycled material, V-mount,
Merida 2026 Big NINE TR 5000
| Frame Size | S | M | L | XL |
| Tyre Sizes | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 380 | 410 | 440 | 470 |
| TT top tube [mm] | 594 | 614 | 637 | 659 |
| CS chain stay length [mm] | 430 | 433 | 436 | 439 |
| HTA head tube angle [°] | 66.9 | 66.9 | 66.9 | 66.9 |
| STA seat tube angle [°] | 74.2 | 74.2 | 74.2 | 74.2 |
| BD bottom bracket drop [mm] | 57 | 57 | 57 | 57 |
| HT head tube [mm] | 95 | 95 | 105 | 115 |
| FL fork length [mm] | 530 | 530 | 530 | 530 |
| R reach [mm] | 420 | 440 | 460 | 480 |
| S stack [mm] | 614 | 614 | 624 | 633 |
| WB wheel base [mm] | 1132 | 1155 | 1182 | 1209 |
| SH stand over height [mm] | 711 | 711 | 717 |
