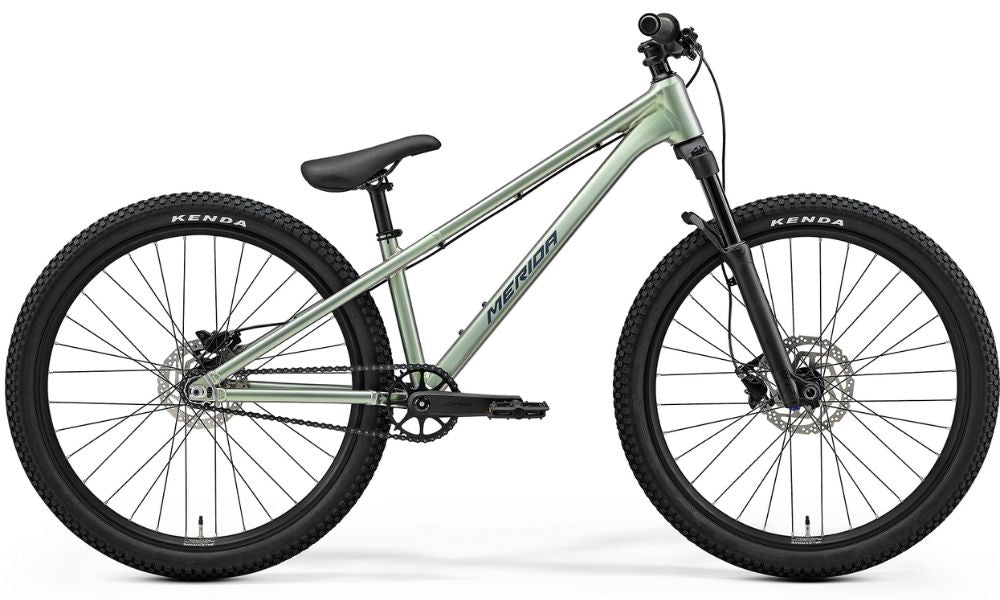

Merida 2026 Dirt 500
Ready for the pump track and the dirt jump trails, but a whole load of fun anywhere you take it. Our tough aluminium frame is paired with 26" wheels, a tough and simple to maintain singlespeed drivetrain and kit that punches above its weight.
--
Our new dirt jump and pump track bike won't break the budget - or break, full stop. Built tough from 6061 aluminium, it's got 26" wheels and a singlespeed setup for bombproof reliability. Designed to deliver the most fun for your money, a Manitou Circus 100 mm fork will save your hands when you case it, while tough Alex rims and fast Kenda tyres are ready to rip pump track berms. Chuck in Shimano hydraulic disc brakes and while it is built for big air it's a surprisingly versatile fun machine.
DIRT simple, DIRT tough. Whether you’re pushing for progression on dirt jumps, playing on the pumptrack or just want a bombproof hardtail buddy, the new MERIDA DIRT has you covered. Built for big air, pump tracks, tricks and generally giving it some stick, our new play hardtail has been created to take a beating and come back for more, with a tough but simple singlespeed aluminium frame, 26” wheels and components that can take a kicking on the regular. Designed to round out our gravity-bike range, it’s the perfect playtime partner for riders that want to sharpen up their skills or who want to kick off their dirt-riding career with a tough, more stylish option than a regular MTB hardtail.
- Tough 6061 aluminium frame with ability to run standard gyro
- Incredibly agile and tough 26" wheels with singlespeed gearing for simplicity
- Dirt-jump specific Manitou Circus 100 mm fork with 20 mm axle
- Hydraulic Shimano disc brakes front and rear
- Tough 160 mm cranks and 32H Alex rims on Novatec hubs
- Bottle bosses for drinks or lock boost versatility for everyday use
Merida 2026 Dirt 500
Frame
Size: M, L
Colour: Grey/Green Clear Coat(Silver)
Frame: DIRT TFS; MAT aluminum; 26 WHS; 135x10 AST; BSA BBR
Fork: Manitou Circus Expert, Air; 100 STR; 110x20mm; 41mm fork offset; tapered
Shock: ,
Drivetrain
Crankset: MERIDA Expert TR II; 32T
Pedals:
Chain:
Bottom Bracket: Samox BSA 24mm EB2401
Rear Derailleur:
Front Derailleur:
Shifter:
Freewheel/Cassette: 14t singlespeed cog
Braking System
Brakes: [F] [R] Shimano MT200; 2 piston
Brake Levers:
Wheels
Tyres: [F] and [R] Kenda K-Rad K905 ; 26x2.3"; wire
Wheels/Rims: Alexrims MD30; 30 IWR; MAT aluminum; 32H; tubeless ready
Hubs: [F] Novatec DH61SB-HL; 110x20 WHF; 32 SPH; 6 bolt [R] Novatec D256SBT; 135x10 M10 WHR; 32 SPH; 6 bolt; 14t
Other
Handlebar: MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB
Stem: MERIDA COMP TR; MAT aluminium; 35 DSH; 0 ASD
Seat Post: MERIDA COMP DR; MAT aluminium; 27.2 DSP; 0 SSB; 250mm length
Saddle: MERIDA COMP DR
Merida 2026 Dirt 500
| Frame Size | M | L |
| Tyre Sizes | 26" | 26" |
| ST seat tube [mm] | 300 | 300 |
| TT top tube [mm] | 549 | 574 |
| CS chain stay length [mm] | 385 | 385 |
| HTA head tube angle [°] | 68.5 | 68.5 |
| STA seat tube angle [°] | 76.2 | 76.2 |
| BD bottom bracket drop [mm] | 25 | 25 |
| HT head tube [mm] | 110 | 110 |
| FL fork length [mm] | 482 | 482 |
| FO fork offset [mm] | 40 | 40 |
| R reach [mm] | 415 | 440 |
| S stack [mm] | 564 | 564 |
| WB wheel base [mm] | 1054 | 1079 |
| SH stand over height [mm] | 637 | 640 |
