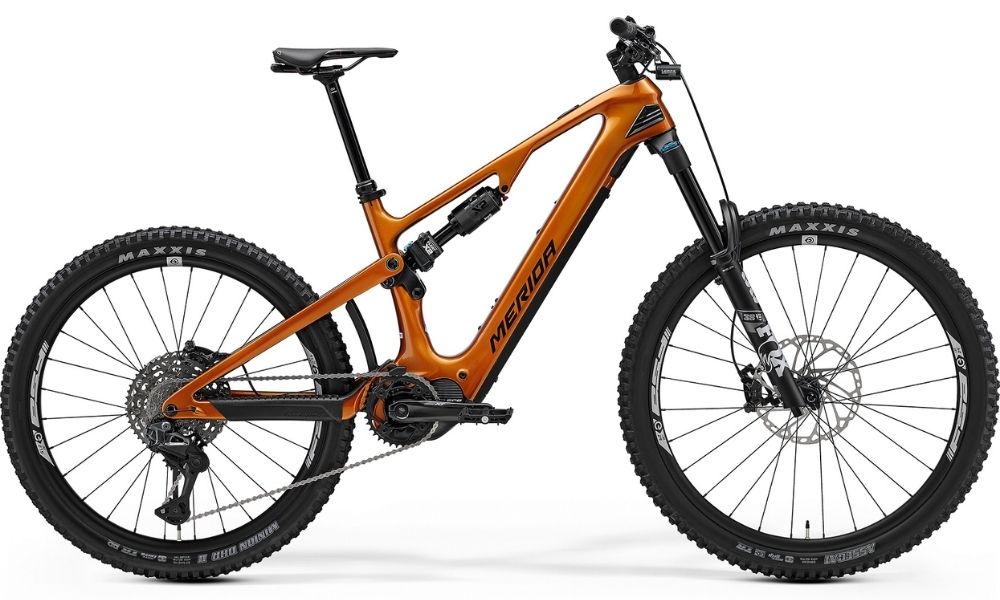

Merida 2026 eONE SIXTY 8000
Full power, lightweight e-enduro machine packed with the latest Shimano Di2 technology, providing the rider with outstanding handling, ample support and a wealth of intuitive shifting technology.
The latest addition to the eONE-SIXTY CF range takes the proven carbon fibre chassis and suspension configuration and combines it with the latest Auto and Free Shift technology thanks to Shimano's Di2 XT drivetrain. The finely tuned geometry offers maximum control on the way up and down, the EP801 drive unit gives the 8000 plenty of grunt and Shimano's electornic shifting technologies let the rider concentrate on what is important - the ride.
Lightweight or full power? How about both? The eONE-SIXTY CF combines an enduro-ready lightweight full carbon chassis with a full-support motor, 600 Wh battery and an optional 360 Wh range extender, so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, it's designed to be perfectly at home on a race track or just hitting the trails on repeat. We've also married the award-winning FAST kinematic suspension and AGILOMETER sizing of our ONE-SIXTY enduro bike with our proven e-bike heritage, so it's quite the thoroughbred bloodline. Our low-maintenance flexstay suspension offers size-tuned progression to maximise performance for all sizes of riders, plus you can run it with the latest coil shocks. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focused full 29er setup without messing up the geometry, thanks to our flip chip design. We've created a geometry that can take on the toughest enduro trails while maintaining a playful and fun character. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whatever suits you.
- Lightweight full carbon fibre CF4 frame with 174 mm rear wheel travel
- Fox 38 Performance fork with 170 mm travel and updated Float X2 Performance rear shock
- Highly intuitive Shimano XT Di2 Linkglide e-bike drivetrain with Auto and Free Shift functions
- Integrated 600 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
- Mixed wheel size as standard with option to full 29", FSA i30 alloy wheelset
- Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post
Merida 2026 eONE SIXTY 8000
Frame
Size: Short, Mid, Long, X-Long
Colour: Wild Honey/Black
Frame: eONE-SIXTY CF III, MAT carbon, 160 STR, 29” x 2,6” max. WHS, 148x12 AST, intube, max. 600 Wh,
Fork: FOX 38 Performance Elite eMTB+ Grip X2, Air, 170 STR, Tapered, 44mm fork offset, 29x2.6" max WHS,
Shock: Fox Float X Performance, 2 Pos Lever
Drivetrain
Crankset: FSA 1x Steel Chainring, 36t
Pedals:
Chain: CNLG500,
Bottom Bracket:
Rear Derailleur: Shimano XT Di2 RDM8150 LinkGlide 11,
Front Derailleur:
Shifter: [F] Shimano SL -MT500-IL, [R] Shimano XT Di2 M8260 11,
Freewheel/Cassette: Shimano LG700, 11-50,11,
Braking System
Brakes: Shimano XT, 4 piston
Brake Levers:
Wheels
Tyres: [F] Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, [R] Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra,
Wheels/Rims: FSA E-MTB i30 Alloy, 110x15 WHF, 148x12 WHR, 30 IWR, 6-Bolt, Shimano HG, MAT carbon, Tubeless ready (tubeless tape and valves included)
Hubs: [F] [R]
Other
Handlebar: MERIDA EXPERT eTR, 780 WHB
Stem: MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount,
Seat Post: MERIDA TEAM TR II, 34.9 DSP, 0 SSB, all sizes 30-230mm travel
Saddle: PROXIM ALTIUS Steel, V-mount adapter, incl. MERIDA minitool,
E-Bike
Drive Unit: Shimano EP801, 85Nm
Battery: Trendpower TPS-C15-58SD, 600Wh integrated
Controller:
Display: Shimano SC-EM800,
Charger:
Extras
Fenders:
Kickstand:
Lights: [F] Lezyne Hekto StVZO E350+ Reverse, reverse MERIDA Custom Mount [R] USB REAR Light CG-214RG,
Carrier:
Merida 2026 eONE SIXTY 8000
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 465 |
| TT top tube [mm] | 546 | 567 | 589 | 610 | 632 |
| CS chain stay length [mm] | 446 | 446 | 446 | 446 | 446 |
| HTA head tube angle [°] | 64.4 | 64.4 | 64.4 | 64.4 | 64.4 |
| STA seat tube angle [°] | 78.5° | 78.5° | 78.4° | 78.4° | 78.3° |
| BD bottom bracket drop [mm] | 9 | 9 | 9 | 9 | 9 |
| HT head tube [mm] | 100 | 105 | 110 | 115 | 120 |
| FL fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| R reach [mm] | 419 | 439 | 459 | 479 | 499 |
| S stack [mm] | 624 | 628 | 633 | 637 | 642 |
| WB wheel base [mm] | 1199 | 1221 | 1244 | 1266 | 1288 |
| SH stand over height [mm] | 776 | 770 | 765 | 760 | 755 |
