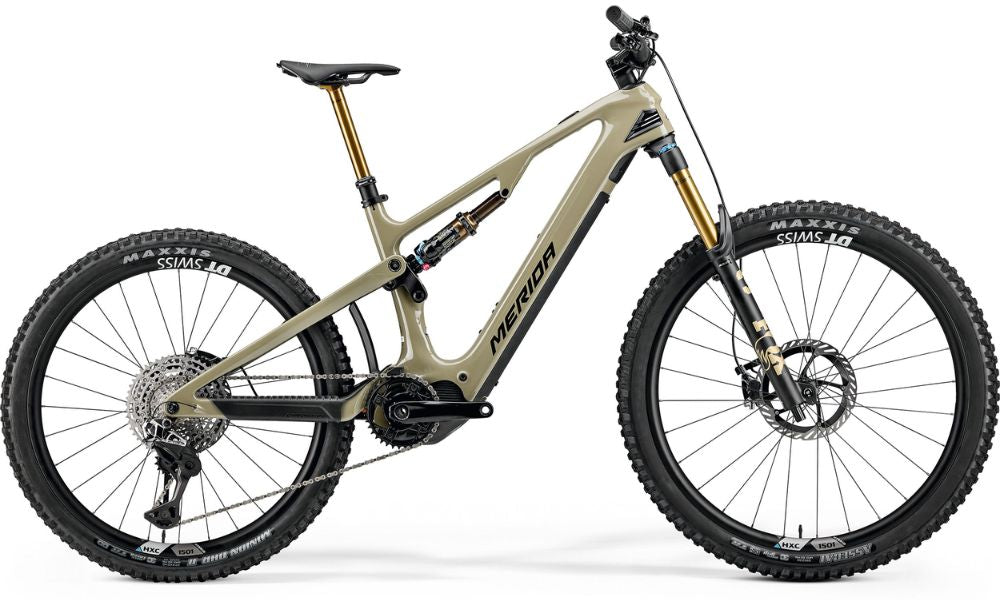

Merida 2026 eONE SIXTY Limited
Full support, minimum weight. We've delivered the ultimate superlight enduro e-bike by taking our high-performance carbon frame and shaving every gram possible via careful kit selection to deliver full-power punch at light-support weight.
Full-power punch at light-support weight. We've taken our hard-hitting carbon fibre e-enduro frame and given it a full-factory lightweight treatment while still delivering 160 mm of plush travel at either end. A Fox 36 Factory fork and Float X rear shock can take care of rough and rowdy terrain while minimising mass and the tough but lightweight carbon fibre DT Swiss HXC1501 wheelset adds a new edge to the acceleration of the Shimano EP801 drive unit. Add in a full-size 600 Wh battery and the option of a 360 Wh range extender and this is one super-lightweight trail ripper.
Lightweight or full power? How about both? The eONE-SIXTY CF combines an enduro-ready lightweight full carbon chassis with a full-support motor, 600 Wh battery and an optional 360 Wh range extender, so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, it's designed to be perfectly at home on a race track or just hitting the trails on repeat. We've also married the award-winning FAST kinematic suspension and AGILOMETER sizing of our ONE-SIXTY enduro bike with our proven e-bike heritage, so it's quite the thoroughbred bloodline. Our low-maintenance flexstay suspension offers size-tuned progression to maximise performance for all sizes of riders, plus you can run it with the latest coil shocks. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focused full 29er setup without messing up the geometry, thanks to our flip chip design. We've created a geometry that can take on the toughest enduro trails while maintaining a playful and fun character. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whatever suits you.
- Lightweight full carbon fibre CF4 frame with 160 mm rear wheel travel
- Fox 36 Factory fork with 160 mm travel and Float X Factory rear shock
- Wireless, race-ready Shimano XTR Di2 drivetrain
- Integrated 600 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
- Tough yet light DT Swiss HXC 1501 carbon fibre wheelset
- Reach-based AGILOMETER sizing system with Fox Transfer Factory dropper post
Merida 2026 eONE SIXTY Limited
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 465 |
| TT top tube [mm] | 546 | 567 | 589 | 610 | 632 |
| CS chain stay length [mm] | 446 | 446 | 446 | 446 | 446 |
| HTA head tube angle [°] | 64.4 | 64.4 | 64.4 | 64.4 | 64.4 |
| STA seat tube angle [°] | 78.5° | 78.5° | 78.4° | 78.4° | 78.3° |
| BD bottom bracket drop [mm] | 9 | 9 | 9 | 9 | 9 |
| HT head tube [mm] | 100 | 105 | 110 | 115 | 120 |
| FL fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| R reach [mm] | 419 | 439 | 459 | 479 | 499 |
| S stack [mm] | 624 | 628 | 633 | 637 | 642 |
| WB wheel base [mm] | 1199 | 1221 | 1244 | 1266 | 1288 |
| SH stand over height [mm] | 776 | 770 | 765 | 760 | 755 |
