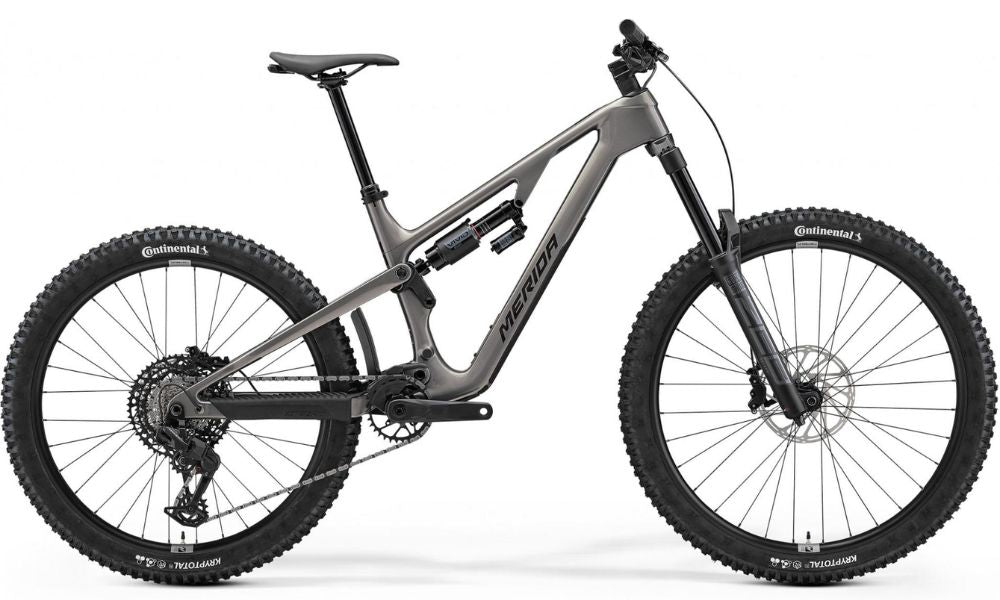

Merida 2026 One SIXTY 6000
Bikeradar's Enduro Bike of the Year 2023. Our radical lightweight enduro carbon frame delivers the punch without the price tag. It’s a race-ready ripper that’ll take any big mountain trail or bike park in it’s stride.
Winner of Bikeradar's Enduro Bike of the Year 2023, the ONE-SIXTY 6000 pairs the radical geometry of our proven all-carbon frame to components that get the job done without shouting about it. A RockShox Zeb fork and Vivid shock paired with our FAST kinematic suspension deliver a ride that wants to eat up rocks so fast you’ll be worried about its waistline, while proven Shimano drivetrain and SRAM brakes deliver control in any situation.
Evolution or revolution? How about both? The ONE-SIXTY is a radical, award-winning design that pushes our hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Our proven suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162 mm travel) or mixed 29/27.5” setup (171 mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170 mm fork to deal with downhill trail chaos. Our AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. WIRE PORT cable routing plus reliable threaded bottom bracket round out the package, while carbon frames offer on-board tool storage and FidLock magnetic bottle cages.
- Full carbon frame with FAST kinematic suspension and radical enduro geometry
- Mixed or full 29er wheels with AGILOMETER sizing
- RockShox ZEB and Vivid suspension, proven Shimano drivetrain and powerful SRAM DB8 brakes
- Super tough Continental Kryptotal F + R tyres, Reynolds rims
- 230 mm travel-adjustable dropper post
- On-board tool storage and FidLock bottle cage
Merida 2026 One SIXTY 6000
Frame
Size: Short, Mid, Long
Colour: Warm Slate Grey
Frame: ONE-SIXTY CF4 III, 171 STR mullet / 162 STR 29", MAT carbon, 29x2.5" max. WHS, 148x12 AST, BSA BBR,
Fork: Rock Shox Zeb Select, Air, 170 STR, Tapered, 44mm fork offset, 29x2.6" max. WHS,
Shock: Rock Shox Vivid Select, platform
Drivetrain
Crankset: Sram Eagle 70 Transmission, 32t, 1 guard,
Pedals:
Chain: Sram Eagle 70 Transmission, Flattop
Bottom Bracket: Sram DUB BSA 73 MTB Wide,
Rear Derailleur: Sram Eagle 70 Transmission, T-Type
Front Derailleur:
Shifter: [F] Sram dropper lever MMX, [R] Sram Eagle 70 Transmission MMX,
Freewheel/Cassette: Sram XS-1270 Eagle Transmission, 11-52t, 12sp
Braking System
Brakes: Sram DB8 stealth, 4 piston
Brake Levers:
Wheels
Tyres: [F] Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Soft compund, [R] Continental Kryptotal-R, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, Enduro casing, soft compound,
Wheels/Rims: Reynolds 309 Enduro Comp, 30 IWR, MAT aluminium, Tubeless ready (tubeless tape installed), rear 27.5" up to Size M / L & XL rear full 29",
Hubs: [F] Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock [R] Shimano TC600-HM-B, 148x12 WHR, 32 SPH, Centerlock
Other
Handlebar: MERIDA EXPERT TR II, MAT aluminium, 780 WHB, 30 RHB
Stem: MERIDA EXPERT eTRII, MAT aluminium, 35 DSH, 0 ASD
Seat Post: MERIDA EXPERT III, 34.9 DSP, 0 SSB, 25mm travel adjustability, XSHORT: 170mm, SHORT/MID: 200mm, LONG/XLONG: 230mm,
Saddle: MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool
Merdia 2026 One SIXTY 6000
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29" | 29" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| TT top tube [mm] | 535 | 562 | 589 | 621 | 653 |
| CS chain stay length [mm] | 434 | 434 | 434 | 437.5 | 437.5 |
| HTA head tube angle [°] | 64 | 64 | 64 | 64 | 64 |
| STA seat tube angle [°] | 79 | 79 | 79 | 79 | 79 |
| BD bottom bracket drop [mm] | 7 | 7 | 7 | 27.5 | 27.5 |
| HT head tube [mm] | 95 | 95 | 95 | 105 | 120 |
| FL fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| R reach [mm] | 415 | 442 | 470 | 498 | 525 |
| S stack [mm] | 615 | 615 | 615 | 625 | 638 |
| WB wheel base [mm] | 1188 | 1215 | 1242 | 1275 | 1308 |
| SH stand over height [mm] | 727 | 730 | 737 | 736 | 776 |
