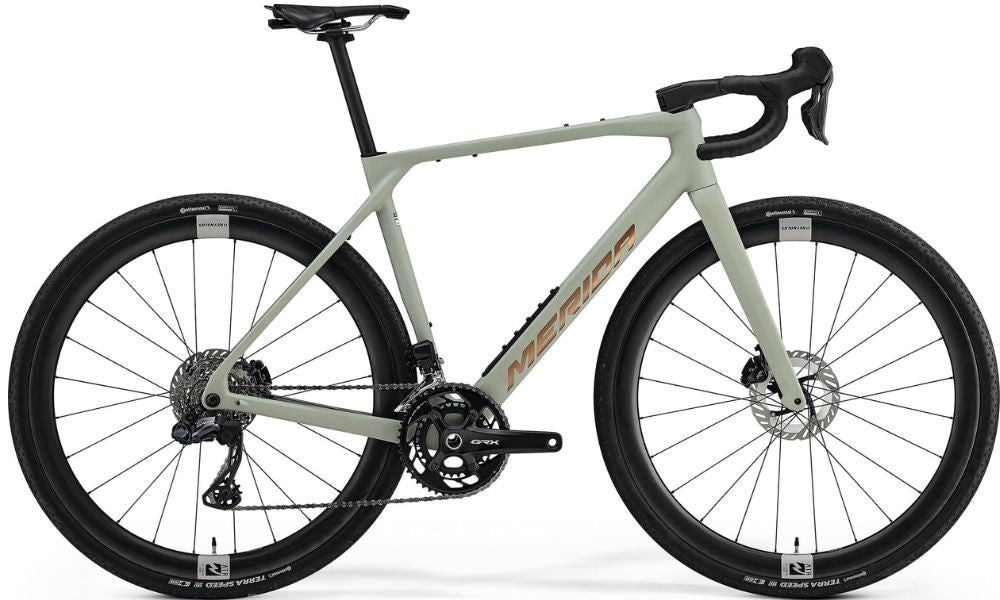

Merida 2027 Mission 7000
The perfect partner for your next gravel race. Its lightweight CF4 carbon fibre gravel race frame, paired with a tyre clearance of up to 40 mm, gravel-specific groupset and wheels, make the 7000 fast and capable on any surface.
Whether it's a gravel race, a multi-surface outing or some chain gang action, the 2x12-speed Mission 7000 feels at home in all of these situations. With our new CF4 carbon MISSION frame featuring a geometry that is more race-focused than that of our SILEX bike, which is more geared towards bikepacking and adventure, the MISSION 7000 perfectly combines a more aggressive riding position with the surefooted handling you expect from a gravel race bike. Shimano's proven GRX Di2 speed groupset provides pinpoint-accurate shifting, even on the roughest gravel tracks, and Reynolds' ATR carbon wheels keep things rolling whatever the surface.
Our new MISSION truly embodies its ‘fast on any surface’ intentions. It is a gravel race bike that combines key geometry and frame elements from the SCULTURA ENDURANCE and the SILEX, sprinkles them with a heavy dose of road racing DNA to deliver a fast and responsive ride on pretty much any surface.
Whether you're tackling fast-paced gravel races to tarmac-based chain gang outings, the MISSION delivers. With up to 40 mm tyre clearance, there is scope for wider gravel racing tyres or large volume road tyres, and its low weight of around 7.8 kg of the 10K model makes it fly up the hills, keeps it super responsive and catapults it out of corners. The MISSION’s built-in storage compartment improves the accessibility and organisation of crucial mid-race nutrition and spares, further enhancing the efficiency when every second counts.
Finally, the ability to seamlessly fit 1x or 2x drivetrains gives riders more flexibility to find their preferred setup for whatever riding or racing style they want to focus on. Welcome to your MISSION - Fast on any surface.
- Lightweight CF4 carbon frame with gravel race-orientated geometry
- Shimano GRX Di2 2x12-speed electronic drivetrain
- Lightweight Reynolds ATR TSS CL carbon wheelset
- Down tube storage trunk with Fidlock cover for race nutrition and spares
- Powerful but controllable Shimano GRX hydraulic disc brakes
- Continental Terra Speed ProTection 40 mm tyres
Merida 2027 Mission 7000
Frame
Size: XS, S, M, L
Colour: Matt Early Moss Grey/Bronze
Frame: MISSION CF4 II, carbon, 700x40C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard
Fork: MEIRDA MISSION CF4 II Tapered, material: carbon, 700x45C max. wheelsize
Shock:
Drivetrain
Crankset: Shimano GRX820, 48-31 teeth, 170mm XXS/XS/S/M, 172,5mm L/XL
Pedals:
Chain:Shimano Deore M6100-12
Bottom Bracket: Shimano SM-BBR60, 68mm
Rear Derailleur: Shimano GRX825 Di2
Derailleur Shifter: Shimano GRX825 Di2
Freewheel/Cassette: Shimano GRX HG710, 11-36 teeth, 12 speed
Braking System
Brakes: Shimano GRX820, Disc
Brake Levers:
Wheels
Tyres: Continental Terra Speed ProTection 40mm, 40-622, TLR, foldable skin SL
Wheels/Rims: eynolds ATR TSS CL, 100x12mm width front hub, 142x12mm width rear hub, 25mm inner width, 42mm height, Centerlock, carbon
Hubs:
Other
Handlebar: MERIDA TEAM SL 1P GR, carbon, 380 (XXS-XS-S), 400 (M-L), 420 (XL)
Stem: MERIDA TEAM ONE-PIECE GR, carbon, incl. MERIDA SMART MOUNT, 90 (XXS-XS-S), 100 (M), 110 (L-XL)
Seat Post: MERIDA TEAM SL II, 27.2mm diameter, 0mm setback, Carbon
Saddle: Prologo Scratch M5 AGX, V-mount adapter, incl. MERIDA minitool
Merida 2027 Mission 7000
| Frame Size | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 445 | 470 | 490 | 510 | 530 | 560 |
| TT top tube [mm] | 522 | 532 | 543 | 560 | 571 | 586 |
| CS chain stay length [mm] | 419 | 419 | 419 | 419 | 419 | 419 |
| HTA head tube angle [°] | 70 | 70 | 71 | 72 | 72 | 72.5 |
| STA seat tube angle [°] | 74 | 74 | 74 | 73.5 | 73.5 | 73.5 |
| BD bottom bracket drop [mm] | 72 | 72 | 72 | 72 | 72 | 72 |
| HT head tube [mm] | 103 | 117 | 126 | 137 | 153 | 178 |
| FL fork length [mm] | 400 | 400 | 400 | 400 | 400 | 400 |
| FO fork offset [mm] | 45 | 45 | 45 | 45 | 45 | 45 |
| R reach [mm] | 370 | 377 | 384 | 391 | 398 | 405 |
| S stack [mm] | 529 | 542 | 555 | 569 | 584 | 610 |
| WB wheel base [mm] | 997 | 1009 | 1011 | 1013 | 1024 | 1035 |
| SH stand over height [mm] | 741 | 764 | 781 | 798 | 816 | 844 |
