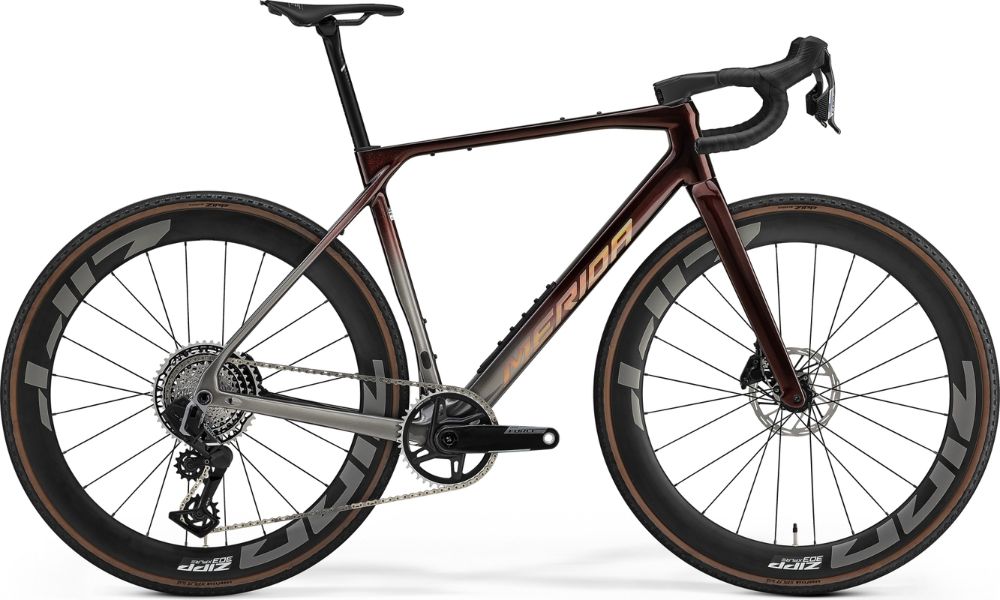

Merida 2027 Mission 9000
Pair our latest CF4 carbon fibre gravel race frame with SRAM's highly anticipated Force eTap wireless groupset and ultra-fast Zipp 303 XPLR wheels, and you'll have a real gravel race rocket on your hands.
It's fast and responsive yet highly controllable when the going gets rough. Our MISSION 9000 features our newly created CF4 MISSION frame with race-focused geometry that doesn't compromise on control when your next gravel race throws in a washboard descent for good measure. Equipped with the finest gravel racing components, including the latest 13-speed SRAM groupset, a MERIDA one-piece carbon cockpit and a race-ready Zipp carbon wheelset, the MISSION 9000 feels at home on any surface, gravel or otherwise.
Our new MISSION truly embodies its ‘fast on any surface’ intentions. It is a gravel race bike that combines key geometry and frame elements from the SCULTURA ENDURANCE and the SILEX, sprinkles them with a heavy dose of road racing DNA to deliver a fast and responsive ride on pretty much any surface.
Whether you're tackling fast-paced gravel races to tarmac-based chain gang outings, the MISSION delivers. With up to 40 mm tyre clearance, there is scope for wider gravel racing tyres or large volume road tyres, and its low weight of around 7.8 kg of the 10K model makes it fly up the hills, keeps it super responsive and catapults it out of corners. The MISSION’s built-in storage compartment improves the accessibility and organisation of crucial mid-race nutrition and spares, further enhancing the efficiency when every second counts.
Finally, the ability to seamlessly fit 1x or 2x drivetrains gives riders more flexibility to find their preferred setup for whatever riding or racing style they want to focus on. Welcome to your MISSION - Fast on any surface.
- Lightweight CF4 carbon frame with gravel race-orientated geometry
- SRAM Force XPLR AXS 13-speed wireless groupset
- MERIDA TEAM SL GR1P one piece carbon cockpit
- Race-ready Zipp 303 XPLR S carbon wheelset
- Down tube storage trunk with Fidlock cover for race nutrition and spares
- Goodyear XPLR 40 mm slick tyres designed for Zipp wheels
Merida 2027 Mission 9000
Frame
Size: S, M, L, XLbr> Colour: Wildberry/Gunmetal Grey(Silver)
Frame: MISSION CF4 II, MAT carbon, 700x40C max.WHS, 100x12/142x12 AST, BSA BBR
Fork: MISSION CF4 II, Tapered, MAT carbon, 700x45C max. WHS
Shock:
Drivetrain
Crankset: Sram Force XPLR AXS Power Meter, 44T, MAT Carbon
Pedals:
Chain: Sram, CN-RIV-E1
Bottom Bracket: Sram DUB BSA Road Wide, 68mm
Rear Derailleur: Sram Force XPLR, AXS wireless, 1x13, T-Type
Front Derailleur:
Shifter: Sram Force, Hydraulic disc
Freewheel/Cassette: Sram Force XPLR XG-1371, 10-46T, 13sp
Braking System
Brakes: Sram Force XPLR, Disc, Sram Paceline RT-PLN-A2, 160 mm
Brake Levers:
Wheels
Tyres: [F] and [R] Goodyear XPLR Slick designed for Zipp, 40-622, TLR,
Wheels/Rims: [F] and [R] Zipp 303 XPLR S, 100x12 WHF, 142x12 WHR, 32 IWR, 54 HRI, Centerlock, MAT carbon, (tubeless tape and valves included)
Hubs: [F] [R]
Other
Handlebar: MERIDA TEAM SL 1P GR, MAT carbon, 380 (XXS-XS-S), 400 (M-L), 420 (XL)
Stem: MERIDA TEAM ONE-PIECE GR INTEGRATED, MAT carbon
Seat Post: MERIDA TEAM SL II, 27.2 DSP, 0 SSB, Carbon
Saddle: Prologo Nago R4 PAS, Nack
Merida 2027 Mission 9000
| Frame Size | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 445 | 470 | 490 | 510 | 530 | 560 |
| TT top tube [mm] | 522 | 532 | 543 | 560 | 571 | 586 |
| CS chain stay length [mm] | 419 | 419 | 419 | 419 | 419 | 419 |
| HTA head tube angle [°] | 70 | 70 | 71 | 72 | 72 | 72.5 |
| STA seat tube angle [°] | 74 | 74 | 74 | 73.5 | 73.5 | 73.5 |
| BD bottom bracket drop [mm] | 72 | 72 | 72 | 72 | 72 | 72 |
| HT head tube [mm] | 103 | 117 | 126 | 137 | 153 | 178 |
| FL fork length [mm] | 400 | 400 | 400 | 400 | 400 | 400 |
| FO fork offset [mm] | 45 | 45 | 45 | 45 | 45 | 45 |
| R reach [mm] | 370 | 377 | 384 | 391 | 398 | 405 |
| S stack [mm] | 529 | 542 | 555 | 569 | 584 | 610 |
| WB wheel base [mm] | 997 | 1009 | 1011 | 1013 | 1024 | 1035 |
| SH stand over height [mm] | 741 | 764 | 781 | 798 | 816 | 844 |
