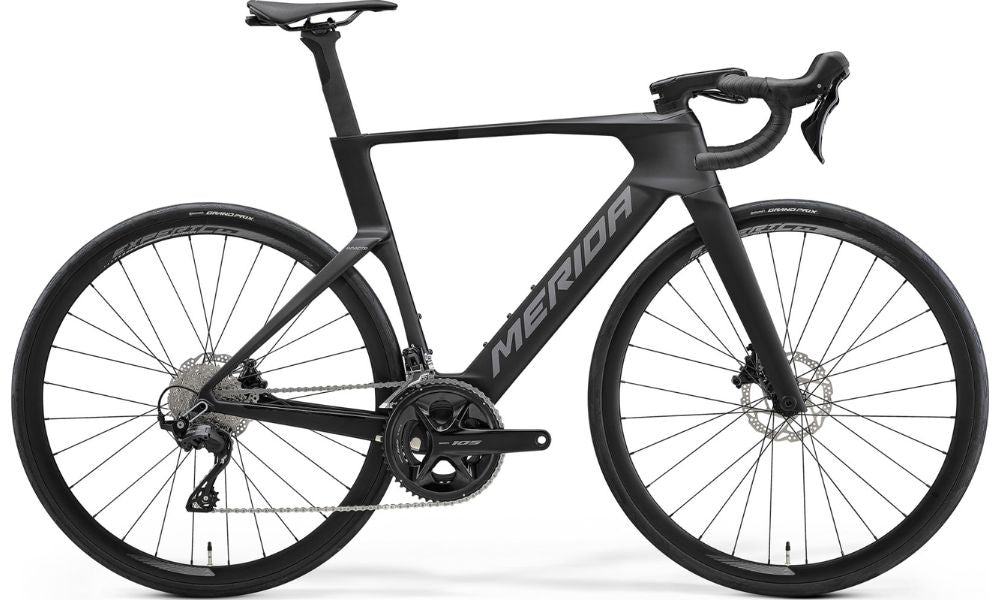

Merida 2027 Reacto 4000
The thrill of speed at a price that's hard to ignore. We've packed in a huge amount of performance and value by using our latest more aerodynamic CF3 carbon frame and pairing it with high-value, no nonsense kit. The ideal starting point for any aspiring road rider or racer.
The perfect entry to our aero bike range. The REACTO 4000 uses exactly the same super-aero frame shape as our top level models, but by combining our lightweight CF3 carbon frame with high-value components, we've created a bike with performance that puts more expensive machines to shame. Using the utterly reliable Shimano 105 groupset with hydraulic disc brakes and some choice components, it's ready to ride and race from the box, as well as being a great platform to upgrade as you progress.
The thrill of speed is what unites road cyclists. Whether professional or amateur, the fundamental goal is to push harder, chase speed and break free. Nothing embodies this better than the REACTO. The latest generation of the REACTO builds on the previous model, with fundamental changes that further improve its aerodynamics, reduce its weight and offer tyre clearance up to 32 mm, all while maintaining the comfort and control the REACTO is known for. While the REACTO ONE substantially undercuts the 200-watt barrier as measured according to Tour Magazine's test standards and sets a new internal benchmark for aerodynamic performance, other bikes in the range offer the perfect balance between aerodynamics, comfort and control. Whatever your focus — low drag, low weight, or all-round performance — you will find the perfect REACTO in our latest line-up.
- Lightweight CF3 carbon aero frame (approx. 1,185 g - in size M)
- Shimano 105 groupset with hydraulic disc brakes
- MERIDA EXPERT CW handlebar and EXPERT SL stem
- MERIDA EXPERT CW wheelset with Continental Grand Prix 28 mm tyres
- MERIDA S-FLEX carbon aero post for extra comfort
- DISC COOLER technology for predictable braking
Merida 2027 Reacto 4000
Frame
Size: XXS, XS, S, M, L, XL
Colour: Silk Black/Gunmetal Grey
Frame: REACTO CF3 V, MAT carbon, 700x32C max. WHS, 100x12/ 142x12 AST, BB86,5 BBR
Fork: MERIDA REACTO CF3 V DISC, MAT carbon, 700x32C max. WHS
Shock:
Drivetrain
Crankset: Shimano 105 R7100, 52-36
Pedals:
Chain: Shimano M6100-12
Bottom Bracket: Shimano SM-BB71-41B, Pressfit 86.5
Rear Derailleur: Shimano 105, GS
Front Derailleur: Shimano 105
Shifter: Shimano 105 Disc
Freewheel/Cassette: Shimano 105 R7101, 11-34, 12sp
Braking System
Brakes: Shimano 105, Disc
Brake Levers:
Wheels
Tyres: [F] and [R] Continental Grand Prix, 700x28C, fold
Wheels/Rims: MERIDA EXPERT CW, 19 IWR, 30 HRI
Hubs: [F] [R]
Other
Handlebar: MERIDA EXPERT CW, MAT aluminium, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL)
Stem: MERIDA EXPERT SL 2PII, MAT aluminium, -9 ASD
Seat Post: MERIDA REACTO V S-FLEX, Aero Shape, 0 SSB, MAT Carbon
Saddle: Akero RS PAS T2.0, V-mount adapter, incl. MERIDA minitool
Merida 2027 Reacto 4000
| Frame Size | 3XS | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| TT top tube [mm] | 506 | 521 | 535 | 545 | 560 | 575 | 590 |
| CS chain stay length [mm] | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| HTA head tube angle [°] | 70,5 | 70,5 | 72 | 72,5 | 73,5 | 73,5 | 74 |
| STA seat tube angle [°] | 75,5 | 74,5 | 74 | 74 | 73,5 | 73 | 73 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 66 | 66 | 66 | 66 |
| HT head tube [mm] | 100 | 105 | 112 | 128 | 140 | 155 | 175 |
| FL fork length [mm] | 385 | 385 | 385 | 385 | 385 | 385 | 385 |
| FO fork offset [mm] | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| R reach [mm] | 373 | 377 | 384 | 390 | 395 | 400 | 409 |
| S stack [mm] | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| WB wheel base [mm] | 981 | 987 | 984 | 992 | 992 | 1002 | 1011 |
| SH stand over height [mm] | 727 | 746 | 771 | 792 | 810 | 826 | 853 |
| Str Stack To Reach Ratio Pc | 1,373 | 1,371 | 1,378 | 1,390 | 1,410 | 1,428 | 1,450 |
