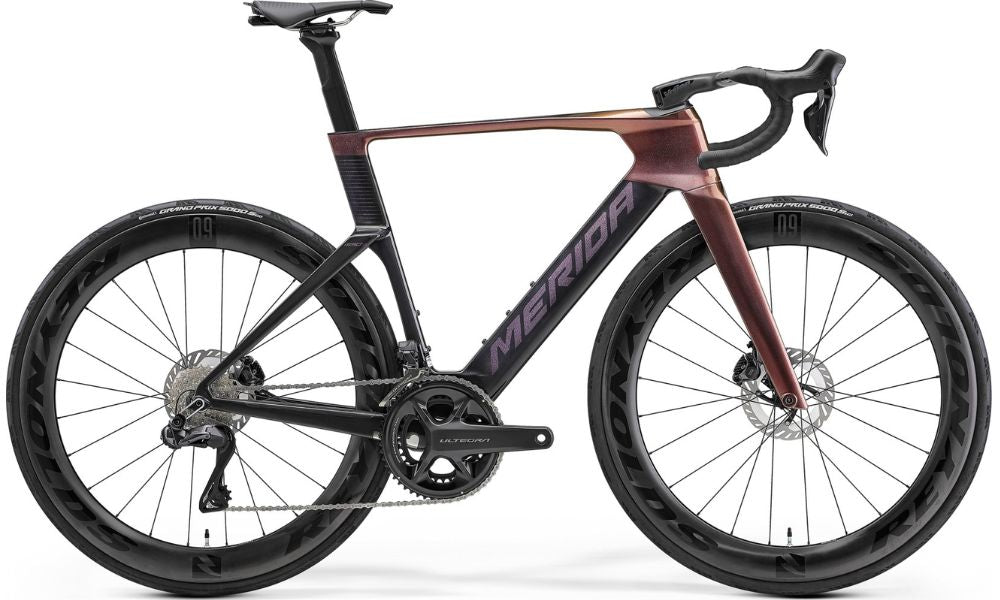

Merida 2027 Reacto 8000
Cutting-edge technology at an affordable price. Created on the basis of our latest CF3 REACTO frame, the 8000 features identical aero performance and frame stiffness values as its higher-grade relative, but allows us to create a more price-competitive package.
Featuring identical air slicing capabilities and the same frame stiffness numbers as the top-end CF5 frame, the CF3-equipped 8000 only makes small weight concessions to create one of the most attractive REACTOs in our lineup. The proven Ultegra Di2 groupset and Reynolds AR 60 carbon wheels keep shifting fast and precise, and help to slice through the air as efficiently as possible.
The thrill of speed is what unites road cyclists. Whether professional or amateur, the fundamental goal is to push harder, chase speed and break free. Nothing embodies this better than the REACTO. The latest generation of the REACTO builds on the previous model, with fundamental changes that further improve its aerodynamics, reduce its weight and offer tyre clearance up to 32 mm, all while maintaining the comfort and control the REACTO is known for. While the REACTO ONE substantially undercuts the 200-watt barrier as measured according to Tour Magazine's test standards and sets a new internal benchmark for aerodynamic performance, other bikes in the range offer the perfect balance between aerodynamics, comfort and control. Whatever your focus — low drag, low weight, or all-round performance — you will find the perfect REACTO in our latest line-up.
- Lightweight CF3 carbon aero frame (approx. 1,185 g - in size M)
- Shimano Ultegra 12-speed Di2 groupset
- Vision Metron 5D ACR EVO 1P carbon cockpit
- Reynolds AR 60 DB carbon wheelset with Continental Grand Prix 5000S TR 28 mm tyres
- MERIDA S-FLEX carbon aero post andDISC COOLER technology
Merida 2027 Reacto 8000
Frame
Size: XS, S, M, L, XL
Colour: Rainbow Purple/Black/Purple
Frame: REACTO CF3 V, MAT carbon, 700x32C max. WHS, 100x12/ 142x12 AST, BB86,5 BBR
Fork: MERIDA REACTO CF3 V DISC, MAT carbon, 700x32C max. WHS
Shock:
Drivetrain
Crankset: Shimano Ultegra, 52-36
Pedals:
Chain: Shimano M6100-12
Bottom Bracket: Shimano SM-BB71-41B, Pressfit 86.5
Rear Derailleur: Shimano Ultegra Di2
Front Derailleur: Shimano Ultegra Di2
Shifter: Shimano Ultegra Disc Di2
Freewheel/Cassette: Shimano Ultegra R8101, 11-30, 12sp
Braking System
Brakes: Shimano Ultegra, Disc
Brake Levers:
Wheels
Tyres: [F] and [R] Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Wheels/Rims: Reynolds AR 60 DB, 100x12 WHF, 142x12 WHR, 21 IWR, 60 HRI, Centerlock
Hubs: [F] [R]
Other
Handlebar: Vision Metron 5D ACR EVO, MAT carbon, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL)
Stem: Vision Metron 5D ACR EVO, MAT carbon
Seat Post: MERIDA REACTO V S-FLEX, Aero Shape, 0 SSB, MAT Carbon
Saddle: Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool
Merida 2027 Reacto 8000
| Frame Size | 3XS | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| TT top tube [mm] | 506 | 521 | 535 | 545 | 560 | 575 | 590 |
| CS chain stay length [mm] | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| HTA head tube angle [°] | 70,5 | 70,5 | 72 | 72,5 | 73,5 | 73,5 | 74 |
| STA seat tube angle [°] | 75,5 | 74,5 | 74 | 74 | 73,5 | 73 | 73 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 66 | 66 | 66 | 66 |
| HT head tube [mm] | 100 | 105 | 112 | 128 | 140 | 155 | 175 |
| FL fork length [mm] | 385 | 385 | 385 | 385 | 385 | 385 | 385 |
| FO fork offset [mm] | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| R reach [mm] | 373 | 377 | 384 | 390 | 395 | 400 | 409 |
| S stack [mm] | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| WB wheel base [mm] | 981 | 987 | 984 | 992 | 992 | 1002 | 1011 |
| SH stand over height [mm] | 727 | 746 | 771 | 792 | 810 | 826 | 853 |
| Str Stack To Reach Ratio Pc | 1,373 | 1,371 | 1,378 | 1,390 | 1,410 | 1,428 | 1,450 |
