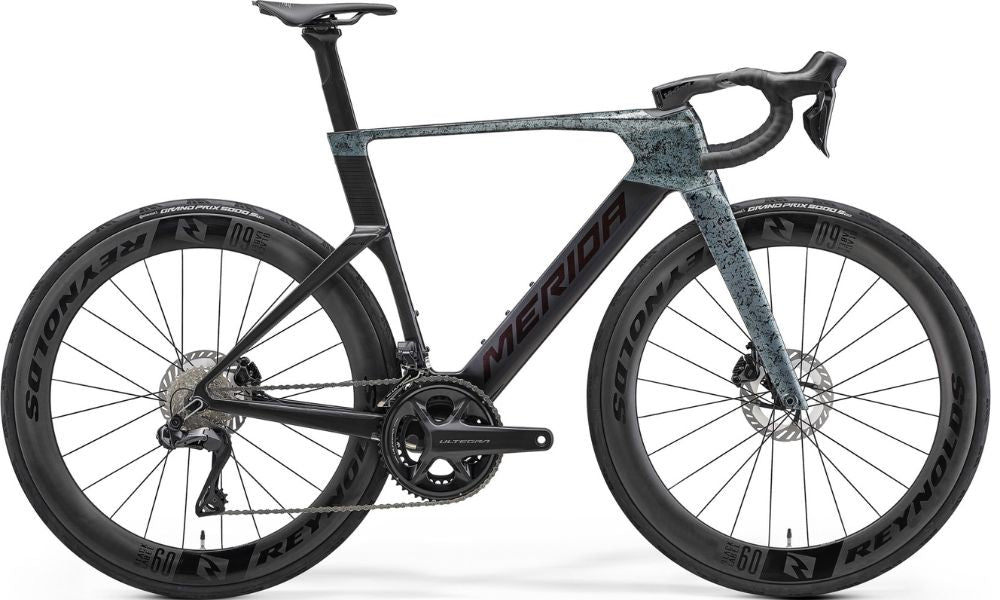

Merida 2027 Reacto 9000
Fast, agile, comfortable and lightweight. The REACTO 9000 is the proven combination of the three pillars our REACTO concept is based on - the perfect balance of air-slicing capability, comfort, and control.
Top components paired with our latest Generation V REACTO frame make the perfect recipe for a top-level aero bike. With an abundance of air-slicing capability but without compromising on weight, comfort, or the control that the REACTO is famous for, the REACTO 9000 feels equally at home at races as it does on extended club rides or fast and furious chain gang sessions.
The thrill of speed is what unites road cyclists. Whether professional or amateur, the fundamental goal is to push harder, chase speed and break free. Nothing embodies this better than the REACTO. The latest generation of the REACTO builds on the previous model, with fundamental changes that further improve its aerodynamics, reduce its weight and offer tyre clearance up to 32 mm, all while maintaining the comfort and control the REACTO is known for. While the REACTO ONE substantially undercuts the 200-watt barrier as measured according to Tour Magazine's test standards and sets a new internal benchmark for aerodynamic performance, other bikes in the range offer the perfect balance between aerodynamics, comfort and control. Whatever your focus — low drag, low weight, or all-round performance — you will find the perfect REACTO in our latest line-up.
- Super-light CF5 carbon aero frame (approx. 950 g - in size M)
- Shimano Ultegra 12-speed Di2 groupset
- Power meter
- Vision Metron 5D ACR EVO 1P carbon cockpit
- Reynolds BL 60 Expert DB carbon wheelset with Continental Grand Prix 5000S TR 28 mm tyres
- MERIDA S-FLEX carbon aero post and DISC COOLER technology
Merida 2027 Reacto 9000
Frame
Size: S, M, L, XL
Colour: Effect Silver/UD/Bronze
Frame: REACTO CF5 V, MAT carbon, 700x32C max. WHS, 100x12/ 142x12 AST, BB86,5 BBR
Fork: MERIDA REACTO CF5 V DISC, MAT carbon, 700x32C max. WHS
Shock:
Drivetrain
Crankset: Shimano Ultegra, 52-36, left arm 4iiii PM
Pedals:
Chain: Shimano M6100-12
Bottom Bracket: Shimano SM-BB71-41B, Pressfit 86.5
Rear Derailleur: Shimano Ultegra Di2
Front Derailleur: Shimano Ultegra Di2
Shifter: Shimano Ultegra Di2
Freewheel/Cassette: Shimano Ultegra R8101, 11-30, 12sp
Braking System
Brakes: Shimano Ultegra, Disc
Brake Levers:
Wheels
Tyres: [F] and [R] Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Wheels/Rims: Reynolds BL60 Expert DB, 100x12 WHF, 142x12 WHR, 21 IWR, 60 HRI, Centerlock, Shimano HG, MAT carbon, Tubeless ready (tubeless tape and valves included)
Hubs: [F] [R]
Other
Handlebar: Vision Metron 5D ACR EVO, MAT carbon, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL)
Stem: Vision Metron 5D ACR EVO, MAT carbon
Seat Post: MERIDA REACTO V S-FLEX, Aero Shape, 0 SSB, MAT Carbon
Saddle: Prologo Nago R4 PAS, Nack
Merida 2027 Reacto 9000
| Frame Size | 3XS | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| TT top tube [mm] | 506 | 521 | 535 | 545 | 560 | 575 | 590 |
| CS chain stay length [mm] | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| HTA head tube angle [°] | 70,5 | 70,5 | 72 | 72,5 | 73,5 | 73,5 | 74 |
| STA seat tube angle [°] | 75,5 | 74,5 | 74 | 74 | 73,5 | 73 | 73 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 66 | 66 | 66 | 66 |
| HT head tube [mm] | 100 | 105 | 112 | 128 | 140 | 155 | 175 |
| FL fork length [mm] | 385 | 385 | 385 | 385 | 385 | 385 | 385 |
| FO fork offset [mm] | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| R reach [mm] | 373 | 377 | 384 | 390 | 395 | 400 | 409 |
| S stack [mm] | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| WB wheel base [mm] | 981 | 987 | 984 | 992 | 992 | 1002 | 1011 |
| SH stand over height [mm] | 727 | 746 | 771 | 792 | 810 | 826 | 853 |
| Str Stack To Reach Ratio Pc | 1,373 | 1,371 | 1,378 | 1,390 | 1,410 | 1,428 | 1,450 |
