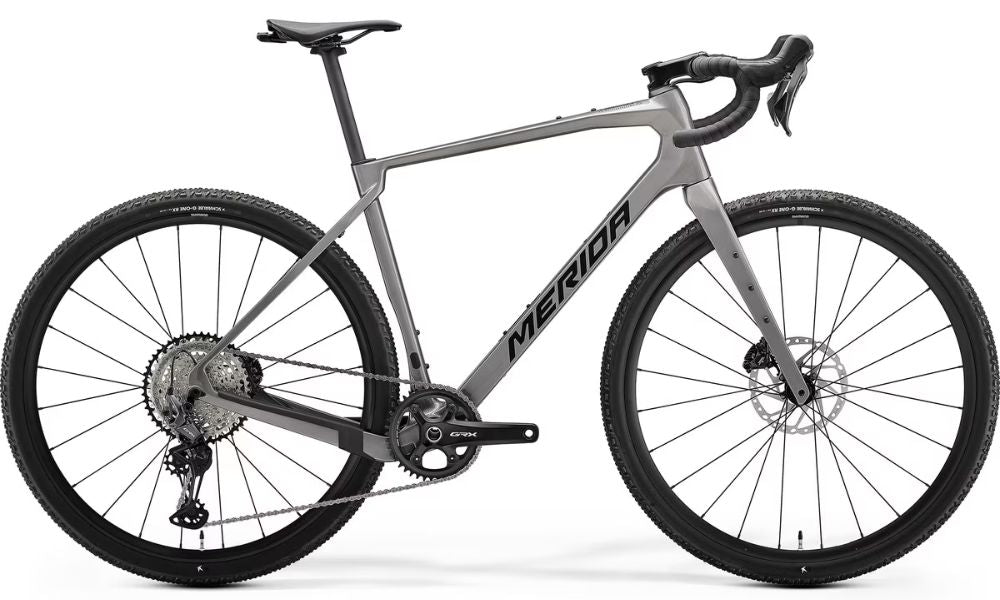

Merida 2027 Silex 7000
Time to find out what's over the horizon. Our carbon frame and fork deliver confident off-road handling with all-road ability thanks to a benchmark Shimano GRX 12-speed groupset and Shimano WH-RX180 wheels.
Every wondered what’s over that horizon? The SILEX 7000 is the perfect way to find out. Our incredibly off-road capable carbon frame and fork are paired with Shimano’s benchmark GRX 12-speed mechanical groupset and a reliable Shimano WH-RX180 aluminium wheelset to deliver a high-performance but superb value gravel adventure machine. With countless top test results, industry awards and test wins under its belt, the SILEX 7000 has convinced gravel enthusiasts, bikepackers and the international cycling press that it is the perfect bike for discoving the path unknown and making every roads yours.
The SILEX turns any ride into an adventure, whether you’re on a multi-day gravel bikepacking mission or just taking the fun route to work. With multiple test wins, press accolades, industry awards and even a World Championship title under its belt, our SILEX takes the off-road capability of gravel bikes to new heights, thanks to a slacker head angle and boosted tyre clearance of up to 700x45 mm or even 42 mm with fenders. We've combined that confident mountain bike-inspired handling with all-surface versatility so that it is utterly stable when loaded up with luggage but still fast and fun when you put the hammer down. With carbon and aluminium frame options, there's a SILEX to suit every budget, but they all share the multiple mounting points for fork cages, water bottles and accessories and other features that make this drop-bar do-everything machine so versatile. We’ve added our sleek WIRE PORT cable routing for improved looks – and fewer cables to catch on with a handlebar bag – and the carbon fibre fork used on all models now has more cargo mounts plus internal routing for a dynamo hub. With the ability to use 1x or 2x drivetrains, you can pick your gearing to suit the task at hand or your own personal preference, opening up a world of opportunity for you and your SILEX.
- Test and award winning full carbon frame with dropped chainstay for 700x45 mm clearance
- Multiple mounting points for cages, bags and fenders
- WIRE PORT internal cable routing for clean looks and scuff free bag fitting
- Carbon fork with cargo mounting points and routing for dynamo hub
- Relaxed head angle and MTB-style geometry for off-road stability
- Shimano GRX 12-speed gravel groupset, Shimano WH-RX180 wheels
Merida 2027 Silex 7000
Frame
Size: XS, SM, MD, LG
Colour: Warm Slate Grey/Black
Frame: SILEX CF2 II MAT carbon 700 x 45C max.WHS 100 x 12/142 x 12 AST BSA BBR
Fork: MERIDA SILEX II CF2 Tapered MAT carbon 700x47C max. WHS
Shock:
Drivetrain
Crankset: Shimano GRX820 42 ATC 170 mm-XXS/XS/S/M, 172.5 mm-L/XL
Pedals:
Chain: Shimano M6100-12
Bottom Bracket: Shimano SM-BBR60
Rear Derailleur: Shimano GRX822
Front Derailleur:
Derailleur Shifter: Shimano GRX820
Freewheel/Cassette: Shimano M7100 10-51 ATC 12 GER
Braking System
Brakes: Shimano GRX820
Brake Levers: Shimano GRX820
Wheels
Tyres: [F] and [R] 700x45C Maxxis Rambler
Wheels/Rims: Shimano WH-RX180-700C CL 100x12 WHF 142x12 WHR 25 IWR 25 HRI Centerlock MAT Alloy
Hubs:
Other
Handlebar: MERIDA EXPERT GRII MAT Alloy 400mm (XXS-XS-S) , 420mm (M) , 440mm (L-XL)
Stem: MERIDA TEAM CC III MAT Alloy 31.8 DSH -6 deg ASD
Seat Post: MERIDA TEAM SL II 27.2 DSP 0 SSB Carbon
Saddle: MERIDA EXPERT SL II V-mount incl. MERIDA minitool
Merida 2027 Silex 7000
| Frame Size | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 410 | 440 | 470 | 500 | 530 | 560 |
| TT top tube [mm] | 530 | 550 | 565 | 580 | 600 | 620 |
| CS chain stay length [mm] | 430 | 430 | 430 | 430 | 430 | 430 |
| HTA head tube angle [°] | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| STA seat tube angle [°] | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| BD bottom bracket drop [mm] | 75 | 75 | 75 | 75 | 75 | 75 |
| HT head tube [mm] | 110 | 130 | 150 | 170 | 190 | 210 |
| FL fork length [mm] | 415 | 415 | 415 | 415 | 415 | 415 |
| R reach [mm] | 378 | 392 | 402 | 412 | 426 | 441 |
| S stack [mm] | 549 | 570 | 588 | 607 | 626 | 645 |
| WB wheel base [mm] | 1031 | 1048 | 1065 | 1082 | 1104 | 1126 |
| SH stand over height [mm] | 707 | 734 | 771 | 798 | 825 | 852 |
