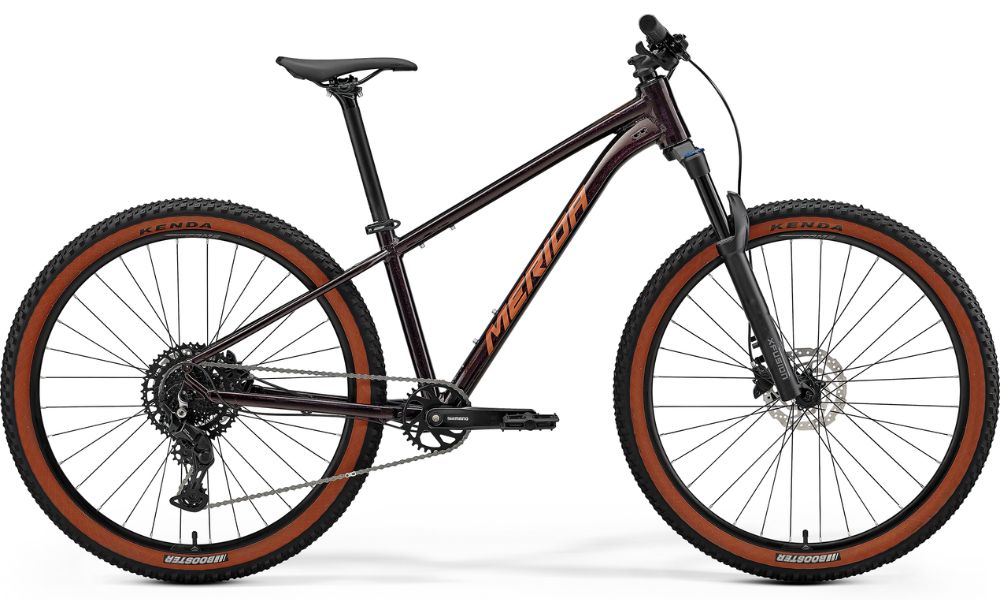

Merida 2026 Big Nine 40
Get started on your mountain bike journey. The BIG.NINE 40 uses our latest aluminium frame to give a tough but lightweight base for high-value, high-performance kit. With updated geometry and a 120 mm air-sprung fork, it's a confident off-road machine that packs in versatility for everyday use, while Shimano's CUES 1x9-speed drivetrain and the hydraulic disc brakes are simple but effective.
When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver a fit for for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.
- Updated TFS aluminium frame with clearance for 2.4" tyres
- Updated geometry for confident off-road handling
- X-Fusion air-sprung suspension fork with 120 mm travel and lockout
- Shimano hydraulic disc brakes and CUES 1x9-speed drivetrain
- MERIDA COMP CC 29" wheelset and 2.4" tyres
- MERIDA finishing kit including size-tuned handlebars
Merida 2026 Big Nine 40
Frame
Size: S, M, L, XL
Colour: Black(Red)
Frame: BIG.NINE TFS V, MAT aluminum, 29 WHS, 135x9 AST, BSA BBR,
Fork: X-Fusion Migo 32 Air, 120 STR, lockout, max. 29x2,4" WHS,
Shock: ,
Drivetrain
Crankset: Shimano Cues UT400-1, 32t, MAT Aluminium,
Pedals:
Chain:KMC xGlide
Bottom Bracket: Shimano UN101 LL123,
Rear Derailleur: Shimano Cues U4000, GS
Front Derailleur:
Shifter: Shimano Cues U4000,
Freewheel/Cassette: SunRace U9 CS-U980 9AZ, 11-46t, 9sp
Braking System
Brakes: [F] and [R] Shimano MT200, hydraulic brake
Brake Levers:
Wheels
Tyres: [F] and [R] Kenda Booster, 29x2.4"
Wheels/Rims: MERIDA COMP CC, 20 IWR, MAT aluminium,
Hubs: [F] Shimano QC300, 100x9 WHF, 32 SPH, Centerlock [R] Shimano QC300-HM, 135x9 WHR, 32 SPH, Centerlock
Other
Handlebar: MERIDA CC, MAT aluminium, 15 RHB, S: 720 WHB, M/L/: 740 WHB, XL/XXL: 750 WHB
Stem: MERIDA COMP CC, MAT aluminium, 31.8 DSH, 7 ASD
Seat Post: MERIDA COMP CC, MAT aluminium, 30.9 DSP, 0 SSB
Saddle: MERIDA COMP SL, V-mount
Merida 2026 Big Nine 40
| Frame Size | S | M | L | XL | XXL |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 370 | 420 | 460 | 510 | 560 |
| TT top tube [mm] | 559 | 581 | 603 | 630 | 657 |
| CS chain stay length [mm] | 460 | 460 | 460 | 460 | 460 |
| HTA head tube angle [°] | 67 | 67 | 67 | 67 | 67 |
| STA seat tube angle [°] | 74 | 74 | 74 | 74 | 74 |
| BD bottom bracket drop [mm] | 53 | 53 | 53 | 53 | 53 |
| HT head tube [mm] | 100 | 105 | 115 | 130 | 140 |
| FL fork length [mm] | 535 | 535 | 535 | 535 | 535 |
| FO fork offset [mm] | 46 | 46 | 46 | 46 | 46 |
| R reach [mm] | 390 | 410 | 430 | 450 | 470 |
| S stack [mm] | 619 | 624 | 633 | 643 | 652 |
| WB wheel base [mm] | 1136 | 1158 | 1182 | 1206 | 1229 |
| SH stand over height [mm] | 694 | 744 | 773 | 813 | 852 |
