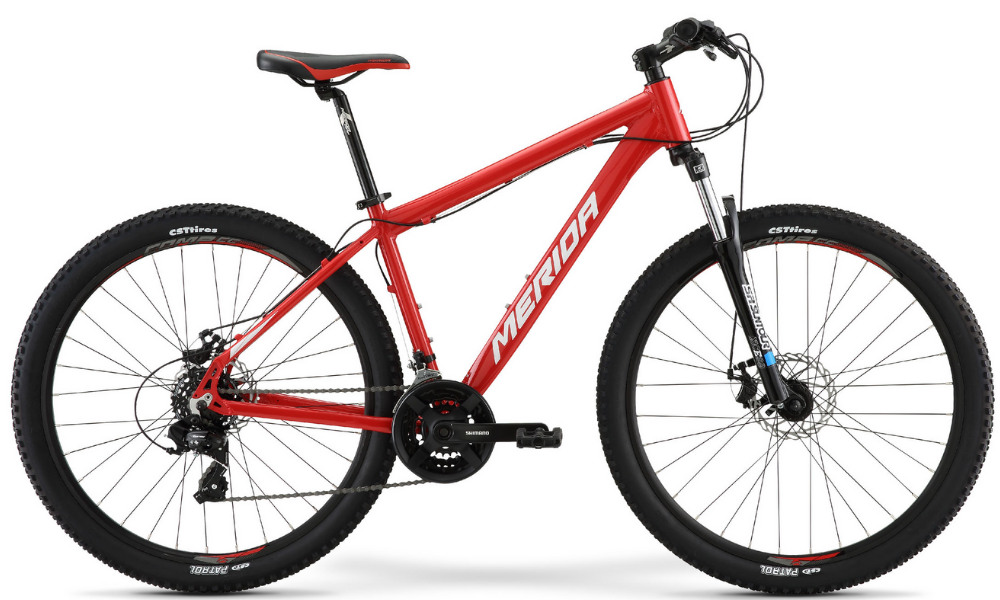

Merida Big Seven 10-MD
The Merida Big Nine and Big Seven models are available in a wide range of spec levels, from the recreational to the cross-country race machine. The Big Seven 10MD is a popular introductory build for recreational and trail riders, or those looking for a budget friendly mountain bike with mechanical disc brakes and trail proven Shimano components. Rolling on 27.5 wheels with a 100mm travel Suntour front suspension, the Shimano Tourney 3x7 speed drivetrain and mechanical disc brakes provide reliable quality and stopping performance with easy serviceability. The Merida Racelite 61 aluminium frame is double butted, and techno formed, allowing for more ergonomic tube profiles, reducing weight and maximizing strength, while the speed focused geometry maximizes pedalling efficiency without compromising on comfort. Integrated mounts for Kickstand, Carrier Rack and Mudguards maximize adaptability options as a comfortable everyday commuter that is ready to hit the trails on the weekend.
Merida Big Seven 10-MD
Frame
Colour: Race Red/White
Frame: BIG.SEVEN SPEED; MAT aluminium; 27.5"
Fork: Suntour XCE28
Shock: NA
Drivetrain
Crankset: Shimano TY301
Pedals: Chain: CN-7s
Bottom Bracket: Cartridge Bearing
Rear Derailleur: Shimano TY300, TOURNEY
Front Derailleur: Shimano TY300, TOURNEY
Derailleur Shifter: Shimano ST-EF500
Freewheel/Cassette: Shimano CS-HG200-12-32, 7s
Braking System
Brakes: [F] and [R] Jak-7 Mechanical Disc, 160mm rotor
Brake Levers:
Wheels
Tyres: [F] and [R] CST PATROL (27.5x2.25")
Wheels/Rims: MERIDA double D, alloy
Hubs: [F] and [R] Alloy Disc, Quick Release
Other
Handlebar: MERIDA Comp
Stem: MERIDA Comp
Saddle: Merida Comfort DDK-200
Seat Post: MERIDA Speed
Merida Big Seven 10-MD
| FRAME SIZE | XS | S | M | L |
| TYRE SIZES | 27.5" | 27.5" | 27.5" | 27.5" |
| ST SEAT TUBE [MM] | 343 | 381 | 432 | 470 |
| TT TOP TUBE [MM] | 550 | 560 | 575 | 585 |
| CS CHAIN STAY LENGTH [MM] | 430 | 430 | 430 | 430 |
| HTA HEAD TUBE ANGLE [°] | 70 | 70 | 70.5 | 70.5 |
| STA SEAT TUBE ANGLE [°] | 73.5 | 73.5 | 73 | 73 |
| BD BOTTOM BRACKED DROP [MM] | 53 | 53 | 53 | 53 |
| HT HEAD TUBE [MM] | 100 | 105 | 115 | 125 |
| FL FORK LENGTH [MM] | 490 | 490 | 490 | 490 |
| R REACH [MM] | 374 | 383 | 389 | 396 |
| S STACK [MM] | 593 | 598 | 609 | 619 |
| WB WHEEL BASE [MM] | 1042 | 1053 | 1057 | 1068 |
| SH STAND OVER HEIGHT [MM] | 650 | 686 | 731 | 764 |
