Norco 2025 Rampage 24
The second generation Youth Rampage is purpose-built for big air, taking inspiration from two decades of riding and building dirt jumpers with a light but strong frame and balanced, agile geometry for young riders finding their flow.

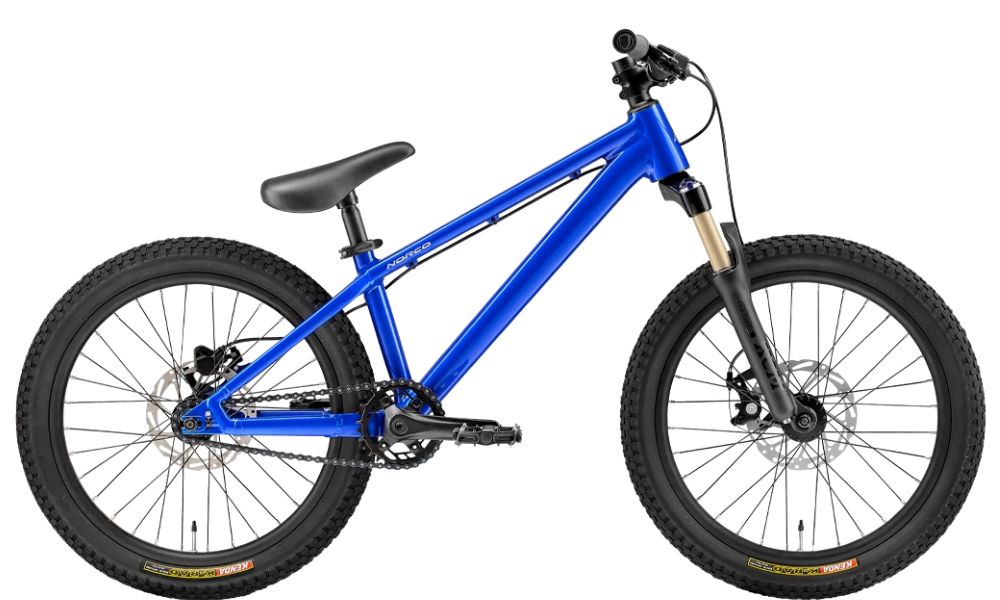

Norco 2025 Rampage 20
Frame
Colour: Radiant Blue
Frame: Aluminum DJ 24"
Fork: RST Dirt ,80 mm, 9x100mm
Shock: NA
Drivetrain
Crankset: Prowheel 3pc, 30T, 140mm
Chain: KMC Z1 natural black 1/2 x 3/32" single speed chain
Bottom Bracket: Square Taper, 73mm, 122.5mm axle
Rear Derailleur: NA
Front Derailleur: NA
Derailleur Shifter: NA
Freewheel/Cassette: Single Speed, 14T
Braking System
Brakes: [F] Tektro MD-280, Mechanical, Resin pads [R] Tektro HD-M286, Hydraulic, Resin pads
Brake Levers: Tektro Alloy
Wheels
Tyres: [F] and [R] Kenda K-Rad, 24x2.30", Wire Bead
Wheels/Rims: Alex MUS 30, 32h, F/R-24", 23.5mm ID
Hubs: [F] KT sealed bearing, 3/8" nutted axle, 32H, 6 bolt [R] KT sealed bearing, 10x135mm, 32H, Single Speed, 14T, 6 bolt
Other
Handlebar: Norco 6061 alloy, 680mm, 30mm rise
Stem: Norco, 40mm Length, 31.8 Clamp
Saddle: Norco Pivotal
Seat Post: Norco pivotal, 27.2mm ID, 200mm Length
Norco 2025 Rampage 24
| Wheel Size | 24" | |
|---|---|---|
| Travel (mm front) | 80 | |
| Reach | 375 | |
| Stack | 524 | |
| HTA | Head Tube Angle | 68.5 |
| OS | Fork Offset | 40 |
| ST | Seat Tube Length | 290 |
| STA | Effective Seat Tube Angle | 75 |
| RC | Rear Centre Length | 353 |
| BB | Bottom Bracket Drop | 15 |
| BBH | Bottom Bracket Height | 298 |
| HTT | Horizontal Top Tube | 515 |
| WB | Wheelbase | 971 |
| SOH | Standover | 559 |
| HT | Head Tube Length | 100 |
| Trail | 80 | |
| Maximum Post Insertion | 236 | |
| Stem Length | 35 | |
| Crank Length | 140 | |
| Tire Size | 2.35" – 2.5" |
