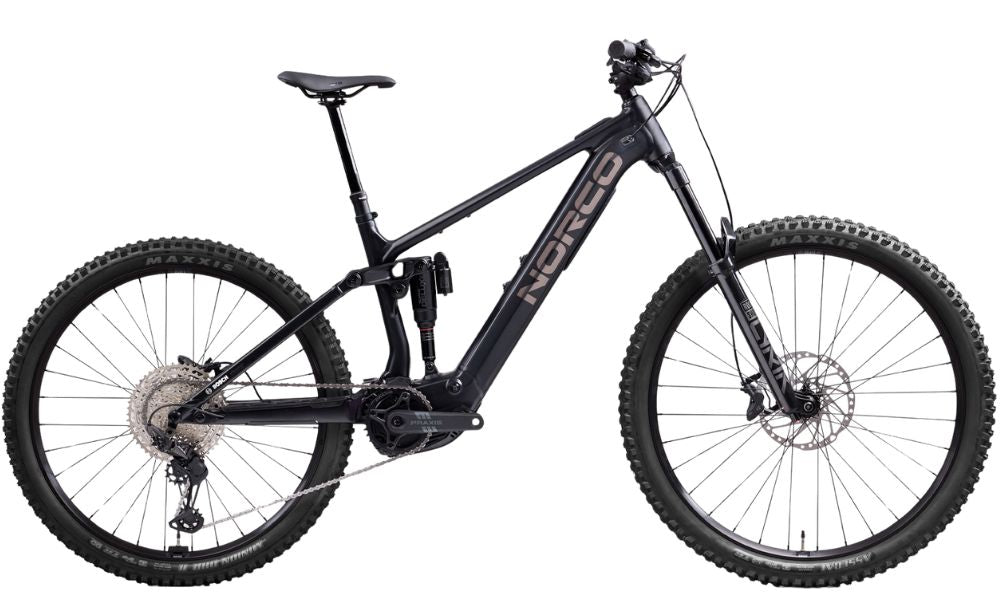

Norco 2026 Sight VLT PX A2
Sight VLT Bosch A2 delivers full-power eMTB performance where it matters most. No fluff, just composure and confidence. Designed for easy maintenance and serviceability, built for all-mountain riding. With 160 mm of travel in the front and 150 mm in the rear, with Norco’s proven VPS platform and dependable system. Everything you need to get out and go, more.
Performance and control where it counts.
The Norco Sight VLT Bosch A2 delivers top-tier ride quality and exceptional value, without compromising what matters most. At its core, the Bosch PX motor provides the power and torque to conquer the steepest climbs, delivering 90Nm of torque and 700W of peak power. Progressive all-mountain geometry and a mixed-wheel setup give the versatility to tackle any terrain with ease. Size-specific geometry ensures balanced weight distribution and a precise fit across every frame. Meticulously tuned VPS suspension and powerful brakes keep every ride controlled and confident.
- Confidence in every size - Top-tier ride quality and exceptional value
- Bosch power - All the power you need, with natural-feeling delivery
- Proven All-Mountain Suspension - The perfect balance of playful and confident
- Durable design - A no-nonsense, dependable build
- Drive System Reliability - Full support from Bosch
- Ride Aligned - perfect fit, dialed handling and personalized setup in minutes
- No Other Way Limited Lifetime Warranty
Norco 2026 Sight VLT PX A2
Frame
Size: S2, S3, S4
Colour: Flat Black
Frame: Aluminum Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Fork: RockShox Lyrik Base RC, 160mm, 44mm offset, Fender Included
Shock: Rock Shox Super Deluxe Base w/ HBO, 205x60mm TR
Drivetrain
Crankset: Praxis HD Aluminum Bosch Cranks, 34T, 155mm (S1,S2,S3) - 160mm (S4, S5)
Pedals:
Chain: Shimano Deore CN-M6100, 12sp
Bottom Bracket:
Rear Derailleur: Shimano XT RD-M8100, SGS, 12spd
Front Derailleur:
Shifter: Shimano Deore SL-M6100-R, 12spd
Freewheel/Cassette: Shimano Deore CS-M6100-12, 10-51T, 12sp
Braking System
Brakes: Shimano Deore M6120 4-P, Mettalic pads
Brake Levers: Shimano Deore M6100
Wheels
Tyres: [F] Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding [R] Maxxis Minion DHR II, 3C Maxx Grip DD, 27.5.5x2.4", Folding
Wheels/Rims: WTB KOM Trail i30 TCS 2.0, 30mm, 32H, 29"-27.5 F/R
Hubs: [F] Shimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock [R] Shimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
Other
Handlebar: Norco 6061 DB Alloy, 800mm, 25mm rise (S1,S2) - 35mm rise (S3,S4,S5)
Stem: Norco 6061, 40mm Length, 35mm Clamp
Seat Post: TranzX YSI160 RAD+, 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)
Saddle: WTB Solano Med, 142x240 mm, Steel Rails
E-Bike
Drive Unit: Bosch Performance Line PX, 85 Nm
Battery: Bosch PowerTube 600 Wh
Norco 2026 Sight VLT PX A2
| 1 | 2 | 3 | 4 | 5 | ||
|---|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | |
| Travel (mm front/mm rear) | 160/150 | |||||
| Reach | 430 | 450 | 470 | 490 | 510 | |
| Stack | 616 | 625 | 634 | 643 | 652 | |
| HTA | Head Tube Angle | 64 | ||||
| OS | Fork Offset | 44 | ||||
| ST | Seat Tube Length | 385 | 395 | 415 | 445 | 475 |
| STA | Effective Seat Tube Angle | 77 | 77.25 | 77.5 | 77.75 | 78 |
| RC | Rear Centre Length | 432 | 436 | 440 | 444 | 448 |
| BBDF/R | Bottom Bracket Drop (Front/Rear) | 27/8 | ||||
| BBH | Bottom Bracket Height | 347 | ||||
| HTT | Horizontal Top Tube | 571 | 587 | 604 | 621 | 638 |
| WB | Wheelbase | 1202 | 1226 | 1255 | 1283 | 1311 |
| SOH | Standover | 696 | 704 | 706 | 723 | 745 |
| HT | Head Tube Length | 100 | 110 | 120 | 130 | 140 |
| Trail | 133 | |||||
| Recommended Seatpost Drop | 125 | 150 | 170 | 200 | 230 | |
| Maximum Post Insertion | 240 | 250 | 270 | 300 | 330 | |
| Stem Length | 40 | |||||
| Crank Length | 155 | 160 | ||||
| Tire Size | 2.35" – 2.5" | |||||
| Water Bottle Compatible | 1 x 620mL | 1 x 750mL | ||||
