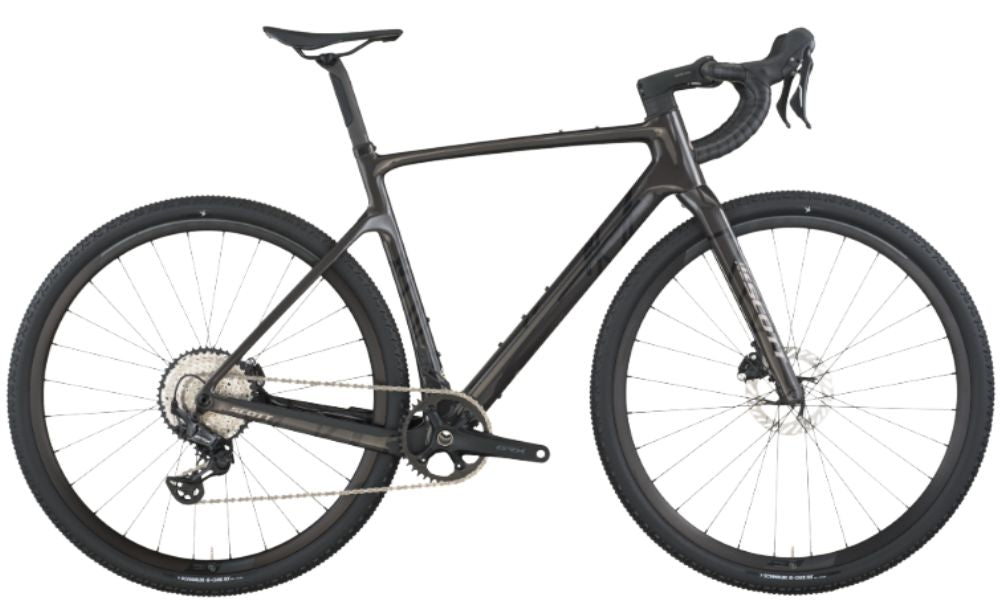

Scott 2026 Addict Gravel 30
The SCOTT Addict Gravel 30 will get you wherever you’re going, no matter what the trail throws at you. More progressive, more control and more mounts mean this adventure-ready machine is your ticket to getting out there. Find yourself, get lost.
Scott Addict Gravel 30
Frame
Size: S, M, L
Colour: Carbon Black
Frame: Addict Gravel HMF Carbon Gravel geometry, Replaceable UDH Derailleur Hanger Internal cable routing Syncros fender kit ready
Fork: Addict Gravel HMF Flatmount Disc 1 1/4"-1 1/2" Eccentric Carbon steerer
Shock:
Drivetrain
Crankset: Shimano GRX FC-RX610-1 40
Pedals:
Chain: Shimano CN-M6100-12
Bottom Bracket: Shimano BB-RS500 PB
Rear Derailleur: Shimano GRX RD-RX822 GS 12 Spee
Front Derailleur:
Shifter: Shimano GRX ST-RX610, BL-RX610L 12 Speed
Freewheel/Cassette:
Shimano CS-M7100-12 10-45
Braking System
Brakes: Shimano BR-RX410 Hyd. Disc
Brake Levers:
Wheels
Tyres: [F] and [R] Schwalbe G-One RX, 700x45C
Wheels/Rims: Syncros RP2.0 Disc Syncros SL Axle, Removable Lever with Tool
Hubs: [F] [R]
Other
Handlebar: Syncros Creston 2.0 X Alloy 31.8mm
Stem: Syncros RR2.0 1 1/4", four Bolt 31.8mm
Seat Post: Syncros SP-R101-CF
Saddle: Syncros Tofino Regular 2.0 Cutout
Scott 2026 Addict Gravel 30
| XS/49 | S/52 | M/54 | L/56 | XL/58 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 70.0 ° | 70.0 ° | 71.0 ° | 71.0 ° | 71.0 ° | |||||||||
| B | head tube length / hauteur tube de direction | 95.0 mm | 122.0 mm | 140.0 mm | 166.0 mm | 187.0 mm | |||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 518.0 mm | 534.5 mm | 554.5 mm | 578.5 mm | 592.5 mm | |||||||||
| D | standover height / hauteur entre-jambes | 759.0 mm | 786.0 mm | 807.0 mm | 828.0 mm | 847.0 mm | |||||||||
| E | BB offset / deport axe de pédalier | -71.0 mm | -71.0 mm | -71.0 mm | -71.0 mm | -71.0 mm | |||||||||
| F | BB height / hauteur axe de pédalier | 283.0 mm | 283.0 mm | 283.0 mm | 283.0 mm | 283.0 mm | |||||||||
| G | wheel base / entraxe roues | 1,009.4 mm | 1,022.9 mm | 1,029.2 mm | 1,048.7 mm | 1,063.5 mm | |||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | 447.0 mm | 477.0 mm | 498.0 mm | 516.0 mm | 536.0 mm | |||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 477.0 mm | 507.0 mm | 528.0 mm | 546.0 mm | 566.0 mm | |||||||||
| J | seat angle / angle tube de selle | 74.5 ° | 74.0 ° | 73.5 ° | 73.0 ° | 73.0 ° | |||||||||
| K | chainstay / longueur des bases | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm | |||||||||
| L | reach / reach | 374.1 mm | 378.4 mm | 387.1 mm | 398.2 mm | 406.1 mm | |||||||||
| M | stack / stack | 519.0 mm | 544.4 mm | 565.3 mm | 589.9 mm | 609.7 mm | |||||||||
| N | stem length / longueur potence | 83.0 mm | 93.0 mm | 103.0 mm | 103.0 mm | 113.0 mm | |||||||||
