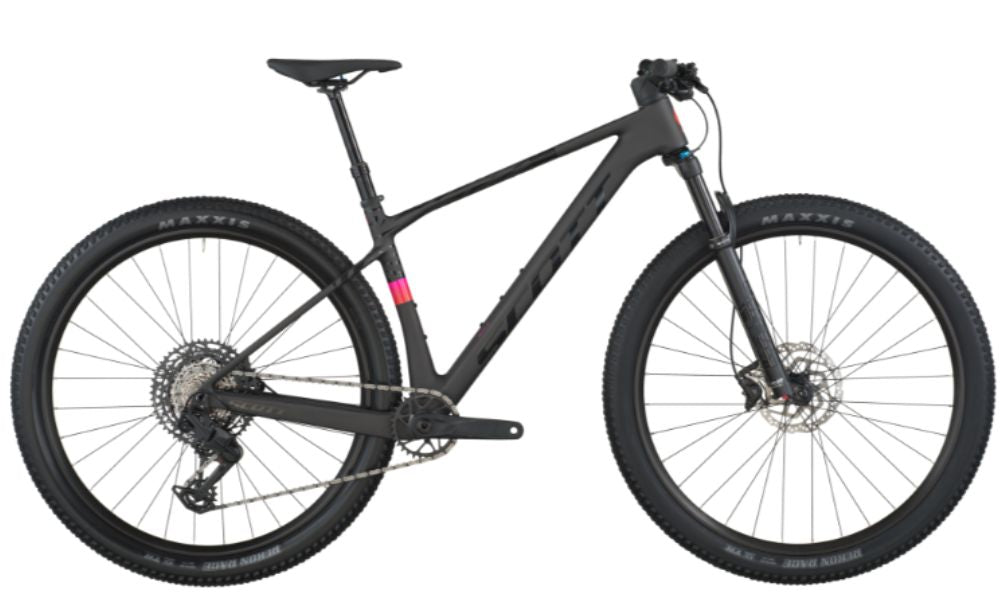

Scott Scale 910
Balancing the Scale’s DNA , we’ve created a whole new breed in the world of hardtail mountain bikes. A racing inspired geometry, coupled with a straightforward and sharp design provides the Scale 900 line with its distinctive character and aggressive look - a bike that proudly flaunts its definitive characteristics. This rig is ready for just about anything, are you?
Scott Scale 910
Frame
Size: L, XL
Colour: Carbon Black
Frame: Scale Carbon HMF Adjustable head angle, Syncros Cable Integration System Advanced Shock & Standing Damping System BB92, UDH Interface, 12x148mm with 55mm Chainline
Fork: FOX 32 Float Rhythm Grip 3-Modes, 15x110mm QR axle, 44mm offset, tapered steerer Reb. Adj., Lockout, 110mm travel
Shock:
Drivetrain
Crankset: SRAM Eagle 70 Transmission DUB, 55mm CL, 32T
Pedals:
Chain: SRAM CN Eagle 70 Transmission
Bottom Bracket: SRAM DUB PF 92 MTB Wide, shell 41x92mm
Rear Derailleur: SRAM Eagle 70 Transmission 12 Speed
Front Derailleur:
Shifter: SRAM Eagle 70 Trigger
Freewheel/Cassette: SRAM Eagle XS 1270 V2 Transmission 10-52
Braking System
Brakes: Shimano MT401 Disc
Brake Levers:
Wheels
Tyres: [F] and [R] Tubeless Ready, EXO
Wheels/Rims: Syncros X-30SE, 32H, 30mm Tubeless ready
Hubs: [F] Formula CL-811, 15x110mm [R] Formula CL-3248, 12x148mm
Other
Handlebar: Syncros Alloy 6061 T shape Flat, 9°, 740mm Syncros Performance XC lock-on grips
Stem: Syncros DC 3.0 Syncros Cable Integration System 0° rise, 6061 Alloy, 31.8mm, 1 1/8"
Seat Post: Syncros Duncan Dropper, 31.6mm S size 100mm, M size 130mm, L &XL size 150mm
Saddle: Syncros Belcarra Regular 2.5
Scott Scale 910
| S | M | L | XL | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 67.9 ° | 67.9 ° | 67.9 ° | 67.9 ° | ||||||||||||||
| B | head tube length / hauteur tube de direction | 90.0 mm | 95.0 mm | 110.0 mm | 120.0 mm | ||||||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 575.0 mm | 600.2 mm | 626.0 mm | 656.5 mm | ||||||||||||||
| D | standover height / hauteur entre-jambes | 752.0 mm | 781.0 mm | 800.0 mm | 835.1 mm | ||||||||||||||
| E | BB offset / deport axe de pédalier | -62.0 mm | -62.0 mm | -62.0 mm | -62.0 mm | ||||||||||||||
| F | BB height / hauteur axe de pédalier | 313.0 mm | 313.0 mm | 313.0 mm | 313.0 mm | ||||||||||||||
| G | wheel base / entraxe roues | 1,105.4 mm | 1,131.1 mm | 1,158.0 mm | 1,189.4 mm | ||||||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 390.0 mm | 440.0 mm | 480.0 mm | 530.0 mm | ||||||||||||||
| J | seat angle / angle tube de selle | 75.4 ° | 75.4 ° | 75.3 ° | 75.3 ° | ||||||||||||||
| K | chainstay / longueur des bases | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm | ||||||||||||||
| L | reach / reach | 418.5 mm | 442.3 mm | 463.6 mm | 491.2 mm | ||||||||||||||
| M | stack / stack | 600.3 mm | 604.9 mm | 618.9 mm | 628.1 mm | ||||||||||||||
| N | stem length / longueur potence | 50.0 mm | 60.0 mm | 70.0 mm | 80.0 mm | ||||||||||||||
| 0 | trail / chasse au sol | 105.0 mm | 105.0 mm | 105.0 mm | 105.0 mm | ||||||||||||||
| P | fork length / longueur fourche | 506.0 mm | 506.0 mm | 506.0 mm | 506.0 mm | ||||||||||||||
| Q | Maximum Seatpost Insertion / Insertion maximale de la tige de selle | 160.0 mm | 210.0 mm | 250.0 mm | 300.0 mm | ||||||||||||||
| R | Crank Length / longueur de manivelle | 170.0 mm | 170.0 mm | 175.0 mm | 175.0 mm | ||||||||||||||
