Scott 2026 Scale 930
Balancing the Scale’s DNA , we’ve created a whole new breed in the world of hardtail mountain bikes. A racing inspired geometry, coupled with a straightforward and sharp design provides the Scale 900 line with its distinctive character and aggressive look - a bike that proudly flaunts its definitive characteristics. This rig is ready for just about anything, are you?

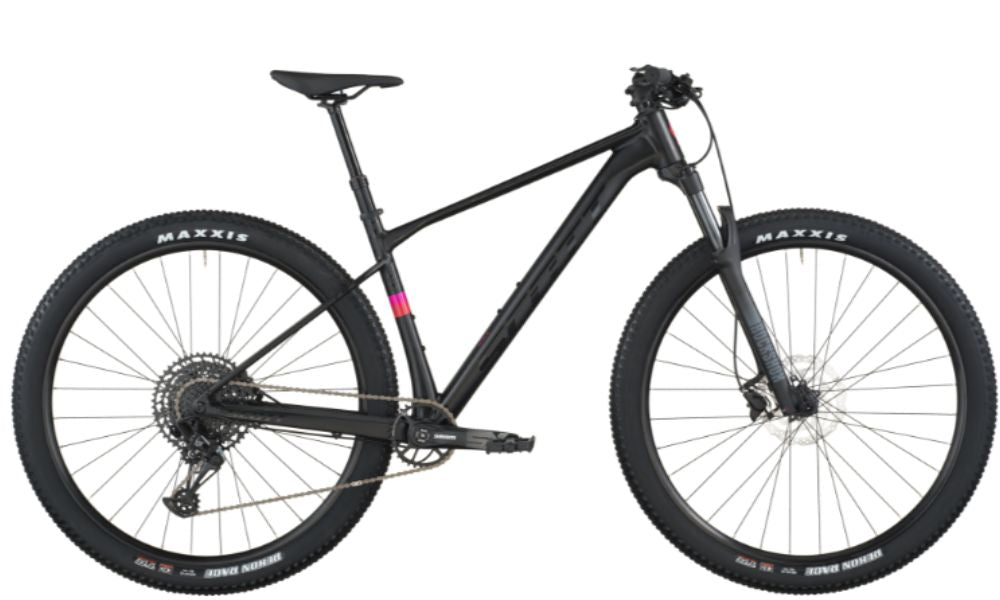

Scott 2026 Scale 930
Frame
Size: S, M, L, XL
Colour: Carbon Black
Frame: Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System, BB92, UDH Interface, 12x148mm with 55mm Chainline
Fork: RockShox Judy Silver TK Solo Air, 15x110mm QR axle, 51mm offset, Tapered Steerer, Reb. Adj., Lockout, 110mm travel
Shock:
Drivetrain
Crankset: SRAM SX Eagle DUB, 55mm CL, 32T
Pedals:
Chain: SRAM CN SX Eagle
Bottom Bracket: SRAM DUB PF 92 MTB Wide, shell 41x92mm
Rear Derailleur: SRAM NX Eagle 12 Speed
Front Derailleur:
Shifter: SRAM SX Eagle Trigger
Freewheel/Cassette: SRAM SX-PG1210, 11-50 T
Braking System
Brakes: Shimano MT200 Disc Brake
Brake Levers:
Wheels
Tyres: Maxxis Rekon Race, 29x2.4", EXO, Tubeless Ready
Wheels/Rims: Alex X-25/ 32H, 25mm, Tubeless ready
Hubs: [F] Formula CL-811, 15x110mm [R] Formula CL-3248, 12x148mm
Other
Handlebar: Syncros Alloy 6061, T shape Flat, 9°, 740mm, Syncros Performance XC lock-on grips
Stem: Syncros Alloy 6061, oversized 31.8mm, 1 1/8", 6° angle
Seat Post: Syncros Duncan Dropper, 31.6mm, XS&S size 100mm, M size 130mm, L &XL size 150mm
Saddle:
Scott 2026 Scale 930
| XS | S | M | L | XL | XXL | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° | ||||||||||||||
| B | head tube length / hauteur tube de direction | 90.0 mm | 90.0 mm | 100.0 mm | 110.0 mm | 120.0 mm | 120.0 mm | ||||||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 555.0 mm | 575.0 mm | 600.0 mm | 625.0 mm | 655.0 mm | 675.0 mm | ||||||||||||||
| D | standover height / hauteur entre-jambes | 745.0 mm | 755.0 mm | 786.0 mm | 805.0 mm | 835.0 mm | 870.0 mm | ||||||||||||||
| E | BB offset / deport axe de pédalier | -60.0 mm | -60.0 mm | -60.0 mm | -60.0 mm | -60.0 mm | -60.0 mm | ||||||||||||||
| F | BB height / hauteur axe de pédalier | 315.0 mm | 315.0 mm | 315.0 mm | 315.0 mm | 315.0 mm | 315.0 mm | ||||||||||||||
| G | wheel base / entraxe roues | 1,091.4 mm | 1,111.8 mm | 1,138.2 mm | 1,164.6 mm | 1,195.9 mm | 1,215.9 mm | ||||||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 360.0 mm | 390.0 mm | 440.0 mm | 480.0 mm | 530.0 mm | 580.0 mm | ||||||||||||||
| J | seat angle / angle tube de selle | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | ||||||||||||||
| K | chainstay / longueur des bases | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm | ||||||||||||||
| L | reach / reach | 400.3 mm | 420.3 mm | 442.8 mm | 463.3 mm | 492.9 mm | 512.9 mm | ||||||||||||||
| M | stack / stack | 596.1 mm | 596.1 mm | 605.3 mm | 614.6 mm | 623.8 mm | 623.8 mm | ||||||||||||||
| N | stem length / longueur potence | 50.0 mm | 50.0 mm | 60.0 mm | 70.0 mm | 80.0 mm | 80.0 mm | ||||||||||||||
| 0 | trail / chasse au sol | 506.0 mm | 112.6 mm | 112.6 mm | 112.6 mm | 112.6 mm | |||||||||||||||
| P | fork length / longueur fourche | 160.0 mm | 506.0 mm | 506.0 mm | 506.0 mm | 506.0 mm | 112.6 mm | ||||||||||||||
| Q | Maximum Seatpost Insertion / Insertion maximale de la tige de selle | 160.0 mm | 210.0 mm | 250.0 mm | 300.0 mm | 506.0 mm | |||||||||||||||
| R | Crank Length / longueur de manivelle | 170.0 mm | 170.0 mm | 175.0 mm | 175.0 mm | 350.0 mm | |||||||||||||||
