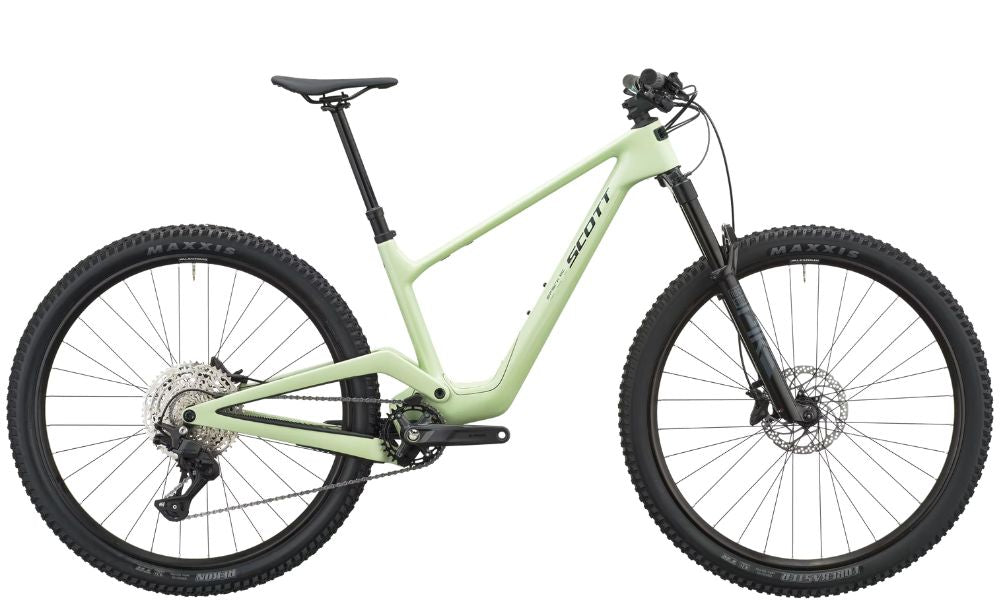

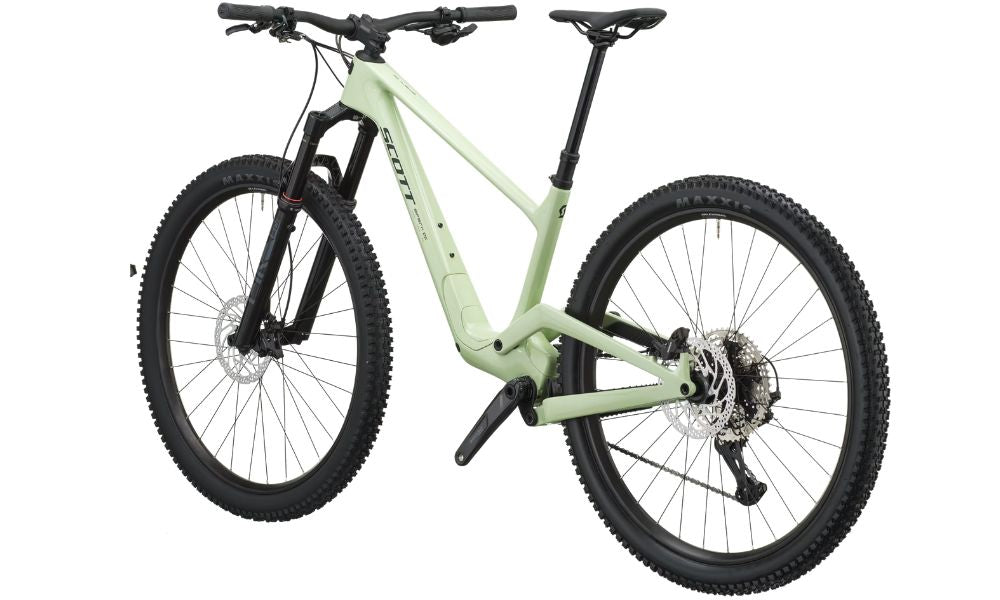

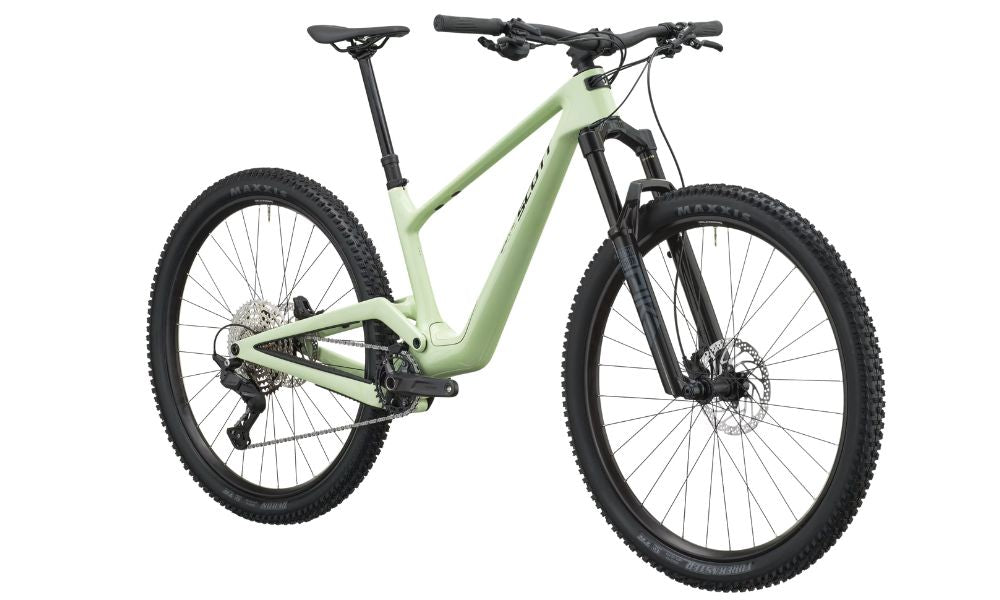

Scott 2027 Spark DC 40
Please contact store for availability or to PRE-ORDER on 04 589 2822 or support@cyclescience.co.nz
The SCOTT Spark DC 40 is built for riders who want more from every ride. A short-travel platform that delivers cross-country speed and backcountry capability in one considered design—engineered to be your go-to for everything.
Every detail is tuned to open up the trail without limitation.
The 140mm front and 135mm rear travel provides the ideal range to climb efficiently, carve descents with confidence, and absorb the rough stuff in between. A low center of mass enhances stability through flow trails and jump lines, while the lightweight HMF carbon frame delivers efficient acceleration and lively handling out of switchbacks and onto open singletrack. Together, they represent a step forward for what short-travel trail riding should be.
Traction, control, and comfort are delivered by RockShox's Pike fork and Deluxe Traction shock—a setup that brings plush, responsive handling to dynamic terrain. From lunch laps and focused sessions to full weekend adventures, it's a combination built to elevate every second of the ride.
The component spec rounds out a capable and considered package. Shimano's Deore 12-speed drivetrain delivers confident, reliable shifting across every condition, while integrated frame storage and a dedicated frame mount make it straightforward to load up for longer days or light bikepacking when you want to put the bike to work.
Performance also extends to practicality. Improved serviceability and tunability are built into the design, so you can keep the bike dialed and spend less time in the workshop—and more time focused on the trail ahead.
Scott 2027 Spark DC 40
Frame

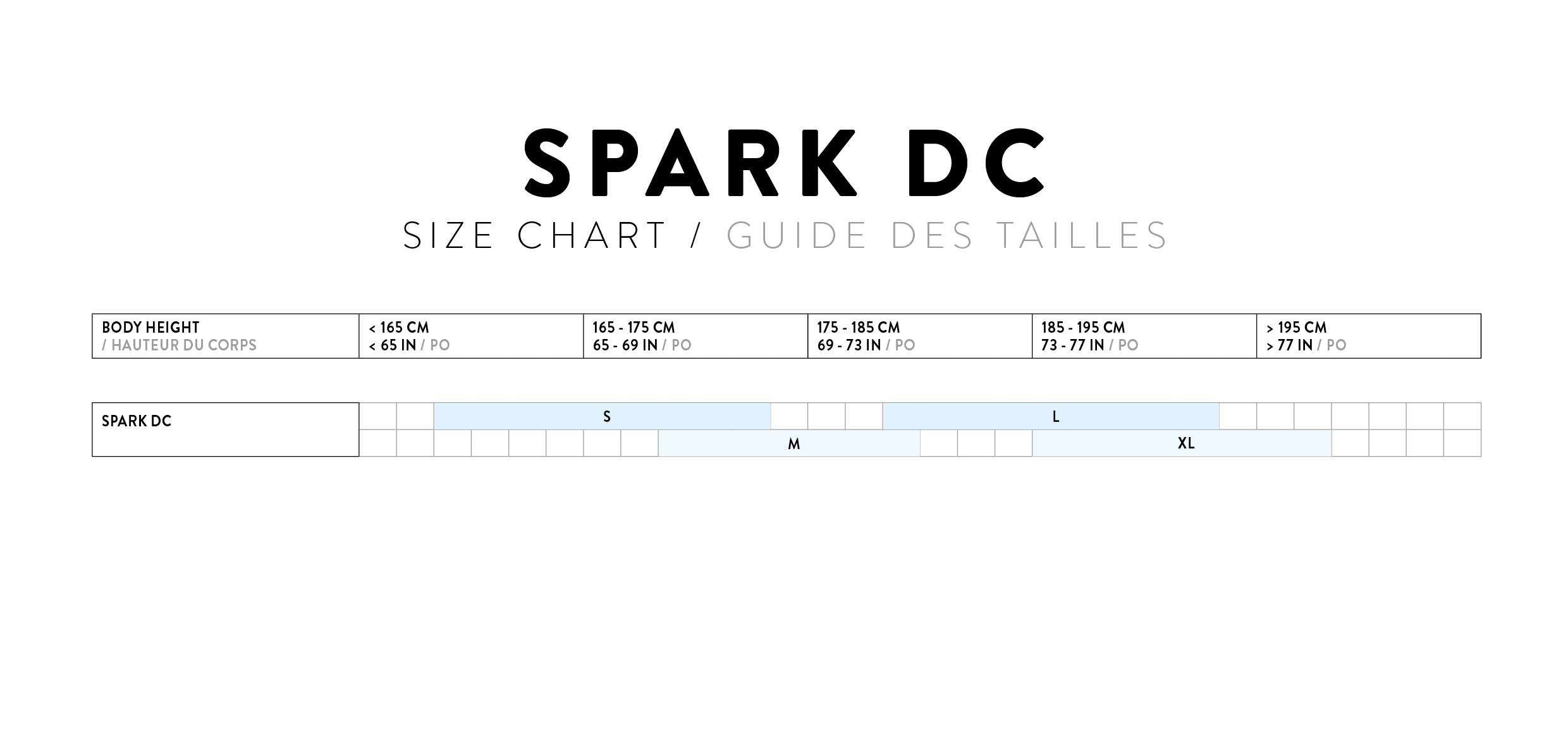

Size: S,M, L and XL
Colour: Tender Green

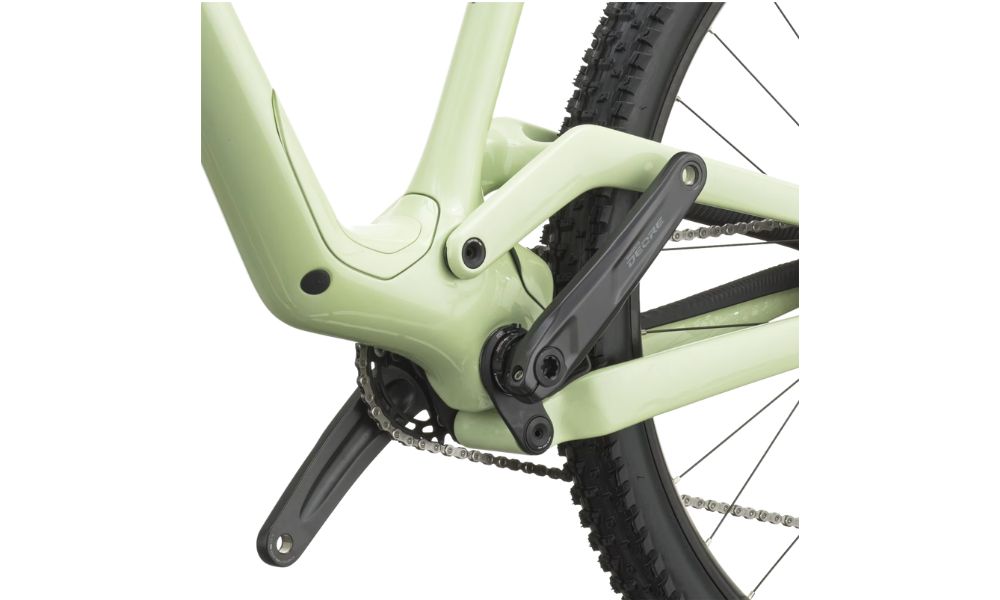

Frame: Spark DC HMF Carbon Gen5, Adjustable Head angle and Fork lock, Syncros Cable Integration System Gen2, BSA BB, UDH Interface, 12x148mm with 55mm Chainline

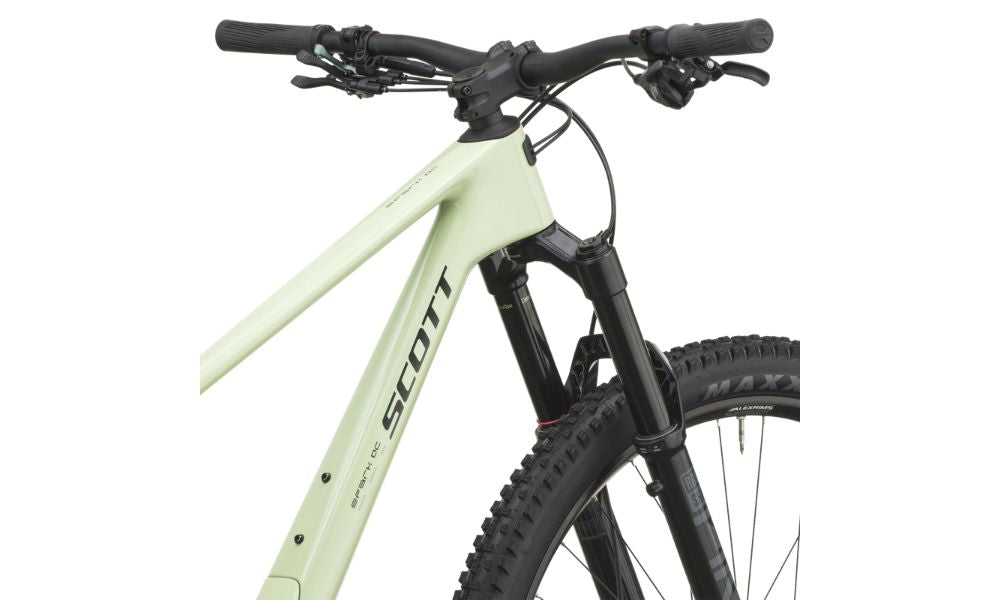

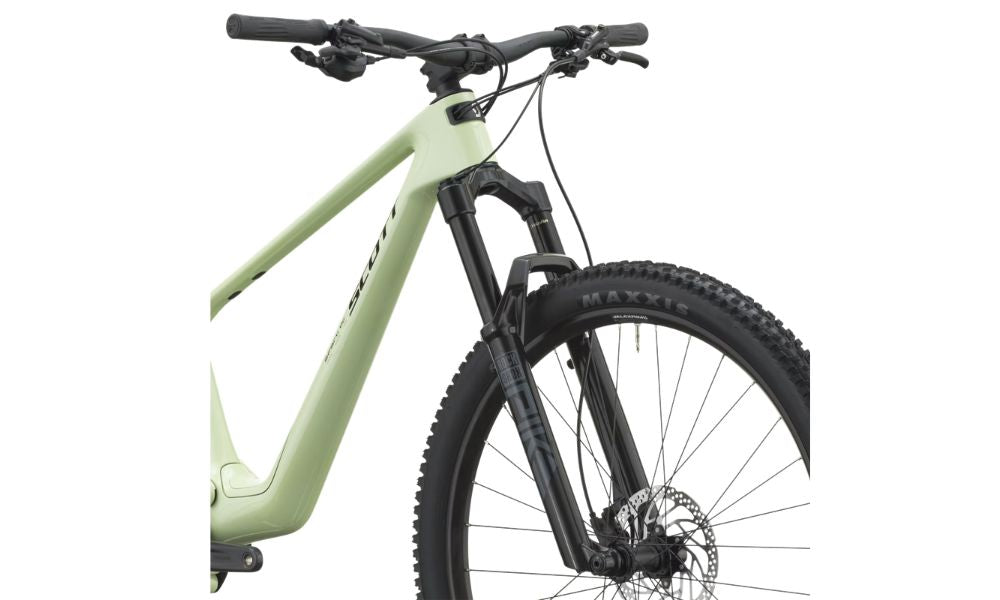

Fork: RockShox Pike 3P Air, Rush RL 3P Damper, 15x110mm Maxle Stealth, tapered Steerer, Reb. Adj., Lockout

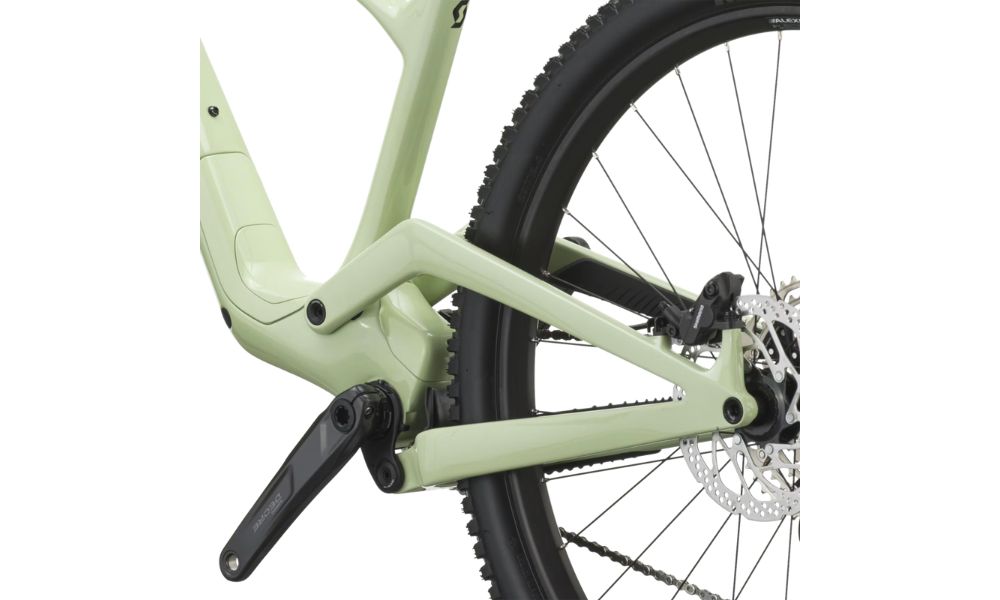

Shock: RockShox Deluxe Traction Control RL3, SCOTT custom w. travel, geo adj., 3P: Lockout-Traction Control-Descend, Reb. Adj., Bearing Hardware 20x8mm, 210X50mm

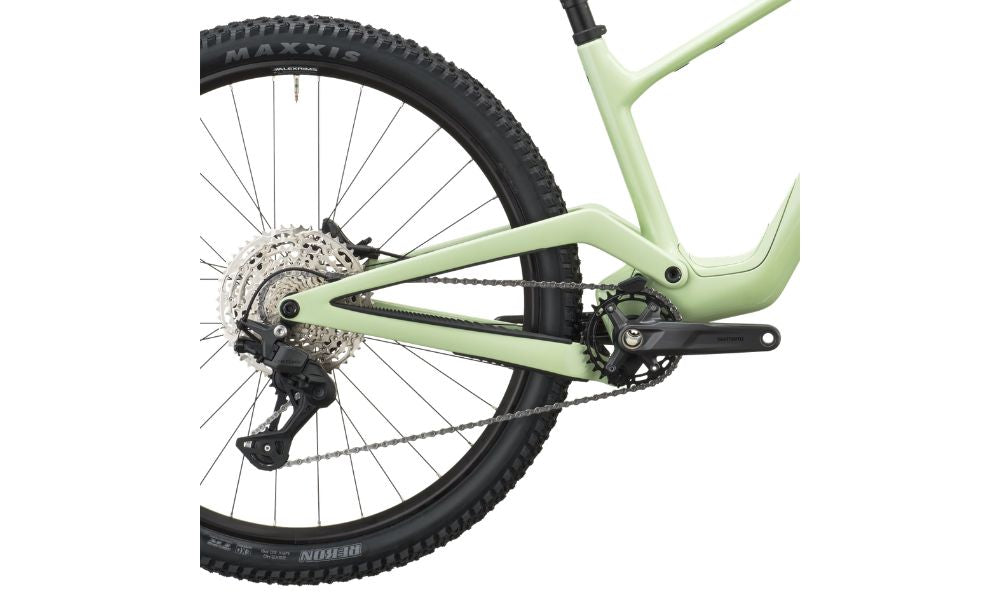

Drivetrain
Crankset: Shimano FC-MT520, 32T
Pedals:
Chain: Shimano CN-M6100
Bottom Bracket: Shimano BB-MT501 BSA
Rear Derailleur: Shimano Deore RD-M7200 12-speed
Front Derailleur:
Derailleur Shifter: Shimano Deore SL-M6200
Freewheel/Cassette: Shimano Deore CS-M6200, 10-51T
Braking System
Brakes: Shimano BR-MT620 4-Piston
Brake Levers:
Wheels
Tyres: [F] Maxxis Forekaster 29x2.4", 60TPI Foldable, Tubeless Ready [R] Maxxis Recon 29x2.4", 60TPI Foldable, Tubeless Ready, EXO
Wheels/Rims: Syncros Silverton AL2, CL, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready, 28H, HG Driver
Hubs: [F] [R]
Other
Handlebar: Syncros HB-M200-AL2, Alloy 6061, 760mm, 31.8mm, 7°, 20mm rise, Syncros lock-on grips
Stem:Syncros DC ST-M200-AL2, 0°, 31.6mm
Seat Post: Syncros Dropper Post SP-M303-AL2, +RAD drop adjust, 31.6mm
Saddle: Syncros Tofino R 2.5
Scott 2027 Spark DC 40

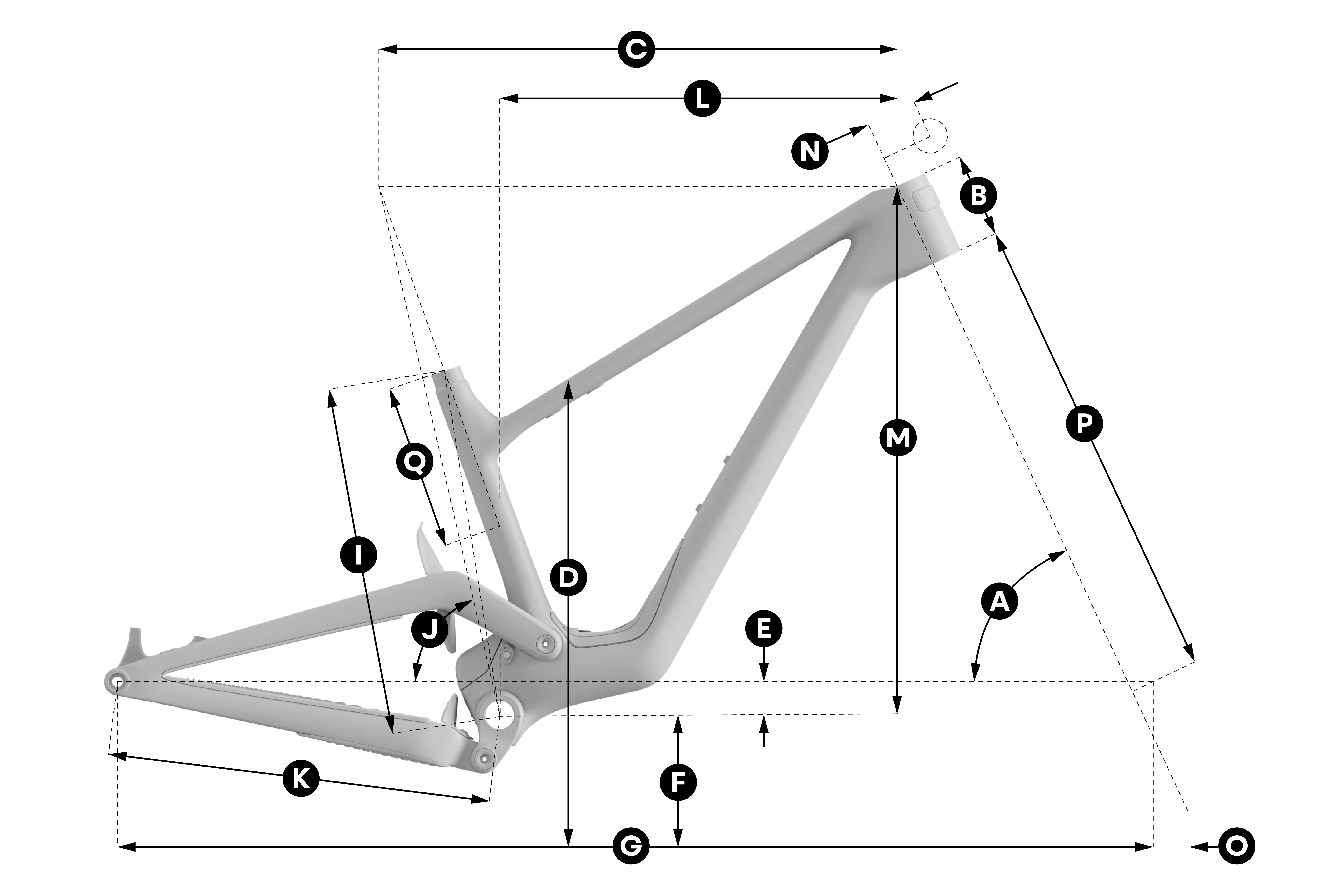

| S | M | L | XL | |
|---|---|---|---|---|
|
A head tube angle |
||||
|
B head tube length |
||||
|
C top tube horizontal |
||||
|
D standover height |
||||
|
E BB offset |
||||
|
F BB height |
||||
|
G wheel base |
||||
|
H BB center to toptube center |
||||
|
I BB center to top of seattube |
||||
|
J seat angle |
||||
|
K chainstay |
||||
|
L reach |
||||
|
M stack |
||||
|
N stem length |
||||
|
O trail |
||||
|
P fork length |
||||
|
Q Maximum Seatpost Insertion |
||||
|
R Handlebar Width |
||||
|
U Crankarm Length |
||||
|
W Seat post drop |
