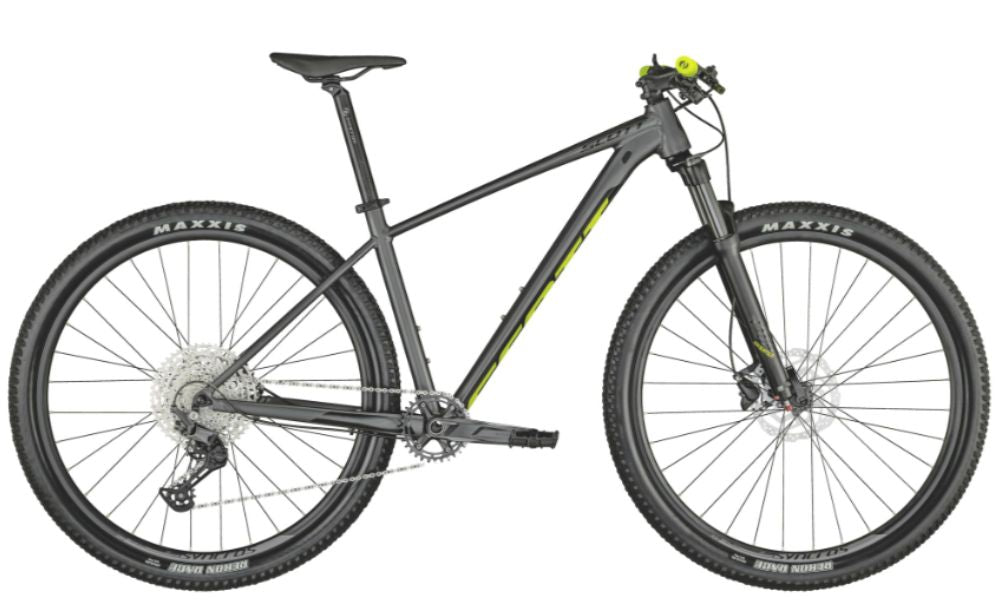

SCott 2026 Scale 980
The SCOTT Scale 980 comes fully equipped with a Shimano 12-speed drivetrain and a Suntour fork, along with Remote Lockout technology to allow for multiple travel settings to adjust to riding conditions.
Scott 2026 Scale 980
Frame
Size: S, M, L, XL
Colour: Dark Grey
Frame: Scale Alloy 6061 Custom Butted Tubing, Boost QR 5x141mm / Tapered Headtube / BB92, Internal Cable Routing / replaceable hanger
Fork: Suntour XCR32 RL-R / Coil Spring, 1 1/8" Steerer / Reb. Adj., Remote Lockout / 100mm travel
Shock:
Drivetrain
Crankset: Shimano FC-MT511-1, 32T
Pedals:
Chain: KMC X12
Bottom Bracket: Shimano BB-MT500-PA / shell 41x89.5mm
Rear Derailleur: Shimano Deore RD-M6100 SGS, Shadow Plus / 12 Speed
Front Derailleur:
Shifter: Shimano Deore SL-M6100-R / Rapidfire Plus
Freewheel/Cassette: Shimano Deore CS-M6100-12 / 10-51 T
Braking System
Brakes: Shimano MT200 Disc Brake
Brake Levers:
Wheels
Tyres: Maxxis Rekon Race / 2.25" / 60TPI
Wheels/Rims: Syncros / 32H
Hubs: [F] Formula CL-51 [R] Shimano FH-MT401-B CL / Boost QR 5x141mm / Micro Spline
Other
Handlebar: Syncros Alloy 6061, T shape Flat / 9° / 740mm
Stem: Syncros Alloy 6061, oversized 31.8mm / 1 1/8" / 6° angle
Seat Post: Syncros / 31.6x400mm
Saddle:
Scott 2026 Scale 980
| A | head tube angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | head tube length | 100.0 mm | 100.0 mm | 115.0 mm | 125.0 mm | 135.0 mm | |||||||||||||
| C | top tube horizontal | 575.0 mm | 600.0 mm | 620.0 mm | 640.0 mm | 660.0 mm | |||||||||||||
| D | standover height | 748.0 mm | 776.0 mm | 805.0 mm | 840.0 mm | 874.0 mm | |||||||||||||
| E | BB offset | -58.0 mm | -58.0 mm | -58.0 mm | -58.0 mm | -58.0 mm | |||||||||||||
| F | BB height | 312.0 mm | 312.0 mm | 312.0 mm | 312.0 mm | 312.0 mm | |||||||||||||
| G | wheel base | 1,092.1 mm | 1,118.0 mm | 1,138.2 mm | 1,159.0 mm | 1,211.0 mm | |||||||||||||
| H | BB center to toptube center | ||||||||||||||||||
| I | BB center to top of seattube | 390.0 mm | 440.0 mm | 480.0 mm | 530.0 mm | 580.0 mm | |||||||||||||
| J | seat angle | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° | |||||||||||||
| K | chainstay | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm | |||||||||||||
| L | reach | 396.8 mm | 421.8 mm | 437.7 mm | 455.0 mm | 492.2 mm | |||||||||||||
| M | stack | 605.3 mm | 605.3 mm | 619.4 mm | 628.7 mm | 638.1 mm | |||||||||||||
