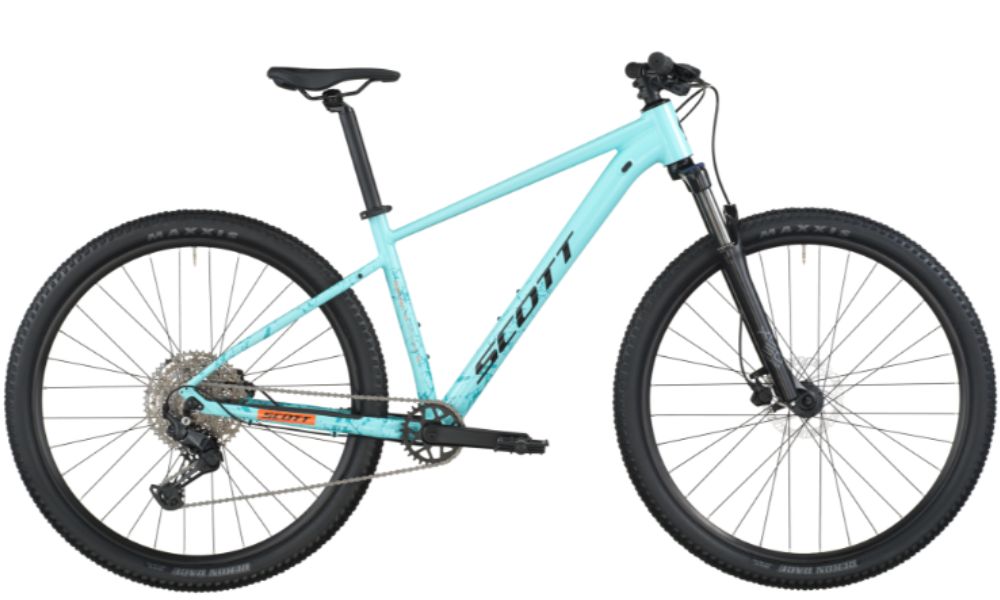

Scott Contrail 20
Step into the World of mountain bikes with the all-new Contrail family of bikes, your versatile companion and ticket to explore the outdoors. Featuring a modern trail inspired geometry, carefully curated components that back you up at every opportunity as well as a selection of colors and models that leaves nothing to be desired!
Scott Contrail 20
Frame
Size: S, M, L, XL
Colour: Tropic Blue
Frame: Contrail Alloy 6061 Custom Butted Tubing, BSA73, Internal Cable Routing, QR Axle 5x135mm, replaceable hanger
Fork: Suntour XCT30-HLO, Black Stanchions, Reb. Adj., Lockout, 100mm travel
Shock:
Drivetrain
Crankset: Prowheel C10Y-NW Steel 30T
Pedals:
Chain: KMC Xglide
Bottom Bracket: Feimin FP.B908N BB73, square taper
Rear Derailleur: Shimano CUES RD-U6000-SGS Shadow Type, 11 Speed
Front Derailleur:
Shifter: Shimano CUES SL-U6000-11, 2 way release
Freewheel/Cassette: Shimano CUES CS-LG400-11, 11-50T
Braking System
Brakes: Tektro HDM275 Hydr. Disc Brakes
Brake Levers:
Wheels
Tyres: [F] and [R] Maxxis Rekon Race, 2.4", DUAL, 60PTI
Wheels/Rims: Alexrims X-20 Disc 32H, black
Hubs: [F] Formula DC-19 FQR Disc [R] Formula DC-25 8s RQR Disc
Other
Handlebar: HL MTB-AL-312BT, 720mm, black, 12mm rise DDK Grip
Stem: HL TDS-C342-8FOV, 10°, 31.8, Black
Seat Post: HL SP C212 31.6mm, 350mm, Black
Saddle: DDK Saddle
Scott Contrails 20
| XS / 700 | S / 900 | M / 900 | L / 900 | XL / 900 | XXL | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° | ||||||||||||
| B | head tube length / hauteur tube de direction | 100.0 mm | 100.0 mm | 110.0 mm | 125.0 mm | 135.0 mm | 150.0 mm | ||||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 545.0 mm | 575.0 mm | 595.0 mm | 625.0 mm | 645.0 mm | 675.0 mm | ||||||||||||
| D | standover height / hauteur entre-jambes | 728.0 mm | 767.0 mm | 790.0 mm | 812.0 mm | 845.0 mm | 878.0 mm | ||||||||||||
| E | BB offset / deport axe de pédalier | -44.0 mm | -60.0 mm | -60.0 mm | -60.0 mm | -60.0 mm | -60.0 mm | ||||||||||||
| F | BB height / hauteur axe de pédalier | 308.5 mm | 316.0 mm | 316.0 mm | 316.0 mm | 316.0 mm | 316.0 mm | ||||||||||||
| G | wheel base / entraxe roues | 1,104.9 mm | 1,147.9 mm | 1,169.4 mm | 1,201.5 mm | 1,223.0 mm | 1,255.1 mm | ||||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 355.0 mm | 395.0 mm | 440.0 mm | 480.0 mm | 530.0 mm | 580.0 mm | ||||||||||||
| J | seat angle / angle tube de selle | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | ||||||||||||
| K | chainstay / longueur des bases | 445.0 mm | 457.0 mm | 457.0 mm | 457.0 mm | 457.0 mm | 457.0 mm | ||||||||||||
| L | reach / reach | 390.7 mm | 411.7 mm | 429.2 mm | 455.5 mm | 473.0 mm | 499.3 mm | ||||||||||||
| M | stack / stack | 576.0 mm | 609.5 mm | 618.5 mm | 632.5 mm | 641.7 mm | 655.5 mm | ||||||||||||
| N | stem length / longueur potence | 45.0 mm | 45.0 mm | 45.0 mm | 60.0 mm | 75.0 mm | 75.0 mm | ||||||||||||
| 0 | trail / chasse au sol | 104.0 mm | 109.6 mm | 109.6 mm | 109.6 mm | 109.6 mm | 109.6 mm | ||||||||||||
