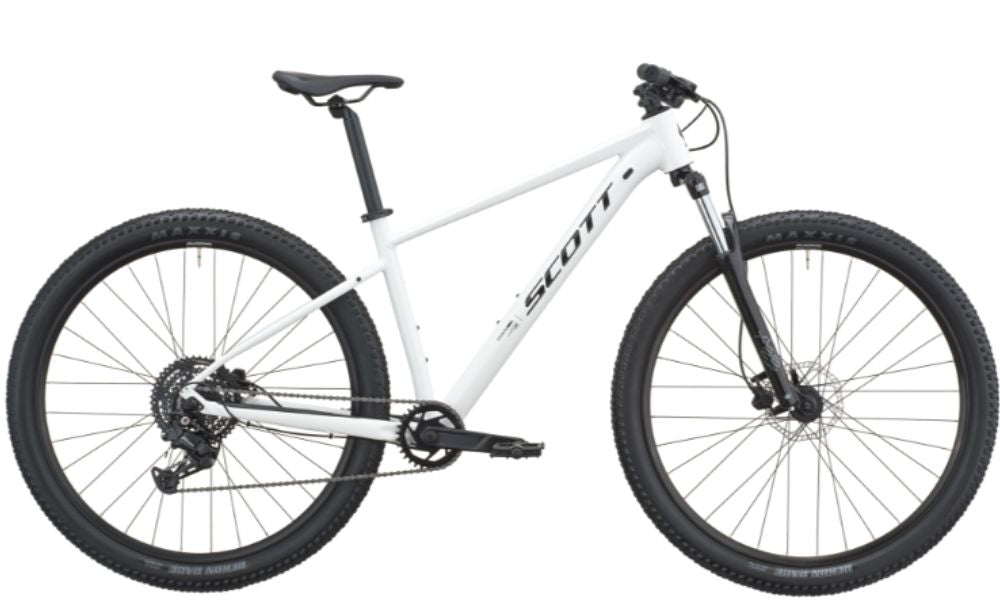

Scott Contrail 40
Step into the World of mountain bikes with the all-new Contrail family of bikes, your versatile companion and ticket to explore the outdoors. Featuring a modern trail inspired geometry, carefully curated components that back you up at every opportunity as well as a selection of colors and models that leaves nothing to be desired!
Scott Contrail 40
Frame
Size: S, M, L, XL
Colour: White
Frame: Contrail alloy 6061 custom butted tubing, BSA73, internal cable routing, QR Axle 5x135mm, replaceable hanger
Fork: SR Suntour XCE 28 100mm travel
Shock:
Drivetrain
Crankset: Prowheel EPRO-MD26S, 32T Steel
Pedals:
Chain: KMC Z8
Bottom Bracket: Feimin FP.B908N, BB73, square taper
Rear Derailleur: Shimano RD-U2000 8-Speed
Front Derailleur:
Shifter: Shimano Altus SL-M315 with Display
Freewheel/Cassette: Shimano CS-HG300 8-Speed 11-45T
Braking System
Brakes: Tektro TKD 176, 2-Piston, 160mm Rotor, Hydraulic
Brake Levers:
Wheels
Tyres: [F] and [R] Maxxis Rekon Race 29x2.4", 60TPI
Wheels/Rims: Alex Rims X20 Disc 29'' 32H
Hubs: [F] Formula DC-19 FQR Disc, 5x100mm [R] Formula DC-25 8s RQR Disc, 5x135mm
Other
Handlebar: HL MTB-AL-312BT, Black, 12mm rise
Stem: HL TDS-C342-8FOV, 10°, 31.8, Black
Seat Post: HL SP C207, 31.6mm, Black
Saddle: DDK Saddle

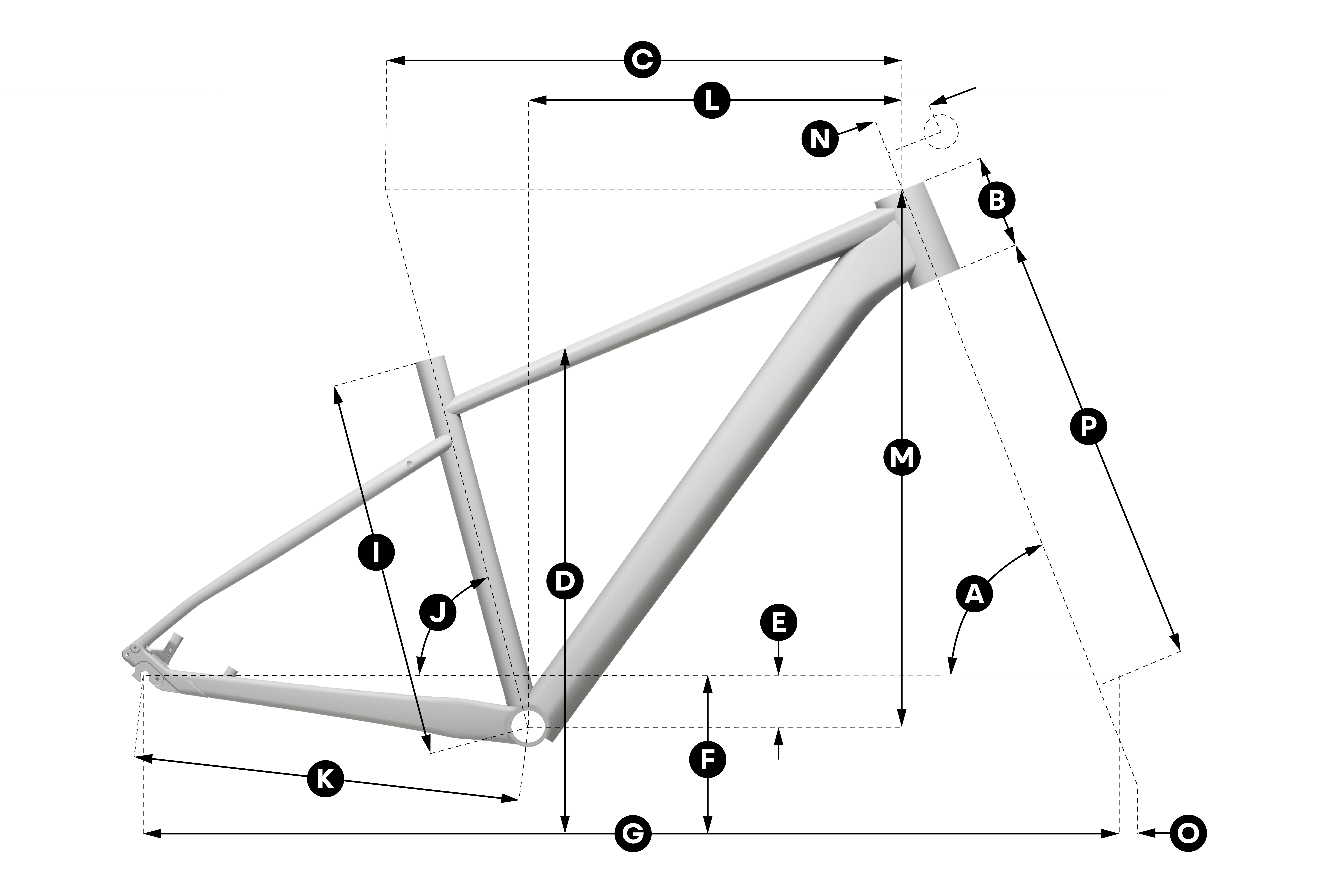

Scott Contrail 40
| XS / 700 | S / 900 | M / 900 | L / 900 | XL / 900 | XXL | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° | ||||||||||||||||||
| B | head tube length / hauteur tube de direction | 100.0 mm | 100.0 mm | 110.0 mm | 125.0 mm | 135.0 mm | 150.0 mm | ||||||||||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 545.0 mm | 575.0 mm | 595.0 mm | 625.0 mm | 645.0 mm | 675.0 mm | ||||||||||||||||||
| D | standover height / hauteur entre-jambes | 728.0 mm | 767.0 mm | 790.0 mm | 812.0 mm | 845.0 mm | 878.0 mm | ||||||||||||||||||
| E | BB offset / deport axe de pédalier | -44.0 mm | -60.0 mm | -60.0 mm | -60.0 mm | -60.0 mm | -60.0 mm | ||||||||||||||||||
| F | BB height / hauteur axe de pédalier | 308.5 mm | 316.0 mm | 316.0 mm | 316.0 mm | 316.0 mm | 316.0 mm | ||||||||||||||||||
| G | wheel base / entraxe roues | 1,104.9 mm | 1,147.9 mm | 1,169.4 mm | 1,201.5 mm | 1,223.0 mm | 1,255.1 mm | ||||||||||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 355.0 mm | 395.0 mm | 440.0 mm | 480.0 mm | 530.0 mm | 580.0 mm | ||||||||||||||||||
| J | seat angle / angle tube de selle | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | ||||||||||||||||||
| K | chainstay / longueur des bases | 445.0 mm | 457.0 mm | 457.0 mm | 457.0 mm | 457.0 mm | 457.0 mm | ||||||||||||||||||
| L | reach / reach | 390.7 mm | 411.7 mm | 429.2 mm | 455.5 mm | 473.0 mm | 499.3 mm | ||||||||||||||||||
| M | stack / stack | 576.0 mm | 609.5 mm | 618.5 mm | 632.5 mm | 641.7 mm | 655.5 mm | ||||||||||||||||||
| N | Stem Length / Longueur de potence | 45.0 mm | 45.0 mm | 45.0 mm | 60.0 mm | 75.0 mm | 75.0 mm | ||||||||||||||||||
| Specs: | |||||||||||||||||||||||||
| N | Stem Length / Longueur de potence | 45.0 mm | 45.0 mm | 45.0 mm | 60.0 mm | 75.0 mm | 75.0 mm | ||||||||||||||||||
| R | Handlebar Width / Largeur de guidon | 680.0 mm | 680.0 mm | 720.0 mm | 720.0 mm | 720.0 mm | 720.0 mm | ||||||||||||||||||
| S | Handlebar Rise / Hauteur de guidon | 12.0 mm | 12.0 mm | 12.0 mm | 12.0 mm | 12.0 mm | 12.0 mm | ||||||||||||||||||
| T | Handlebar Diameter / Diamètre de guidon | 31.8 mm | 31.8 mm | 31.8 mm | 31.8 mm | 31.8 mm | 31.8 mm | ||||||||||||||||||
| W | Crankarm Length / Longueur de manivelles | 165.0 mm | 165.0 mm | 170.0 mm | 170.0 mm | 170.0 mm | 170.0 mm | ||||||||||||||||||
| V | Seat post Length / longueur de tige de selle | 350.0 mm | 350.0 mm | 350.0 mm | 400.0 mm | 400.0 mm | 400.0 mm | ||||||||||||||||||
| W | Seat post drop / Débattement de tige de selle | ||||||||||||||||||||||||
