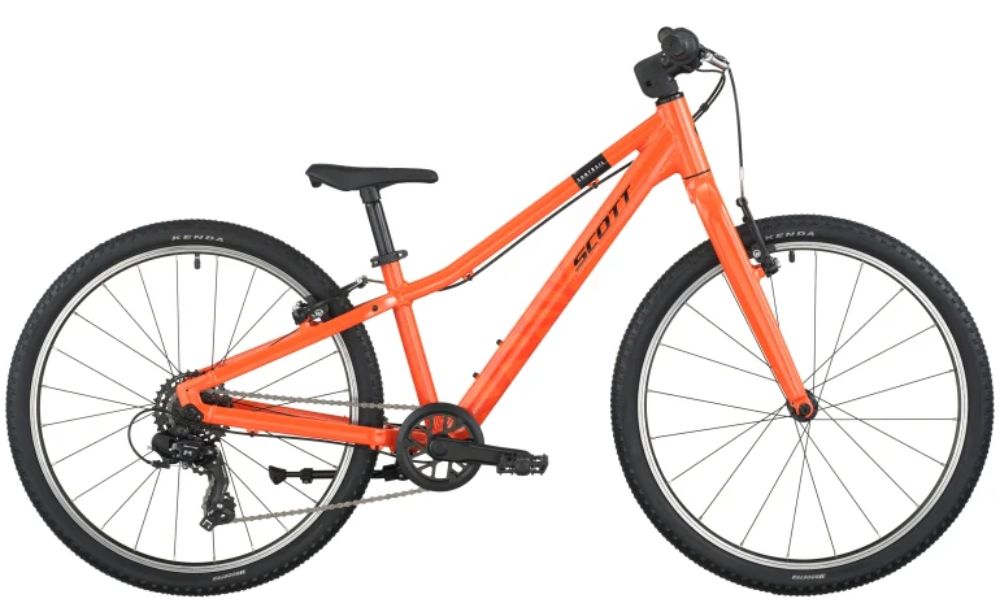

Scott Contrail 400
Designed for young adventurers, the 24-inch Contrail 400 is lightweight, durable, and built for daily rides. Whether cruising to school with friends or exploring beyond town with family, this bike is ready for endless possibilities—every day!
Scott Contrail 400
Frame
Size: 24

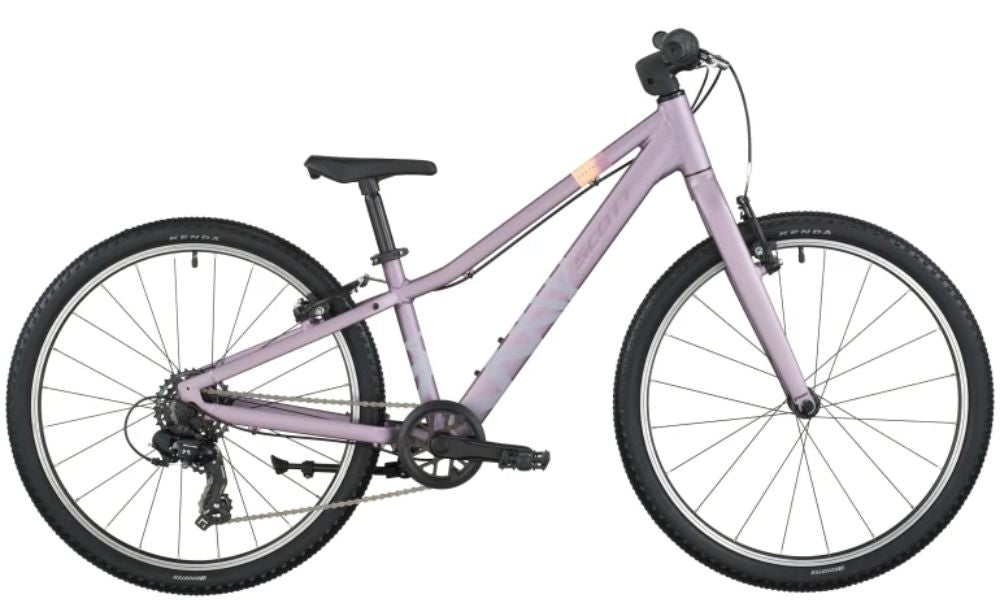

Colour: Flame Orange or Provence Purple
Frame: KIDS24 V-Brake, Alloy 6061, custom tubing, semi int. CBR, BB68, SCOTT dropout, PM
Fork: KIDS24, AL6061 rigid fork, V-Brake
Shock:
Drivetrain
Crankset: Prowheel, Alloy Crank 130mm, 30T, narrow QF, w/CG PVG double cover
Pedals:
Chain: KMC Z7
Bottom Bracket: Feimin, BB68, cartridge, square taper
Rear Derailleur: Shimano Tourney RD-TY300 7 Speed
Front Derailleur:
Shifter: himano SL-RV300-7R Revo Shifter
Freewheel/Cassette: Shimano CS-HG200-7 12-32T, 7-Speed
Braking System
Brakes: Tektro V-Brake
Brake Levers: Tektro TS325A, KIDS specific
Wheels
Tyres: [F] and [R] Kenda K1227 Booster, 24x1.75", 30TPI
Wheels/Rims: Alloy anodized black, V-Brake
Hubs: [F] Formula, 20H, 5x100mm [R] Formula, 24H, 5x135mm
Other
Handlebar: LEADTEC Kids riser bar alloy D:19 540mm, 20mm Rise Syncros Grips Kids100/80
Stem: LEADTEC Alloy 50mm, +10°, 25.4 clamp
Seat Post:
Saddle: Syncros KIDS III incl. Seatpost 27.2mm
Scott Contrail 400
| 24" | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 70.3 ° | |||||||||||||||||
| B | head tube length / hauteur tube de direction | 120.0 mm | |||||||||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 511.9 mm | |||||||||||||||||
| D | standover height / hauteur entre-jambes | 344.0 mm | |||||||||||||||||
| E | BB offset / deport axe de pédalier | -58.6 mm | |||||||||||||||||
| F | BB height / hauteur axe de pédalier | 260.9 mm | |||||||||||||||||
| G | wheel base / entraxe roues | 960.0 mm | |||||||||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 310.0 mm | |||||||||||||||||
| J | seat angle / angle tube de selle | 74.8 ° | |||||||||||||||||
| K | chainstay / longueur des bases | 390.0 mm | |||||||||||||||||
| L | reach / reach | 366.1 mm | |||||||||||||||||
| M | stack / stack | 536.2 mm | |||||||||||||||||
| N | stem length / longueur potence | ||||||||||||||||||
