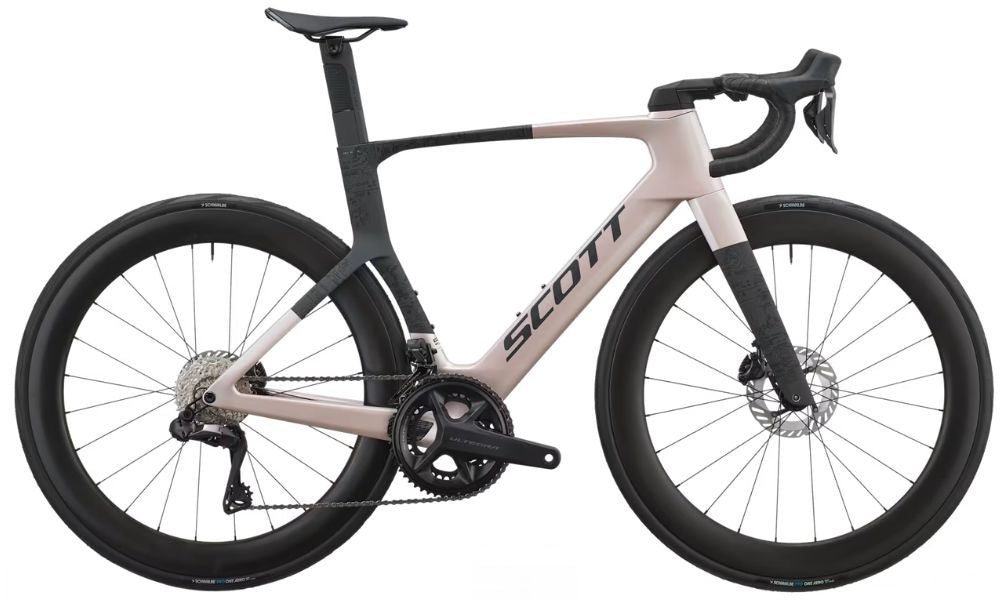

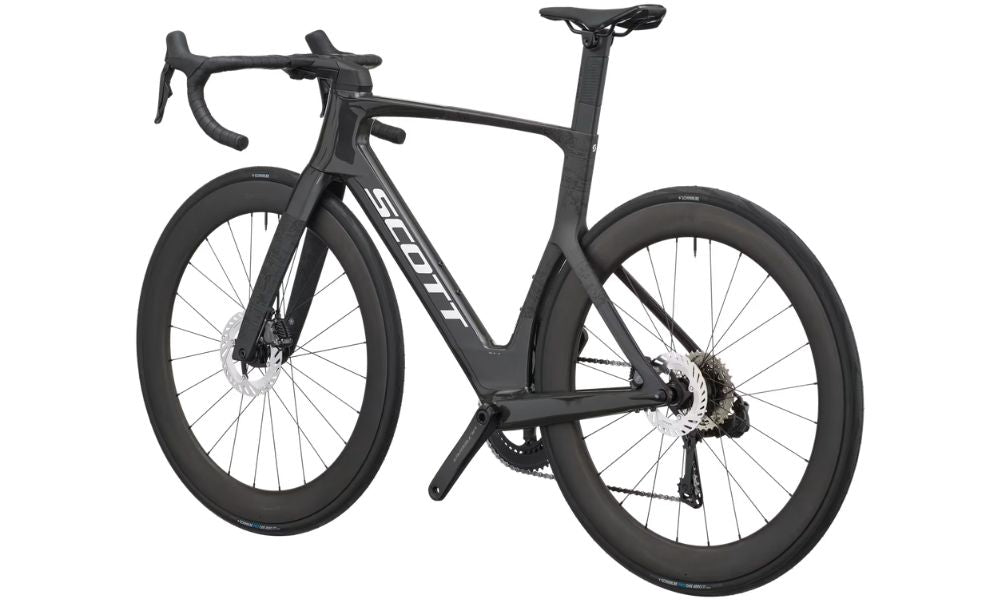

Scott Foil RC 10

Aero, Lightweight or Comfort – choose three. Welcome to the next evolution of aero bikes with the Foil RC. Designed to meet the demands of WorldTour sprinters, attackers and breakaway riders, this is the fastest road bike we’ve ever produced. Win Every Ride.

Specifications

Scott Foil RC 10

Frame

Size: XXS, XS, S, M, L and XL

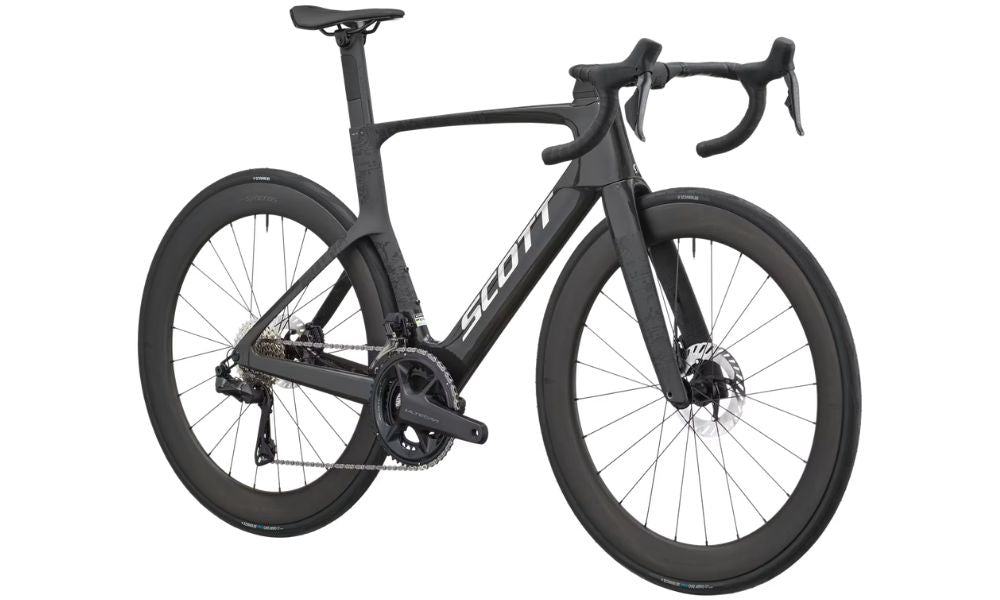

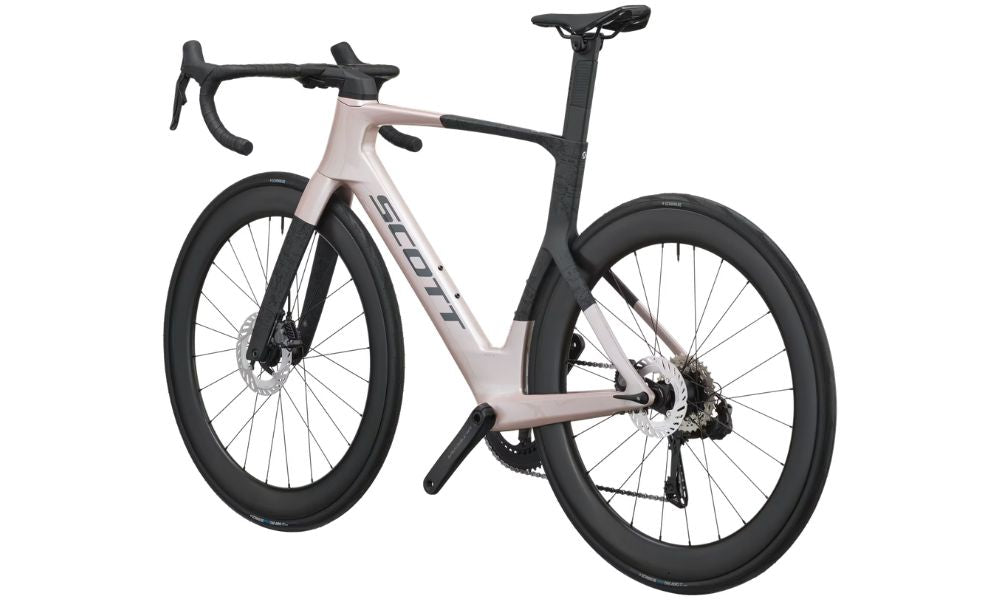

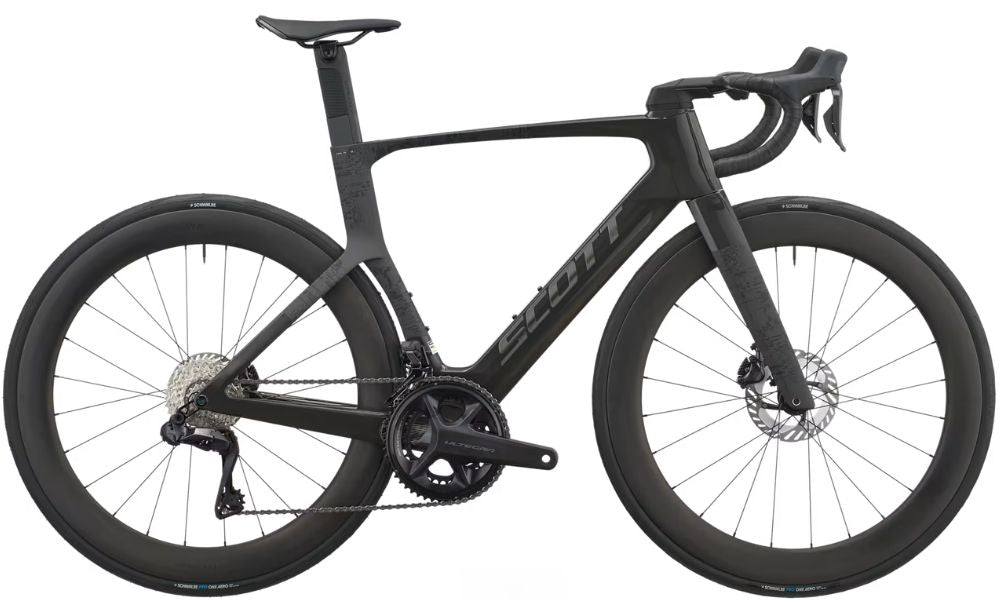

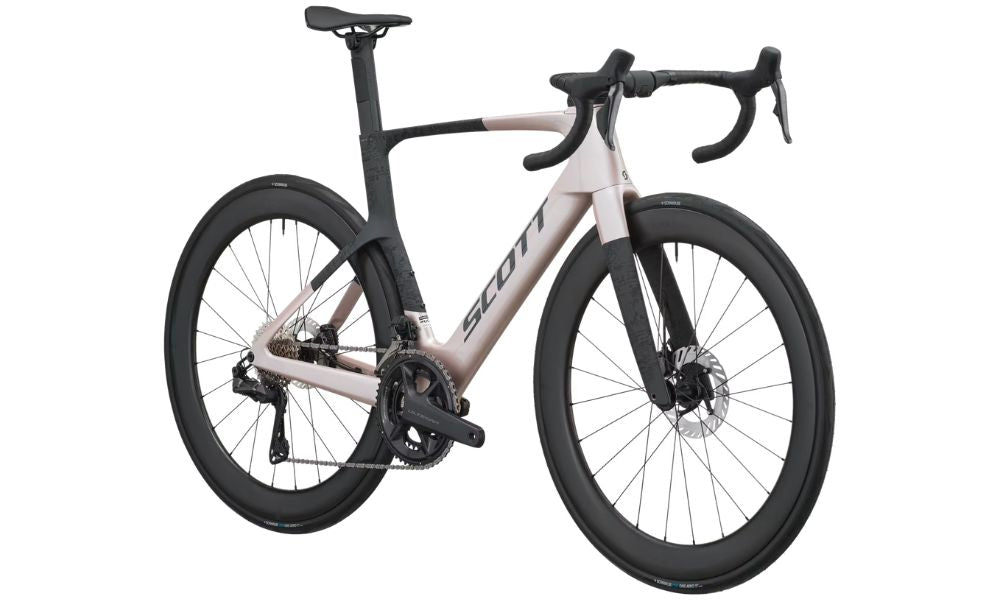

Colour: Champagne Pink/Carbon Black or Carbon Black
Frame: Foil RC Disc HMX, race geometry, replaceable derailleur hanger, internal cable routing
Fork: Foil RC Disc HMX, 1" eccentric carbon steerer
Shock:

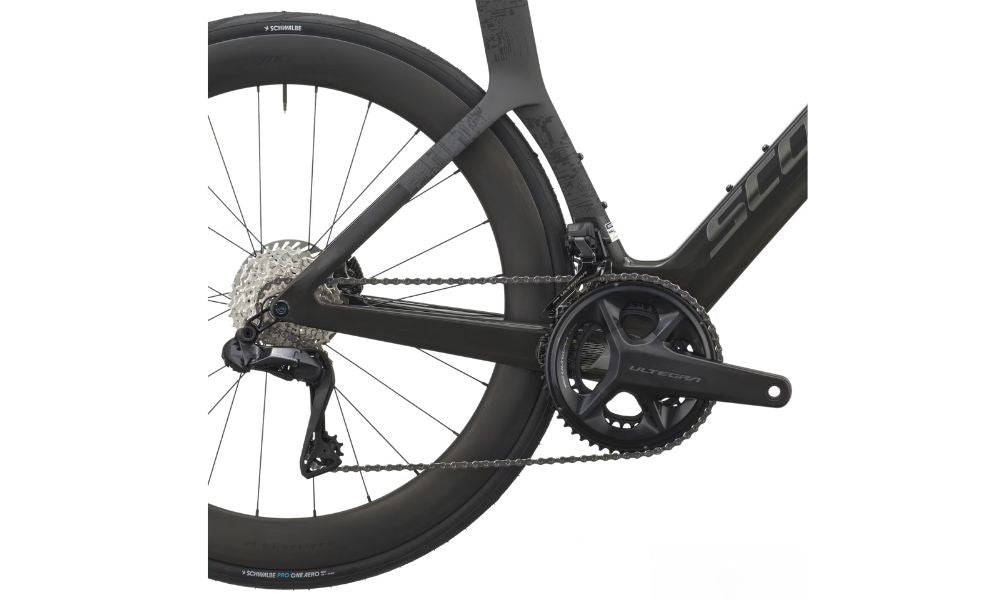

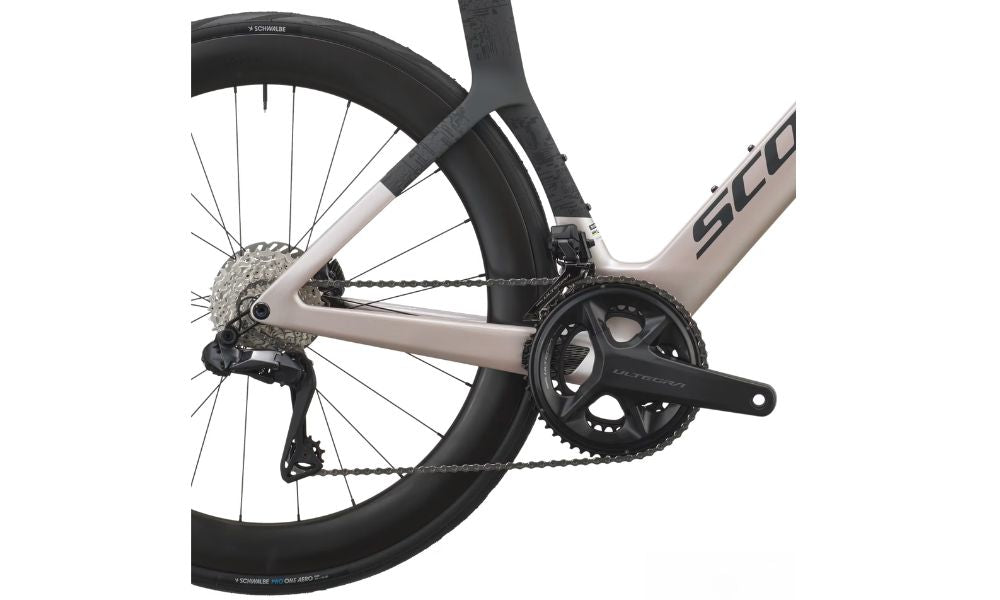

Drivetrain

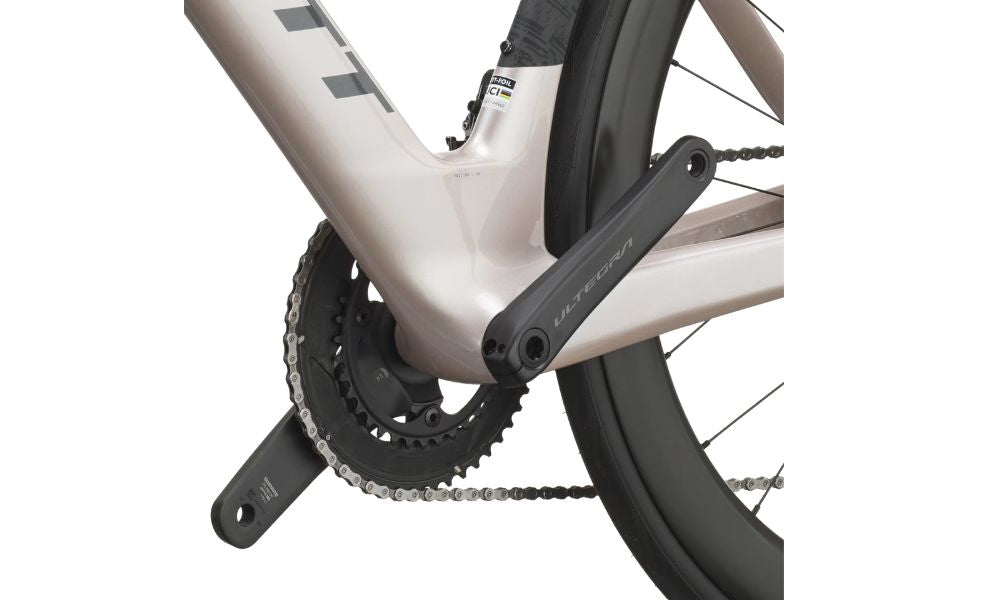

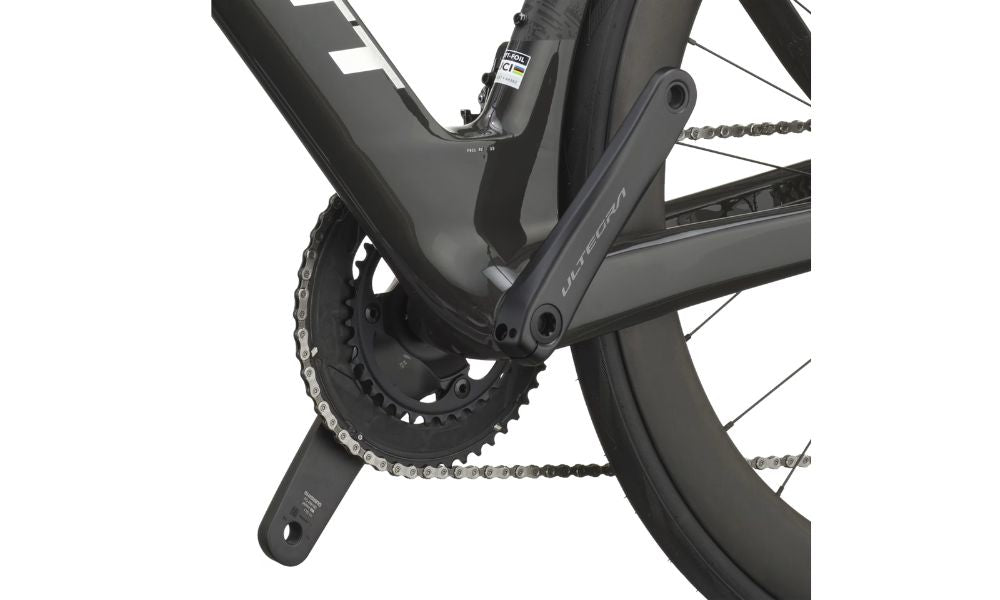

Crankset: Shimano Ultegra FC-R8100, Hollowtech II 52-36T
Pedals:
Chain: Shimano CN-M8100
Bottom Bracket: Shimano SM-BB71-41B
Rear Derailleur: Shimano Ultegra Di2 RD-R8150 24 Speed, Electronic Shift System
Front Derailleur: Shimano Ultegra Di2 FD-R8150, Electronic Shift System
Derailleur Shifter: Shimano Ultegra Di2 ST-R8170, 24 Speed Electronic Shift System, Shimano BR-R8170 Hyd.Disc
Freewheel/Cassette: Shimano Ultegra CS-R8100-12, 11-34

Braking System

Brakes: Shimano BR-R8170 Hyd.Disc
Brake Levers:

Wheels

Tyres: Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C
Wheels/Rims: Syncros Capital 1.0 60mm, 24 Front, 24 Rear, Syncros SL Axle, removable lever with tool
Hubs: [F] [R]

Other

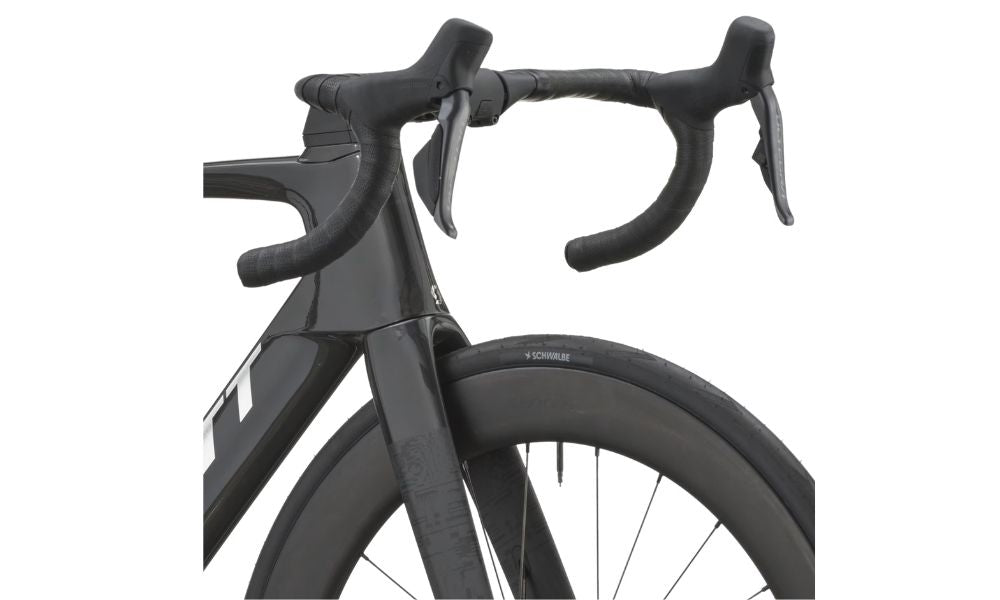

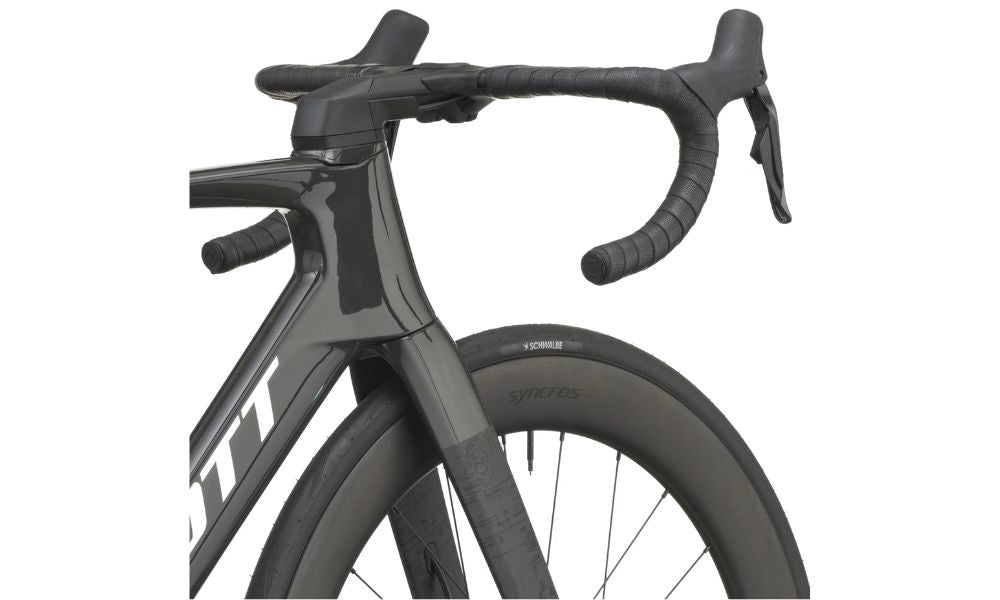

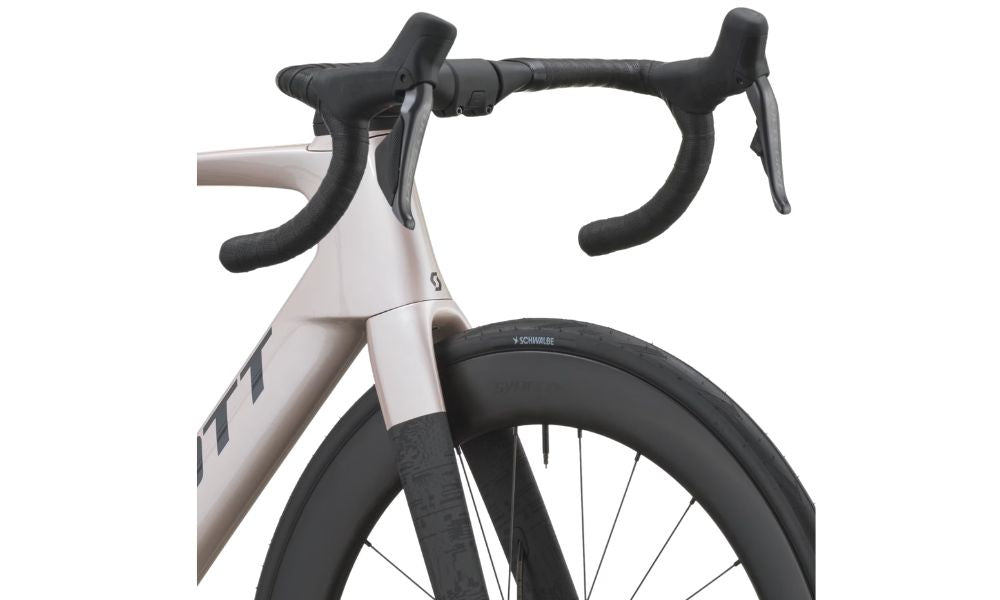

Handlebar: Syncros Creston 1.0 Aero
Stem: Syncros Foil 1.5 Aero

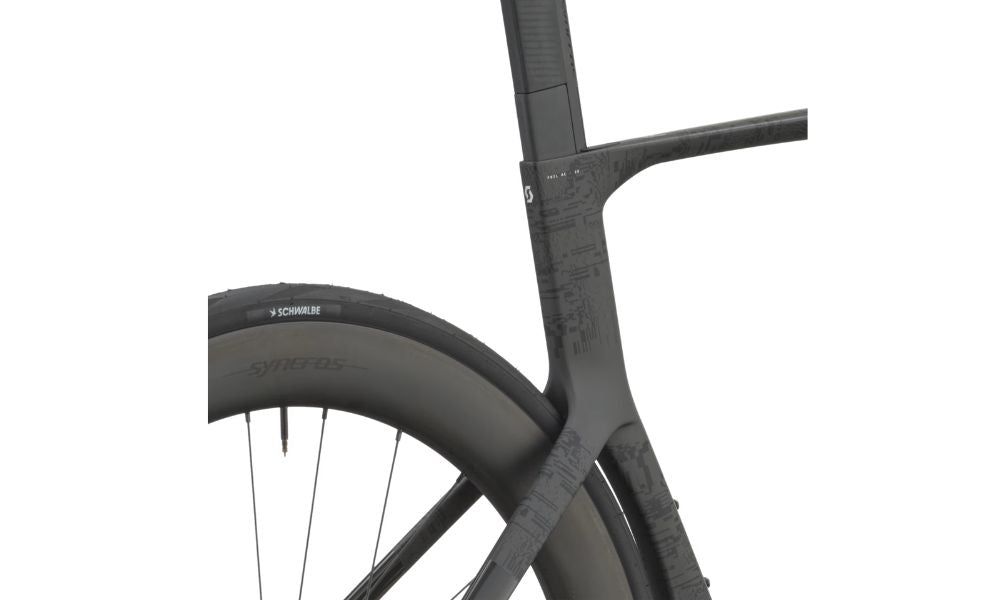

Seat Post: Syncros Duncan SL Aero CFT
Saddle: Syncros Belcarra V2.0 Cut-out, Carbon rails

Geometry

Scott Foil RC 10

	XXS_47	XS_49	S_52	M_54	L_56	XL_58	XXL_61
A head tube angle	70.5 mm	71.0 mm	72.0 mm	72.5 mm	73.0 mm	73.3 mm	73.3 mm
B head tube length	103.0 mm	108.0 mm	121.0 mm	141.0 mm	161.0 mm	181.0 mm	199.0 mm
C top tube horizontal	520.0 mm	530.0 mm	540.0 mm	550.0 mm	565.0 mm	580.0 mm	600.0 mm
D standover height	746.4 mm	759.6 mm	779.4 mm	801.0 mm	820.0 mm	838.0 mm	853.3 mm
E BB offset	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm
F BB height	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm
G wheel base	987.7 mm	993.7 mm	990.7 mm	992.6 mm	999.9 mm	1008.6 mm	1022.7 mm
H BB center to toptube center	450.8 mm	480.9 mm	501.4 mm	521.6 mm	541.4 mm	558.8 mm	571.4 mm
I BB center to top of seattube	451.8 mm	481.9 mm	502.4 mm	522.6 mm	542.4 mm	559.8 mm	572.4 mm
J seat angle	74.5 mm	74.5 mm	74.0 mm	73.6 mm	73.3 mm	73.0 mm	72.5 mm
K chainstay	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm
L reach	380.0 mm	388.0 mm	389.0 mm	389.0 mm	394.5 mm	400.0 mm	409.0 mm
M stack	505.0 mm	511.0 mm	527.0 mm	548.0 mm	568.0 mm	589.0 mm	606.0 mm
N stem length	80.0 mm	90.0 mm	100.0 mm	110.0 mm	110.0 mm	120.0 mm	120.0 mm
O handlebar width	380.0 mm	380.0 mm	380.0 mm	400.0 mm	400.0 mm	400.0 mm	420.0 mm

Size Chart for Scott Foil RC 10 Bike
