Scott Foil RC 20

$7,700.00

Colour

Size

Quantity

Some products are available in multiple variants, and not all variants have images. Please make sure you’ve selected the correct option for each product before proceeding to checkout.

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications
Geometry

Description

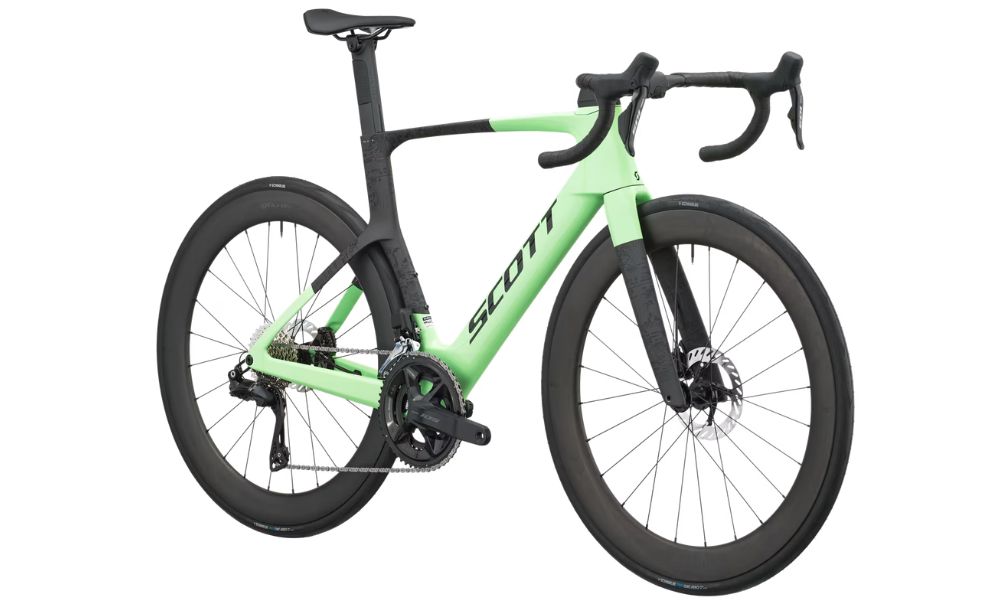

Scott Foil RC 20

Aero, Lightweight or Comfort – choose three. Welcome to the next evolution of aero bikes with the Foil RC. Designed to meet the demands of WorldTour sprinters, attackers and breakaway riders, this is the fastest road bike we’ve ever produced. Win Every Ride.

Specifications

Scott Foil RC 20

Frame

Size: XXS, XS, S, M, L and XL

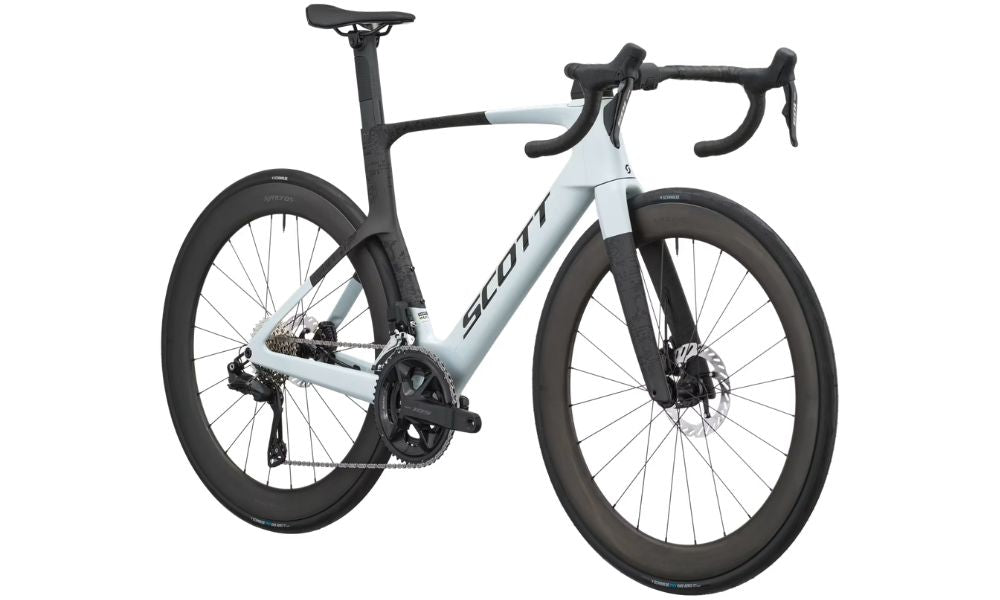

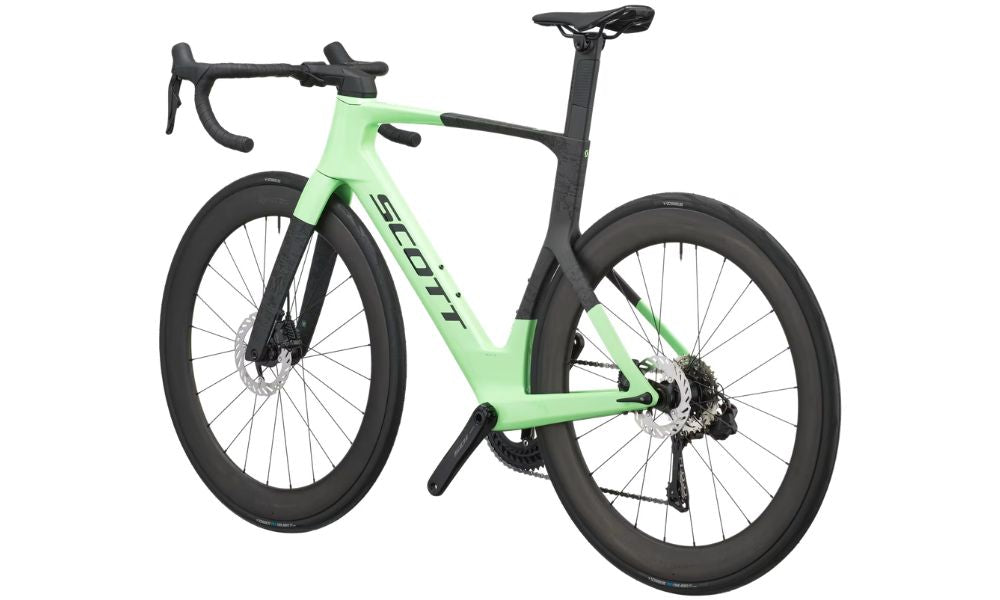

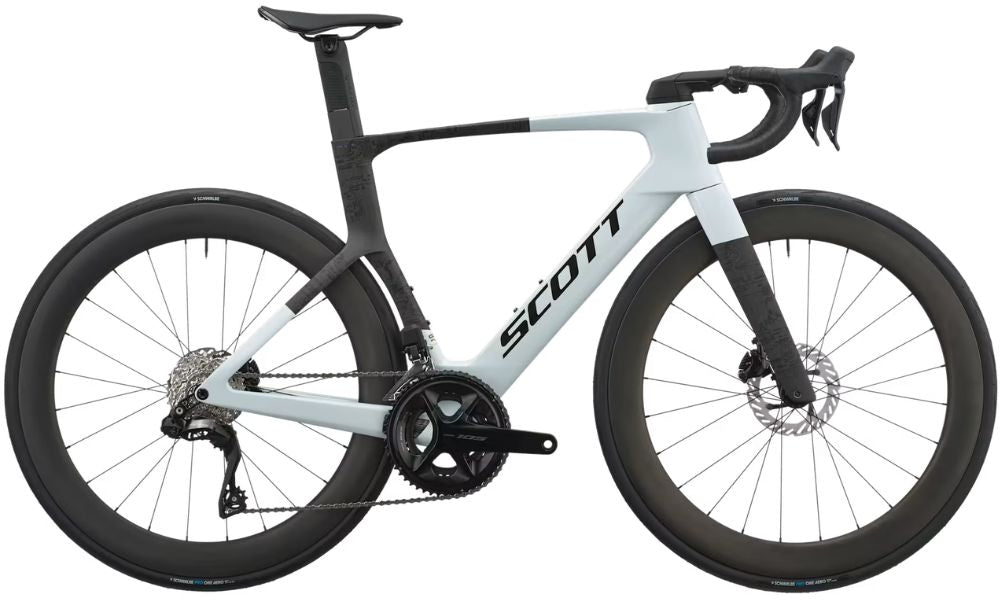

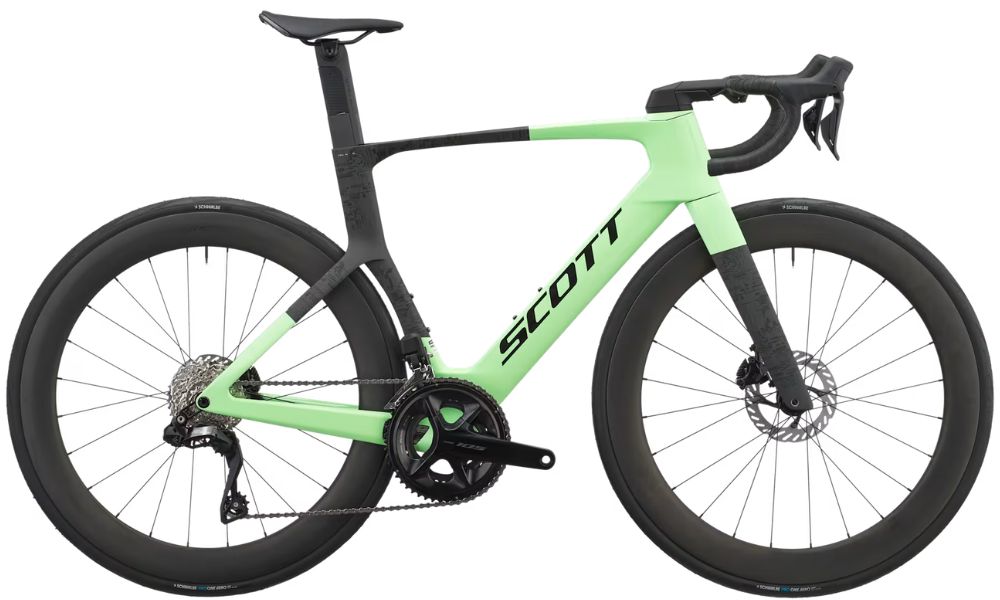

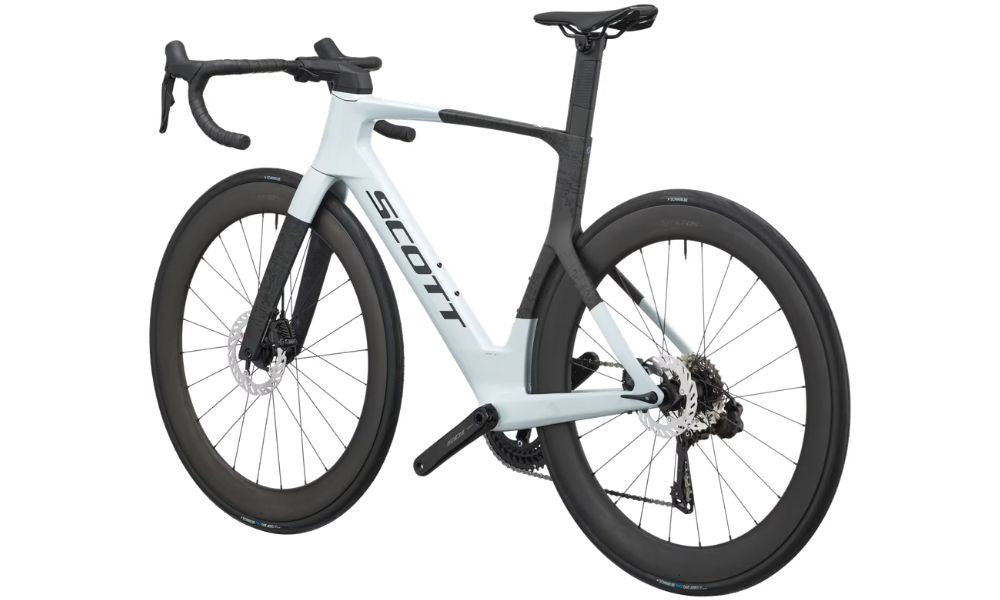

Colour: Cumulus White/Carbon Black or Paradise Green/Carbon Black

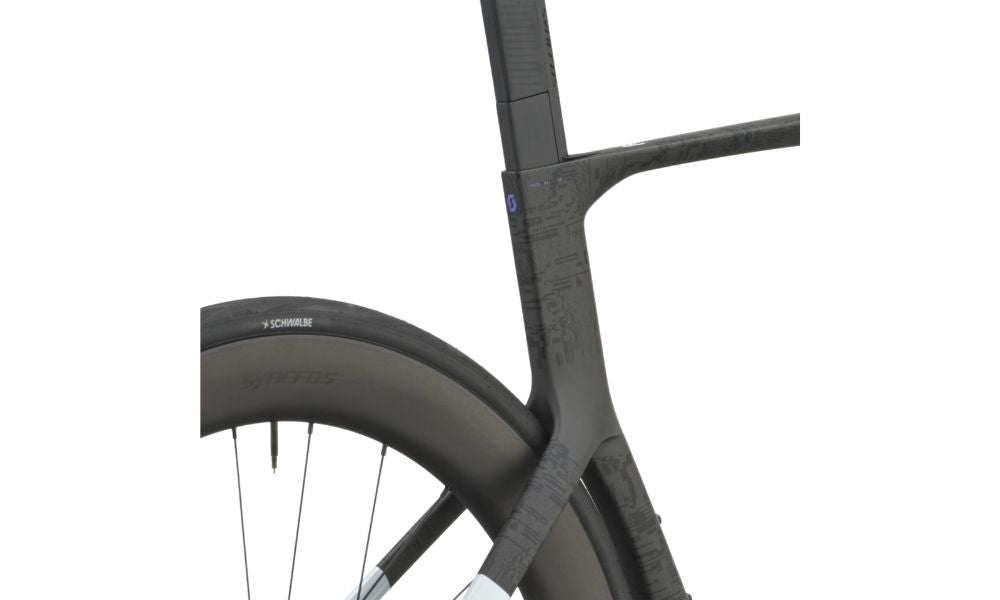

Frame: Foil RC Disc HMX, race geometry, replaceable derailleur hanger, internal cable routing
Fork: Foil RC Disc HMX, 1" eccentric carbon steerer
Shock:

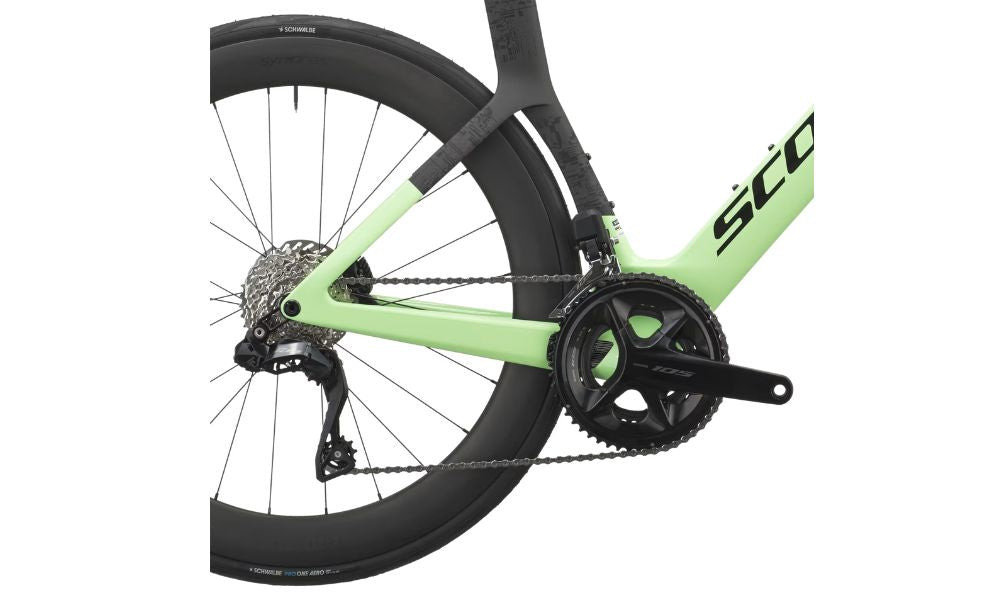

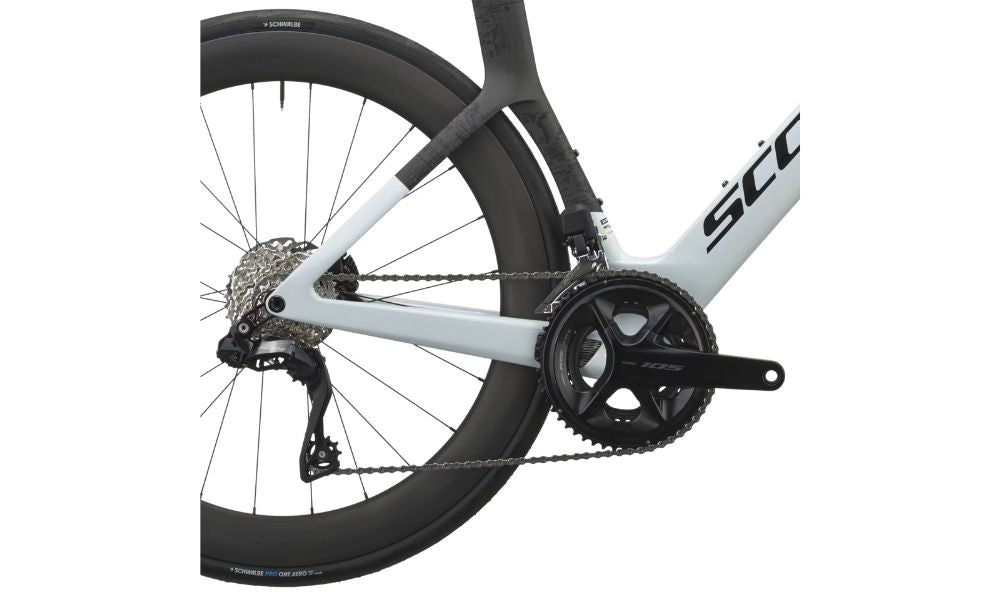

Drivetrain

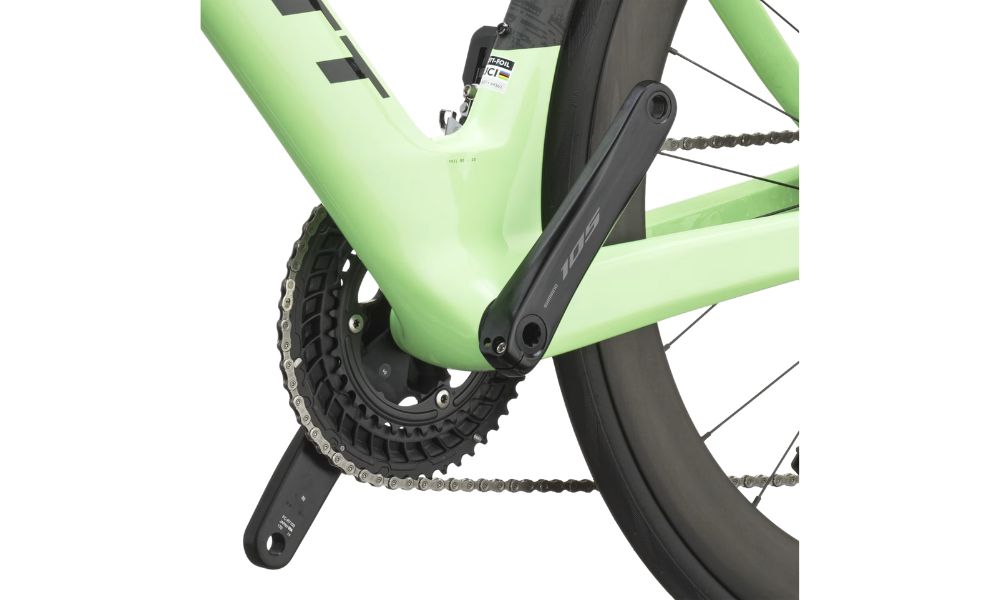

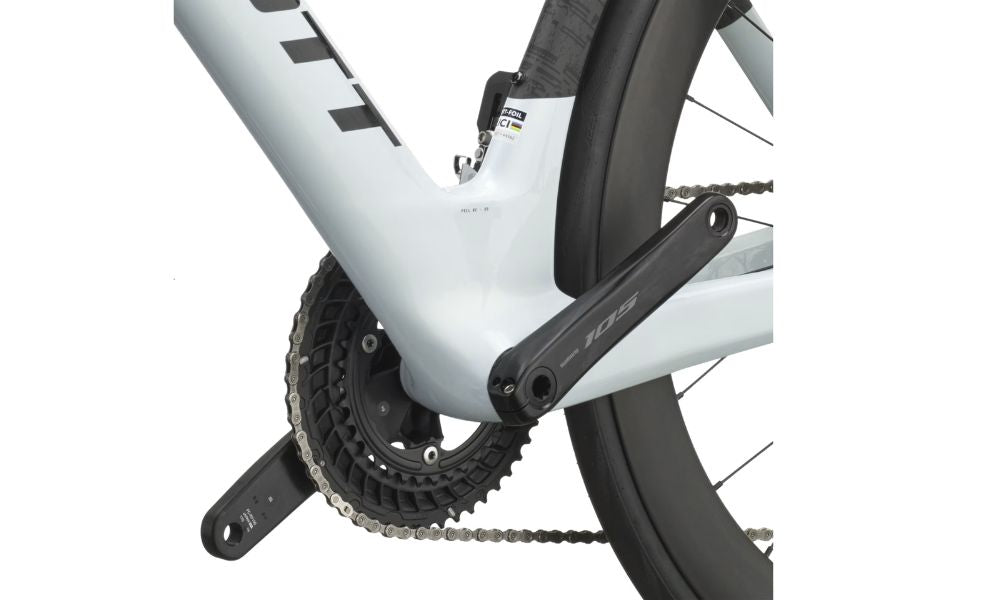

Crankset: Shimano 105 FC-R7100, Hollowtech II 52-36T
Pedals:
Chain: Shimano CN-M6100
Bottom Bracket: Shimano BB-RS500-PB
Rear Derailleur: Shimano 105 Di2 RD-R7150 24 Speed, Electronic Shift System
Front Derailleur: Shimano 105 Di2 FD-R7150, Electronic Shift System
Derailleur Shifter: Shimano 105 Di2 ST-R7170, 24 Speed Electronic Shift System, Shimano BR-R7170 Hyd.Disc
Freewheel/Cassette: Shimano CS-R7100, 11-34

Braking System

Brakes: Shimano BR-R7170 Hyd.Disc
Brake Levers:

Wheels

Tyres: Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C
Wheels/Rims: Syncros Capital 1.0 60mm, 24 Front, 24 Rear, Syncros SL Axle, removable lever with tool
Hubs: [F] [R]

Other

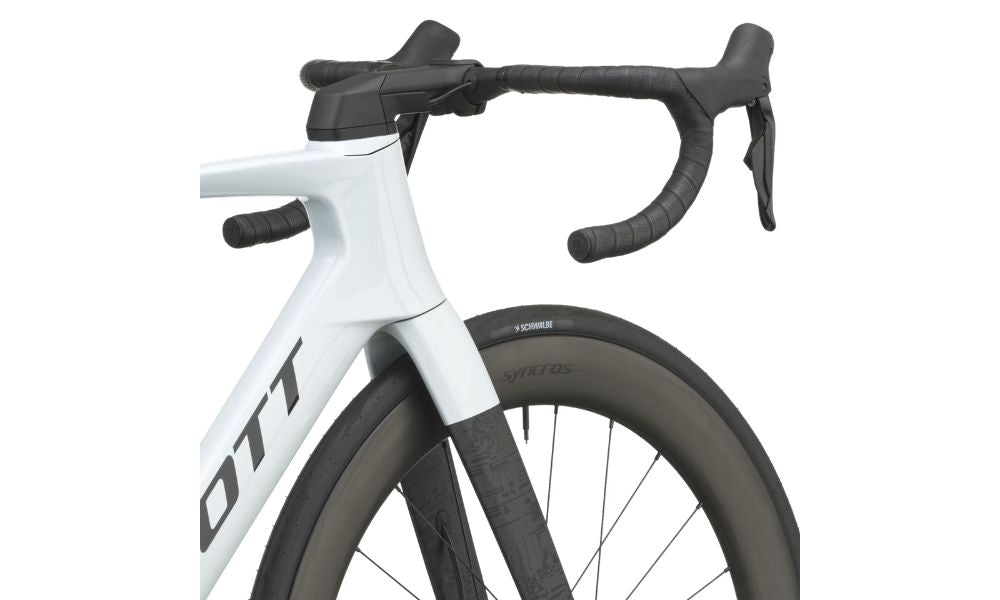

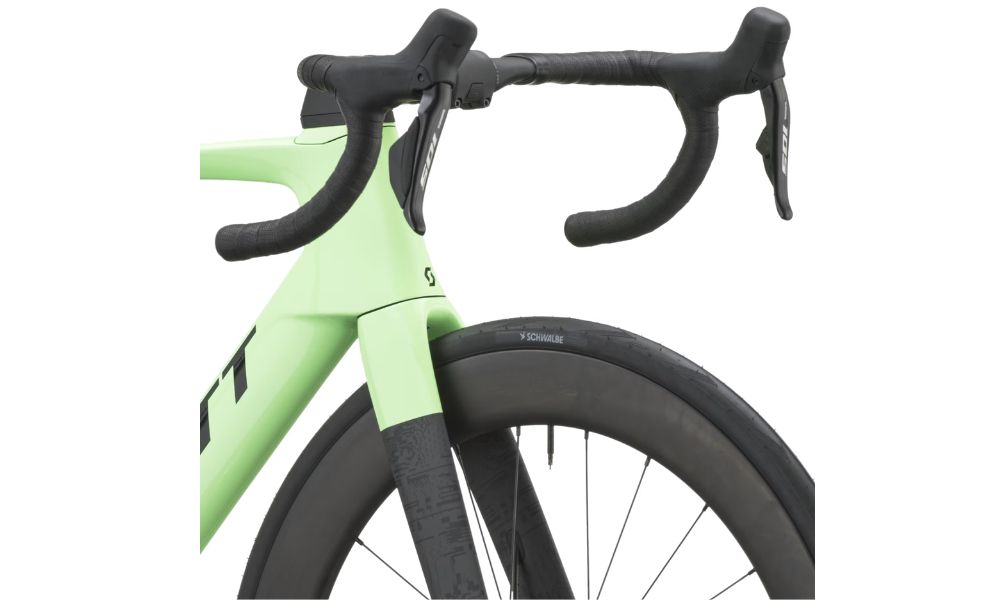

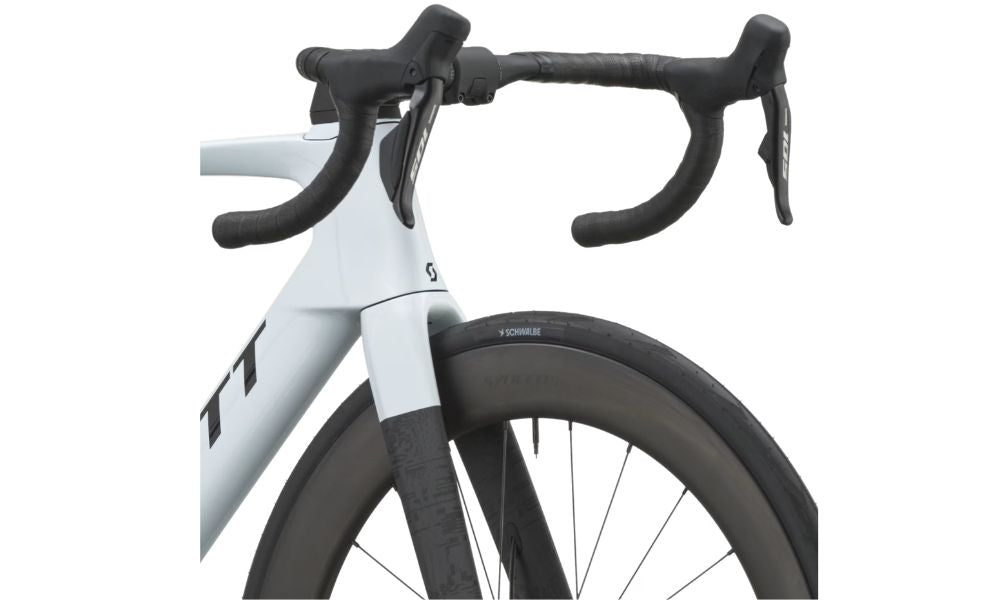

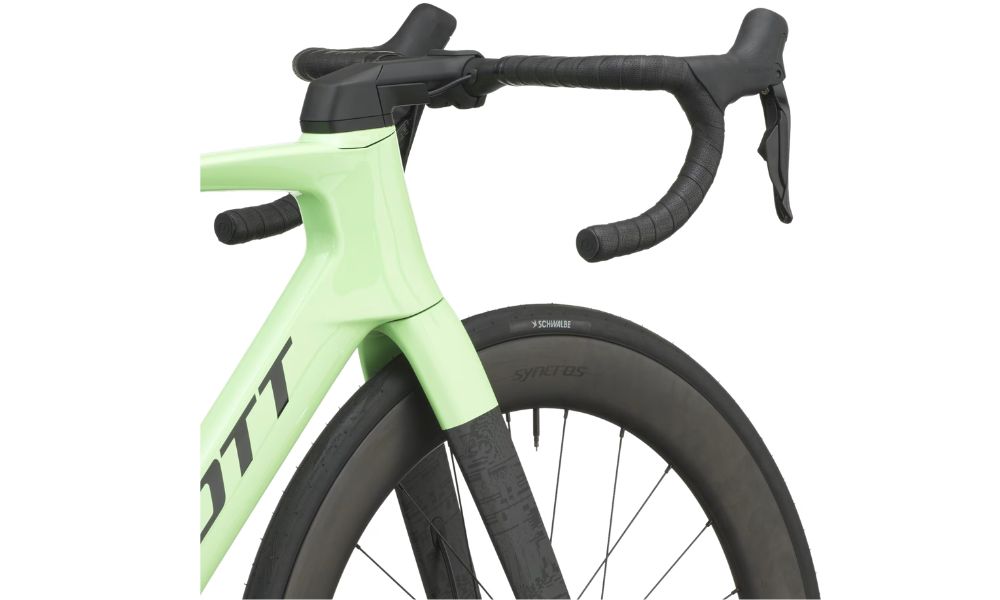

Handlebar: Syncros Creston 2.0 Aero
Stem: Syncros Foil 1.5 Aero

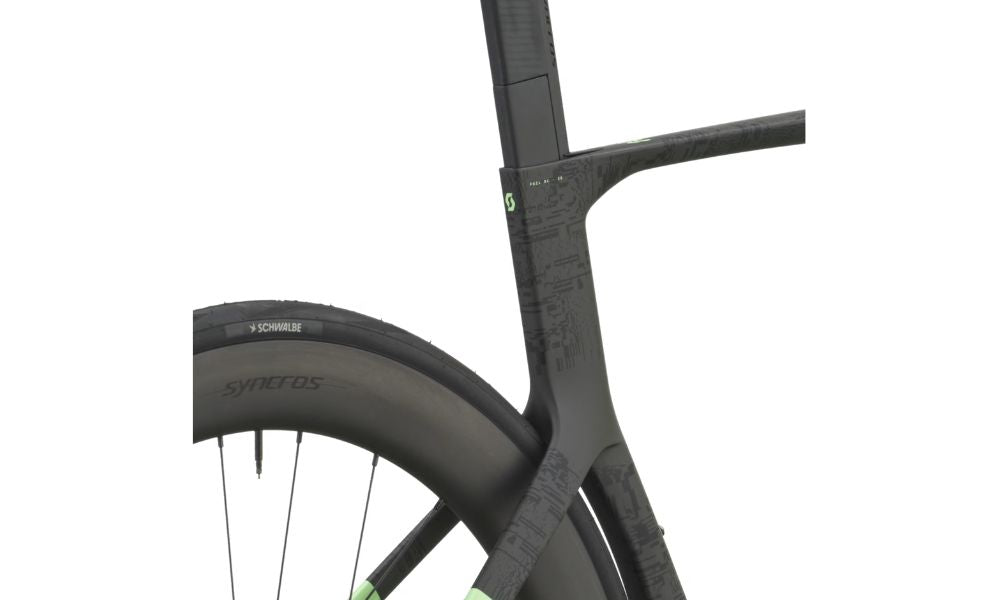

Seat Post: Syncros Duncan SL Aero CFT
Saddle: Syncros Belcarra V2.0 Cut-out, Carbon rails

Geometry

Scott Foil RC 20

	XXS_47	XS_49	S_52	M_54	L_56	XL_58	XXL_61
A head tube angle	70.5 mm	71.0 mm	72.0 mm	72.5 mm	73.0 mm	73.3 mm	73.3 mm
B head tube length	103.0 mm	108.0 mm	121.0 mm	141.0 mm	161.0 mm	181.0 mm	199.0 mm
C top tube horizontal	520.0 mm	530.0 mm	540.0 mm	550.0 mm	565.0 mm	580.0 mm	600.0 mm
D standover height	746.4 mm	759.6 mm	779.4 mm	801.0 mm	820.0 mm	838.0 mm	853.3 mm
E BB offset	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm
F BB height	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm
G wheel base	987.7 mm	993.7 mm	990.7 mm	992.6 mm	999.9 mm	1008.6 mm	1022.7 mm
H BB center to toptube center	450.8 mm	480.9 mm	501.4 mm	521.6 mm	541.4 mm	558.8 mm	571.4 mm
I BB center to top of seattube	451.8 mm	481.9 mm	502.4 mm	522.6 mm	542.4 mm	559.8 mm	572.4 mm
J seat angle	74.5 mm	74.5 mm	74.0 mm	73.6 mm	73.3 mm	73.0 mm	72.5 mm
K chainstay	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm
L reach	380.0 mm	388.0 mm	389.0 mm	389.0 mm	394.5 mm	400.0 mm	409.0 mm
M stack	505.0 mm	511.0 mm	527.0 mm	548.0 mm	568.0 mm	589.0 mm	606.0 mm
N stem length	80.0 mm	90.0 mm	100.0 mm	110.0 mm	110.0 mm	120.0 mm	120.0 mm
O handlebar width	380.0 mm	380.0 mm	380.0 mm	400.0 mm	400.0 mm	400.0 mm	420.0 mm

Size Chart for Scott Foil RC 20 Bike

*Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

*Specialized Bicycles are available for home delivery nation wide.

*AMFLOW Bicycles are available for purchase online, but MUST be collected from the store.

*TREK Bicycles are available for purchase online, but MUST be collected from the store.
