Scott Genius ST 910 TR

$11,499.99

Size

Quantity

Some products are available in multiple variants, and not all variants have images. Please make sure you’ve selected the correct option for each product before proceeding to checkout.

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications
Geometry

Description

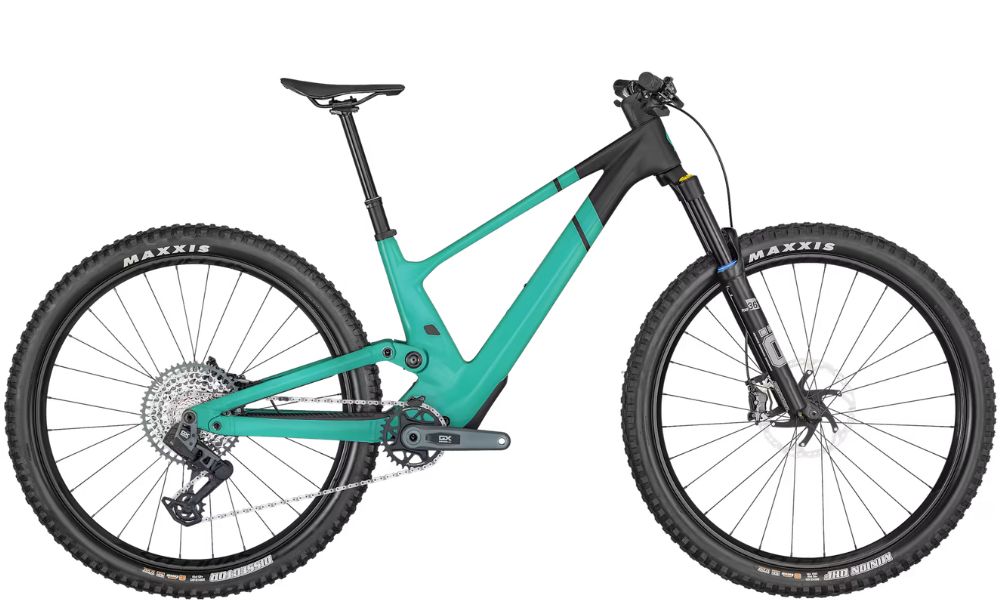

Scott Genius ST 910 TR

Made to go up the mountain in a hurry, and down the mountain even faster. The all new Genius ST features a custom Float X Nude shock from FOX and is the perfect bike for those who have an insatiable hunger for rippin' trail.

Specifications

Scott Genius ST 910 TR

Frame

Size: S, M, L and XL
Colour: Green/Black
Frame: Genius Carbon HMF Mainframe with Alloy 6061 Swingarm
Fork: Ohlins RXF36 m.2 Air
Shock: FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion

Drivetrain

Crankset: SRAM GX Eagle Transmission
Pedals:
Chain: SRAM CN GX Eagle Transmission
Bottom Bracket: SRAM DUB PF 92 MTB Wide / shell 41x92mm
Rear Derailleur: SRAM GX Eagle AXS Transmission 12 Speed
Front Derailleur:
Derailleur Shifter: SRAM GX Eagle AXS Rocker Controller
Freewheel/Cassette: SRAM GX Eagle XS 1275 Transmission 10-52

Braking System

Brakes: Shimano XT M8120 4 Piston Disc
Brake Levers:

Wheels

Tyres: [F] Maxxis Minion DHF / 2.6" / 120TPI Foldable, Tubeless Ready / EXO 3C maxxTerra [R] Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO 3C maxxTerra
Wheels/Rims: Syncros Revelstoke 2.0 6 Bolt, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready rim 28H / XD Driver, Syncros Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools
Hubs: [F] [R]

Other

Handlebar: Syncros Hixon iC Carbon
Stem:
Seat Post: Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm
Saddle: Syncros Tofino 2.0 Regular

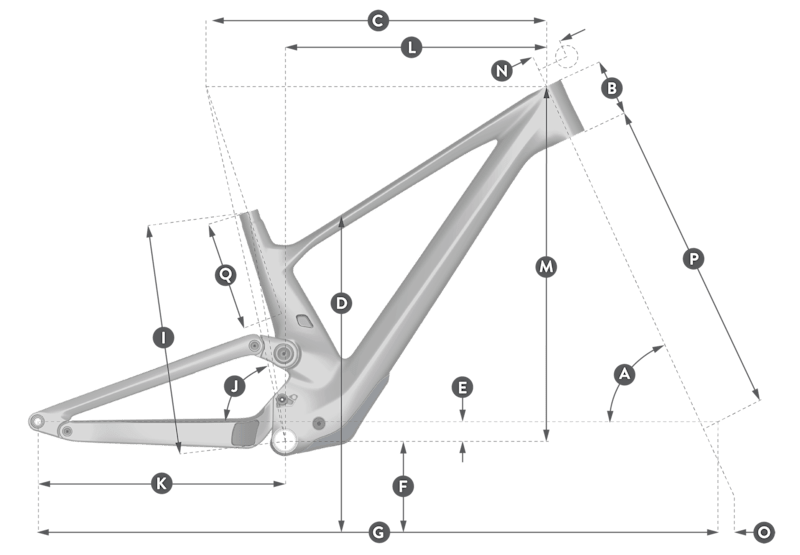

Geometry

Scott Genuis ST 910 TR

Scott Genius ST 910 TR Bike - main image

	S	M	L	XL
A head tube angle (+0.6° Headset Setting)	63.9 mm	63.9 mm	63.9 mm	63.9 mm
B head tube length	90.0 mm	100.0 mm	120.0 mm	135.0 mm
C top tube horizontal	570.1 mm	602.2 mm	631.3 mm	659.3 mm
D standover height	728.5 mm	738.5 mm	753.5 mm	768.5 mm
E BB offset	-33.0 mm	-33.0 mm	-33.0 mm	-33.0 mm
F BB height	342.5 mm	342.5 mm	342.5 mm	342.5 mm
G wheel base	1195.0 mm	1229.0 mm	1263.0 mm	1294.0 mm
H BB center to toptube center	-	-	-	-
I BB center to top of seattube	380.0 mm	410.0 mm	440.0 mm	470.0 mm
J seat angle	76.8 mm	77.1 mm	77.2 mm	77.4 mm
K chainstay	440.0 mm	440.0 mm	440.0 mm	440.0 mm
L reach	430.0 mm	460.0 mm	485.0 mm	510.0 mm
M stack	617.0 mm	626.1 mm	644.2 mm	657.8 mm
N stem length	40.0 mm	40.0 mm	40.0 mm	40.0 mm
P fork length	571.0 mm	571.0 mm	571.0 mm	571.0 mm
Q Maximum Seatpost Insertion	173.0 mm	204.0 mm	234.0 mm	265.0 mm
R Crank Length	170.0 mm	170.0 mm	170.0 mm	170.0 mm

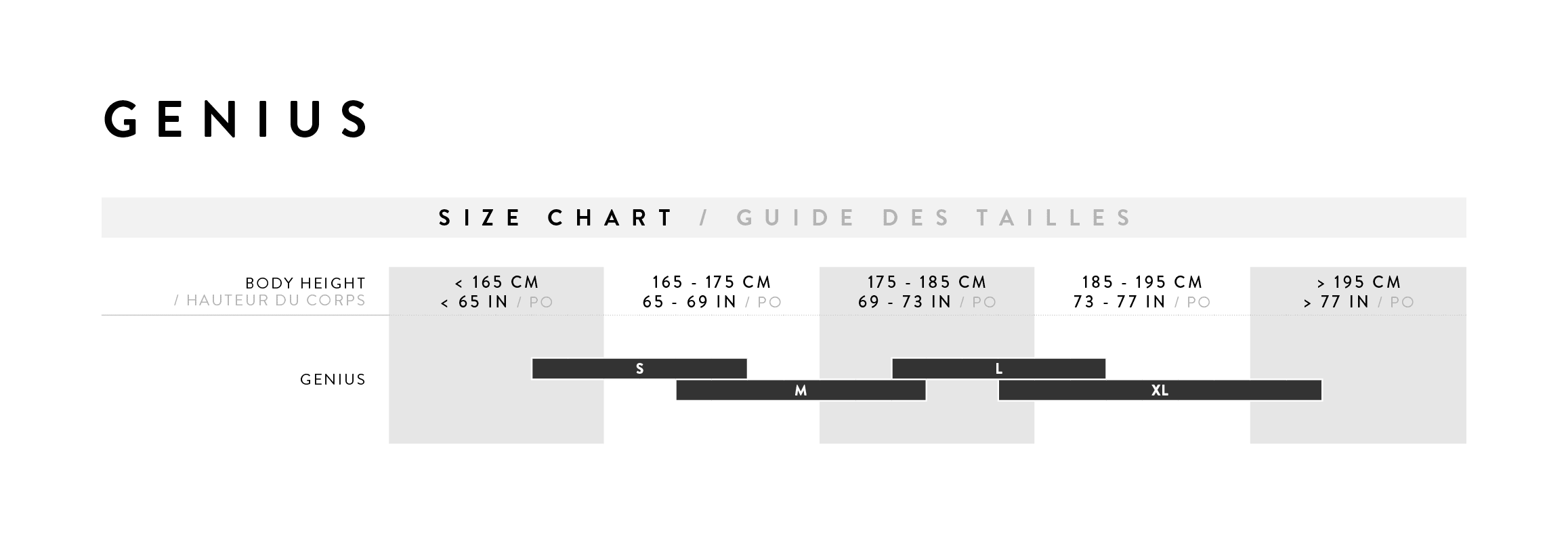

Size Chart for Scott Genius ST 910 TR Bike
