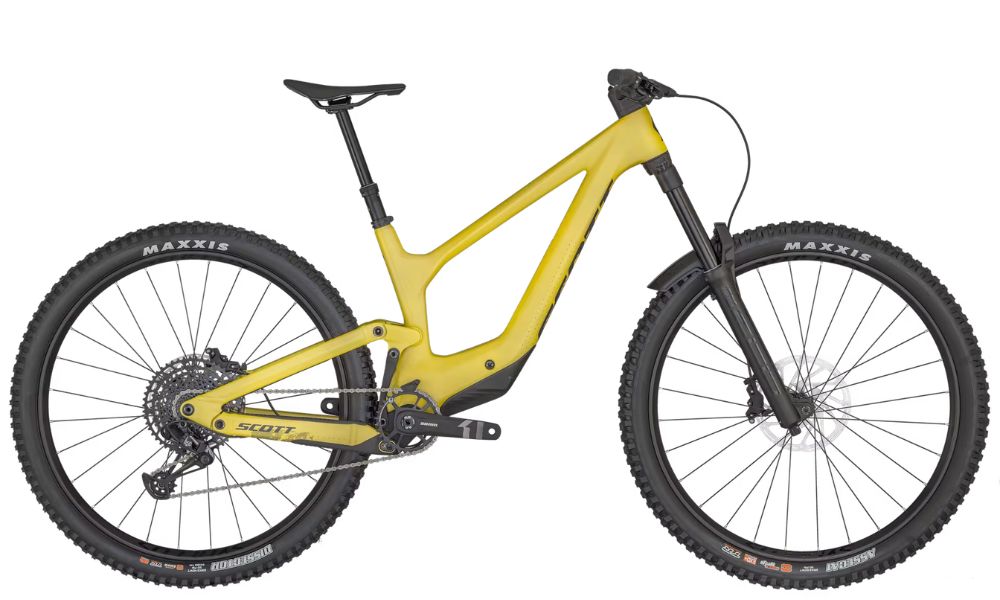

Scott Ransom 920

Introducing the all-new SCOTT Ransom. Our latest version of Ransom was uncompromisingly engineered for maximum downhill performance and an all-time confidence inspiring ride. Killer geometry paired with a supernatural suspension kinematic result in a bike that doesn’t take “no” for an answer. Don’t hold yourself hostage, ride Ransom.

Specifications

Scott Ransom 920

Frame

Size: S, M, L and XL
Colour: Yellow
Frame: Ransom Carbon HMF Mainframe with Alloy 6061 Swingarm
Fork: RockShox Zeb Select+ Charger 3
Shock: FOX FLOAT X NUDE EVOL Piggy Back Trunnion / SCOTT custom w. travel / geo adj.

Drivetrain

Crankset: SRAM X1 1000 Eagle DUB Boost
Pedals:
Chain: SRAM CN SX Eagle
Bottom Bracket: SRAM DUB PF integrated / shell 41x92mm
Rear Derailleur: SRAM NX Eagle 12 Speed
Front Derailleur:
Derailleur Shifter: SRAM SX Eagle Trigger
Freewheel/Cassette: SRAM NX / PG1210 / 11-50 T

Braking System

Brakes: SRAM DB8 4 Piston Disc
Brake Levers:

Wheels

Tyres: [F] Maxxis Assegai / 2.5" / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp [R] Maxxis Dissector / 2.4" / 120TPI Foldable / DD/ TR / 3C Maxx Terra
Wheels/Rims: Syncros Revelstoke 2.5 6 Bolt, F: 15x110mm, R: 12x148mm Boost, 30mm Tubeless ready rim 28Hr, Syncros Axle w/Removable Lever with Tool
Hubs: [F] [R]

Other

Handlebar: Syncros Hixon 2.0 Alloy 6061 D.B.
Stem: Syncros AM 2.0
Seat Post: Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm
Saddle: Syncros Tofino 2.0

Scott Ransom 920

	S	M	L	XL
A head tube angle	63.8 mm	63.8 mm	63.8 mm	63.8 mm
B head tube length	95.0 mm	100.0 mm	115.0 mm	125.0 mm
C top tube horizontal	569.9 mm	598.7 mm	624.4 mm	649.1 mm
D standover height	719.2 mm	725.4 mm	736.7 mm	755.3 mm
E BB offset	-25.0 mm	-25.0 mm	-25.0 mm	-25.0 mm
F BB height	350.0 mm	350.0 mm	350.0 mm	350.0 mm
G wheel base	1206.6 mm	1238.8 mm	1270.4 mm	1299.8 mm
H BB center to toptube center	-	-	-	-
I BB center to top of seattube	380.0 mm	410.0 mm	440.0 mm	470.0 mm
J seat angle	77.0 mm	77.2 mm	77.4 mm	77.6 mm
K chainstay	440.0 mm	440.0 mm	440.0 mm	440.0 mm
L reach	428.0 mm	458.0 mm	483.0 mm	508.0 mm
M stack	614.8 mm	619.3 mm	632.8 mm	641.7 mm
N stem length	40.0 mm	40.0 mm	40.0 mm	40.0 mm
P fork length	581.0 mm	581.0 mm	581.0 mm	581.0 mm
Q Maximum Seatpost Insertion	184.5 mm	214.6 mm	244.7 mm	274.6 mm
R Crank Length	165.0 mm	170.0 mm	170.0 mm	170.0 mm

Size Chart for Scott Ransom 920 Bike
